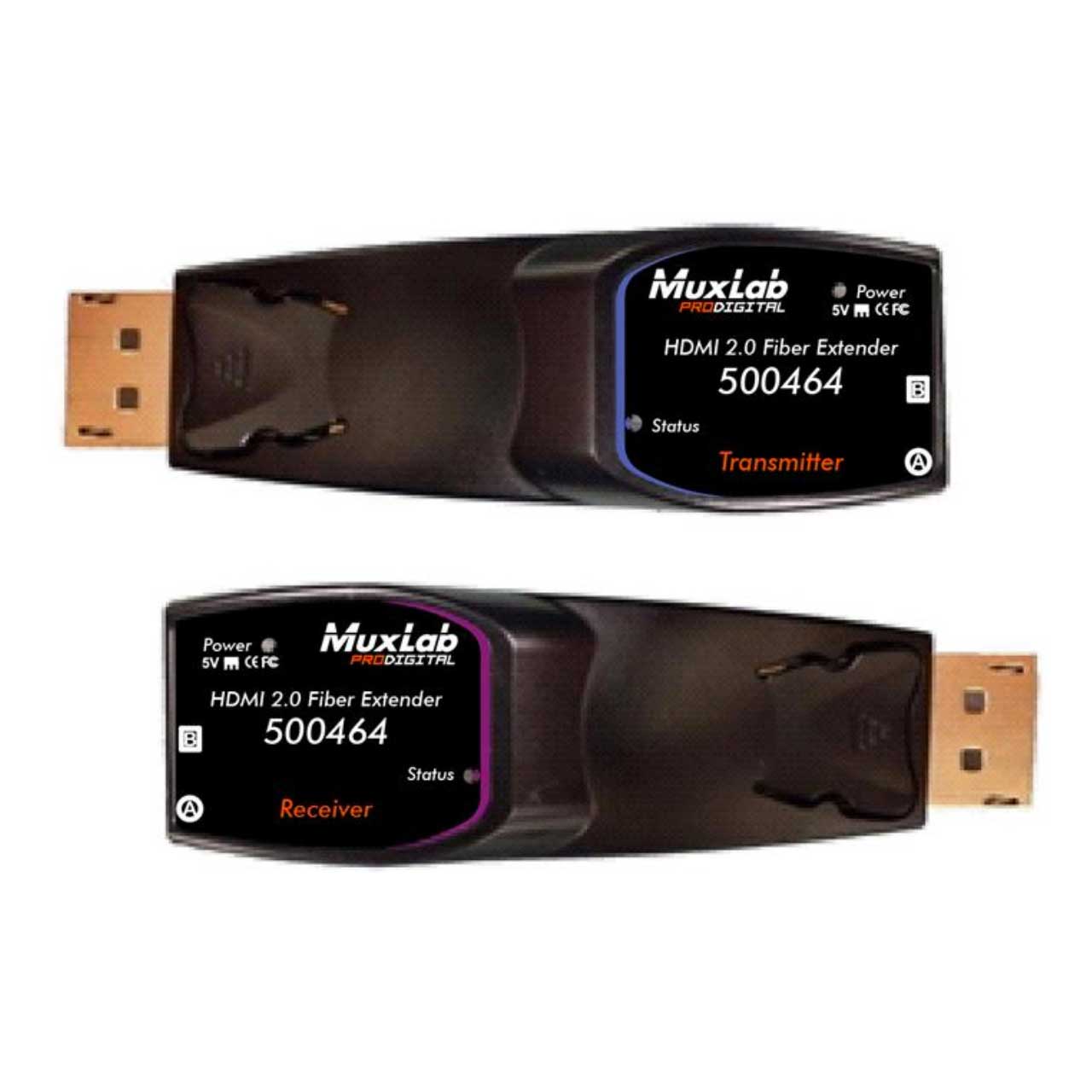

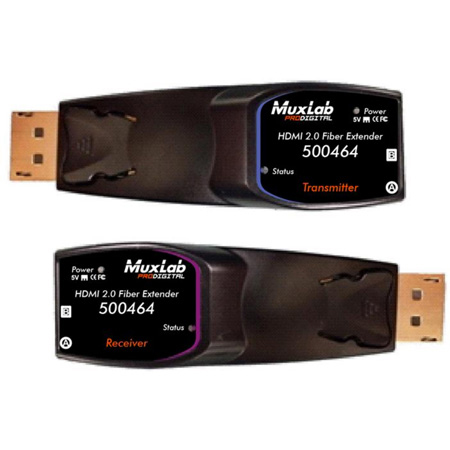

MuxLab 500464 HDMI over Fiber Extender Kit - Full HDMI 2.0 Compatible

ITEM #: MUX-500464 MFG #: 500464

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
MuxLab Inc
Free Shipping with $49 Minimum Order

List Price:

$1,610.00

Our Price:

$1,288.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

500464 - Overview

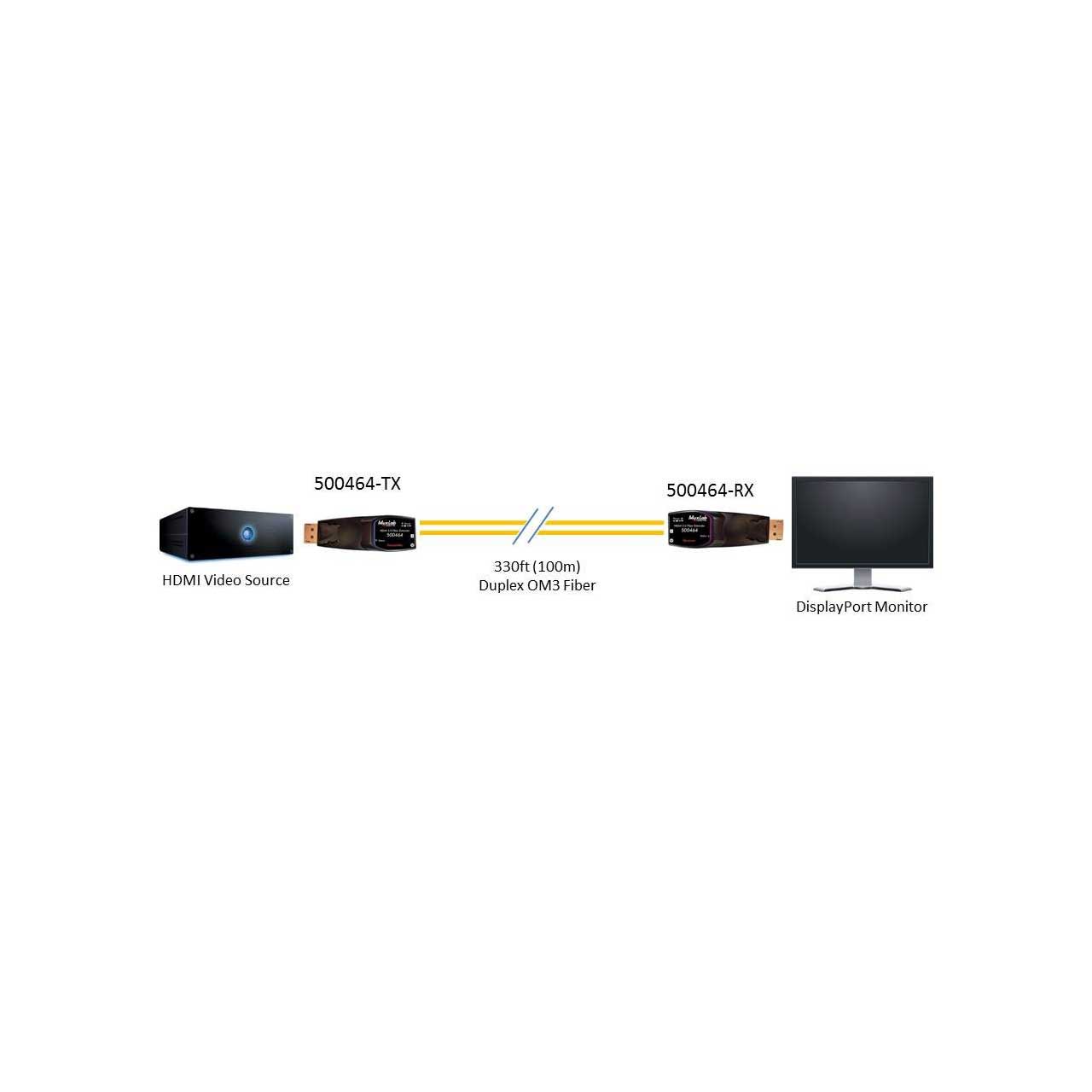

The Muxlab HDMI 2.0 Fiber Extender Kit, 500464 enables the user to transmit 4K (4096+2160) video at 60Hz signal up to 330ft (100m) via OM3 multi-mode fiber, with any form of scaling or data compression being applied to the signal. This device supports a total data throughput of 18Gbps (6Gbps per lane). The unit supports two (2) LC connectors The Transmitter may be powered via USB power (with the included power supply), or from the 5V supplied from pin #18 of the HDMI connector of the source side only.

About HDMI 2.0!
HDMI 1.4 introduced the kind of bandwidth required to deliver 4K video, but HDMI 2.0 can dole out 4K video without compromise, at 50 and 60 frames per second. In HDMI 1.4, the rate of 4K was limited to 24 frames per second.

  • Features:

    • Supports the HDMI 2.0 standard
    • Up to 4K (4096x2160) resolution, @ 60Hz
    • Bandwidth of 18Gbps
    • Up to 330ft (100m) over OM3 50/125microns multi-mode fiber
    • Supports CEC, EDID & HDCP 2.2
    • High retention HDMI connector to prevent accidental disconnection
    • Robust compact metal enclosure


  • Specifications:

    • Environment: HDMI 2.0
    • Devices: Plasma, projectors, monitors, Television, PC, laptops, and servers supporting HDMI.
    • Transmission: Transparent to the user
    • Video Bandwidth: 18 Gbps (6 Gbps per lane)
    • Video Resolution: Up to 4096x2160 @ 60Hz
    • Signals: HDMI 2.0
    • Connectors per unit: One (1) HDMI Male Connector Two (2) LC Optical Connectors One (1) Micro USB connector for external power
    • Maximum Distance: 330ft (100 m) over 50/125 µm multi-mode fiber (OM3)
    • Cable: Two (2) LC multi-mode fibers, having a 50/125m core
    • Power Supply: Two (2) 110-240V to 5VDC, 1A power supply with interchangeable blades for US, UK & Euro
    • Operating Temperature: 0° to 50°C Storage: -30° to 70°C
    • Humidity: Up to 85% non-condensing
    • Enclosure: Metal
    • Dimensions: 1.02" x 2.83" x 0.57" (26 x 72 x 15 mm)
    • Weight: 1.0 lbs (0.45 kg)


  • GTIN:

    0627699004647
