MuxLab 500558 Dante 2-Channel XLR Wall-Plate with 2 XLR Balanced Inputs/Outputs - White

Name: MuxLab 500558 Dante 2-Channel XLR Wall-Plate with 2 XLR Balanced Inputs/Outputs - White
Brand: MuxLab Inc
SKU: MUX-500558-WH
Price: 698.00 USD
Availability: InStock

ITEM #: MUX-500558-WH MFG #: 500558-WH

MuxLab Inc

Colors:

Colors

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$873.00

Our Price:

$698.00

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

500558-WH - Overview

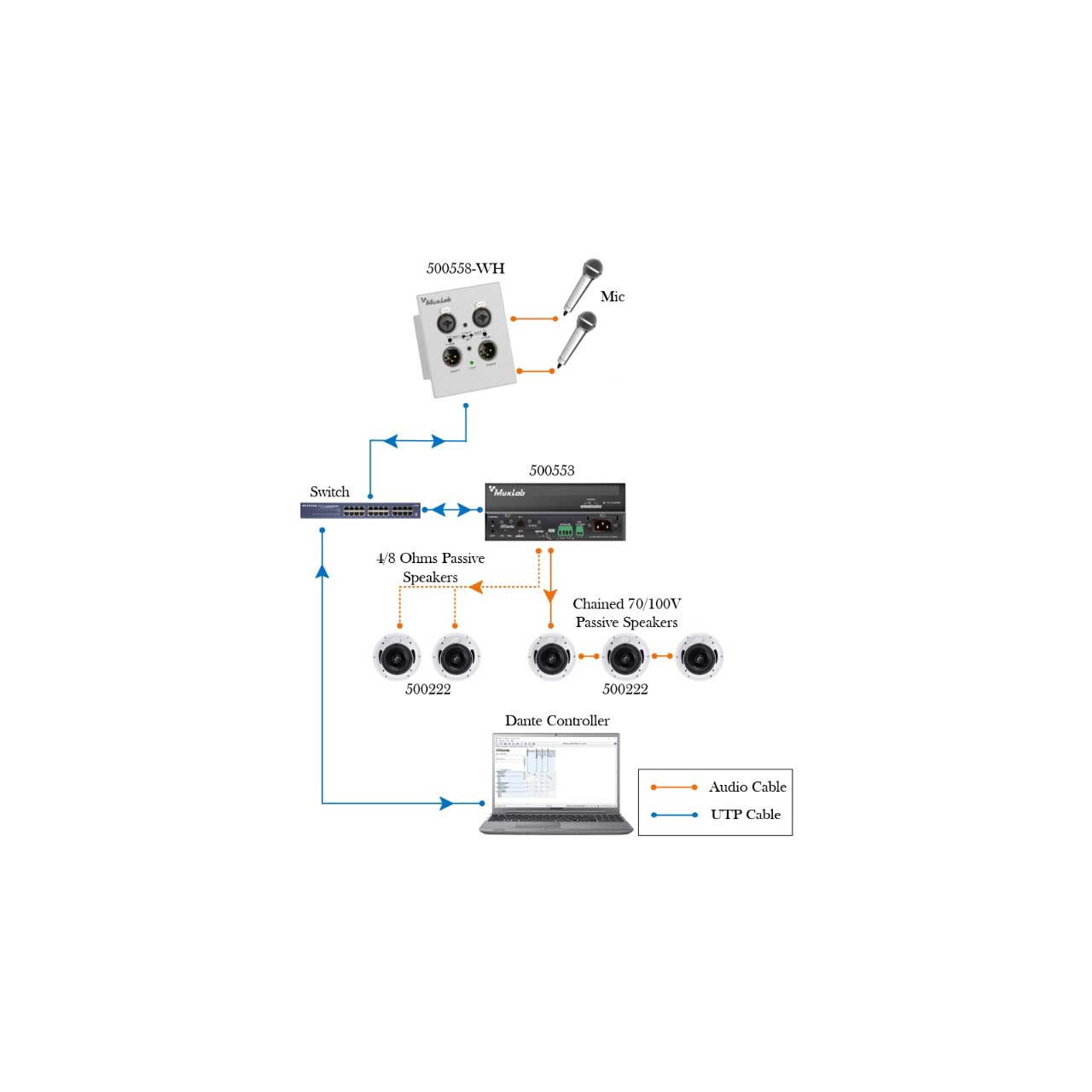

The Muxlab Dante 2-Chanel XLR Wall-Plate (Model 500558) permits non-Dante compatible analog audio equipment to interface with Dante compatible professional audio equipment. The unit allows the transmission of full-range (20Hz - 20KHz) balanced or unbalanced two channel analog audio signals on XLR over the network to Dante equipment. It is powered using the PoE from any PoE network switch. The Dante 2 channel XLR Interface is designed to be compatible with standard double gang US wall boxes.

Features:
- Built-in Dante module
- Supports PoE power from PoE network switches
- Features 2 XLR balanced inputs and 2 XLR balanced outputs
- Features 2 channels Dante input and 2channels Dante output
- Audio sampling rate supports 48kHz (24bit)
- The input supports 48VDC phantom power supply
- Power supply and audio transmission integrated in one cable
- Designed to be compatible with standard double gang US wall boxes.
- Supports PoE (IEEE802.3af)
Specifications:
- XLR Impedance Input: Balance 20k Ohm
- XLR Impedance Output: Balance 100 Ohm
- Dante interface: RJ45 interface, with PoE
- Frequency response: 20Hz-20kHz
- Sampling rate: 48kHz 24bit
- Floor noise: -90dB
- Channel Isolation: 100dB @ 1kHz
- Form Factor: 2 Gang US
- Power Consumption: 2W
- THD + N: <0.005% @4dBu
- Operating temperature: 32° ~ +104° (0°C ~ +40°C)
- Dimensions (LxWxH): 4.86" x 3.11" x 1.37" (123.5mm x 79mm x 35mm)
- Net Weight: .34 lbs (156g)
Item Includes:
- 1x Muxlab Dante 2-Channel XLR Wall-Plate
Warranty:
- 2-Year Warranty
