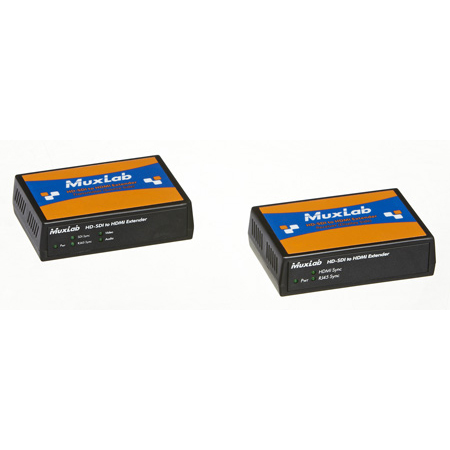

MuxLab 500715 HD-SDI to HDMI Converter & CAT5 Extender Kit

ITEM #: MUX-500715 MFG #: 500715

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the MUX-500715

500715 - Overview

Converts HD-SDI to HDMI & Extends it 330 Feet!

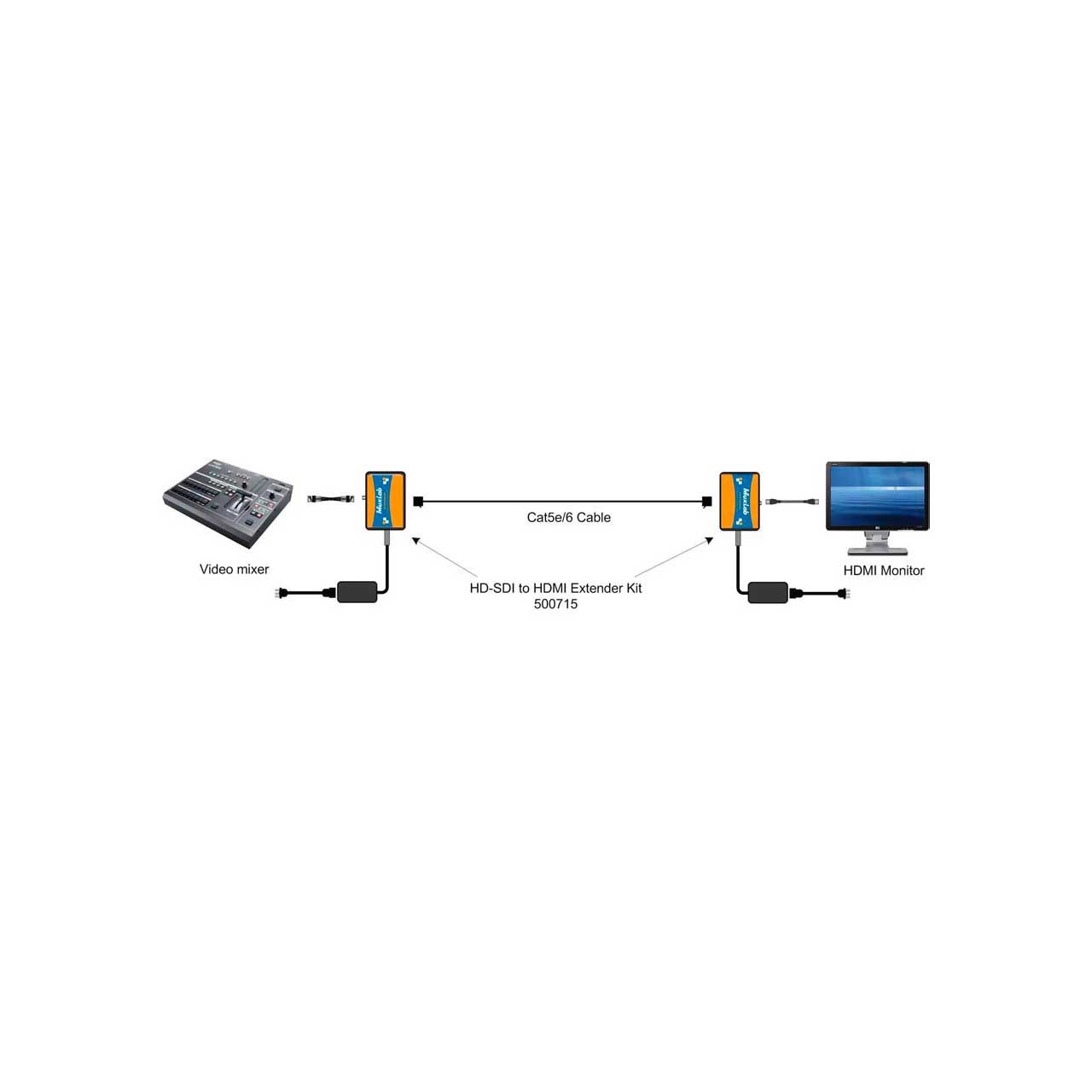

The MuxLab 500715 - 3G-SDI to HDMI Extender Kit converts 3G-SDI to HDMI and then transmits it up to 330 ft / 100m via single Cat5e/6 cable at all resolutions in a point-to-point configuration. The 3G-SDI to HDMI Extender Kit supports transmission of up to 2.97/3.0 Gbps uncompressed, un-encrypted digital video (optionally including embedded Audio and/or Time Code) within television facilities and between professional video equipment.

  • Features:

    • Up to 330ft / 100m via Cat5e cable
    • Up to 400ft / 122m via Cat6 cable
    • Supports SDI-SMPTE 259M-C (270Mbps) HD-SDI-SMPTE 292M (1.485, 1.485/1.001 Gbps) HD-SDI-SMPTE 424M/425M (2.97/3.0 Gbps)
    • LED diagnostics: sync, SDI detect


  • Specifications:

    • Environment SDI single link: SD, HD & 3G.
    • Devices Monitors supporting the original SDI rate only.
    • Standard supported SMPTE 259M (270Mb/s), SMPTE 292M & SMPTE 424M.
    • Bit rates 270Mb/s, 1.485Gb/s & 2.97 Gb/s (automatic selection).
    • Video format supported (monitor must support
    • the original SDI rate):
    • SD: 525i, 59.94/60Hz & 625i, 50Hz
    • HD: 720p @ 60Hz, 50Hz, 30Hz, 25Hz & 24Hz
    • 1080i @ 60Hz & 50Hz
    • 1080p @ 30Hz, 25Hz & 24Hz
    • 3G: 1080p @ 60Hz & 50Hz
    • Sound format supported: 48kHz @ 24 bit, 20 bit & 16 bit.

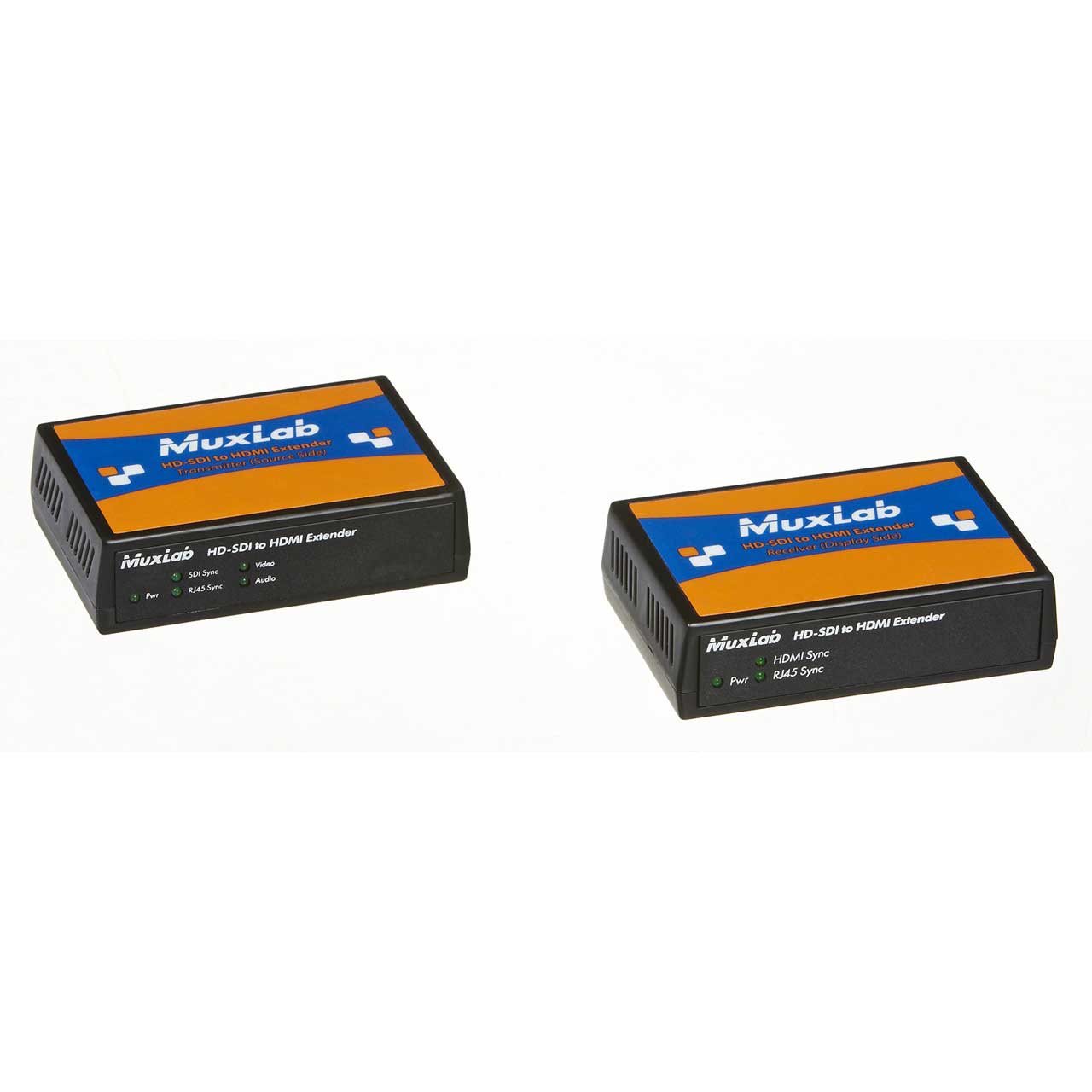

    • Indicators: Power, SDI Sync (on rx side only), RJ45 Sync, Video (on tx side only), Sound (on tx side only), HDMI Sync (on rx side only).

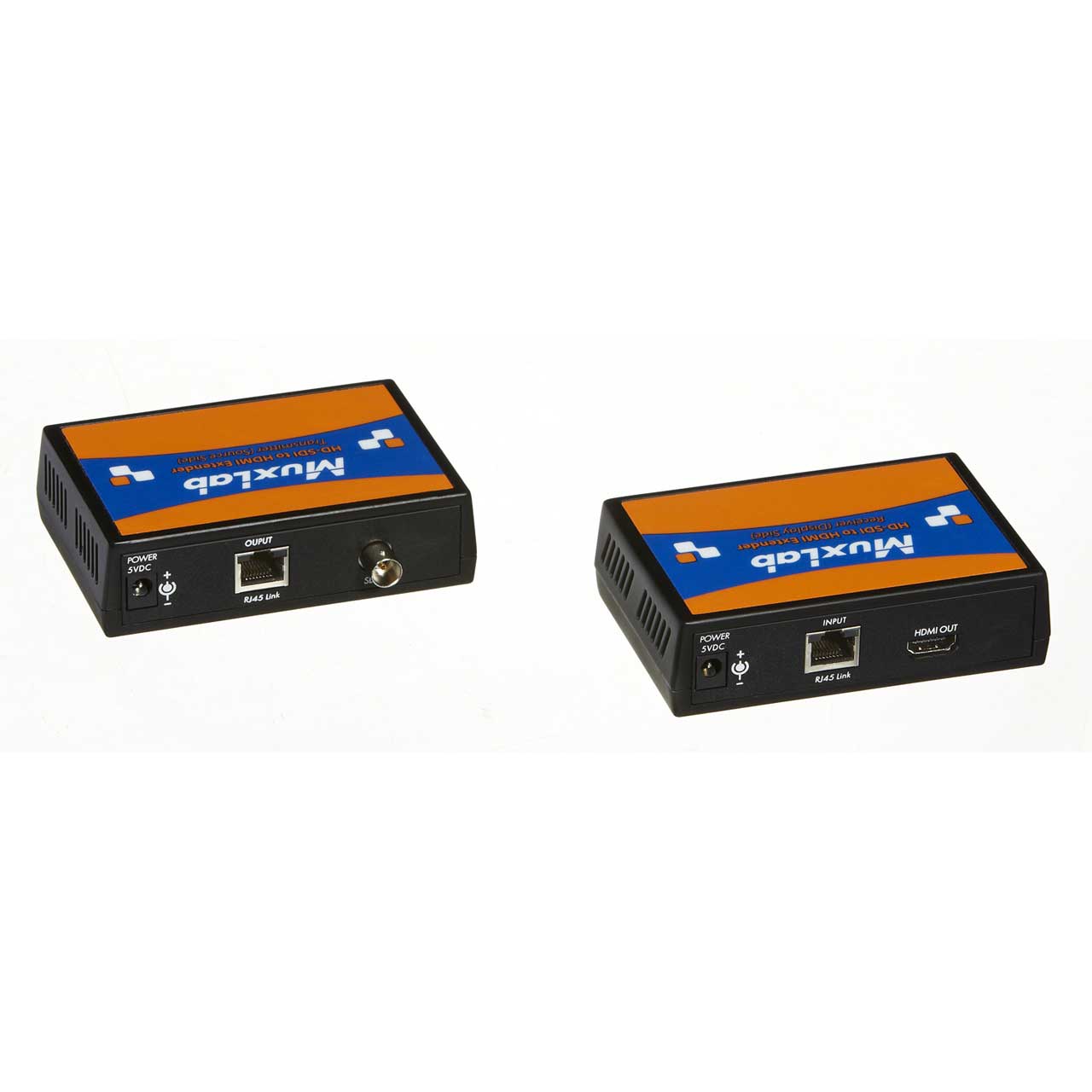

    • Connectors On each unit: 1 BNC 75 ohm female on source side, 1 HDMI on receiver on receiver side, 1 RJ45S for Cat5e/6 unshielded twisted pair, 1 power connector, 2mm.
    • Maximum Distance UTP Cat 5e: 330 ft (100 m) UTP Cat 6: 400 ft (122 m) for 500715, UTP Cat 5e: 500 ft (150 m) UTP Cat 6: 500 ft (150 m) for 500716, Maximum distance applies for all format and speed between boxes, OnSDI side: 450 ft (140m), On HDMI side: 15 ft (5 m) typical.
    • Cables (Not included): One straight Cat 5e/6 twisted pair cables required, one 75 ohm coaxial cables with 75 ohm BNC required, one HDMI cable.
    • Power Supply (Included): Two 100-240V/5VDC 6W power supplies with interchangeable blades for NA, Europe and UK.
    • Power Consumption Transmitter: 4 Watts Receiver: 6 Watts
    • Temperature Operating: 0° to 40°C Storage: -20° to 85°C Humidity: Up to 95% non-condensing.
    • Enclosure 6061 Aluminum alloy
    • Dimensions 4.50" x 3.00" x 1.25" (11.4 x 7.6 x 3.2 cm)
    • Weight 2.5 lb. (1.1 kg)
    • Warranty: 2 years


  • Warranty:

    • 2 Year Warranty on all Active Products - lifetime Warranty on all Passive Products


  • GTIN:

    0627699007150
