Artel FiberLink 390-008454-10 SMARTST2022 3G/HD/SD ASI and Gig-E Delivery Over 10 Gig Ethernet

ITEM #: ARTL-39000845410 MFG #: 39000845410

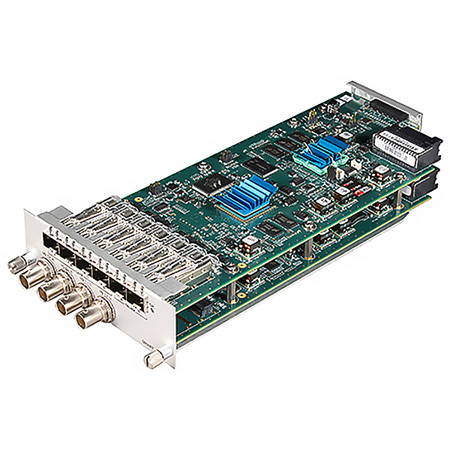

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$19,500.00

Our Price:

$18,107.14

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


39000845410 - Overview

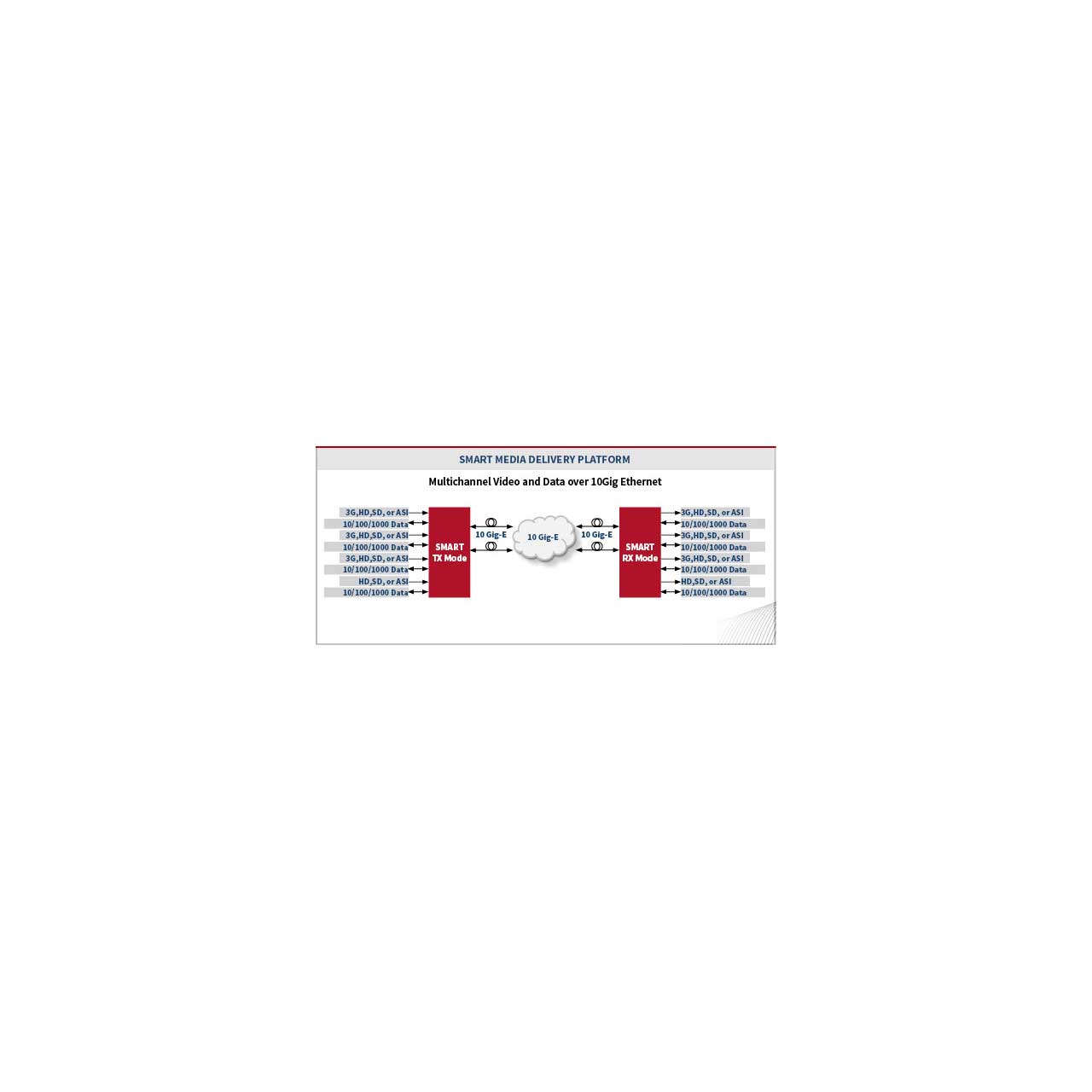

The SMART Media Delivery Platform™ is a four-channel auto-sense 3G/HD/SD-SDI-over-IP multifunction gateway with an integrated nonblocking Layer 2/3 switch. The SMART Platform has been designed to attach seamlessly to the IP network without the need for external network elements. Functionality of the platform may be added or upgraded via software download. The flexibility in function capabilities, along with greater port density, drastically reduces power consumption, reduces size and cost, and allows for a seamless transition as the end user's network evolves.

  • Features:

    • Video-Over-IP Transport of 3G/HD/SD-SDI, ASI
    • Single double high module can be configured as Video to IP Transmitter or IP to Video Receiver
    • Fully transparent carriage of 3G/HD/SD-SDI, and ASI including audio and ancillary data
    • Four GigE data ports bridged to 10G interface
    • VLAN tagging capabilities

  • Specifications:

    • ENVIRONMENTAL
    • OPERATING TEMPERATURE: 0 to 50°C
    • AMBIENT STORAGE TEMPERATURE: -40 to 80°C
    • RELATIVE HUMIDITY: 10 to 95% (non-condensing)
    • POWER DISSIPATION
    • 38 Watts

      PHYSICAL
    • DIMENSIONS: 1.6" x 5" x 10.8"
    • WEIGHT: 2 pounds

      VIDEO INTERFACE
    • CONNECTORS: 4 Rear BNC 75 Ohm (input or output)
    • RETURN LOSS: >15 dB, 5-1485 MHz
    • CHASSIS COMPATIBILITY: DigiLink: DL4360x, DL4000, InfinityLink: IL6000 chassis

      10G NETWORK INTERFACE (TRUNK)
    • TYPE: Ethernet SFP+ (2)
    • OPTICAL CONNECTORS: LC
    • FORMAT: 10 Gig-E

      GIG E USER DATA INTERFACE
    • DATA RATES: 10/100/1000 Ethernet
    • INTERNAL: 1 to other modules in chassis
    • EXTERNAL SFP: (4) Optical or RJ-45
