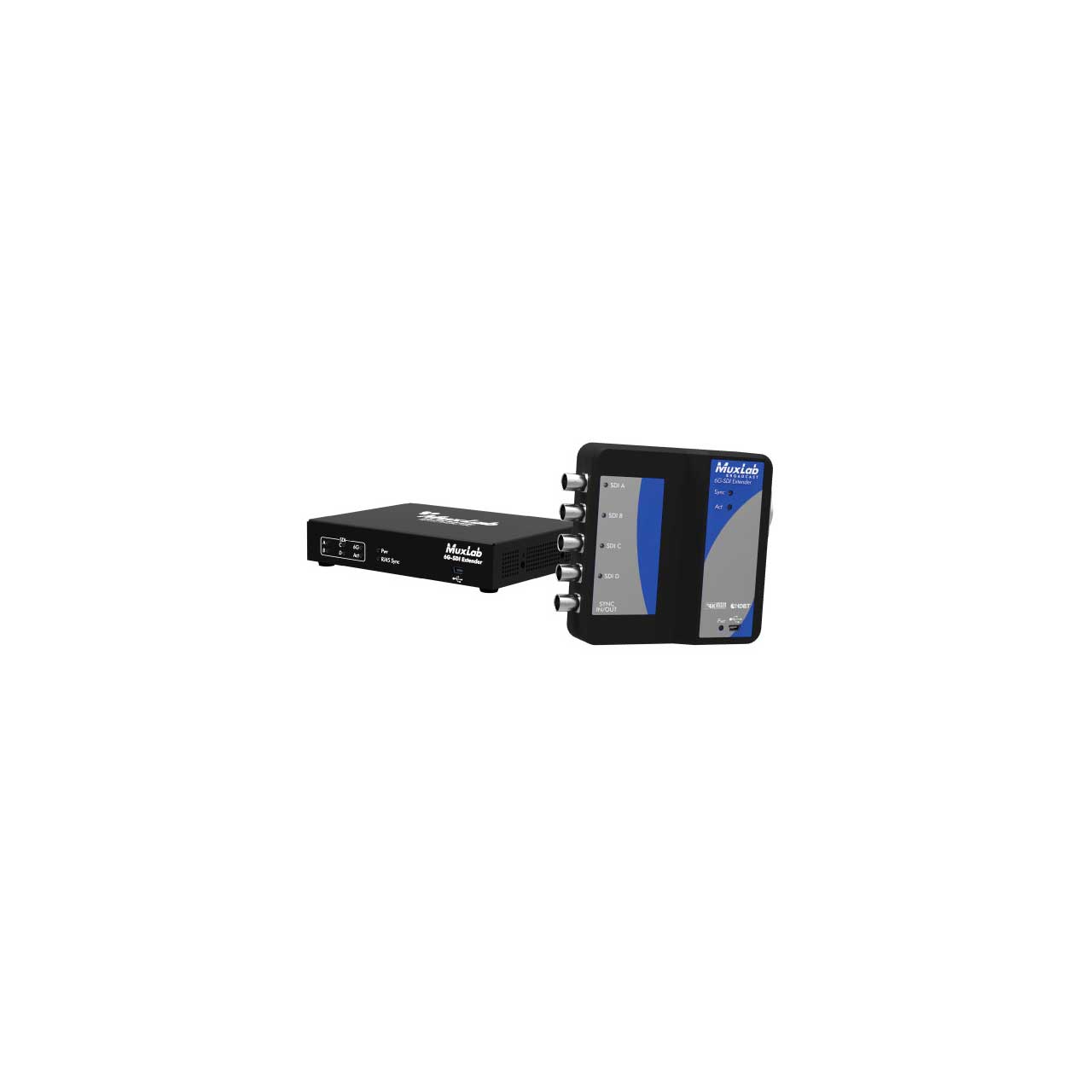

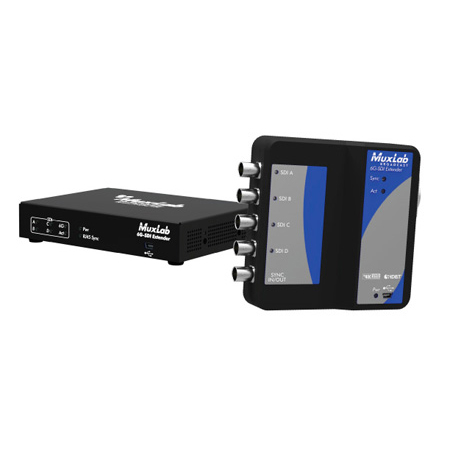

MuxLab 500730 6G-SDI Extender Over UTP CAT5e

500730 - Overview

• Features:

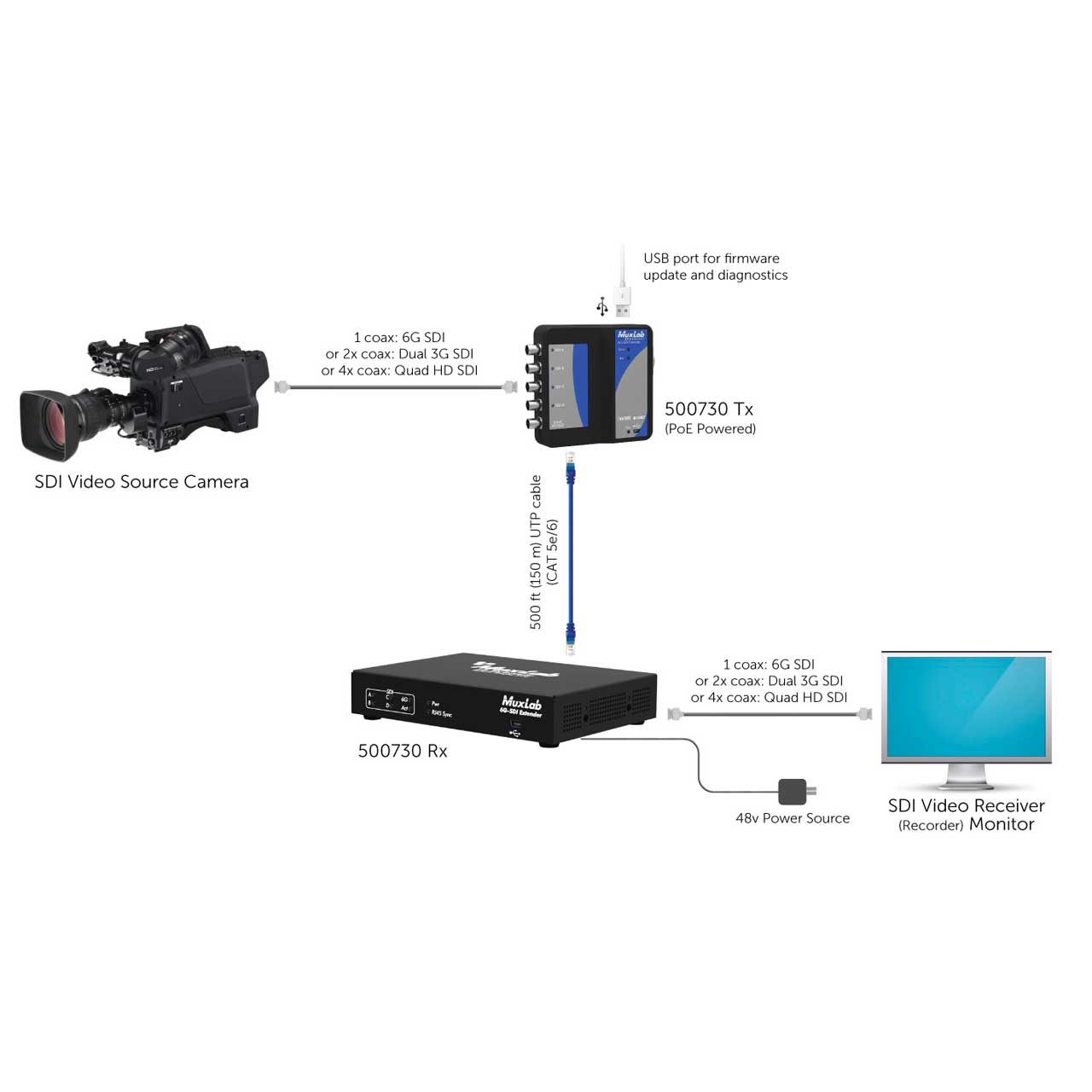

  • Up to 500 feet (150m) using HDBaseT technology
  • HD-SDI using single, two or four coax cables, 3G-SDI using single or two coax cables, 6G-SDI using a single coax cable
  • Maximum resolution supported: 4K/30
  • Supported modes: SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M
  • Supports all 6G channel configurations (1/2/4)
  • Automatic SDI Link recognition and configuration
  • USB interface for field upgradable firmware and diagnostics
  • PoE to power supply to the Transmitter (Tx)
  • Ethercon Connectivity and Aluminum Enclosure for ruggedized use


• Specifications:

  • Environment: 6G-SDI digital signal transmission
  • Enclosure: Metal box, approx. 5.6"x4"x1" (RX) / 4.3" x 4.3" x 1" (TX)
  • Color: Black
  • Control: Serial console emulation with USB interface
  • Front panel (RX): Mini USB for firmware updates status LEDS
  • Rear panel (RX):
  • +48 V power jack
  • BNC for SYNC input signal
  • RJ45 for UTP cable between RX and TX unit
  • 4x BNC, SDI output connectors
  • Front panel (TX):
  • BNC for SYNC output signal
  • 4x BNC SDI output connectors
  • Rear panel (TX): RJ45 for UTP cable between RX and TX unit
  • Top panel (TX): Mini USB for firmware updates status LEDS
  • Connectors (SDI in): 4 BNC connector for SDI input ( 0.8V pp, 75 ohm )
  • Connectors (SDI out): 4 BNC connector for SDI output ( 0.8V pp, 75 ohm )
  • Connectors (sync): 2 BNC connectors
  • Connectors (control): Mini USB, for configuration and firmware updates
  • Connectors (UTP ): RJ45 / Ethercon, for UTP communication
  • Connectors - power: One standard 2.1mm power jack
  • Compliance: FCC, CE, RoHS
  • Power: 48V external power supply with US, UK and Euro blades


• GTIN:

  0627699007303
