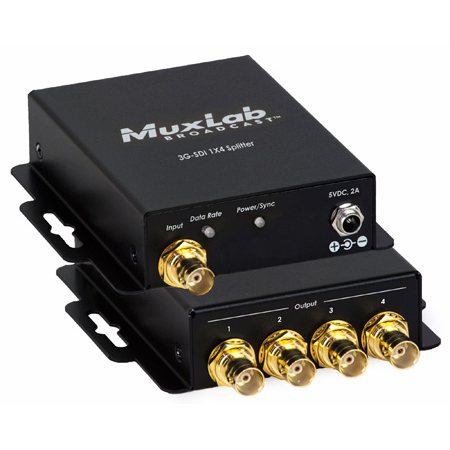

Muxlab 500719 3G-SDI 1x4 Splitter

500719 - Overview

• Features:

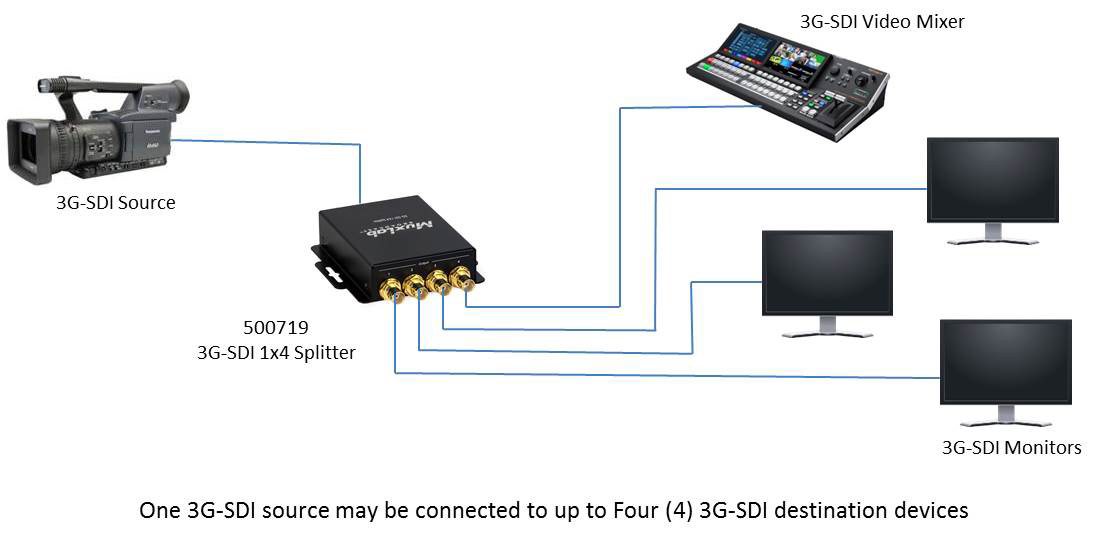

  • Distribute one 3G-SDI source to four displays
  • Supports up to 1080p @ 60Hz, including 3G/HD/SD-SDI
  • Automatically detects re-clocks and regenerates the 3G/HD/SD-SDI signal
  • LED diagnostic


• Specifications:

  • Environment: 3G-SDI, HD-SDI & SD-SDI.
  • Devices: Camera, projectors, monitors, TV.
  • Transmission: Transparent to the user.
  • Detection: Auto Detection of the 3G/HD/SD-SDI Signal.
  • Bandwidth: 2.97Gbps & 2.97/1.001Gbps
  • Data Rates: 270,1483 and 1485Mbps
  • Output Impedance 75Ω
  • Signals: SDI protocol.
  • Supported Resolution -
  • 3G-SDI: 1080p50/59.94/60Hz (4:2:2)
  • HD-SDI: 1080p/23.98/24/25/29.97/30Hz, 720p/50/59.94/60Hz, 1080i/50/59.94/60Hz
  • SD-SDI: NTSC (59.94Hz), PAL (50Hz)
  • Audio: Up to 8 Audio Channels.
  • Ancillary Data: Supported
  • Input Signal -
  • 3G-SDI: SMPTE 424M, 425M
  • HD-SDI: SMPTE 292M, 296M
  • SD-SDI: SMPTE 259M, 344M

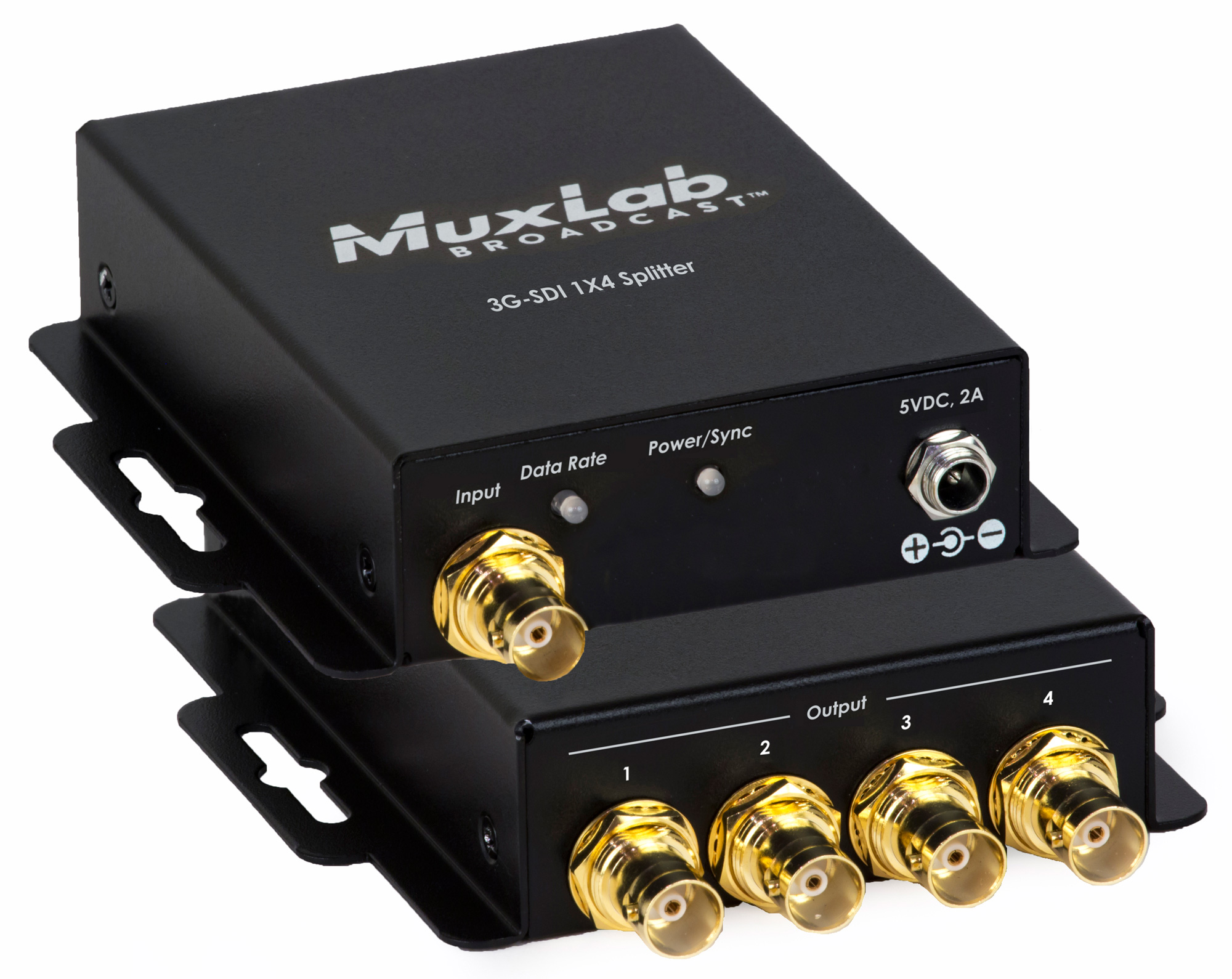

  • Connectors -
  • One BNC Female 75 Ohms, Gold Plated for input.
  • Four BNC Female 75 Ohms, Gold Plated for outputs.
  • One Locking Barrel Jack 2.1mm Power Connector.
  • Note: RG59 coaxial cables not included.
  • Cable Equalization -
  • 3G-SDI up to 300ft (90m)
  • HD-SDI up to 500ft (150m)
  • SD-SDI up to 1000ft (300m)
  • Cable: RG-59 or better cable required.
  • Power Supply: One 110-240V/5VDC power supply with interchangeable blades.
  • Power Consumption: 10.0 Watt (Max)
  • Operating Temp.: 0° to 40°C
  • Storage: -20° to 60°C
  • Humidity: Up to 90% non-condensing
  • Enclosure: Metal
  • Dimensions: 4.1" x 3.1" x 1.1" (105mm x 78mm x 27mm)
  • Weight: 0.7lbs (0.32kg)
  • Compliance: Regulatory: FCC, CE, RoHS Flammability: 94V0


• Warranty:

  • 2 Years


• GTIN:

  0627699007198
