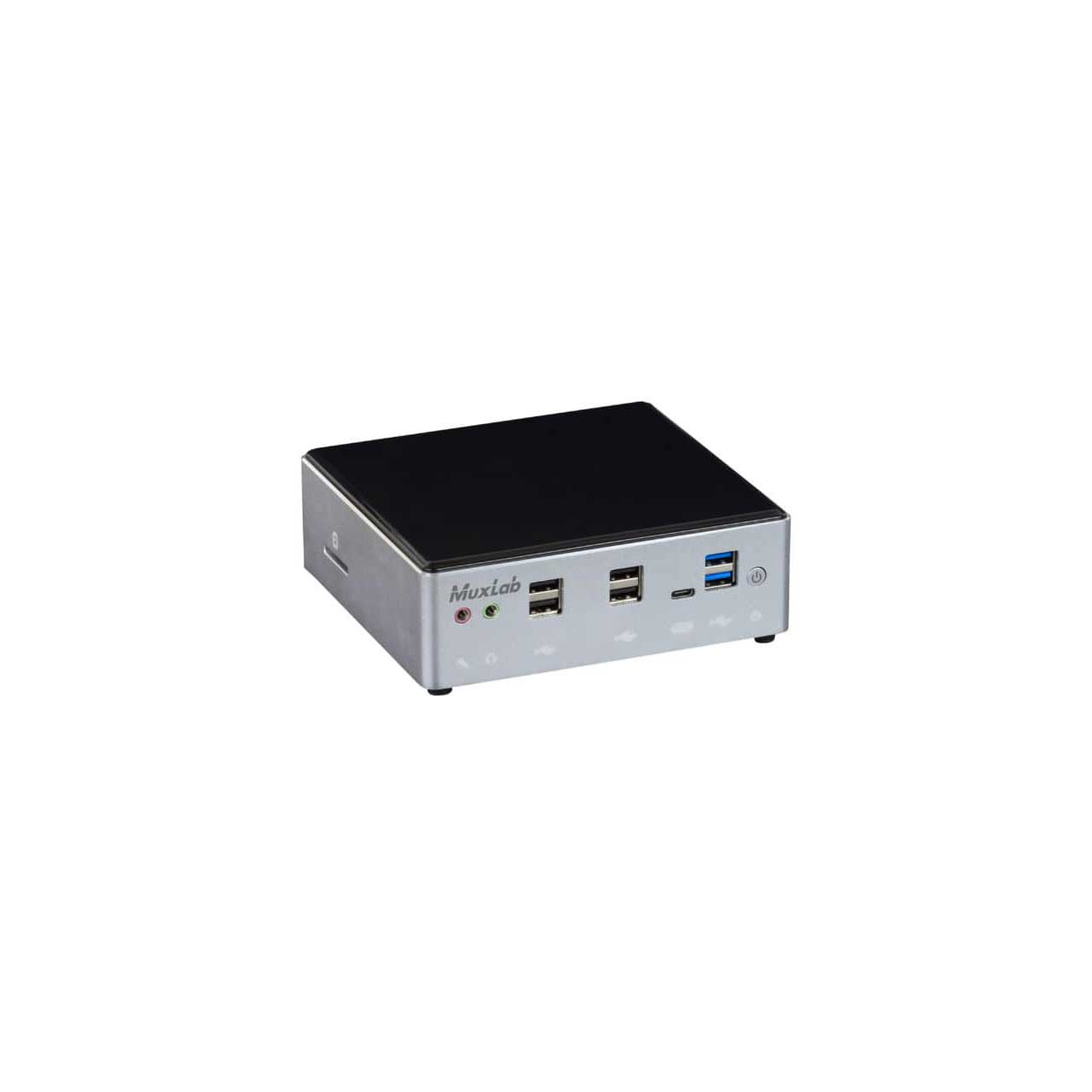

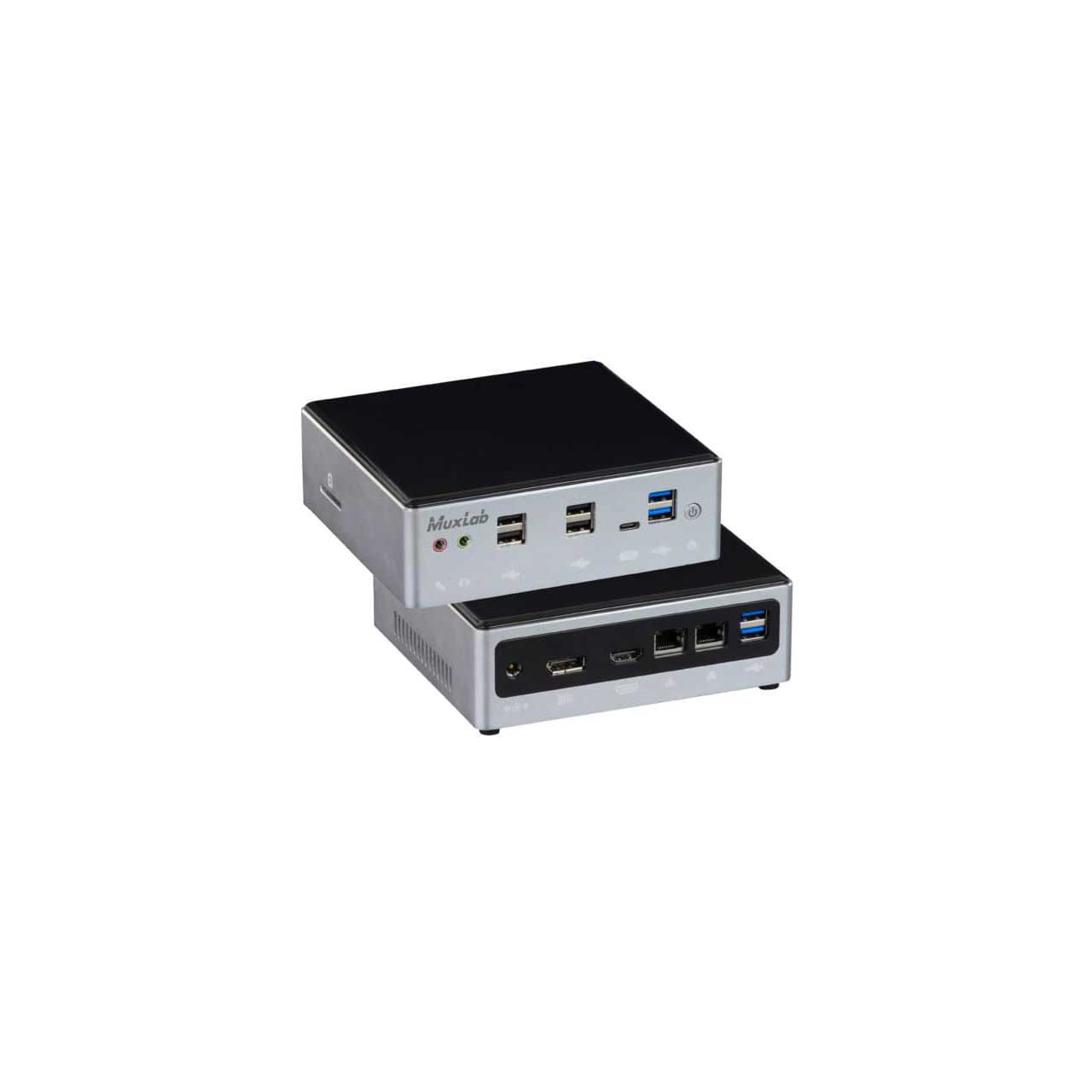

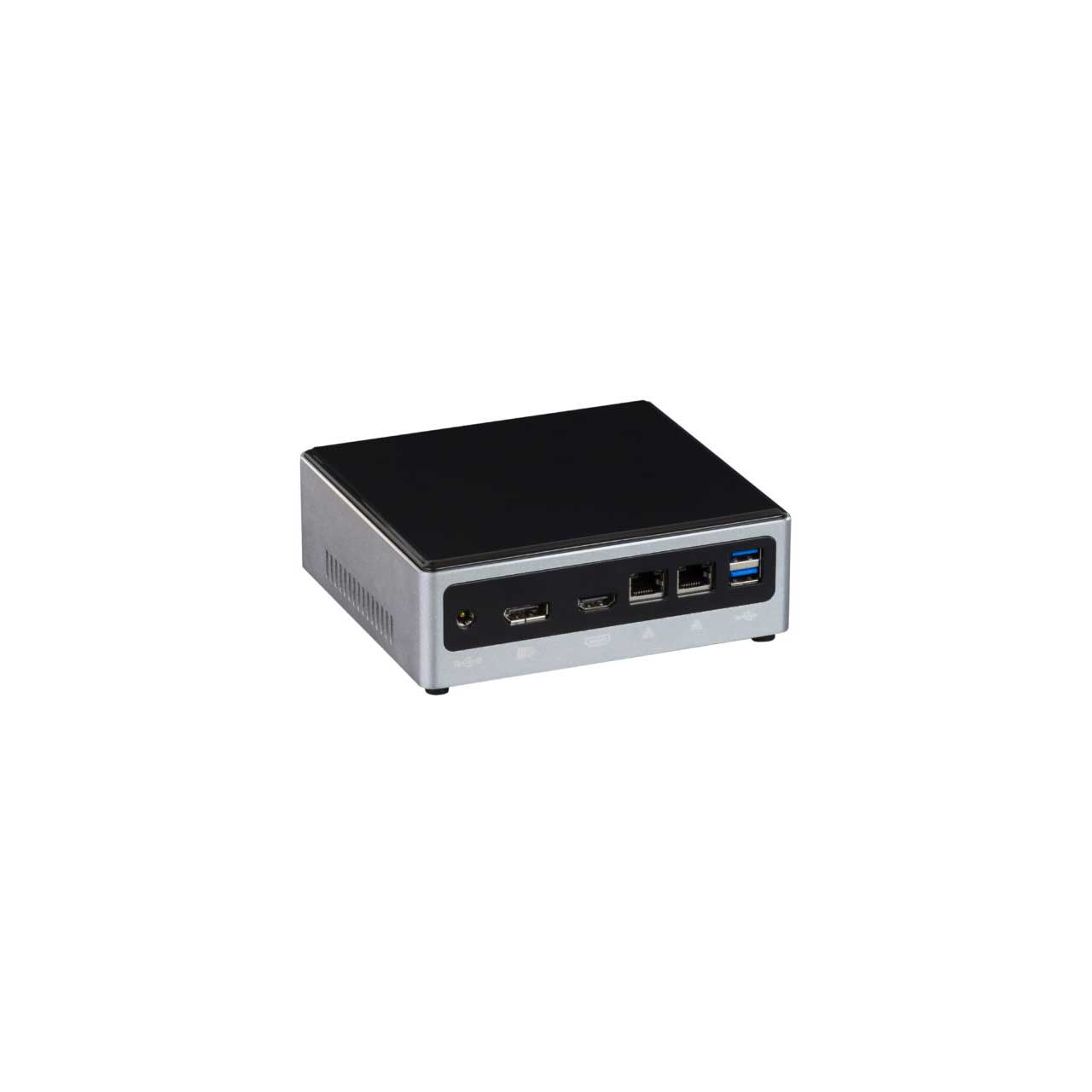

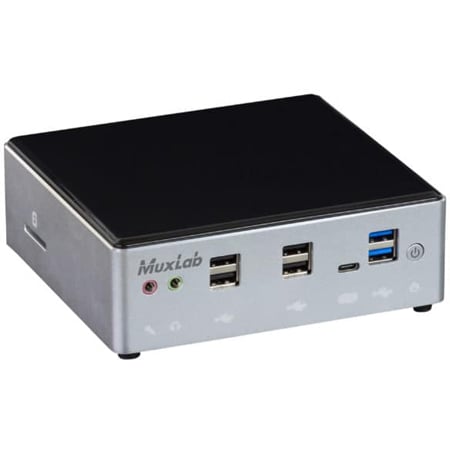

MuxLab 500823 MuxMeet Mini-PC-1 Wireless Video Presentation Module

ITEM #: MUX-500823 MFG #: 500823

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
MuxLab Inc
Free Shipping with $49 Minimum Order

List Price:

$1,247.00

Our Price:

$998.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

500823 - Overview

Despite its small size, MuxMeet Mini-PC-1 offers incredible versatility as it is equipped with an 8th generation Intel Core i5 processor, 8GB DDR4 RAM, 128GB SSD, one HDMI 2.0 port, one DP port, four USB 3.0 ports, four USB 2.0 ports, two Gb LAN ports, and a video card Intel HD Graphics 620, the MuxMeet Mini-PC-1 is a great solution when performance needs are high, but space requirements are tight.

The MuxMeet Mini-PC-1 features a die-cast aluminum chassis that protects the system from the rigors of the environment such as dust or dirt, making it durable enough for heavy-duty work but also eye-catching enough for home and office, the MuxMeet Mini-PC-1 is built to last no matter what the working conditions.

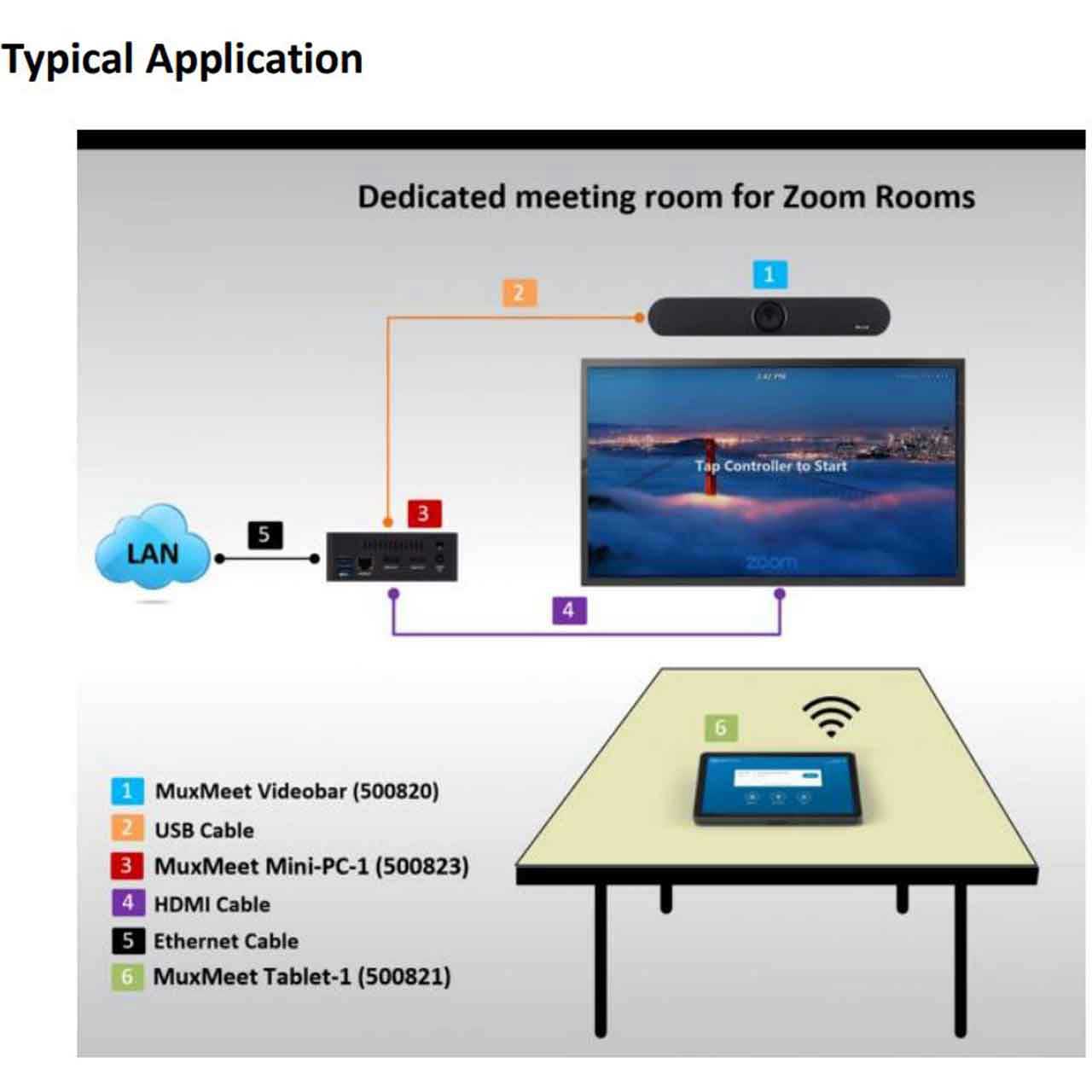

Applications:
Video conferencing
Digital signage
Home workstation
Office workstation
Industrial workstation

  • Features:

    • Processor Intel Core i5-8250u
    • Memory 8GB DIMM DDR4
    • Storage 128GB SSD
    • Video Intel UHD Graphics 620
    • Audio Intel High Definition
    • Operating System Windows 10
    • HDMI and DP video ports
    • Black color PVP top and aluminum alloy body


  • Specifications:

    • System
    • CPU: Onboard Intel Core i5-8250u
    • TDP: 15W
    • Motherboard: 140 x 130mm customized size
    • Memory: 2 x SO-DIMM DDR4 Slot, Supports 4GB/8GB/16GB/32GB DDR4-2133/2400
    • OS Windows: 10
    • PXE: Yes
    • Audio: Intel High Definition Audio Controller
    • Network:
      1 x Onboard Intel Ethernet Connection I219-LM
      1 x Onboard Realtek RTL8168/8111/8112 Gigabit Ethernet Controller
      10/100Mbps/1000Mbps BaseT LAN
    • Video: Intel UHD Graphics 620

      Wi-Fi
    • Module: 1 x M.2NVME/NGFF slot for Wi-Fi module
    • Antenna: 2 x inner RF cables and without external antenna

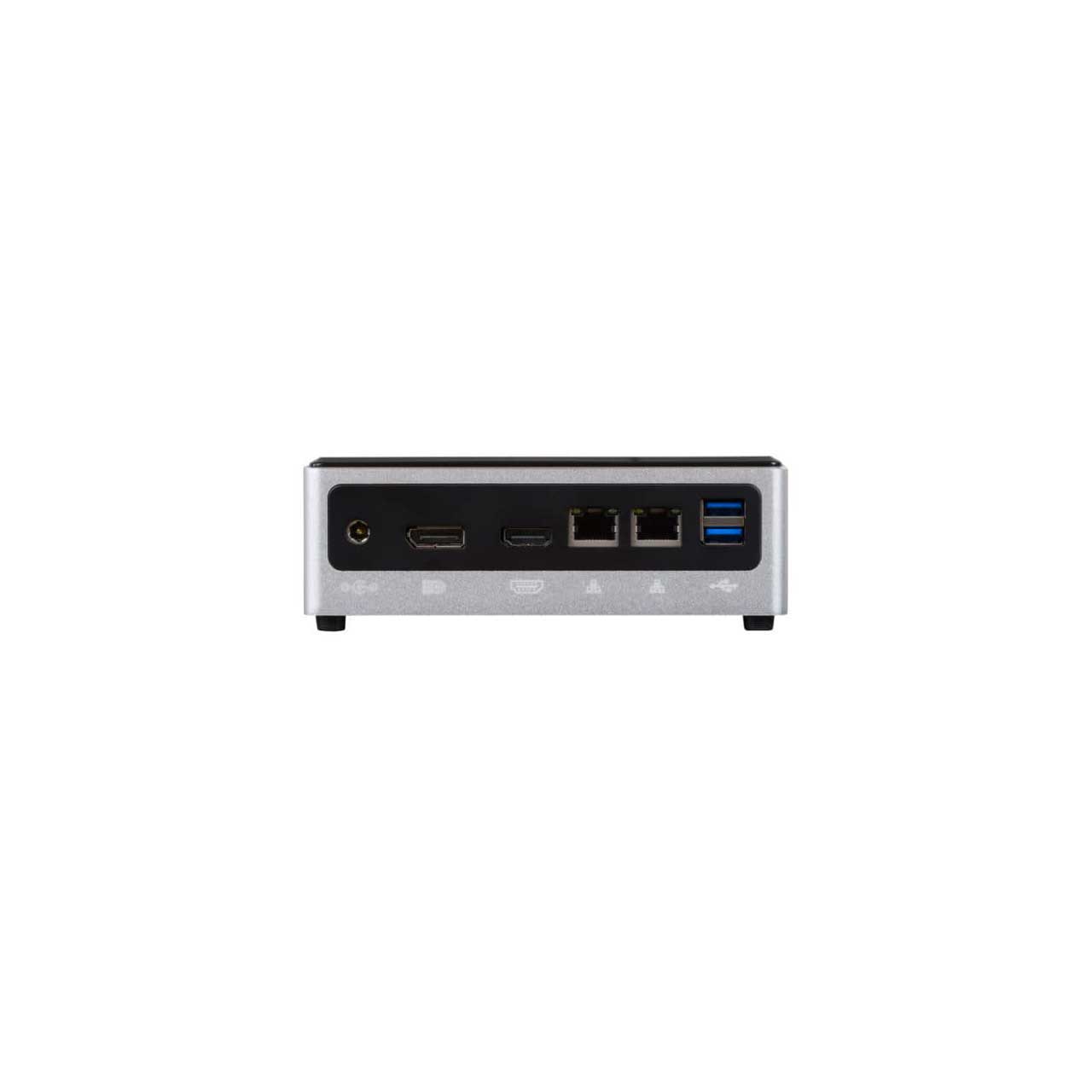

      Input/Output ports
    • Switch: 1x Power On/Off Switch
    • Power: 1x Power in
    • USB: 4x USB2.0, 4x USB 3.0
    • USB-C: 1x Type-C USB3.0
    • Display: 1x DP, 1x HDMI 2.0
    • LAN: 2x RJ45 Giga LAN
    • Audio: 1x MIC, 1x SPK

      Storage
    • MSATA: 1x M.2 slot for NGFF/NVME SSD, support 6Gb/s
    • SATA: 1x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s (no space to install)

      Product Dimension & Details
    • Dimensions (DxWxH): 5.90 x 5.39 x 1.96" (150 x 137 x 50mm)
    • Weight: Net: 1.43Lbs (0.65kg), Gross: 2.53Lbs (1.15kg)
    • Shell: Black color PVP top and aluminum alloy body
    • Cooling Mode: copper cooling fan

      Other
    • Operating Temperature 32° to 158°F (0° to 70°C)
    • Relative Humidity: 10 to 85%


  • Item Includes:

    • 1x Mini-PC
    • 1x Power Adapter
    • 1x Power Cord
    • 1x User Manual (available via download)


  • Warranty:

    • 2 Year


  • GTIN:

    0627699008232
