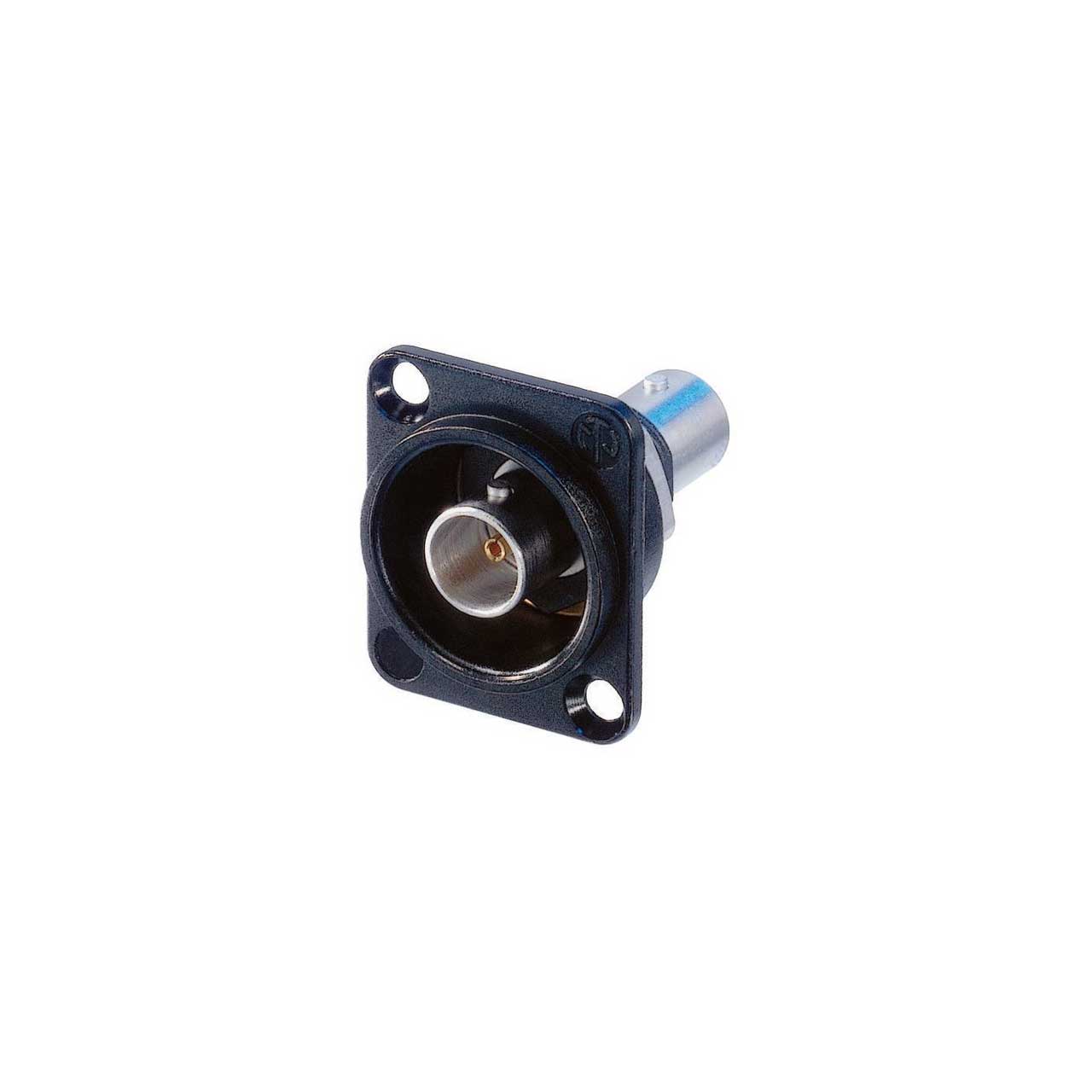

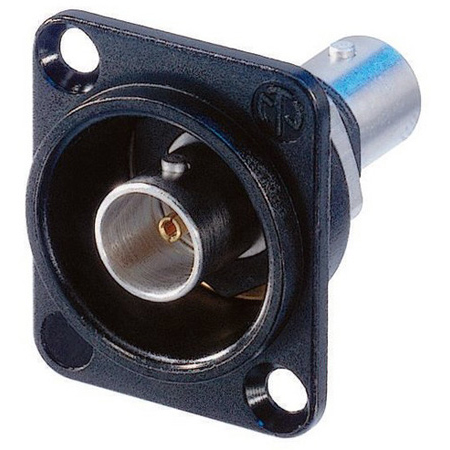

Neutrik NBB75DFIB-P Receptacle BNC D Style Feedthrough Isolated - 75 Ohm - Black

NBB75DFIB-P - Overview

• Features:

  • Gold plated cage type center contact
  • True 75 Ω design meets the stringent HD requirements
  • Isolated panel mount (solves potential grounding problems and prevents common-mode influence with other connections conducted over the same panel ground potential)
  • Standard D-shape housing
  • Protruding bulkhead jack (makes locking and unlocking of conventional BNC cable connectors easy)
  • Color coding possible
  • Closed contact design - extremely robust
  • Gold plated cage type clip - best possible shielding and lowest contact resistance


• Specifications:

  • Electrical
  • Signal Type: HD, SDI, Video, AES/EBU, Composit, YUV, RGB, RGBH, RGBHV
  • Contact resistance: ≤ 3 mΩ (inner)
  • Contact resistance: ≤ 2 mΩ (outer)
  • Dielectric strength: 1,5 kVdc
  • Impedance: 75 Ω
  • Insulation resistance: > 5 GΩ
  • Rated voltage: <50 V
  • VSWR
  • ≤1.03/>37 dB up to 1 GHz
  • ≤1.05/>32 dB up to 2 GHz
  • ≤1.08/>28 dB up to 3 Ghz

    Mechanical
  • Insertion force: < 25 N
  • Lifetime: > 1000 mating cycles

    Wiresize
  • Locking device: Bayonett
  • Mounting direction: Front mounting
  • Chassis shape: D

    Material
  • Contacts: Brass (CuZn39Pb3), 0.2 æm AuCo (Center contact)
  • Insert: PTFE
  • Shell: Polyacetal (POM) (Insulation Sheell)
  • Shell plating: Optalloy®
  • D-Shape housing: Zinc diecast (ZnAl4Cu1) gal black chrome plating

    Environmental
  • Temperature range: -30 °C to +85 °C
