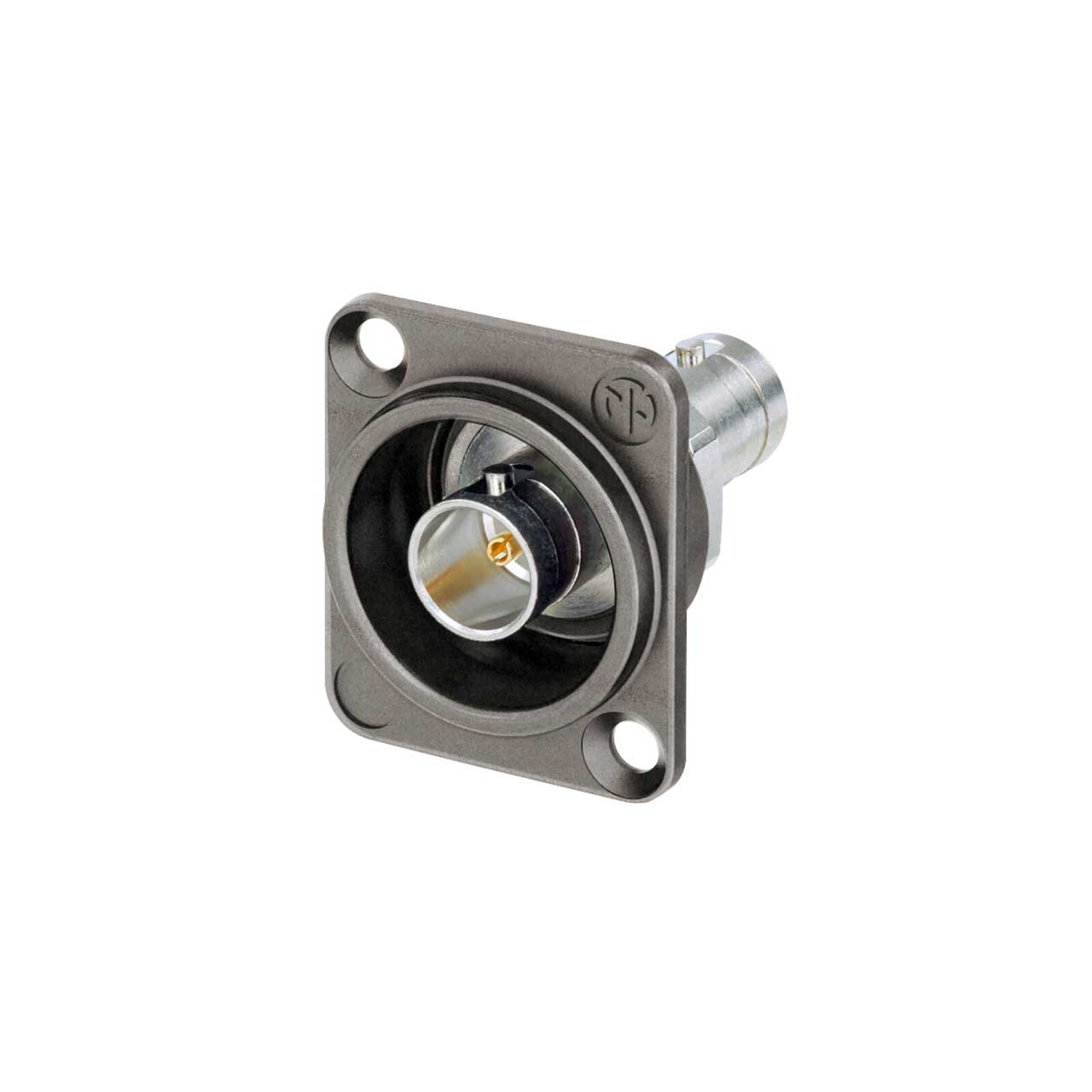

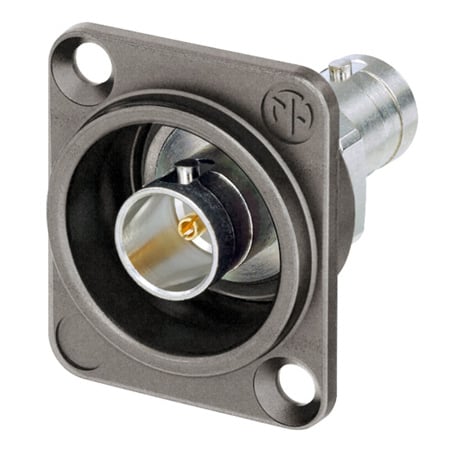

Neutrik NBB75DFIX Isolated UHD BNC Feedthrough Chassis Connector

NBB75DFIX - Overview

• Features:

  • Optimized gold plated cage type center contact for UHD signals as 4K or 8K
  • Swiss black chrome plating
  • Grounded panel mount
  • Standard D-shape housing provides flush mounting and protection from damage
  • Color coding possible

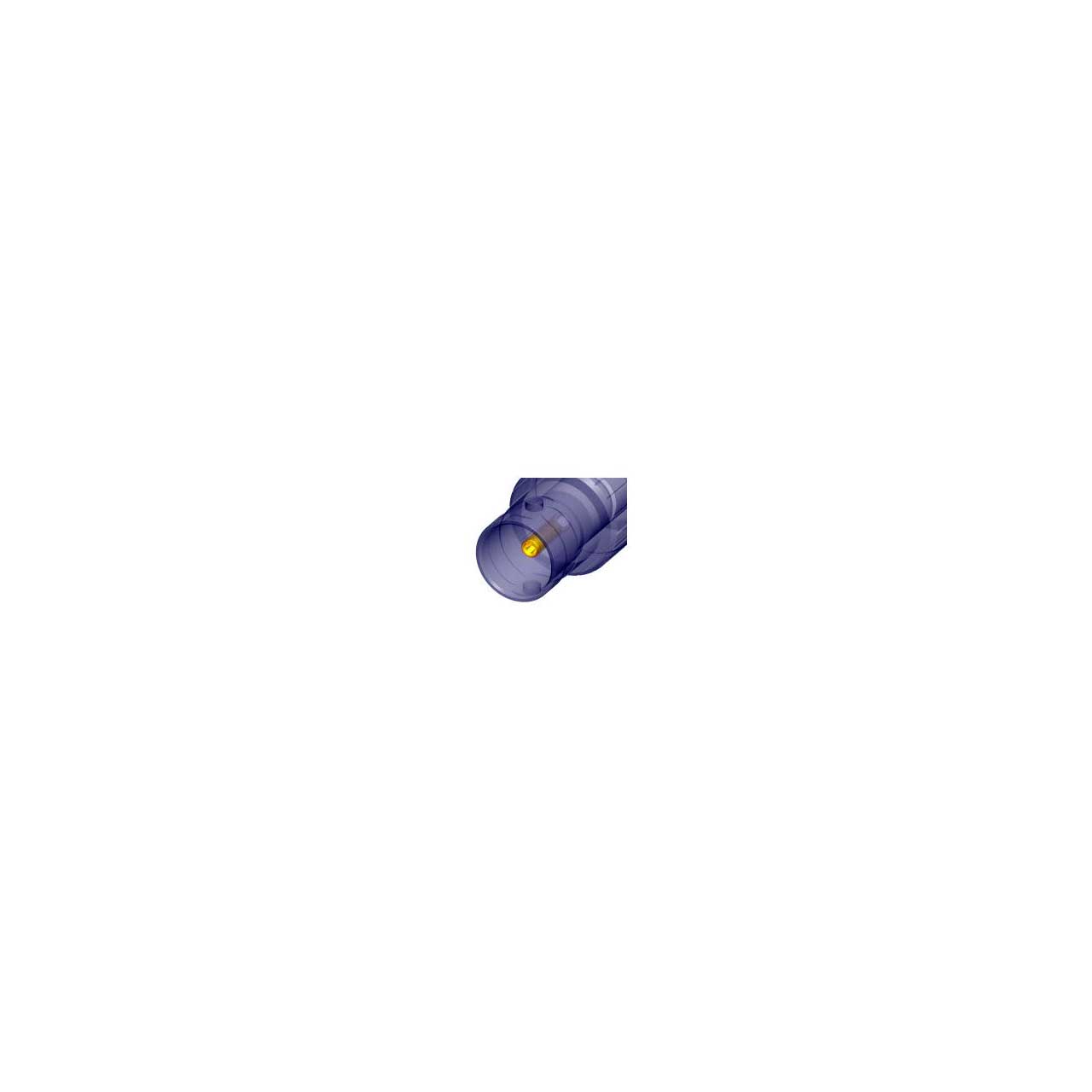

    New cage type contact
  • Closed contact design - extremely robust
  • Gold plated cage type clip - best possible shielding and lowest contact resistance


• Specifications:

  • Connection Type BNC 75 Ω
  • Gender female

    Electrical
  • Contact resistance = 3 mΩ
  • Contact resistance = 2 mΩ
  • Dielectric strength 1.5 kVdc
  • Impedance 75 Ω
  • Insulation resistance > 5 GΩ
  • Rated voltage < 50 V
  • VSWR
  • ≤1.06 / >30 dB up to 6 GHz
  • ≤1.13 / >24 dB up to 12 GHz
  • ≤1.22 / >20 dB up to 18 Ghz
  • Signal type UHD, SDI, Video, AES/EBU, Composit, YUV, RGB, RGBH, RGBHV

    Mechanical
  • Insertion force < 25 N
  • Lifetime > 1000 mating cycles
  • Mounting direction front
  • Chassis shape D

    Material
  • Contacts Brass (CuZn35Pb2), 0.2 µm AuCo (center contact)
  • Insert PTFE
  • Shell Polyacetal (POM) (insulation shell)
  • Shell plating Antraloy
  • D-shape housing Zinc diecast (ZnAl4Cu1)

    Environmental
  • Temperature range -30 °C to +85 °C
