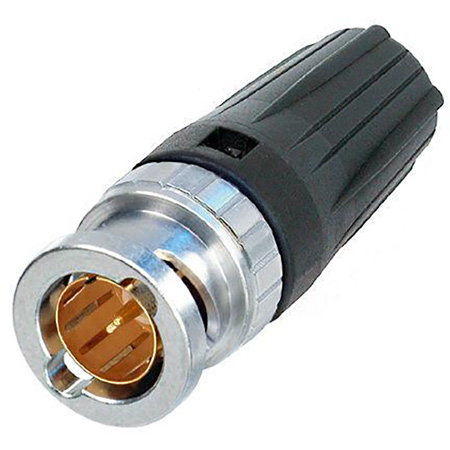

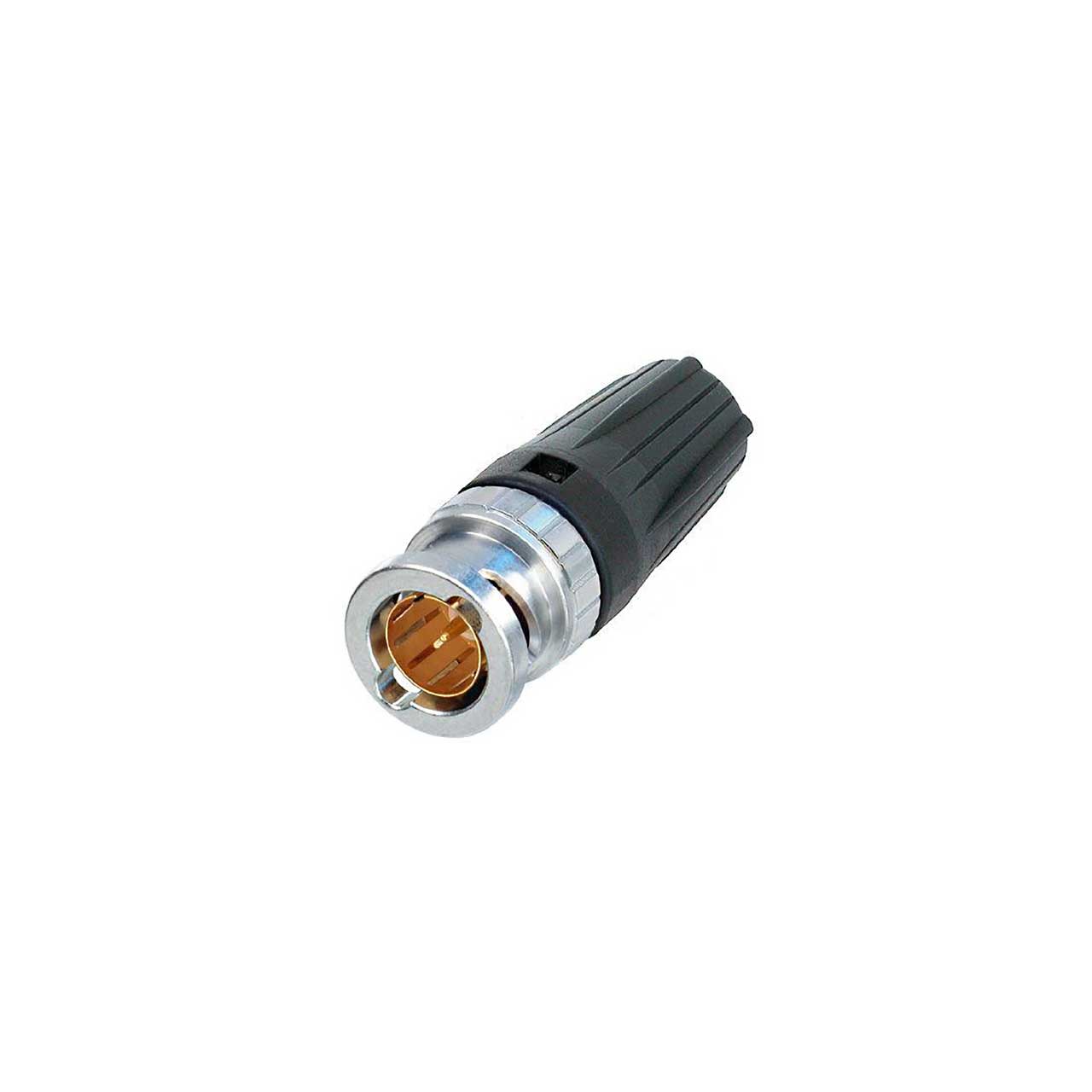

Neutrik NBTC75BLI4 BNC Cable End - 75 Ohm rearTWIST HD Tiny BNC Cable Connector

Name: Neutrik NBTC75BLI4 BNC Cable End - 75 Ohm rearTWIST HD Tiny BNC Cable Connector
Brand: Neutrik Americas
SKU: NBTC75BLI4
Price: 4.89 USD
Availability: InStock

ITEM #: NBTC75BLI4 MFG #: NBTC75BLI4

Neutrik Americas

List Price:

$5.70

Our Price:

$4.89

Quantity Pricing

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

NBTC75BLI4 - Overview

The Neutrik NBTC75BLI4 rearTWIST HD Tiny BNC cable connector is optimized for small cable diameters. The additional leading ferrule eases the critical assembly of multicore or tiny cables.

Like all Neutrik BNCs it offers a true 75Ω design and is perfectly suitable for HD applications. The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding. Boot is included.

Crimp size: Pin: 1.6 mm (square); Shield: 4.06 mm (hex)

Features:
- "rearTWIST Principle" locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507)
- Ideal for recessed bulkheads where access to the "head" of the connector might be an issue. These connectors turn from the back and not the front.
- Optimized assembly for mutlicore or tiny cables
- True 75Ω design meets the stringent HDTV/DVD requirements
- Leading area: Avoids tilting due to side forces to protect contacts from deformation. Guarantees a lifetime of min. 1000 mating cycles!
- Snug-fit center pin insert provides tactile feedback
- Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies
- Excellent cable protection and retention
- Precise Swiss machined brass parts for outstanding durability
- Accessories include color coded boots in 10 standard colors, crimp tool and dies
Specifications:
- Suitable cables: Canare L-1.5C2VS, Suhner S02223, Kroschu (341 270, 341 280), RG 179 B/U, Sommer 600-025-03 (05)
GTIN:
7613187002861
