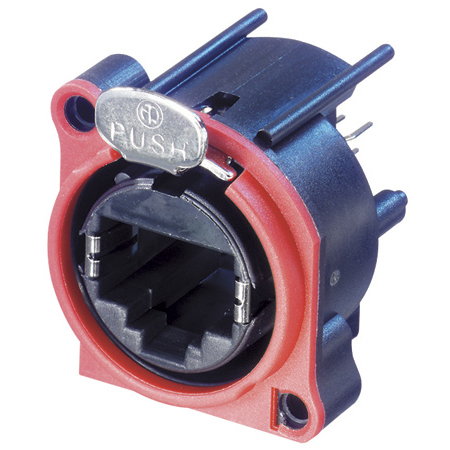

Vertical PCB mount RJ45 receptacle, A-Series cutout with latch lock, max. panel thickness 3mm.
A new generation of ruggedized RJ45 connectors. EtherCon Series is available shielded or unshielded and is compatible for use with 10 Base-T systems. The EtherCon series is especially developed for, but not limited to, audio and stage applications including DMX systems. Nevertheless the operational area of EtherCon is not limited to the entertainment industry. The EtherCon male cable connector carrier is a robust diecast shell with a unique metal chuck-type strain relief for optimal cable and plug protection. The female chassis connector is based on the proven Neutrik A/B and D series connectors with the secure latching system.
The all plastic A-Series offers the most space saving and cost effective design
-
- Accommodates rugged etherCON NE8MC* or any standard RJ45 plug
- Approved latch lock system
- Most space saving and cost effective design
- Complies with Class D according to TIA / EIA 568B and ISO / IEC 11801 standard
- Isolated to panel ground
- Crosstalk compensation at connecting hardware to achieve CAT5e on request
