Neutrik NE8MC6-MO etherCON CAT6 Cable Connector Self-Termination

ITEM #: NE8MC6-MO MFG #: NE8MC6-MO

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$14.73

Our Price:

$12.63

Availability: In Stock
iAvailability Description Popup


NE8MC6-MO - Overview

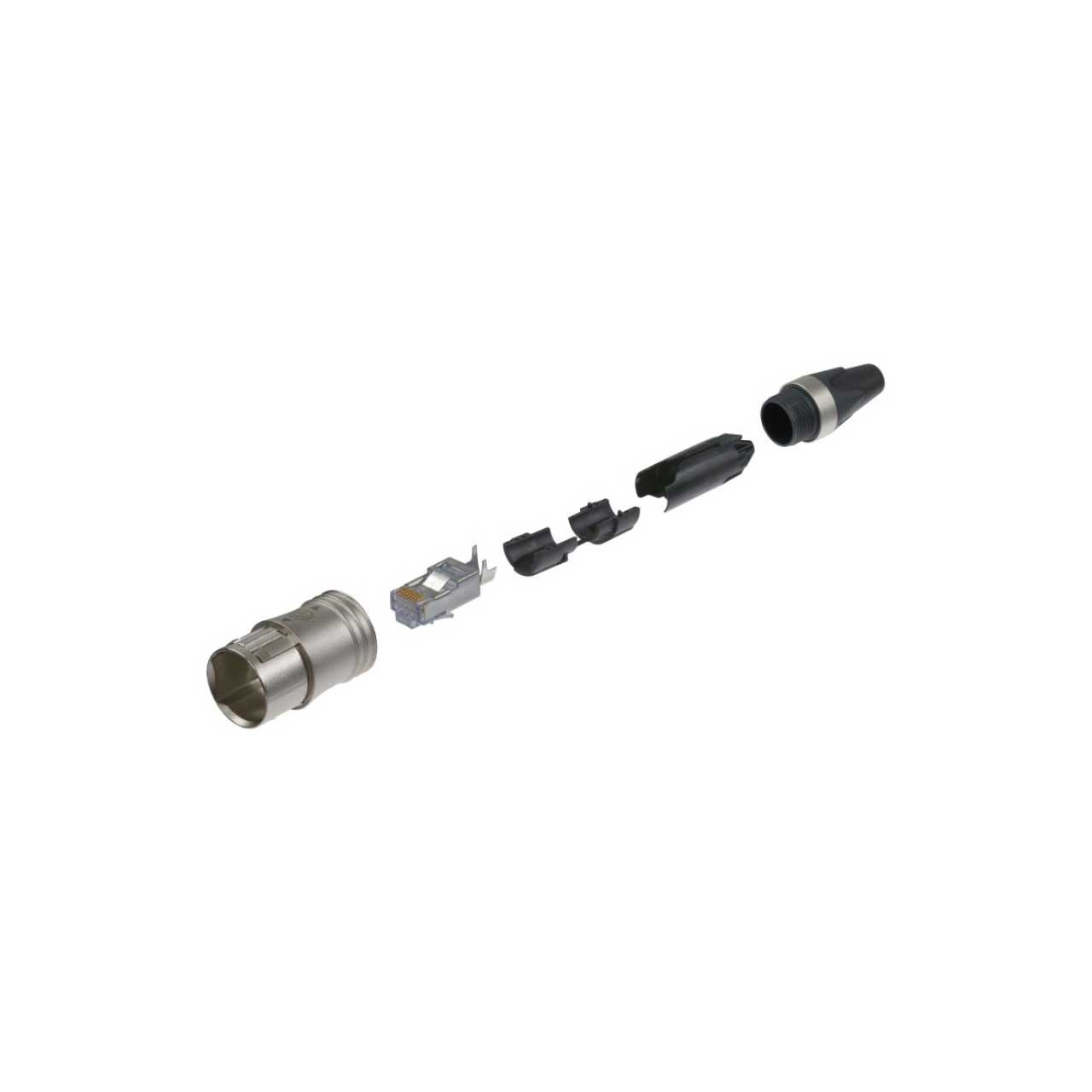

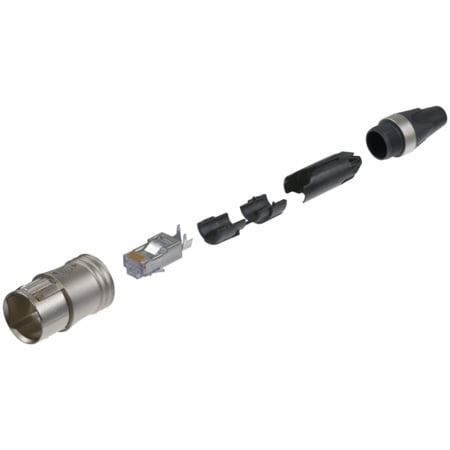

The Neutrik NE8MC6-MO set includes a cable plug carrier offering a robust metal shell with Push-Pull locking system, proven Neutrik chuck-type strain relief and a CAT6 RJ45 plug. The set can accommodate STP und UTP cables with O.D. of 5.5 to 6.5mm and gauge of AWG 22 to 28 solid or stranded wire. This self-termination version is water protected according to IP65.

Attention! Intermates ONLY with NE8FDY-C6 Cat 6 receptacles. Not compatible with CAT5 and CAT6A chassis connectors.

  • Features:

    • Complies with CAT6 specifications according to TIA / EIA 568B, ISO / IEC 11801, EN 50173
    • CAT6 compliant - data rate up to 10 GBit/s
    • IP65 - Dust and waterproof in mated condition
    • Shielded system - high noise immunity and EMI protection
    • Push Pull mating - secure and proven locking system
    • Unique Neutrik chuck-type strain relief
    • Color coding with accessory BXX-* - to guarantee IP65 protection, boot has to be mounted with metal ring of NE8MC6-MO

  • GTIN:

    7613187005800
