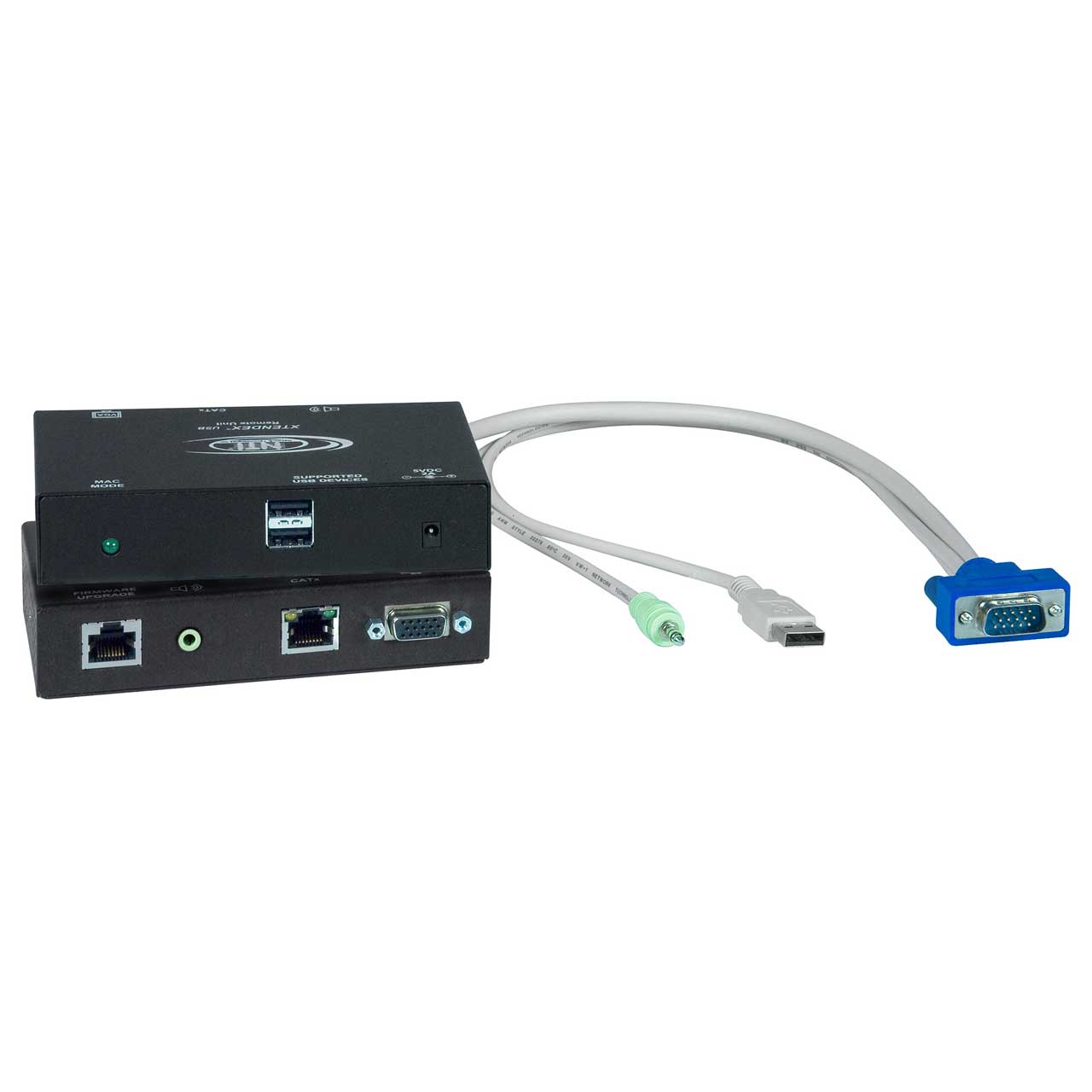

NTI ST-C5USBVA-1000S Hi-Res USB KVM Extender with Audio via CATx to 1000 Feet

ST-C5USBVA-1000S - Overview

• Features:

  • Industry-leading ultra high resolutions up to 2048x1536
  • High quality, rugged steel construction with durable powdercoat finish
  • Automatically adjust video quality and color skew for crystal clear video with longer cables
  • DDC2B emulation support for remote monitor
  • Built-in surge protection
  • Supports stereo audio


• Specifications:

  • Local Unit
  • Host Connection
  • Supports a USB computer (PC, SUN, MAC).
  • Multiplatform support: Windows 2000/XP/Vista/7, Windows Server 2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10.
  • One male 15-pin HD connector.
  • One male USB Type A connector.
  • Audio: one 3.5 mm stereo plug (audio in).
  • Local Access
  • Crisp and clear 2048x1536 video resolution.
  • One female 15-pin HD connector.
  • Two female USB Type A connectors.
  • Audio: one 3.5 mm stereo plug (audio out).


  • Remote Unit
  • Supports resolutions up to 2048x1536; refer to the resolution chart for resolutions at different lengths.
  • One female 15-pin HD connector.
  • Two female USB Type A connectors.
  • Audio: one 3.5 mm stereo plug (audio out).


  • Video Quality Adjustment
  • Automatically adjusts the video quality and color skew to compensate for varying lengths of CAT5/5e/6 cable.
  • Maximum delay: 62 ns in 2 ns steps.
  • Manual fine adjustments are made via keyboard commands.
  • Settings are automatically stored in the unit. The next time the unit is powered on, the adjustment will be recalled.


  • Power
  • Local and remote unit: 110 or 220 VAC at 50 or 60 Hz via AC adapter. (US, EURO, UK or AUS AC adapter included.)


  • MTBF
  • ST-C5USBVA-L-1000S (local): 38,453 hours.
  • ST-C5USBVA-R-1000S (remote): 43,234 hours.


  • Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C).
  • Storage temperature: -22 to 140°F (-30 to 60°C).
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
  • Dimensions WxDxH: 5.1x3.1x1.2 in (130x79x30 mm).
  • Regulatory Approvals: CE, RoHS, TAA compliant.


• Item Includes:

  • 1x pair of ST-C5USBVA-1000S extender modules (local and remote)
  • 2x country-specific power cord
  • 1x CD that contains the user manual


• Warranty:

  • 2 years
