NTI ST-IPUSB4K-LC Low-Cost 4K HDMI USB KVM Extender Over IP

ST-IPUSB4K-LC - Overview

• Features:

  • Supports Ultra-HD 4Kx2K resolutions to 3840x2160 and 4096x2160 @30Hz YUV 4:4:4, and HDTV resolutions to 1080p @60Hz.
  • Extend 4Kx2K up to 328 feet using CAT6/6a/7 cable.
  • In a Point-to-Many or Many-to-Many connection, the max length between the switch and the local/remote unit is 164 feet.
  • USB ports for keyboard and mouse.
  • Keyboard and mouse are hot-pluggable.
  • Plug-and-Play installation allows receivers to find the transmitter automatically on the same network. (Network configuration may be required for managed network switch for many-to-many connections.)
  • When using multiple remote units, only one unit can have USB control over the source at any time.
  • Built-in EDID table.

  • HDMI features supported:
    HDMI 1.4
    36-bit Deep Color
    Dolby, DTS, PCM, and LPCM
    YUV 4:4:4
    Bandwidth up to 340 MHz (10.2 Gbps)
  • HDCP 1.4 compliant.
  • Easily expandable. Add remote as you add monitors.


• Specifications:

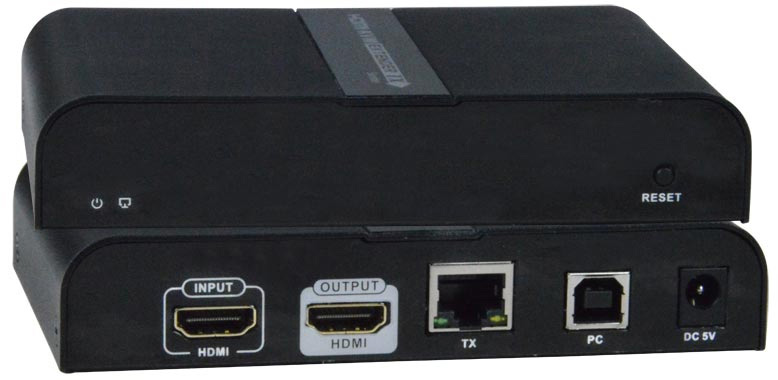

  • Local Unit
  • Compatible with a USB computer (PC, SUN and MAC) with Ultra-HD 4K HDMI output.
  • Multiplatform support: Windows 2000/XP/Vista/7/8/10, Windows Server 2000/2003/2008/2012/2016, Solaris, Linux, FreeBSD, and MAC OS 9/10.
  • One female HDMI connector for computer connection.
  • One female HDMI connector for local monitor.
  • Supports Ultra-HD 4Kx2K resolutions to 3840x2160 @30Hz YUV 4:4:4, and HDTV resolutions to 1080p @60Hz.
  • One female USB Type B connector.
  • One female RJ45 port for sending/receiving high definition video/audio and USB signals.
  • Supports HDCP 1.4

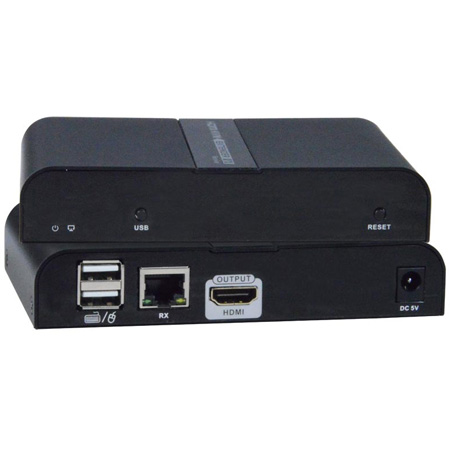

    Remote Unit
  • One female HDMI connector.
  • Two female USB Type A connectors for keyboard and mouse.
  • One female RJ45 port for sending/receiving high definition video/audio and USB signals.
  • Supported video resolutions:
    Ultra-HD 4Kx2K resolutions (3840x2160 and 4096x2160 @ 30Hz)
    HDTV resolutions to 1080p
  • Supports HDCP 1.4
  • Max data rate: 10.2Gbps
  • Supports embedded digital audio through HDMI compatible TVs or audio receivers.


  • Power Local and remote unit:
  • ST-IPUSB4K-LC: US NEMA 1-15P
    ST-IPUSB4K-LCEU: Europlug CEE 7/16
    ST-IPUSB4K-LCUK: UK BS1363
    ST-IPUSB4K-LCAU: AS/NZS 3112
    ST-IPUSB4K-LCUNV: US NEMA 1-15P with country-specific universal power plug adapter
  • Output 5VDC, 1A
  • Input: 100 to 240 VAC at 50 or 60 Hz via AC adapter.

    Environmental
  • Operating temperature: 32 to 140°F (0 to 60°C)
  • Storage temperature: -40 to 158°F (-40 to 70°C)
  • Operating relative humidity: 0 to 90% non-condensing RH.

    Regulatory Approvals
  • CE, FCC, RoHS

    Max Distance
  • Extend up to 328 feet (100 meters) using CAT6/6a/7 cable.
  • In a Point-to-Many or Many-to-Many connection, the max length between the switch and the local/remote unit is 164 feet (50 meters).

    Cables
  • 1-meter male USB Type A to male USB Type B interface cable included.
  • Interface cables between the video source/display and the transmitter/receiver are required for proper operation.
  • Supports cable lengths to 20 feet.
  • Longer cable lengths can be used provided they have a built-in video equalizer (also known as "active HDMI cables").
  • Use HD-xx-MM cable to connect an HDMI source of display (not included).
  • Use DVI-HD-xx-MM to connect DVI source or display (not included).
  • Use HD-RM-xx-MM 4K HDMI RedMere Active Cables to connect an HDMI source of display up to 100 feet (not included).
  • Supports resolutions to 4K@30Hz.
  • Use CAT6/6a/7 cable terminated with standard RJ45 connectors (not included).


• Warranty:

  • 2 Year
