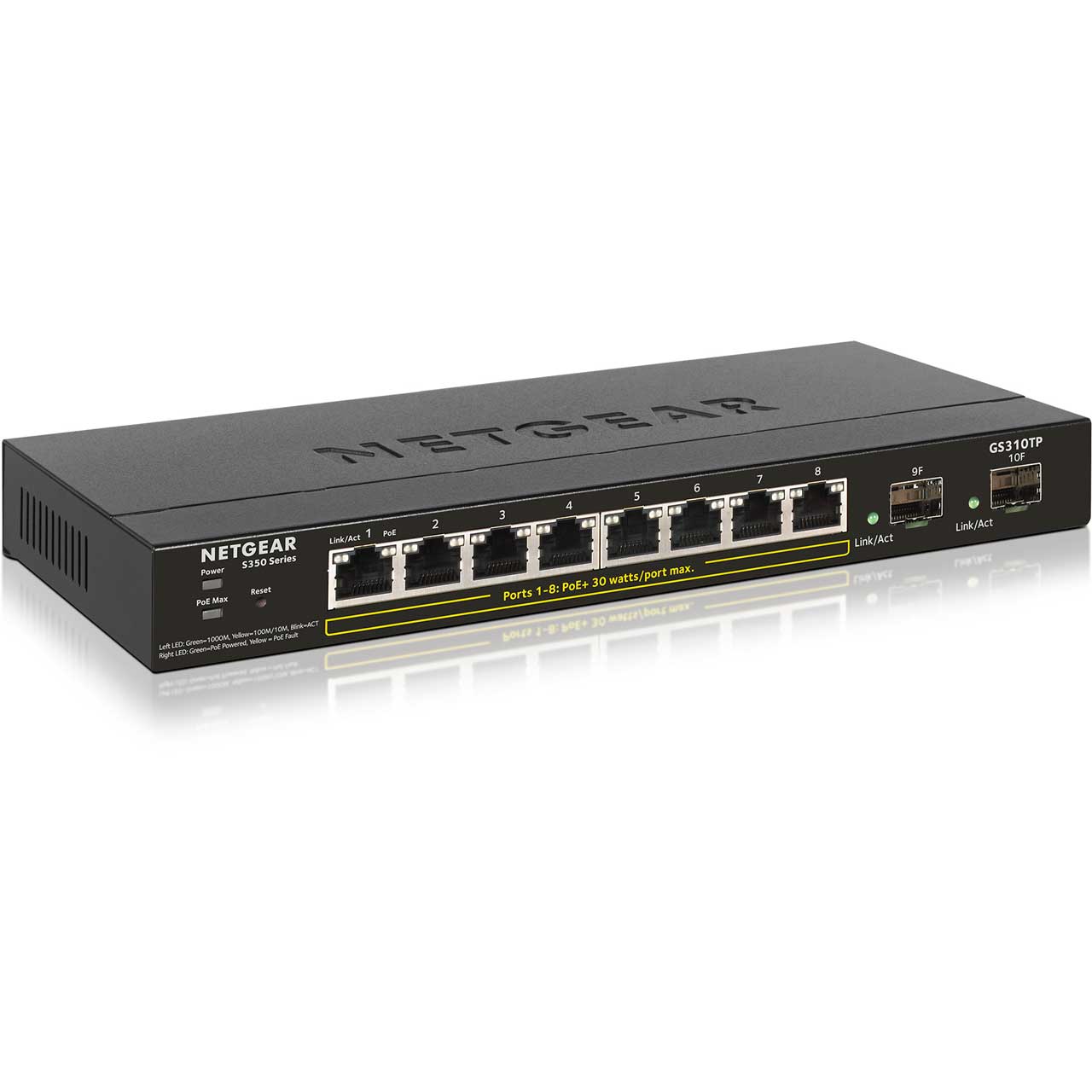

NETGEAR GS310TP-100NAS S350 8-Port Gigabit PoEplus Smart Managed Pro Switch - 2 SFP (GS310TP)

ITEM #: NG-GS310TP100NAS MFG #: GS310TP-100NAS

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the NG-GS310TP100NAS

GS310TP-100NAS - Overview

As a leading provider of network equipment for SMBs, NETGEAR understands the importance of reliable and high performance networks that are SMB budget aware. With the growth of virtualization, cloud-based services and applications like VoIP, video streaming and IP surveillance, SMB networks need to extend beyond simple reliability to performance and security. The NETGEAR S350 Gigabit Smart Managed Pro Switch series is tailored to these essential network needs of your business; delivering unprecedented non-blocking Gigabit bandwidth and solid network security at an affordable cost.

NETGEAR Smart Managed Pro S350 series consists of five switch models, including 8-, 24- and 48-Port Gigabit Ethernet switches and 8-, and 24-Port Gigabit Ethernet PoE+ switches with 2 or 4 SFP ports for fiber uplinks, offering powerful Layer 2 features, enhanced performance and ease of use. They are purposely designed for converged networks where voice, video, data are all carried on a single network platform. Advanced features such as L2/L3/L4 Access Control Lists (ACLs), Quality of Service (QoS), Link Aggregation Control Protocol (LACP) and Spanning Tree Protocol (STP) will ensure a high-speed and highly secured network environment for your business.

The GS308TP-100NAS 8-Port S350 series switch models are in small "desktop" form factors, which will not take much space to place. The 24- and 48-Port models are also rack-mountable. All models include Kensington lock slot to physically secure your switch in open space. The fan-less 8-Port models and 24-Port non-PoE model will operate silently, ideal for the noise-sensitive environment. The 24-Port PoE+ model and 48-Port model also work under 33dBA acoustic level. All NETGEAR S350 Series switches support IEEE 802.3az Energy Efficient Ethernet mode, caring power saving for your business. NETGEAR S350 Series is covered by a 5-year limited Hardware Warranty* and extendable support**, offering a worry-free user's experience at very affordable total cost of ownership.

  • Features:

    • 8/24/48 Gigabit 10/100/1000BASE-T RJ45 ports
    • 55W (GS310TP) or 190W (GS324TP) PoE budget across 8 or 24 Gigabit PoE+ ports (802.3at)
    • Dedicated SFP fiber ports: 2 on GS310TP/ GS324T/GS324TP and 4 on GS348T
    • Non-blocking switching with 16Gbps to 104Gbps line rate fabric
    • Fan-less design on GS308T/GS310TP/ GS324T; GS324TP and GS348T has max acoustic noise level at 32.8dB and 26dB respectively under 25°C (77°F) ambient
    • Advanced VLAN support for better network segmentation
    • L2/L3/L4 Access control lists (ACLs) for granular network access control including 802.1x port authentication
    • QoS (Quality of Service) for traffic prioritization including port-based, 802.1p and L2/L3/L4 DSCP-based
    • Auto "denial-of-service" (DoS) prevention
    • IGMP Snooping and Querier for multicast optimization
    • Rate limiting and priority queuing for better bandwidth allocation
    • Port mirroring for network monitoring
    • Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings
    • Cable test to troubleshoot connection issues (except for GS324T/GS324TP)
    • Easy-to-use Web browser-based management GUI available in English, German and Japanese
    • SNMP v1, v2c, v3 and RMON remote monitoring
    • Easy to manage via web-Based Management GUI or Smart Control Center (Windows PC required) for multi-switch deployment Smart Control Center, a powerful tool for multi-switch discovery, deployment, monitoring and firmware upgrade
    • Network Management System (NMS300), allowing all NETGEAR business products to be deployed and managed through this single interface
    • Dual firmware images, improving reliability and uptime to your network
    • Industry-leading 5-year Limited Hardware Warranty*
    • Minimal down-time with Next-BusinessDay Replacement Warranty
    • Get 90-days Free Advanced Technical Support with device registration

  • Specifications:

    • Gigabit ports: 8
    • SFP ports: 2 (dedicated)
    • PoE+ (802.3at) ports: 8
    • Total PoE Power budget (Watts): 55W
    • Max MAC entries: 8K
    • Buffer size: 512 KB
    • VLAN (Number Supported): 64
    • VLAN routing: N/A
    • Dynamic VLAN assignment: Yes
    • MLD Snooping: N/A
    • Static route: N/A
    • Host ARP table: Yes
    • EEE: Yes
    • DoS Prevention: Yes
    • Internal/External Power Supply: External DC54V 1.25A (power cord localized to country of sale)
    • Max consumption (Watts): 15.1W (no PoE) / 69.3W (full PoE)
    • FAN: Fan-less
    • Acoustic Noise Level @25C (dBA): N/A
    • Operating Temperature: 0° to 40° C (32° to 104° F)
    • MTBF: 1,081,119 hrs (123 yrs)
    • Weight (kg): 0.61kg (1.34 lb)
    • Dimensions (WxDxH): mm 236 x 101 x 30 mm (9.3 x 4.0 x 1.2 in)

  • Item Includes:

    • 1x NETGEAR GS310TP-100NAS S350 8-Port Gigabit PoEplus Smart Managed Pro Switch - 2 SFP (GS310TP)

  • GTIN:

    0606449135497
