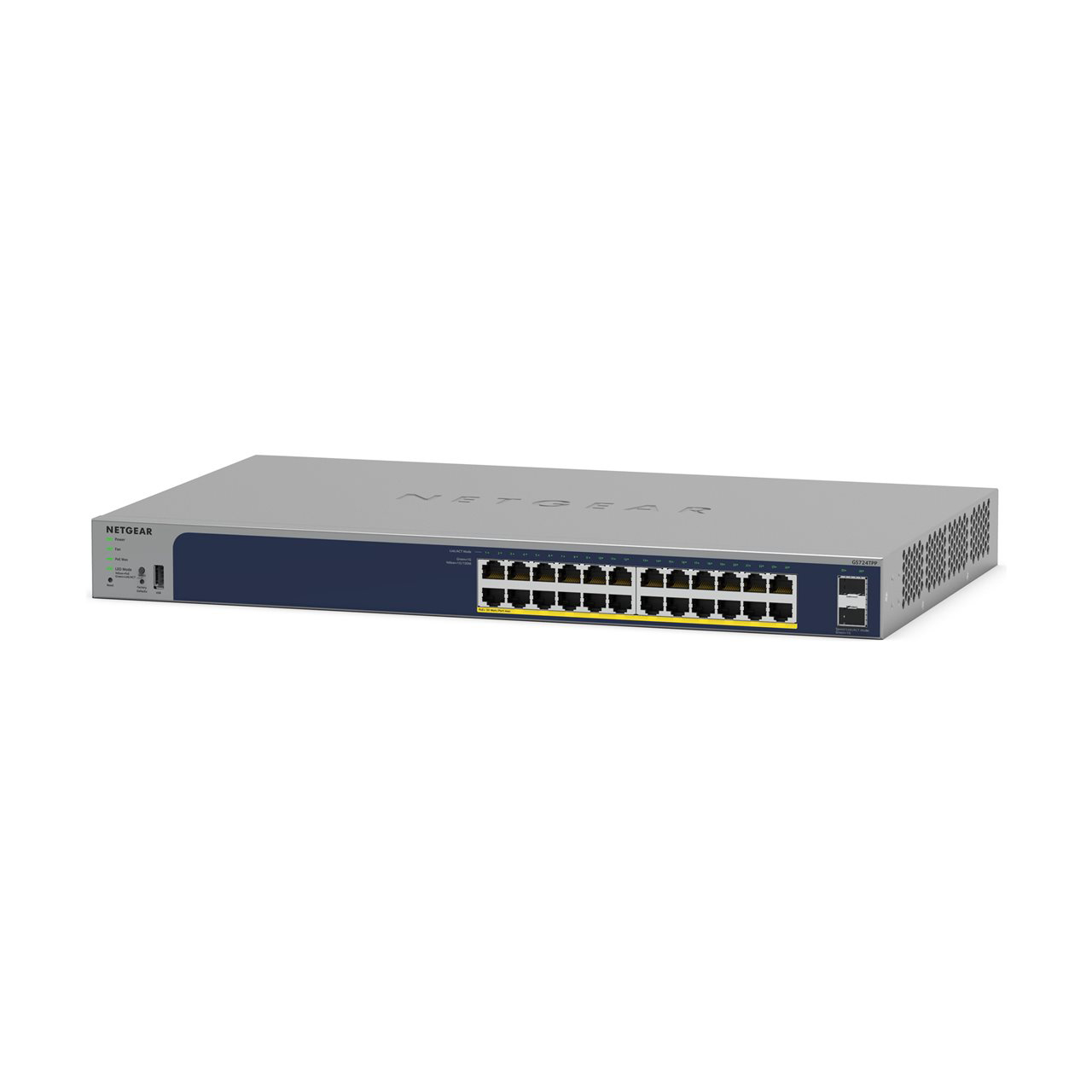

Netgear GS728TP-300NAS 28-Port Gigabit PoE+ Compliant Managed Network Smart Switch

GS728TP-300NAS - Overview

• Features:

  • DHCP support
  • IGMP snooping
  • Port mirroring
  • DiffServ support
  • Broadcast Storm Control
  • DHCP snooping
  • ACL support
  • MLD snooping
  • Port Security
  • DHCP client
  • SPQ
  • Broadcast storm protection
  • Multicast Storm Protection
  • Voice VLAN
  • Guest VLAN
  • Ingress rate limiting
  • PoE timer
  • TCP/UDP proxy
  • WRR
  • MAC lockdown
  • Egress rate limiting
  • Block unknown multicast
  • Auto video VLAN


• Specifications:

  General
  • Device Type: Switch - 24 ports - L3 Lite - smart
  • Enclosure Type: Rack-mountable
  • Subtype: Gigabit Ethernet
  • Ports: 16x 10/100/1000 (PoE) + 8x 10/100/1000 (PoE+) + 4 x SFP
  • Power Over Ethernet (PoE): PoE+
  • PoE Budget: 192 W
  • Performance: Bandwidth: 56 Gbps
  • Capacity:
    - Virtual interfaces (VLANs): 256
    - ACL entries: 480
    - Multicast groups: 1024
    - IPv4 routes (static): 32
    - Packet buffer size: 8 MB
  • MAC Address Table Size: 8K entries
  • Jumbo Frame Support: 9KB
  • Routing Protocol: IGMPv2, IGMP, IGMPv3, MLDv2, MLD
  • Remote Management Protocol: SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, HTTP, HTTPS, TFTP
  • Encryption Algorithm: SSL, TLS 1.0
  • Authentication Method: RADIUS, TACACS+
  • Compliant Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP)
  • Status Indicators: Port transmission speed, power, PoE, link/activity, fan

    Expansion/Connectivity
  • Interfaces:
    - 16x 10/100/1000 Base-T RJ-45 PoE
    - 8x 10/100/1000 Base-T RJ-45 PoE+
    - 4x 100/1000Base-X SFP

    Power
  • Power Device: Internal power supply
  • Installed Qty: 1
  • Power Consumption Operational: 264W

    Miscellaneous
  • Rack Mounting Kit: Included
  • MTBF: 345,901 hours
  • Compliant Standards: EN55024, EN50082-1, CCC, C-Tick Class A, CSA 22.2, VCCI Class A, EN 55022/CISPR 22 Class A, IEEE 802.1p, cUL No.60950, FCC-15 (Class A)
  • Localization: Latin America, North America

    Physical
  • Width: 17.3"
  • Depth: 10.1"
  • Height: 1.7"
  • Weight: 8.22lbs

    Environmental
  • Min Operating Temperature: 32°F
  • Max Operating Temperature: 122°F
  • Humidity Range Operating: 95% (non-condensing)
  • Min Storage Temperature: -4°F
  • Max Storage Temperature: 158°F


• Warranty:

  • Limited Lifetime Warranty


• GTIN:

  0606449162264
