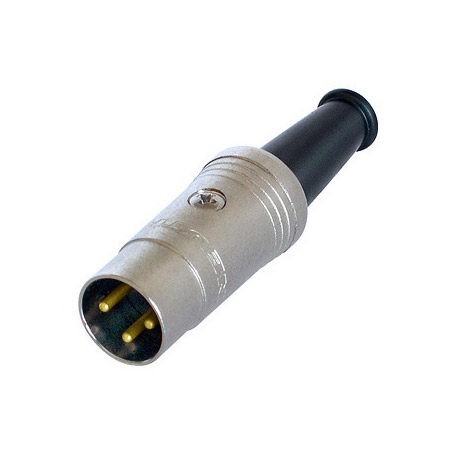

Rean NYS321G 3 Pole DIN Male Cable Connector Gold Plated Contacts

NYS321G - Overview

• Specifications:

  • Electrical
  • Contact Resistance: =10 m&Omega
  • Insulation Resistance: >1000 M&Omega(Initial)
  • Rated Voltage: 50 VAC

    Mechanical
  • Insertion and Withdrawal Force: 3-24N
  • Lifetime: >1000 Mating Cycles
  • Cable O.D.: < 6.5 mm

    Material
  • Pin: Brass
  • Boot: PVC
  • Housing: Zinc
  • Wire Locker: Steel
  • Screw: Brass
  • Pin Holder: PA6
  • Pin: Silver Plated
  • Wire Locker: Nickel
  • Screw: Nickel
