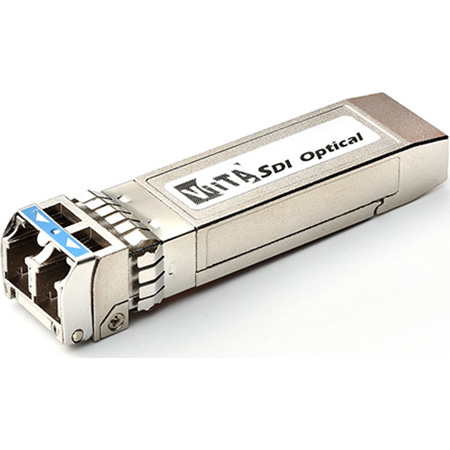

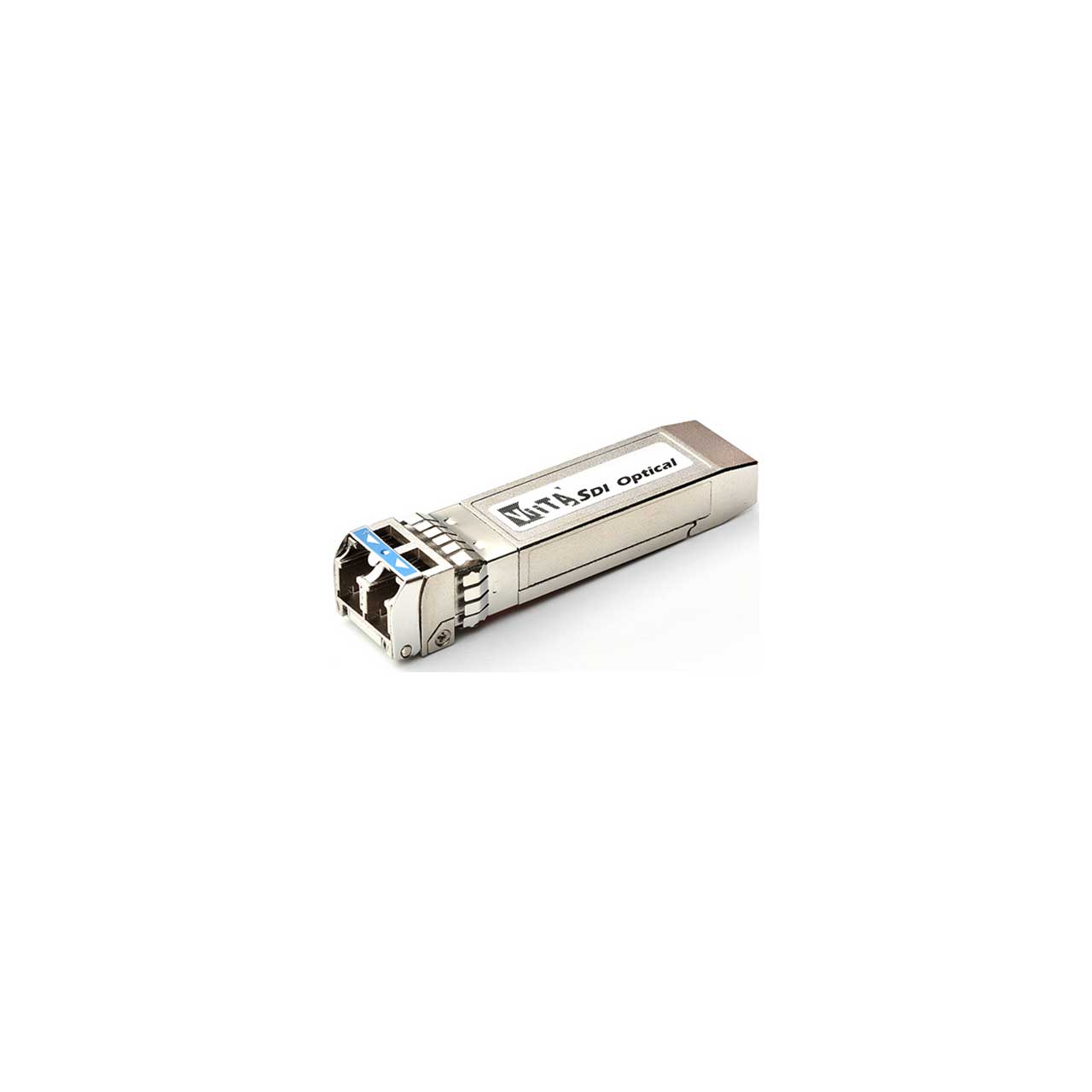

OMC Tech VP3-S1-4103K-F 3G/HD/SD-SDI Dual Channel Optical Transmitter SFP - 1310nm - 10km / Non-MSA

ITEM #: OMC-VP3-S14103KF MFG #: VP3-S1-4103K-F

Primary Image
OMC Tech
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$245.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

VP3-S1-4103K-F - Overview

OMC Tech VP3-S1-4103K-F 3G-SDI dual channel optical transmitter SFP perfectly converts 2 SDI electrical signals at SMPTE 424M, SMPTE 292M, SMPTE 259M and DVB-ASI to 2 optical signal. It supports data rate 2.97Gbps and handles pathological patterns.

  • Features:

    • Support 2ch transmission of SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
    • Handles pathological patterns for 3G-SDI, HD-SDI and SD-SDI
    • Digital diagnostics function
    • 10km over single mode fiber
    • Low power consumption- Typical 260 mA
    • Available in MSA and Non-MSA pinouts
    • Dual LC connector
    • 18ch CWDM wavelengths in option (1270~1610nm, 40 & 80km)


  • Specifications:

    • Wavelength (nm): 1260/1310/1360
    • Operating Case Temperature Range (°c): 0-70
    • Storage Temperature Range(°c): -40-85
    • Power Supply Voltage (V): 3.1 min, 3.3, typ, 3.5 max
    • Power Consumption (mA): 260 typ, 400 max


  • Item Includes:

    • 1x OMC Tech P3-S1-4103K-F 3G-SDI SMPTE/DVB-ASI Dual Channel Optical Transmitter SFP - 1310nm - 10km / Non-MSA


  • Warranty:

    • 1 year
