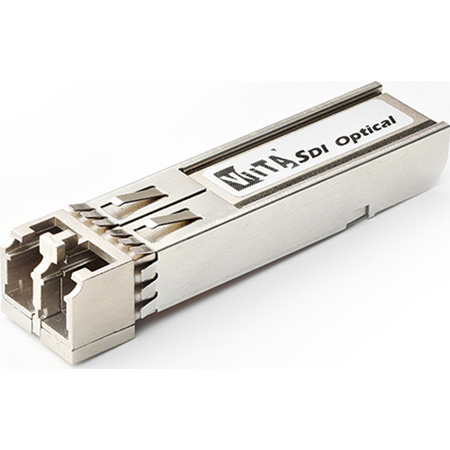

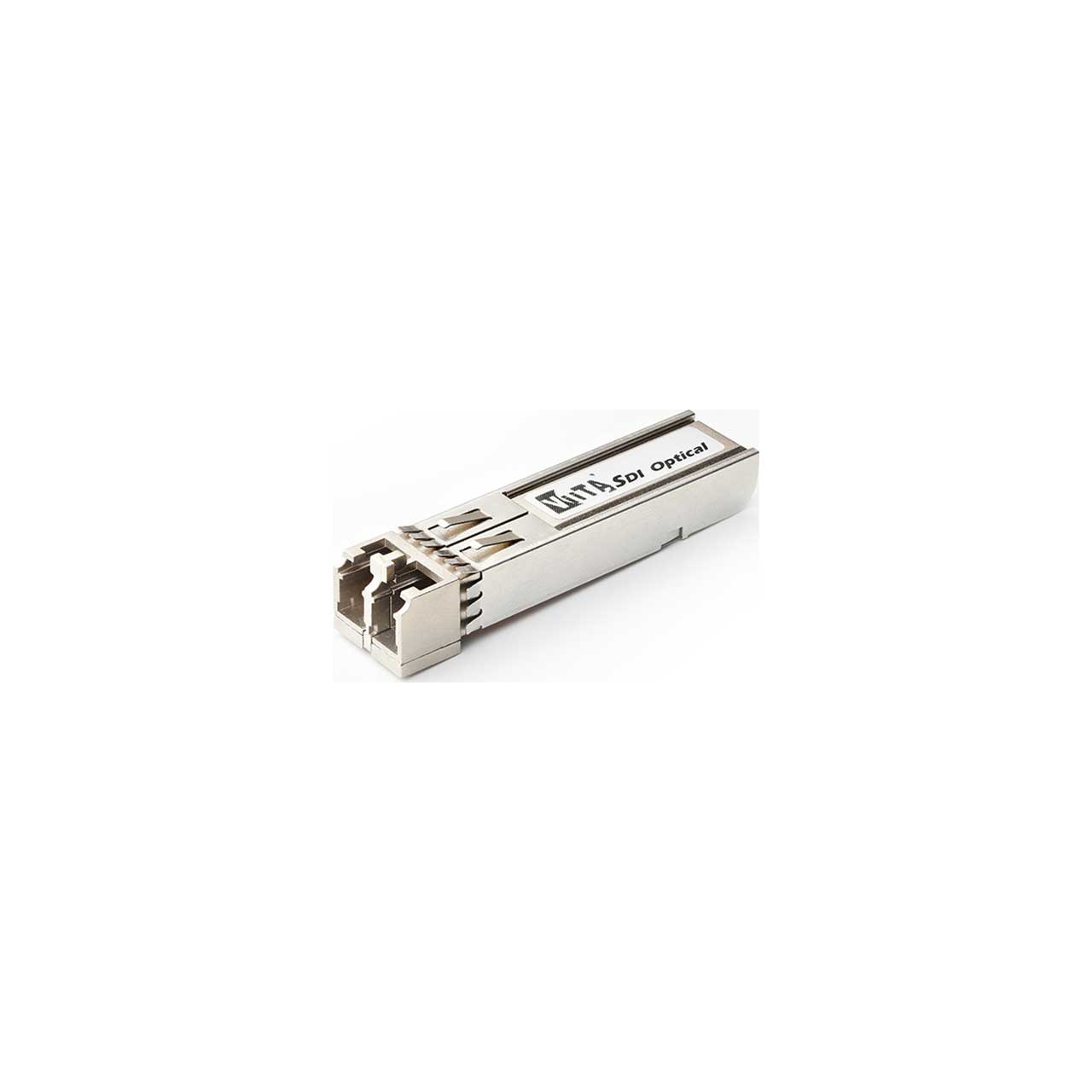

OMC Tech VP3-S1-4103K-G 3G/HD/SD-SDI Dual Channel Optical Receiver SFP - 1260-1620nm - 10km / Non-MSA

ITEM #: OMC-VP3-S14103KG MFG #: VP3-S1-4103K-G

Primary Image
OMC Tech
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$245.00

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

VP3-S1-4103K-G - Overview

OMC Tech VP3-S1-4103K-G 3G-SDI dual channel optical receiver SFP perfectly converts 2 SDI electrical signals at SMPTE 424M, SMPTE 292M, SMPTE 259M and DVB-ASI to optical signal. It supports data rate 2.97Gbps and handles pathological patterns.

  • Features:

    • Support 2ch transmission of SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
    • Handles pathological patterns for 3G-SDI, HD-SDI and SD-SDI
    • Digital diagnostics function
    • 10km over single mode fiber
    • Low power consumption- Typical 200 mA
    • Available in MSA and Non-MSA pinouts
    • Dual LC connector


  • Specifications:

    • Wavelength (nm): 1260/1620
    • Operating Case Temperature Range (°c): 0-70
    • Storage Temperature Range(°c): -40-85
    • Power Supply Voltage (V): 3.1 min, 3.3, typ, 3.5 max
    • Power Consumption (mA): 200 typ, 300 max


  • Item Includes:

    • 1x OMC Tech VP3-S1-4103K-G 3G-SDI SMPTE/DVB-ASI Dual Channel Optical Receiver SFP - 1260-1620nm - 10km / Non-MSA


  • Warranty:

    • 1 year
