Ocean Matrix OMX-01DVDV0001 1080p/60 DVI Extender Kit Over Single Cat 5e/6 with PoC Kit

ITEM #: OMX-01DVDV0001 MFG #: OMX-01DVDV0001

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the OMX-01DVDV0001

OMX-01DVDV0001 - Overview

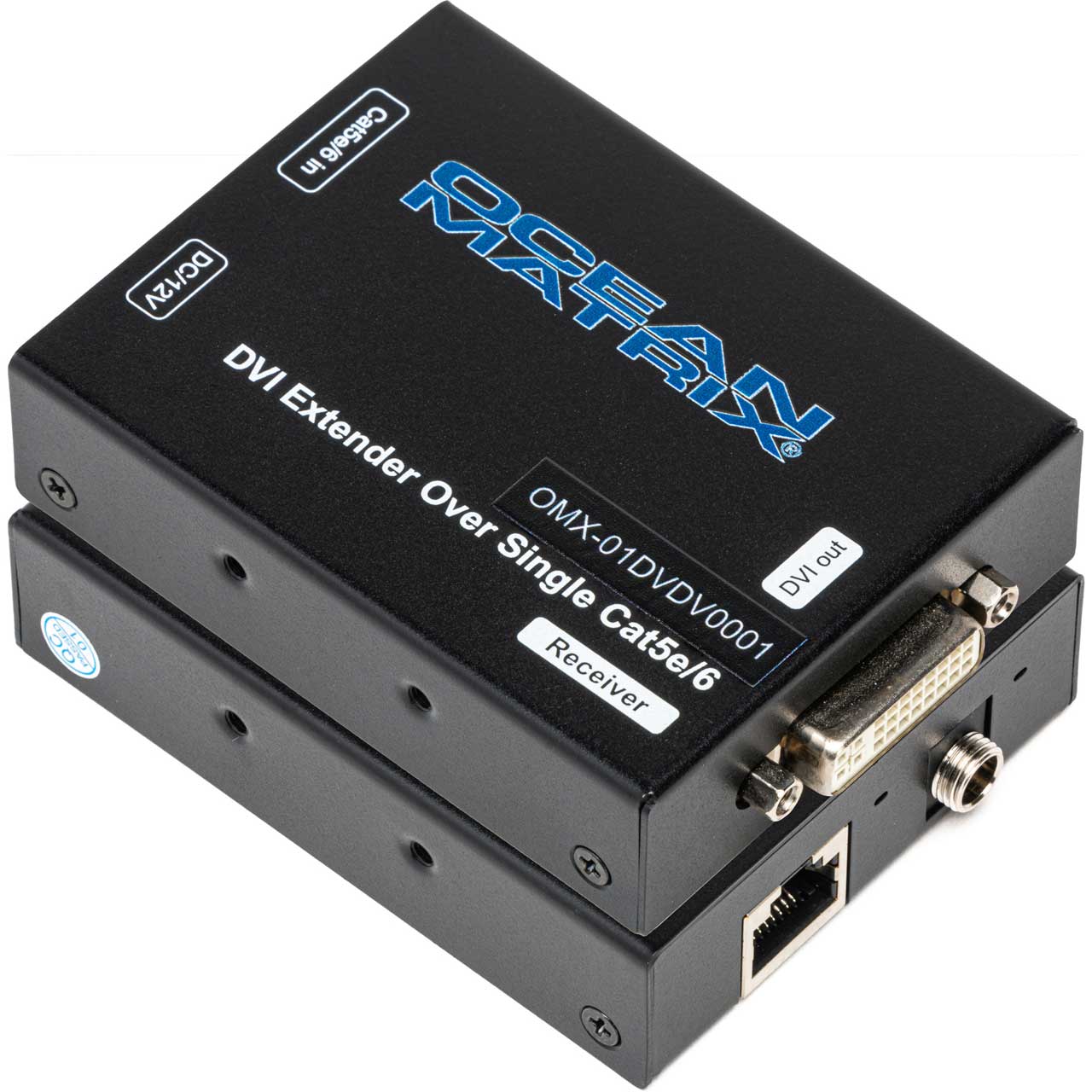

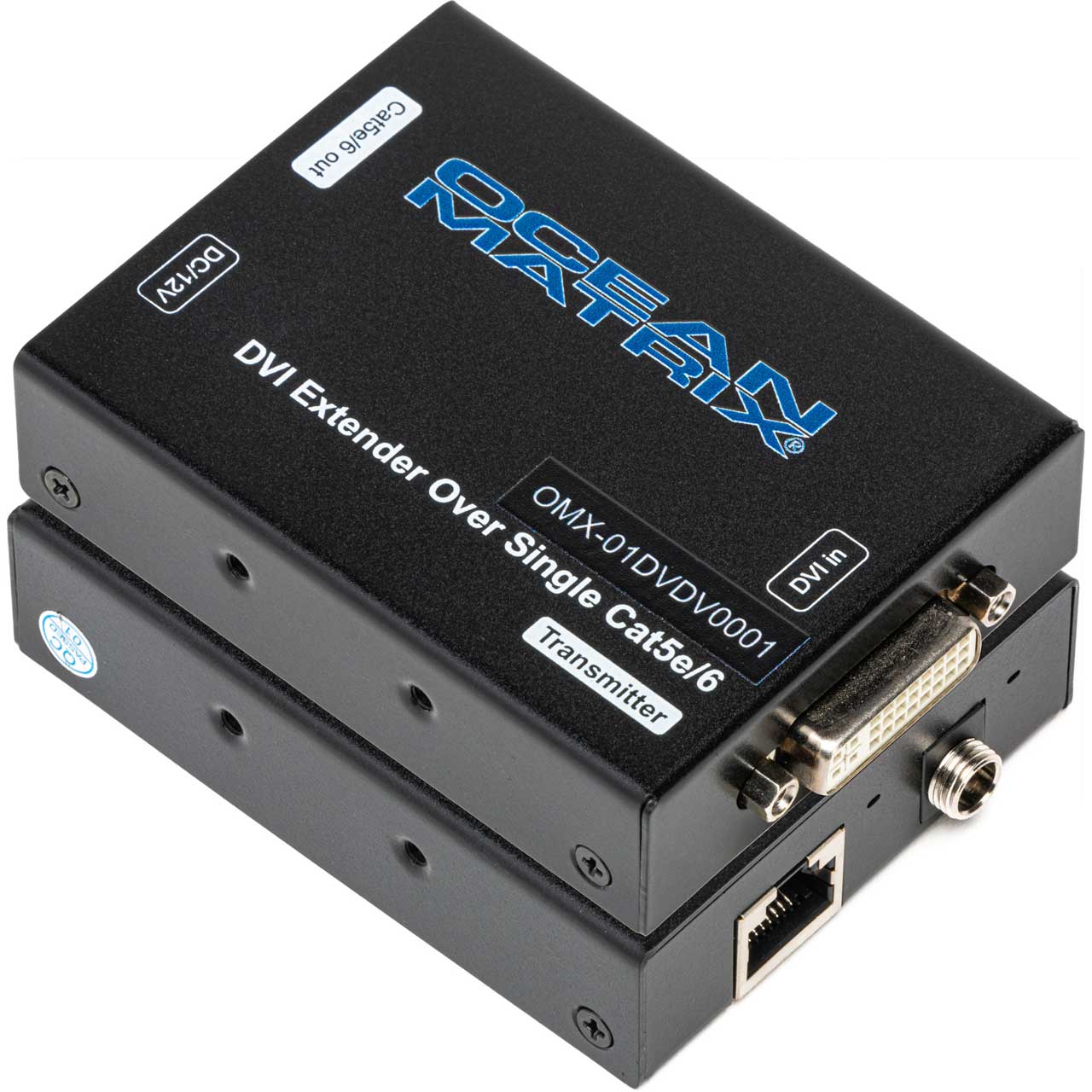

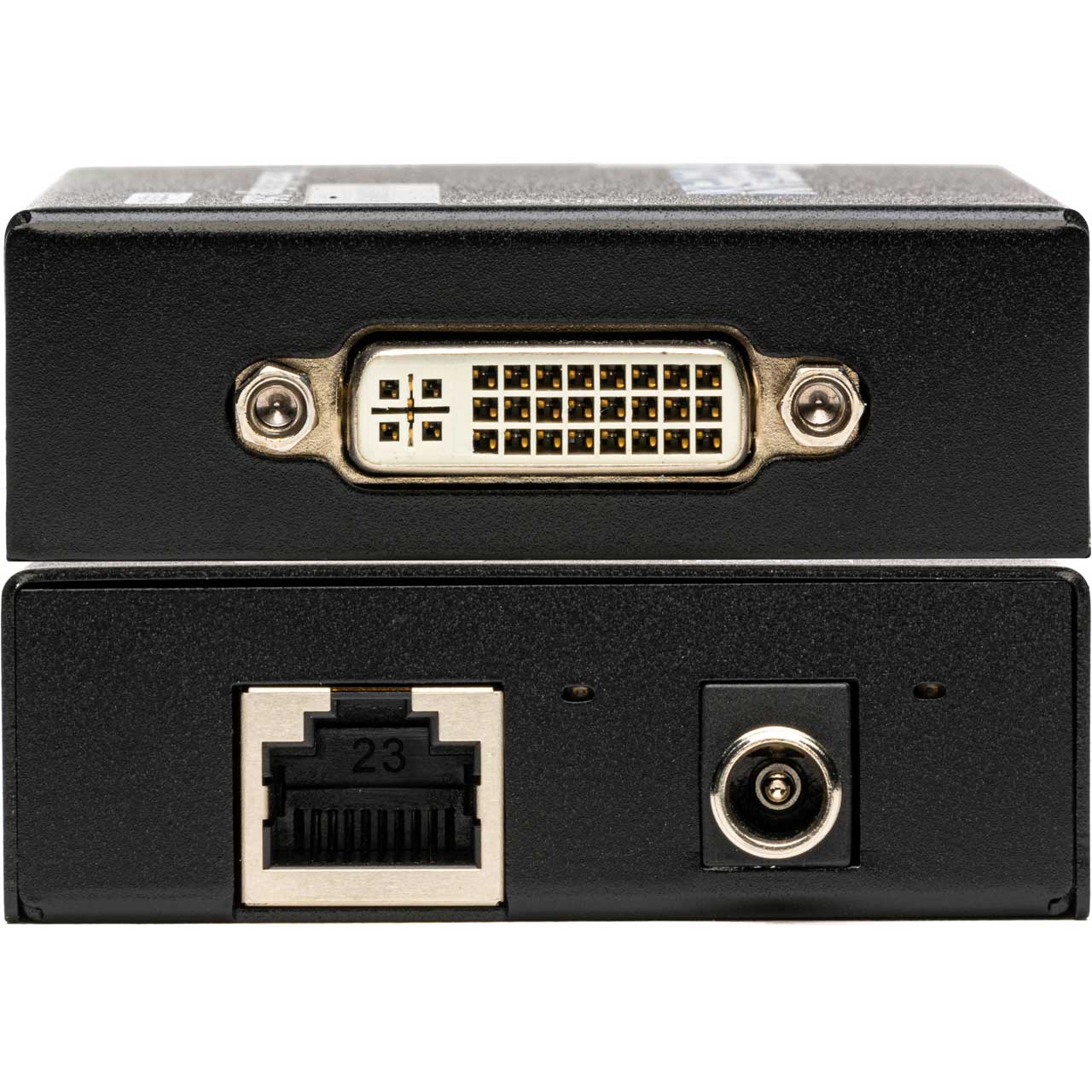

Extend your DVI signals from computers and similar peripherals with the Ocean Matrix 01DVDV0001 DVI Extender . The system sends 1080P@60Hz DVI up to 328 feet over a single CAT5e/6 cable. It support bi-directional POC (receiver powered by transmitter or transmitter powered by receiver) to simplify installs where running additional AC power runs would be challenging or costly.

  • Features:

    • No Loss in Video Quality & No Latency
    • Bidirectional PoC
    • Includes Locking Power Supply
    • Black Powder-Coated Steel Cabinet
    • LED Indicators for Power and Signal Status
    • FCC, CE Certified

  • Specifications:

    • Input Interface: DVI-D Female
    • Transmission Distance: 1080p@60 Hz up to 328 feet over Cat 5e/6
    • Bandwidth: 1.65Gbps
    • Video Format: up to 1080p@60HZ
    • Dimensions Each Unit: 3-3/8 x 2-1/2 x 7/8 Inches
    • Weight Each Unit: 5.3 oz

  • Item Includes:

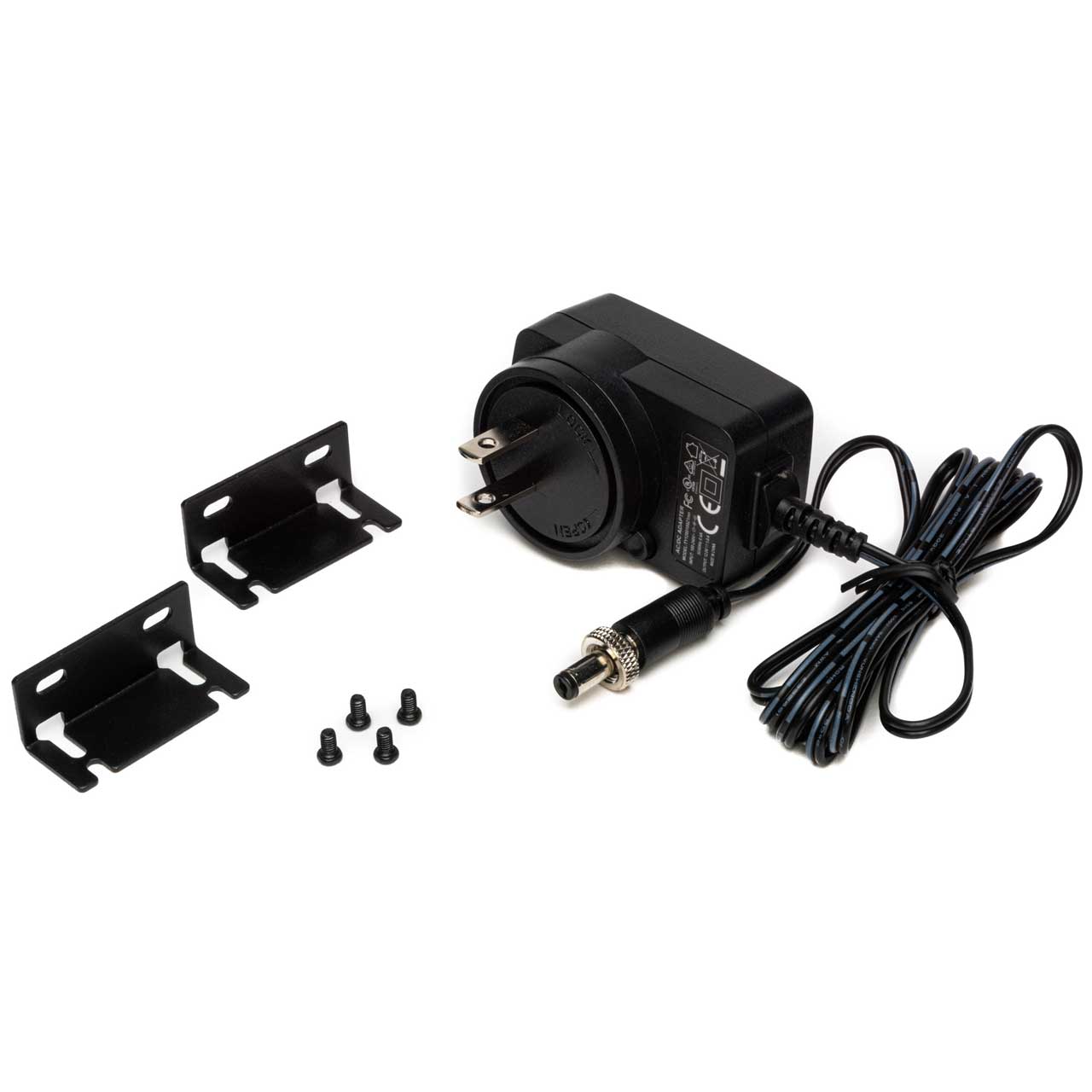

    • 1- Transmitter, 1-Receiver, 1-12VDC/1A Locking Power Supply, 4-Mounting Brackets, 8-Screws

  • Warranty:

    • 1 Year
