Ocean Matrix OMX-01HMHM0003 HDMI 1080P@60HZ Extender over Single Cat5e/6 with PoC

ITEM #: OMX-01HMHM0003 MFG #: OMX-01HMHM0003

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$59.95

Our Price:

$57.95

Availability: In Stock
iAvailability Description Popup


OMX-01HMHM0003 - Overview

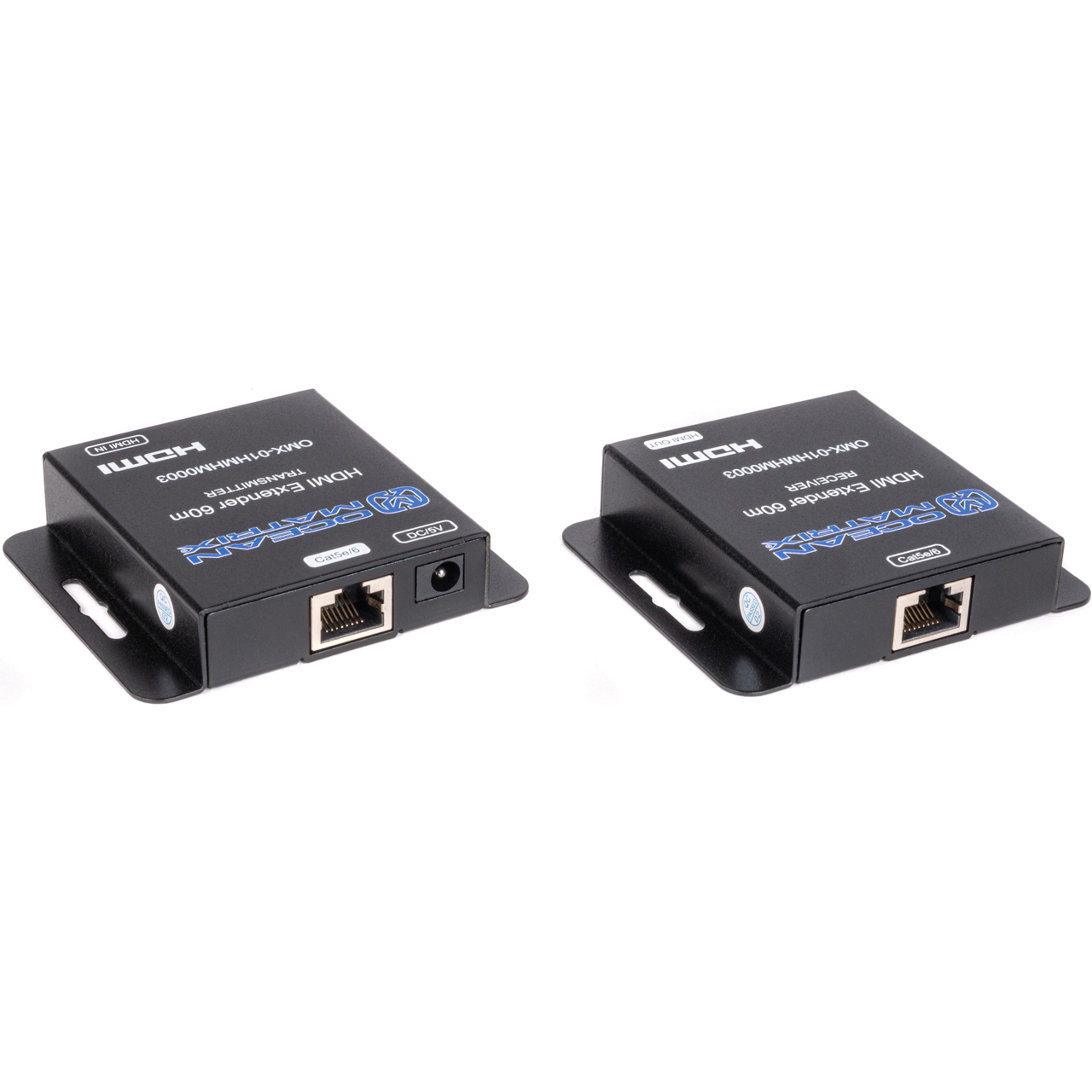

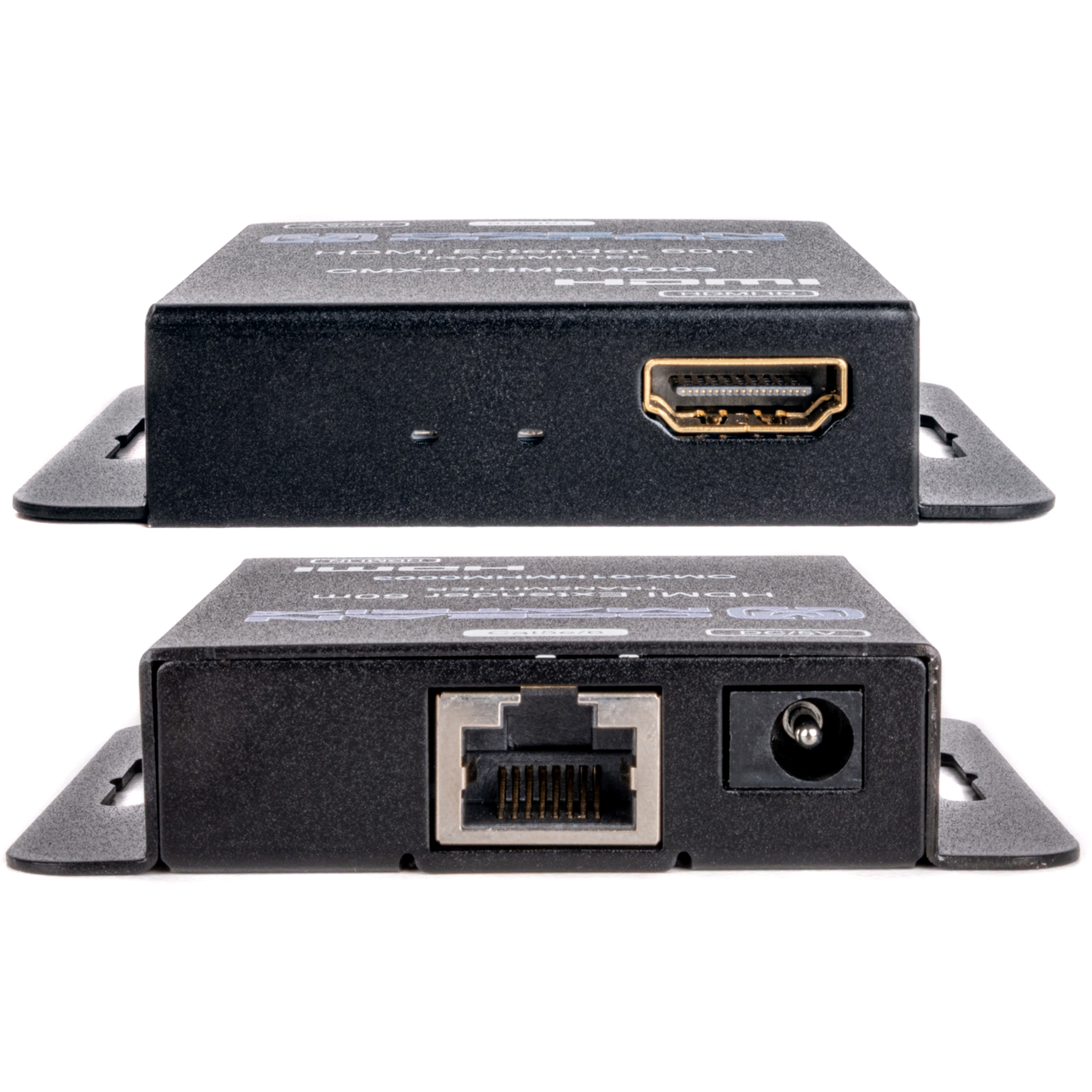

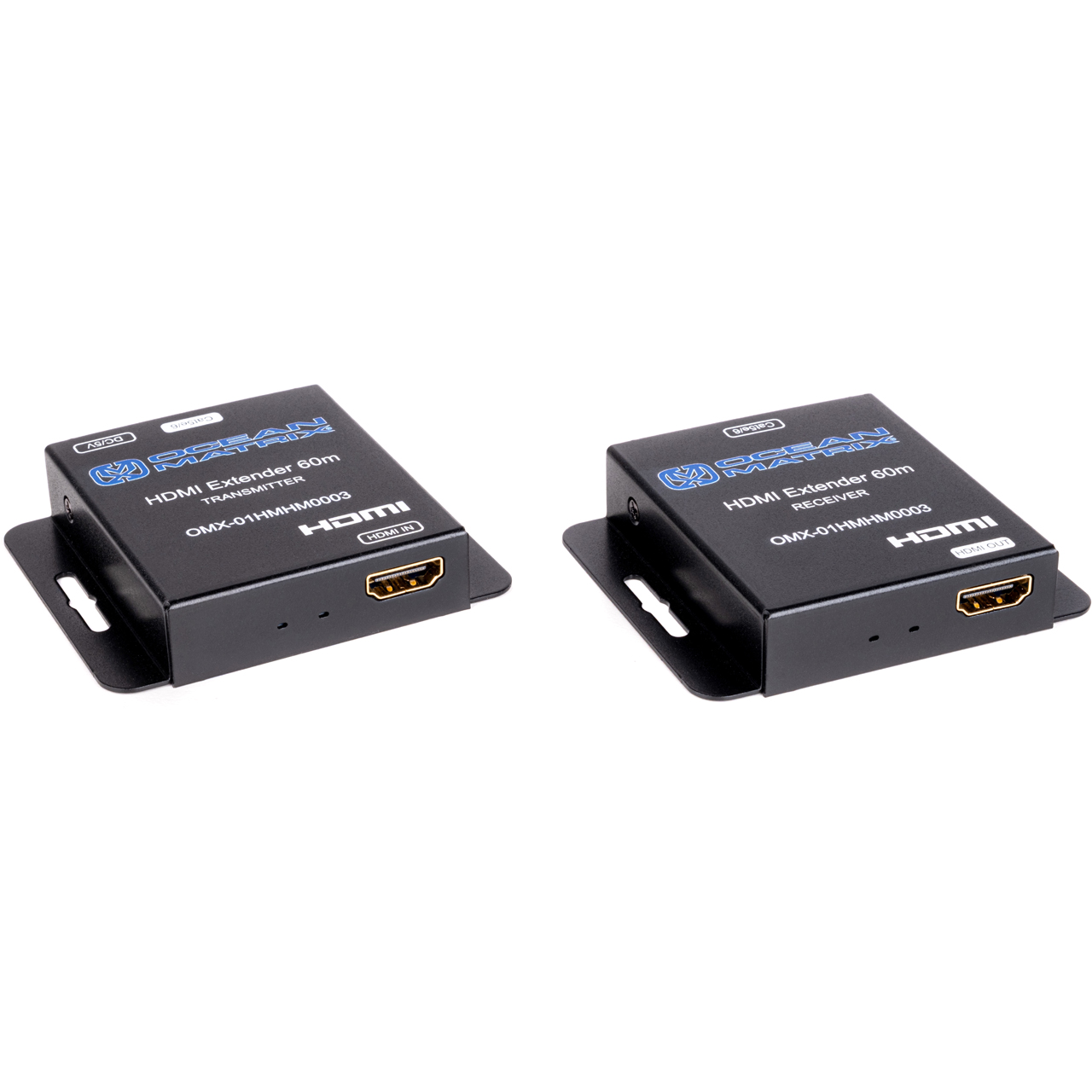

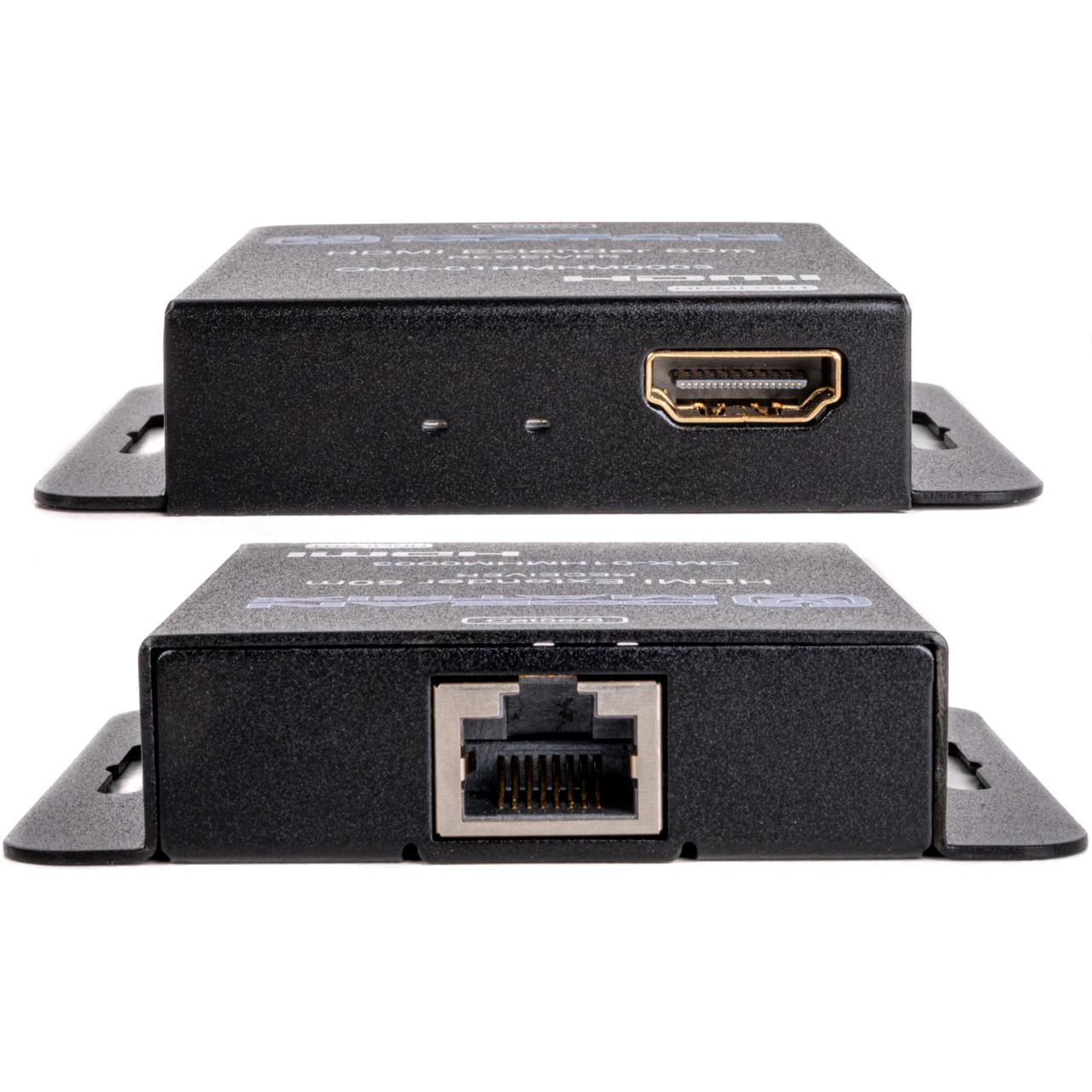

When you need a cost effective HDMI Transmitter/Extender that won't compromise on quality, call for the Ocean Matrix 01HMHM0003 in your next digital signage project. The 01HMHM0003 works over a single CAT5e/6 cable to extend HDMI up to 165 feet. It has PoC (power-over-cable) on board to simplify installations where running additional power lines would be costly in both time and money.

The Ocean Matrix 01HMHM0003 extends full 1080p at 60Hz with zero latency. It has a surface mount enclosure to fit behind racks or source feed equipment.

Note: PoC is only from the transmitter to the receiver.

  • Features:

    • High-definition resolution up to full HD 1080p@60hz YUV4:4:4
    • Transmits DVI/HDMI and audio up to 196 feet (60m) over CAT5e/6 without signal degradation
    • Supports 3D
    • Supports one-way PoC (Receiver powered by Transmitter)
    • Rugged metal enclosure

  • Specifications:

    • Input Video Signal: 0.5-1.0 Volts P-P
    • Input DDC Signal: 5 volts p-p(TTL)
    • Video Output: HDMI
    • Video Formats: DTV/HDTV:720P/1080i/1080P 3D video
    • Audio Formats: DTS-HD Master Audio, Dolby true-HD
    • Transmission Distance: up to 196 ft/ 60m over CAT5e/6
    • Power Consumption: 2W
    • Dimension (LxWxH) TX/RX each: 3.13 x 2.6 x 0.63 inches
    • Net Weight Net Weight TX and RX: 8.2 oz

  • Item Includes:

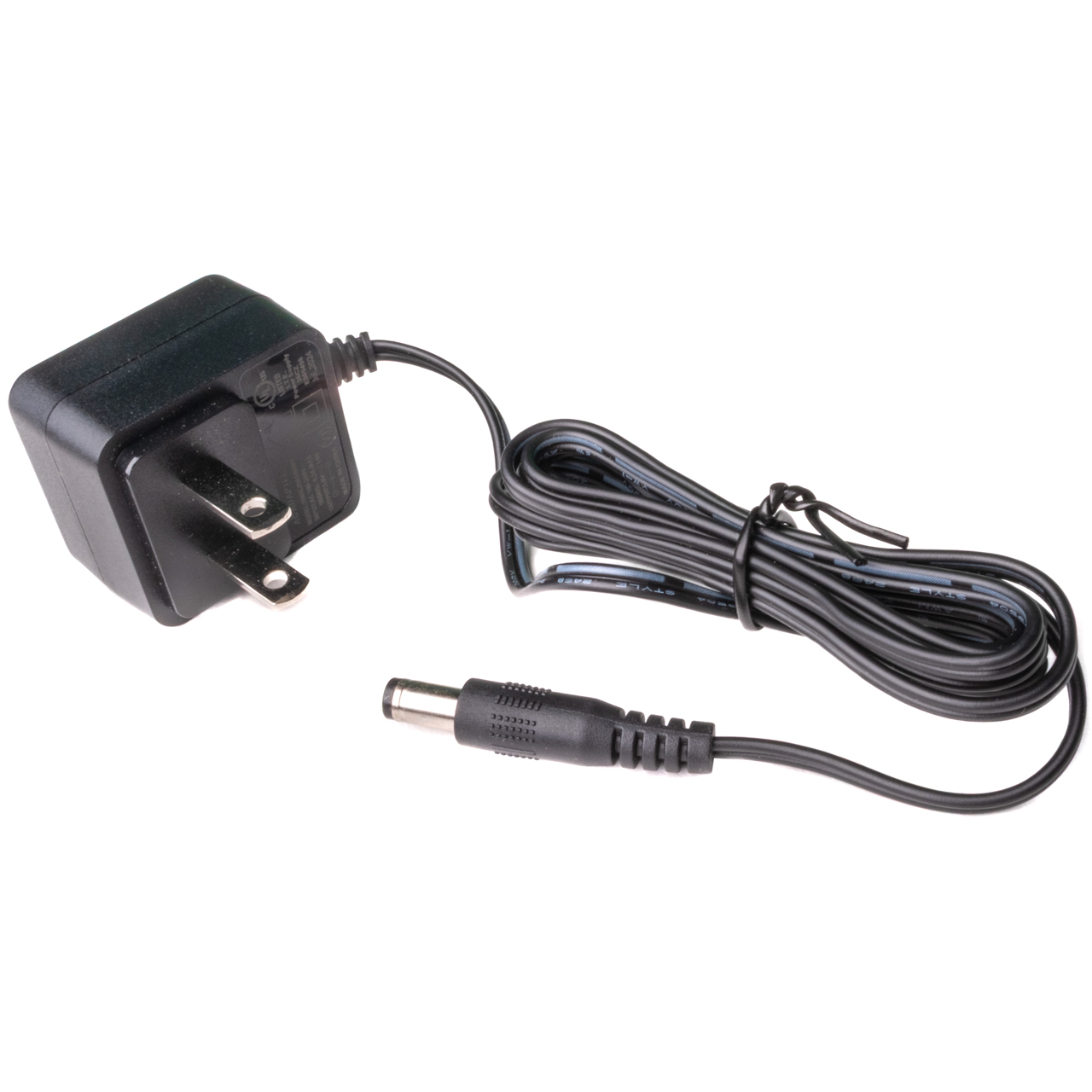

    • 5VDC/ 1A Power Supply

  • Warranty:

    • 1 Year
