Osprey TALON G2 H.264 Video Encoder with Touch Display - TAA Compliant

ITEM #: OSP-TALON-G2-ENC MFG #: 96-02012

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$2,090.00

Our Price:

$1,968.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


96-02012 - Overview

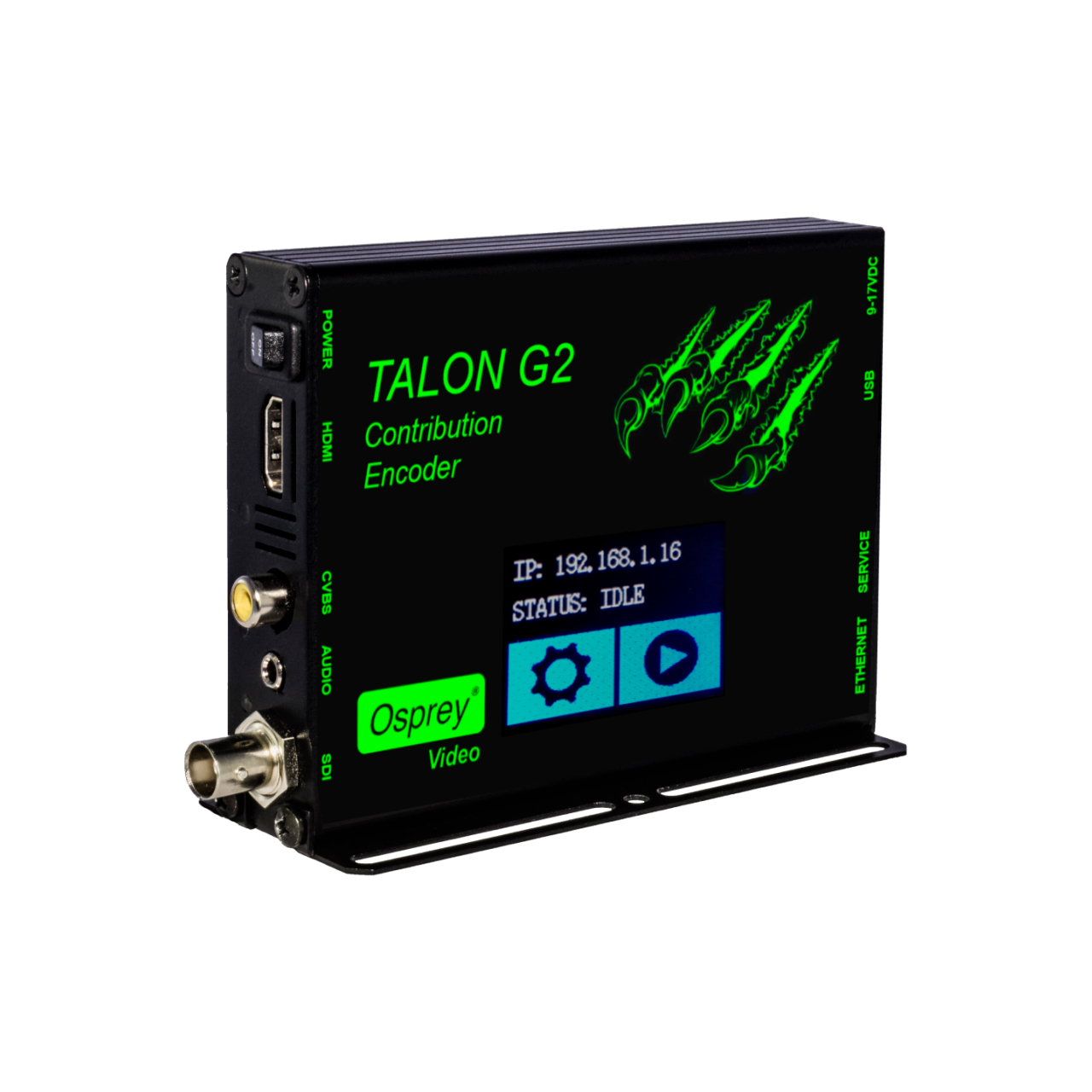

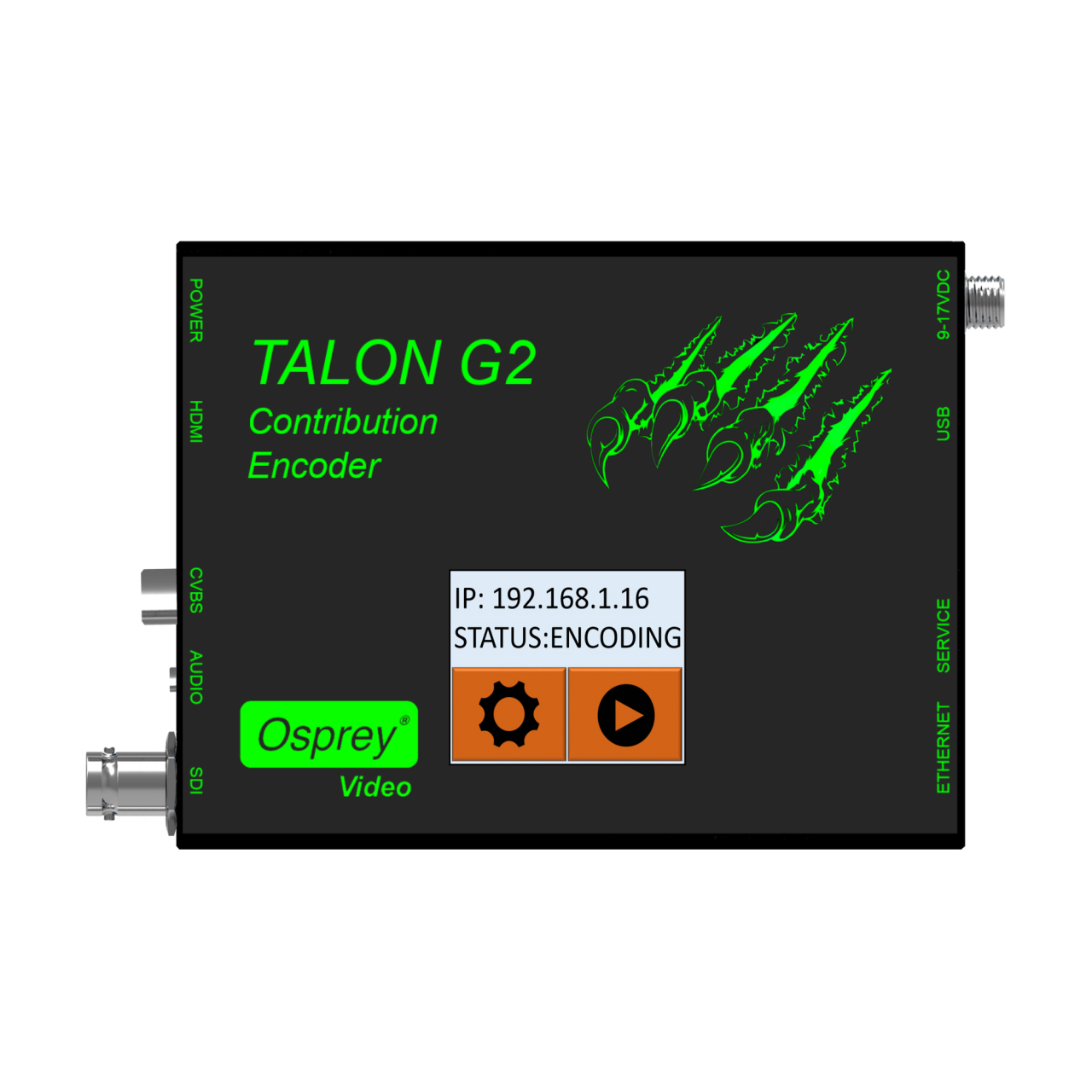

Osprey Talon G2 hardware-based streaming contribution encoders are designed for A/V and broadcast customers looking for end-to-end video-streaming tools. The Talon series ingests video from multiple formats, encodes it to H.264, and delivers it over IP.

Capable of ingesting video via 3G-SDI, HDMI, or Analog Composite, Talon series encode up to three streams simultaneously, with frame alignment across all streams for multiple-bit-rate RTMP streaming. Encode configurations are independent (unless frame aligned) allowing users to create up to three separate encodes, i.e. one RTMP stream, one UDP stream and a separate archive saved as .ts file. A simple, Web-based interface gives users quick access to encoding settings for easy configuration. Talon's small form factor, low power consumption and silent, fanless operation mean users can effectively set it and forget it.

  • Specifications:

    • Video Input: 3G SMPTE 424M; HD SMPTE 292M; SD SMPTE 259M; HDMI 1080P/60; Composite (CVBS)
    • Video Connector: Composite (RCA x 1); SDI (BNC x 1); HDMI
    • Audio Input: Unbalanced stereo; Embedded SDI (1 stereo pair); Embedded HDMI (1 stereo pair)
    • Audio Connector: Unbalanced stereo (3.5mm x 1)
    • Video Modes: 1080p 23.98, 24, 25, 29.97, 30, 50, 59.95, 60; 1080i 50, 59.94, 60; 720p 23.98, 24, 25, 29.97, 50, 59.94, 60; 720 x 480 29.97, 30/i (NTSC); 720 x 576 25/i (PAL); 720 x 576 25, 50/p
    • Encoding: Video Encoding: H.264 RTMP, RTP, MPEG-2 TS UDP, .TS File; Audio Encoding: AAC-LC & AAC-HE (32 to 320 kbps)
    • Closed Caption: Closed Captioning (EIA-608 & EIA-708) Type 1 ATSC Picture User Data is automatically embedded in the H.264 SEI per SCTE 128-1 standard
    • LED indicators: Power, Encoding, Signal Lock for SDI, HDMI, Composite

  • Item Includes:

    • 1x Talon G2 Encoder
    • 1x International Power Supply
    • 1x Mounting Brackets

  • GTIN:

    0850189006627
