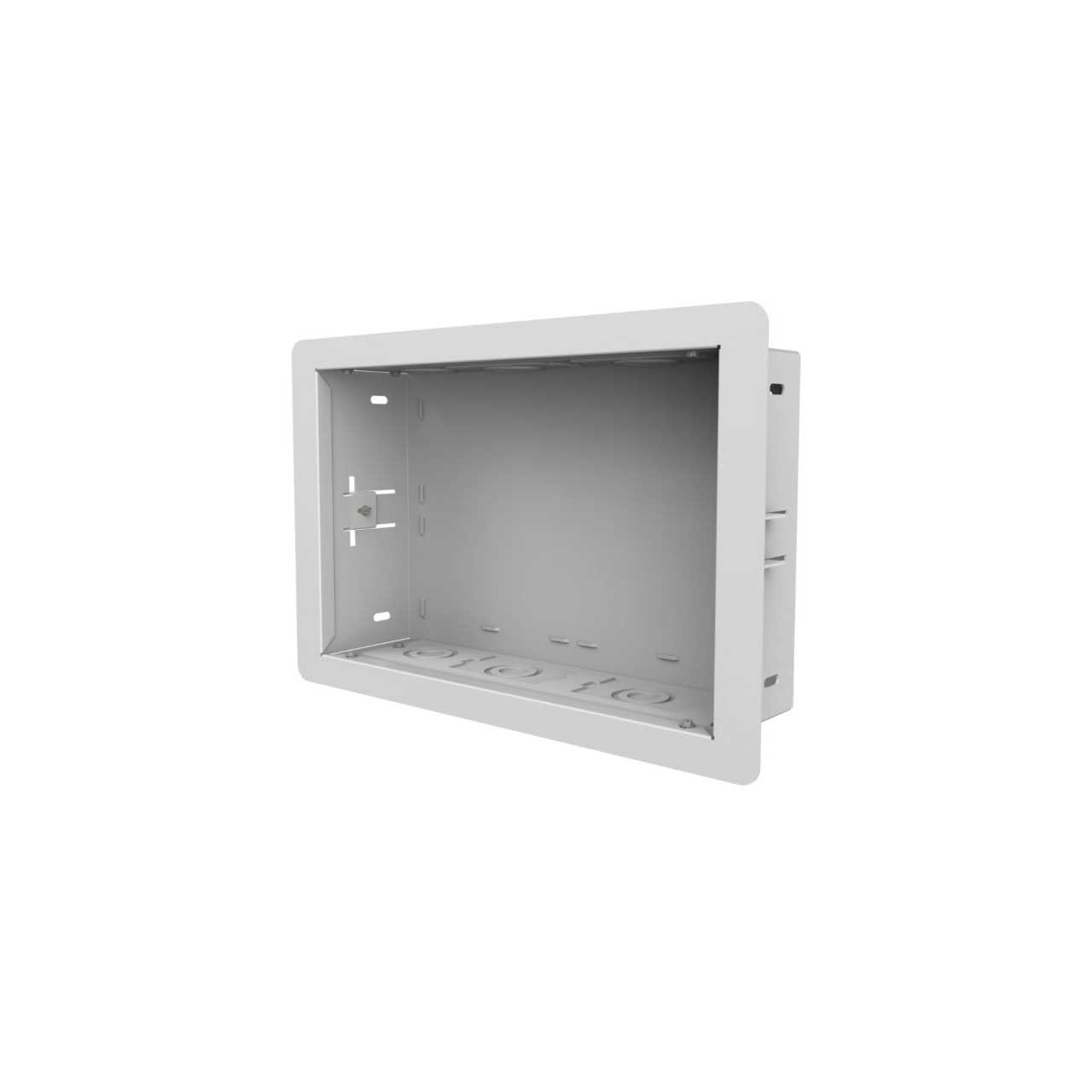

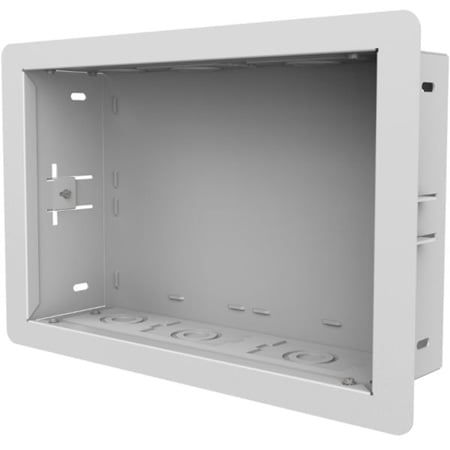

Peerless-AV IB14X9-W 14X9-In Wall Box for Recessed Power and AV Components

IB14X9-W - Overview

• Features:

  • Installs between 16" (406mm) stud centers, to a single stud or directly into a drywall opening
  • Knock-outs for 3/4", 1.0", 1.25" and 1.5" conduit
  • Cut-Out Dimensions: 14.4" x 9.4" (365 x 238mm)
  • Adjustable Trim Ring allows use of 3/8" - 3/4" drywall thickness
  • Knock-outs provide the ability to mount up to four single gang outlets. Compatible with RACO 420 gang box or equivalent.
  • Integrated cable tie locations
  • IB14X9-AC-W includes a 720 joule Leviton duplex surge protector, gang box and face plate
  • UL 2416 listed


• Specifications:

  • Minimum to Maximum Screen Size: N/A
  • Weight Capacity: 25lb (11.3kg)
  • Color: White
  • Finish: Powder Coat
  • Distance from Ceiling: N/A
  • Distance from Wall: N/A
  • Mounting Pattern: N/A
  • Security Features: Non-Security Hardware
  • Product Dimensions: 15.75 x 10.56 x 3.94" (400 x 268 x 100mm)
  • Shipping Weight: 6.39lb (2.9kg)
  • Ship Dimensions: 12.3125 x 4.125 x 20.3125" (312.7 x 104.8 x 515.9mm)


• Item Includes:

  • 1x IB14X9-W: In-Wall Box, Trim Ring
  • 2x Drywall Clamps
  • 2x Mounting Plates, and Wood Stud Mounting Hardware IB14X9-AC-W: In-Wall Box
  • 1x Trim Ring
  • 2x Drywall Clamps
  • 2x Mounting Plates
  • 1x Wood Stud Mounting Hardware
  • 1x Duplex Surge Suppressor
  • 1x Gang Box and Face Plate
