Belden 4855P CMP/Plenum Rated 12G-SDI 4K UHD Mini RG-59 Precision Video Coax 75 Ohm 23 AWG Solid - Black - Per Foot

ITEM #: BL-4855P-FT-BK MFG #: 4855P 0101000 FT

Primary Image
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$3.05

Our Price:

$3.00

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

4855P 0101000 FT - Overview

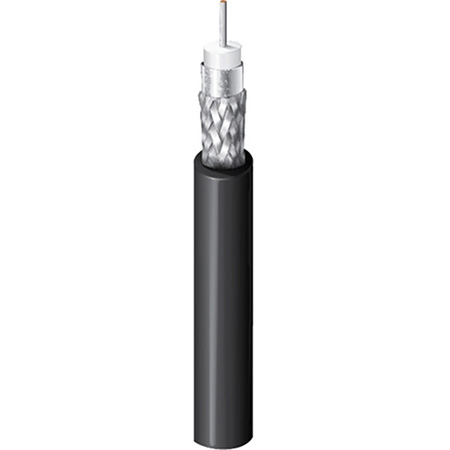

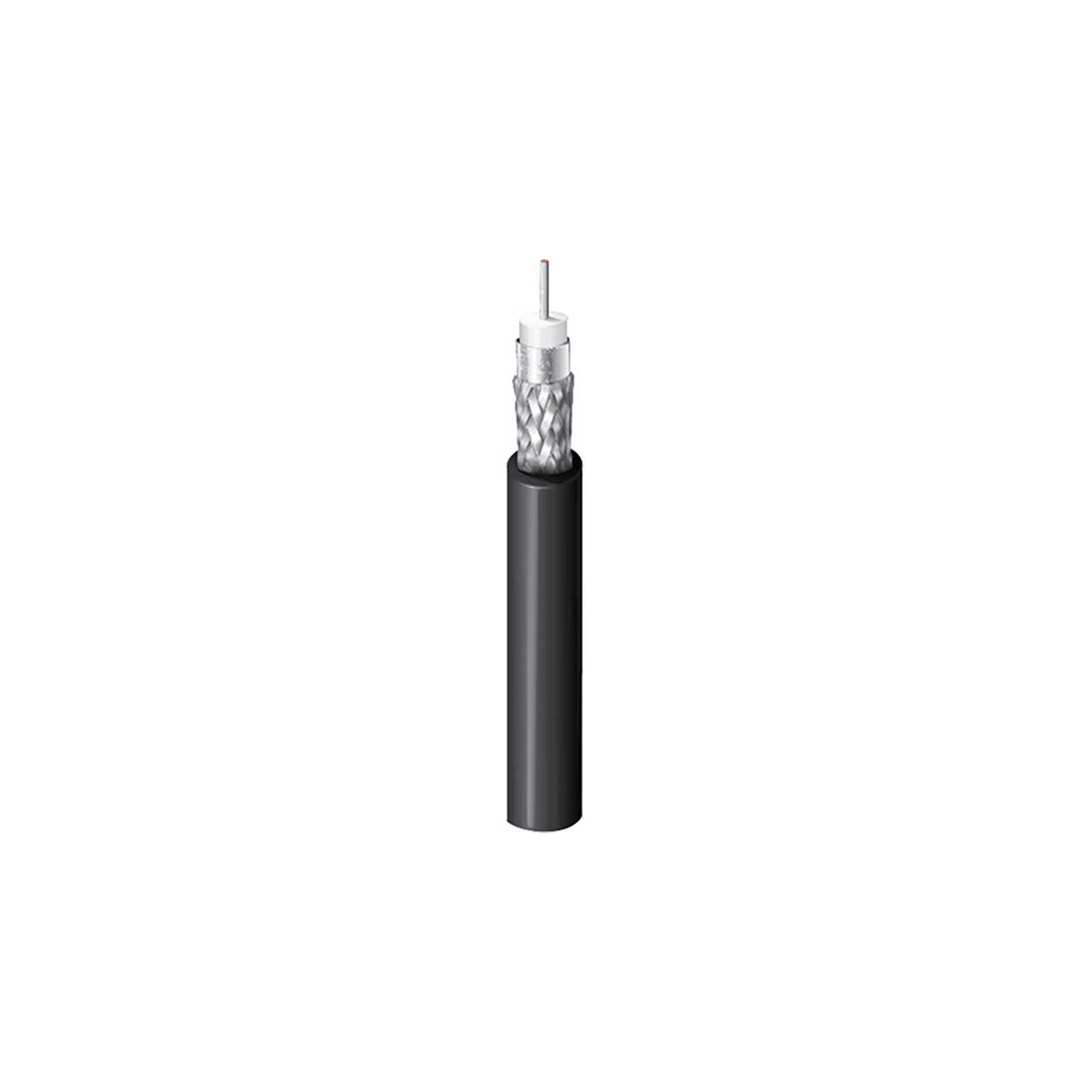

Belden 4855P is a 12G-SDI, 4K UHD Precision Video Coax, 75 Ohm, Mini RG-59 Type, with a 23 AWG solid silver plated copper conductor, foam FEP core, Duofoil® bonded to core+95% tinned copper braid. It's CMP/Plenum rated in a Flamarrest® jacket.

Belden 4K UHD Coax Cables for 12G-SDI maximize 4K signal transmission distance over a single coax, minimizing weight and space utilization compared to multi-link solutions. This solution provides significant headroom and guarantees -15 dB return loss from 4.5 to 12 GHz.

Applications:
- SMPTE 2082-1 12 Gb/s UHDTV
- SMPTE 2081-1 6 Gb/s UHDTV
- SMPTE 424M 3 Gb/s HD-SDI 1080P

  • Features:

    • Faster Installation: Using Belden's single-link solution saves time and is significantly lighter than dual or quad-link configurations
    • Optimized Design: On Belden 4K UHD Coax Cables for 12G-SDI, the inner foil is bonded to the core to eliminate bunching when installing 1-piece connectors. The outer foil is bonded to the jacket for a quicker, one-step stripping process
    • Superior Performance: The 4K UHD coax cable for 12G-SDI are superior in performance and engineered to optimize transmission distance, the cables exceed the SMPTE Return Loss (RL) specifications for UHDTV
    • Supports 12GHz: Belden 4K UHD Coax Cables for 12G-SDI are capable of supporting 12GHz bandwidth and enable a single-link configuration to transmit 4K


  • Specifications:

    • Conductor AWG: 23
    • RG Type: Mini 59
    • Nominal Characteristic Impedance: 75Ω
    • Conductor Stranding: Solid
    • Conductor Material: SC - Silvered Copper
    • Conductor Nominal Diameter: 0.023"
    • Insulation Material: FEP - Fluorinated Ethylene Propylene (Foam)
    • Insulation Nominal Diameter: 0.102"
    • Nominal Inductance: 0.3µH/ft
    • Nom. Capacitance Conductor to Shield: 16.6pF/ft
    • Outer Shield Type Layer 1: Tape/Tri-Laminate (Alum+Poly+Alum)/100%
    • Outer Shield Type Layer 2: Braid/Tinned Copper(TC)/95%
    • Outer Jacket Material: PVC - Polyvinyl Chloride
    • Outer Jacket Nominal Diameter: 0.159"
    • Operating Temperature Range: -4°F - 167°F (-20°C - 75°C)
    • Bulk Cable Weight: 18lbs/1000ft
    • Max. Recommended Pulling Tension: 40lbs
    • Min. Bend Radius/Minor Axis: 1.500"
    • Nom. Characteristic Impedance: 75Ω
    • Nom. Inductance: 0.3µH/ft
    • Nom. Capacitance Conductor to Shield: 16.6pF/ft
    • UL Voltage Rating: 300V RMS
    • CEC/C(UL) Compliance: CMP
    • NEC/(UL) Compliance: CMP
    • Indoor: Yes
    • Plenum: Yes
    • CSA Flammability: FT6
    • UL Flammability: NFPA 262


  • Item Includes:

    • 4855P CMP/Plenum Rated 12G-SDI 4K UHD Mini RG-59 Coax - Black - Per Foot


  • Warranty:

    • Limited 10 Year Warranty
