Pliant Technologies CHB-8C-02 CrewCom 8-Port Copper Hub

CHB-8C-02 - Overview

• Features:

  • Eight CrewNet ports Eighth port is shared, either duplex LC Single Mode Fiber or copper Supplies line power over CrewNet to supported devices

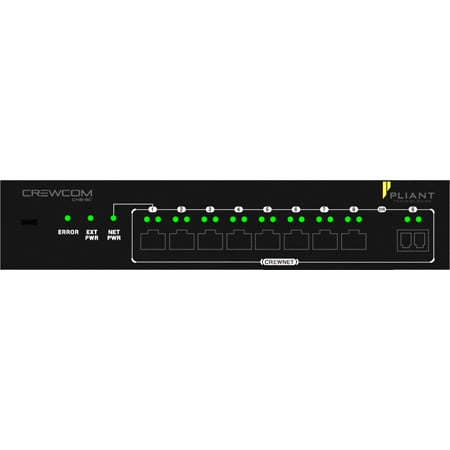

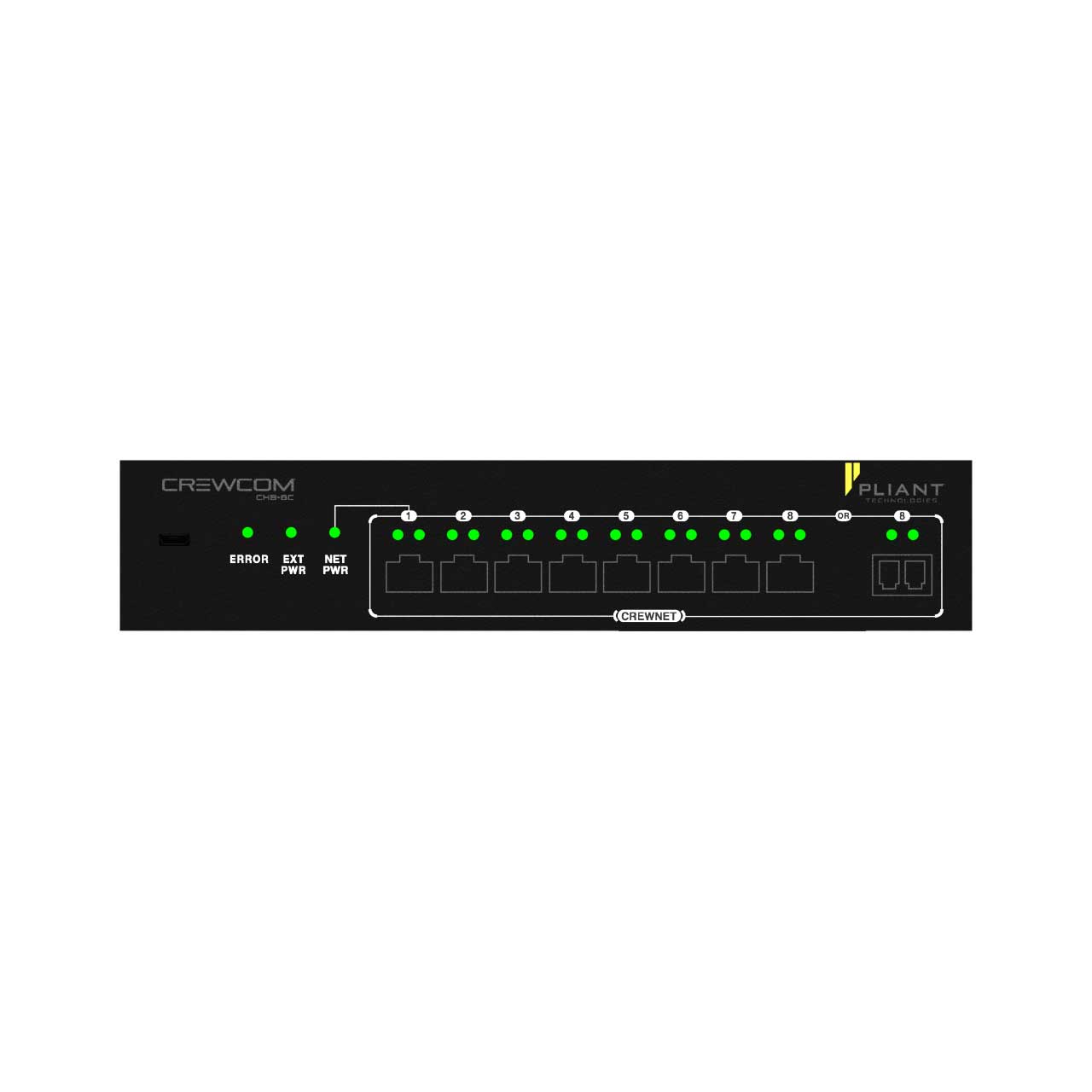

  • Front and rear panel status indicators Micro USB connection for firmware updates Powering options
  • Network line power via CrewNet
  • External power (48VDC) Standard 1RU half-rack size, forward or rear-facing orientation (rack kit sold separately)
  • Integrated Ping function, which uses all LEDs to physically identify a target device


• Specifications:

  • CrewNet Ports: (8 total connections) (7) RJ-45 for copper; (1) RJ-45 for copper or duplex LC for Single Mode Fiber
  • Maximum Line Length: Copper 330 ft. (100 m); Fiber 32,800 ft. (10,000 m)
  • External Power In: 48VDC Power Supply
  • Network Power In Port: 1 (RJ-45)
  • Network Power Out Sourced by network power: Ports 2-8; Sourced by external power: Ports 2-8
  • Dimensions: 8.62 in. × 1.73 in. × 8.68 in. (21.9 cm × 4.4 cm × 22 cm) Weight 1.75 lbs (794 g)
  • Operating Environment: -20° to 50° C (-4° to 122° F); 10% to 90%
  • Humidity. Maximum Altitude: 9,842 ft. (3,000 m)
  • RoHS: Yes


• Item Includes:

  • Copper Hub, 48VDC Power Supply, USB-A to Micro-B cable, Cat 5e cable, 6ft. (1.8m), Rubber Feet, Product Overview Guide, Warranty Registration Card


• Warranty:

  • 2 Years (2nd Year Requires Registration)
