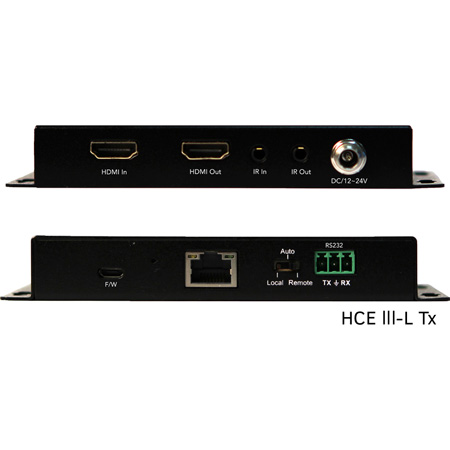

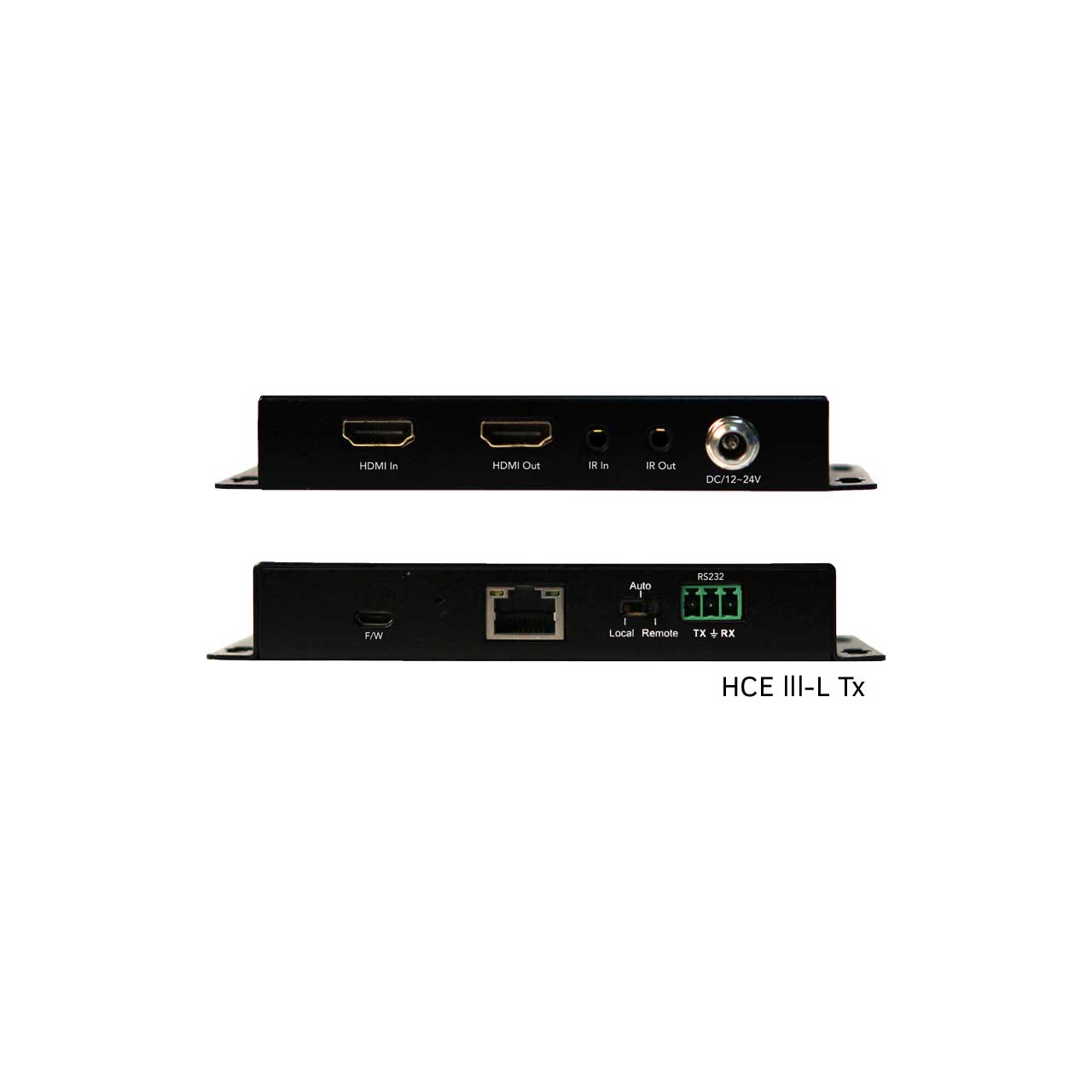

PureLink HCE-III-L-TX 4K HDMI over HDBaseT Extender w/Loop Out Transmitter

HCE-III-L-TX - Overview

• Features:

  • Supports resolutions up to 4K@60Hz (4:4:4)
  • Supports data rates up to 18 Gbps
  • HDCP 2.2/ HDCP 1.4 Compliant
  • Transmits Ultra HD/4K signals up to 130 ft. (40m)
  • Supports HDR10 and Full 3D
  • HDMI loop-put on transmitter and additional HDMI output on receiver
  • Bi-directional IR and RS-232 extension
  • Bi-directional PoE (Rx powered by Tx or Tx powered by Rx)
  • EDID selector (auto, local, remote)


• Specifications:

  • Hardware
  • Audio: Support DTS-HD, Dolby-HD
  • Input Signal Type(s): (1) HDMI Type A, (1) USB [firmware]
  • Output Signal Type(s): (1) HDMI Type A [Loop Out], (1) HDBaseT [RJ45]

    Performance
  • Supported Distance: Ultra HD/4K up to 130ft. (40m), 1080p up to 230 ft. (70m)
  • Supported Resolutions: 4K@60Hz (4:4:4), 1080p, 1080i, 720p(50Hz), 576p, 480p, 576i, 480i
  • Video Bandwidth: up to 18 Gbps
  • Compliance: HDMI 2.0, HDCP 2.2, HDCP 1.4
  • RS-232: (1) RS-232 [3-pin phoenix]
  • IR Extension: (1) x IR input [3.5mm stereo mini-jack]; 1 x IR output [3.5mm stereo mini-jack]
  • Power Supply: DC 24V/1A
  • Operating Temperature: 32° to 117°F (0° to 47°C)
  • Storage Temperature: -40° to 158°F (-40° to 70°C)
  • Relative Humidity: 0 to 90% non-condensing
  • MTBF: 50,000 hours
  • Rack Mounting Option: Standard 19 inch rack-mountable design

    Enclosure
  • Rack Mounting Option: Standard 19 inch rack-mountable design
  • Product Dimensions: 5.5 x 2.6 x 0.8" (139.4 x 66.8 x 20mm)
  • Product Weight: 1.19 lbs. (0.54kg)


• Warranty:

  • 3 Year Limited Warranty
