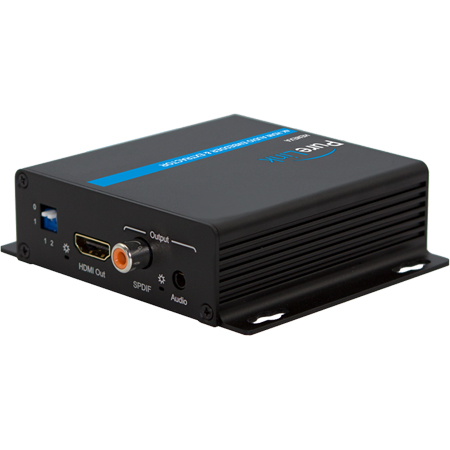

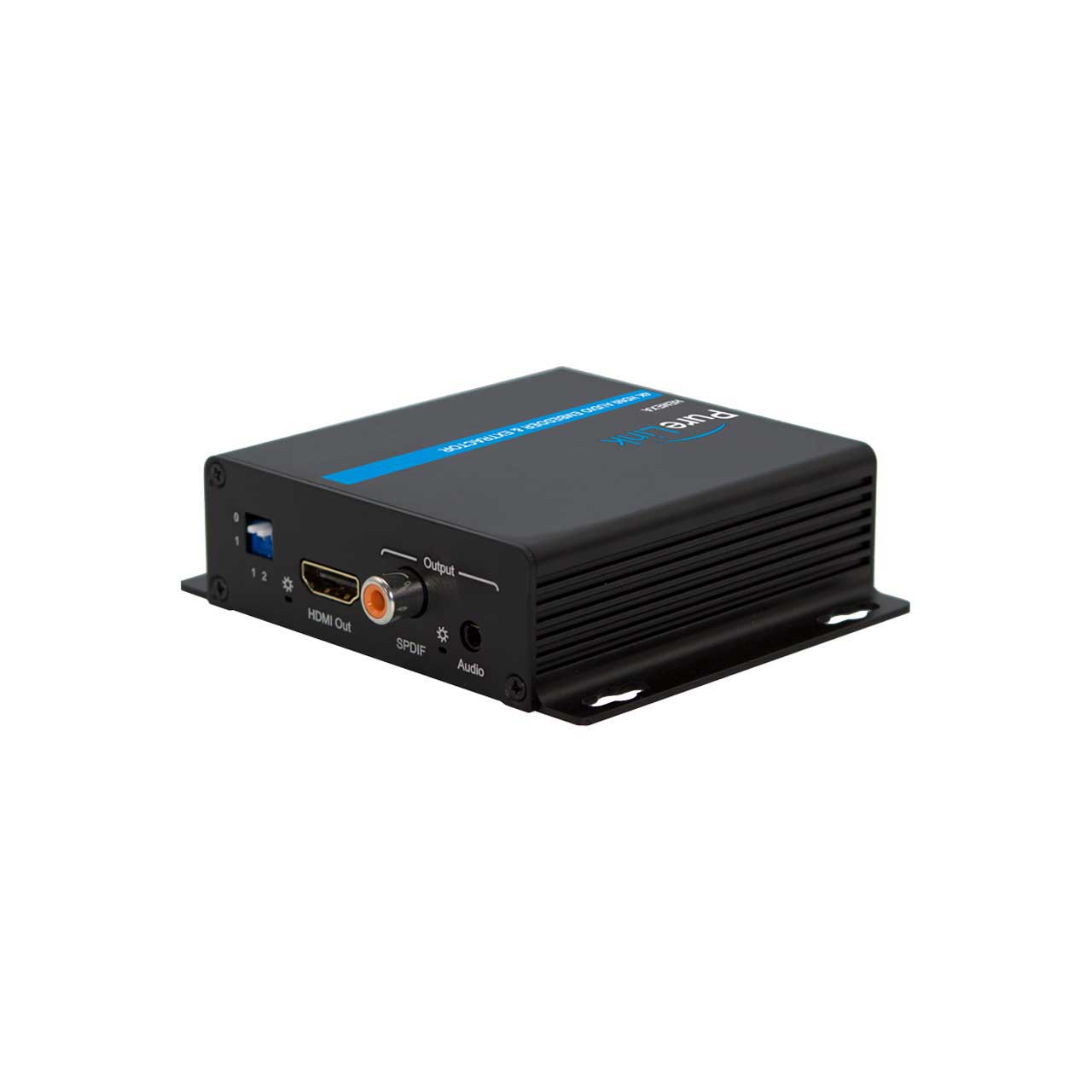

PureLink HEMEXA HDMI 2.0 Analog - S/PDIF Audio Embedder and Extractor

HEMEXA - Overview

• Features:

  • Audio embedding of 5.1 SPDIF, Analog Audio 2.0 PCM
  • Extract digital HDMI audio signal from HDMI input to 2 channel analog stereo output or 5.1 channel audio output
  • Supports uncompressed PCM, Dolby, DTS audio
  • Supports resolution up to 4K 60Hz (18Gbps)
  • HDCP 2.2/1.4
  • Supports CEC


• Specifications:

  • Hardware

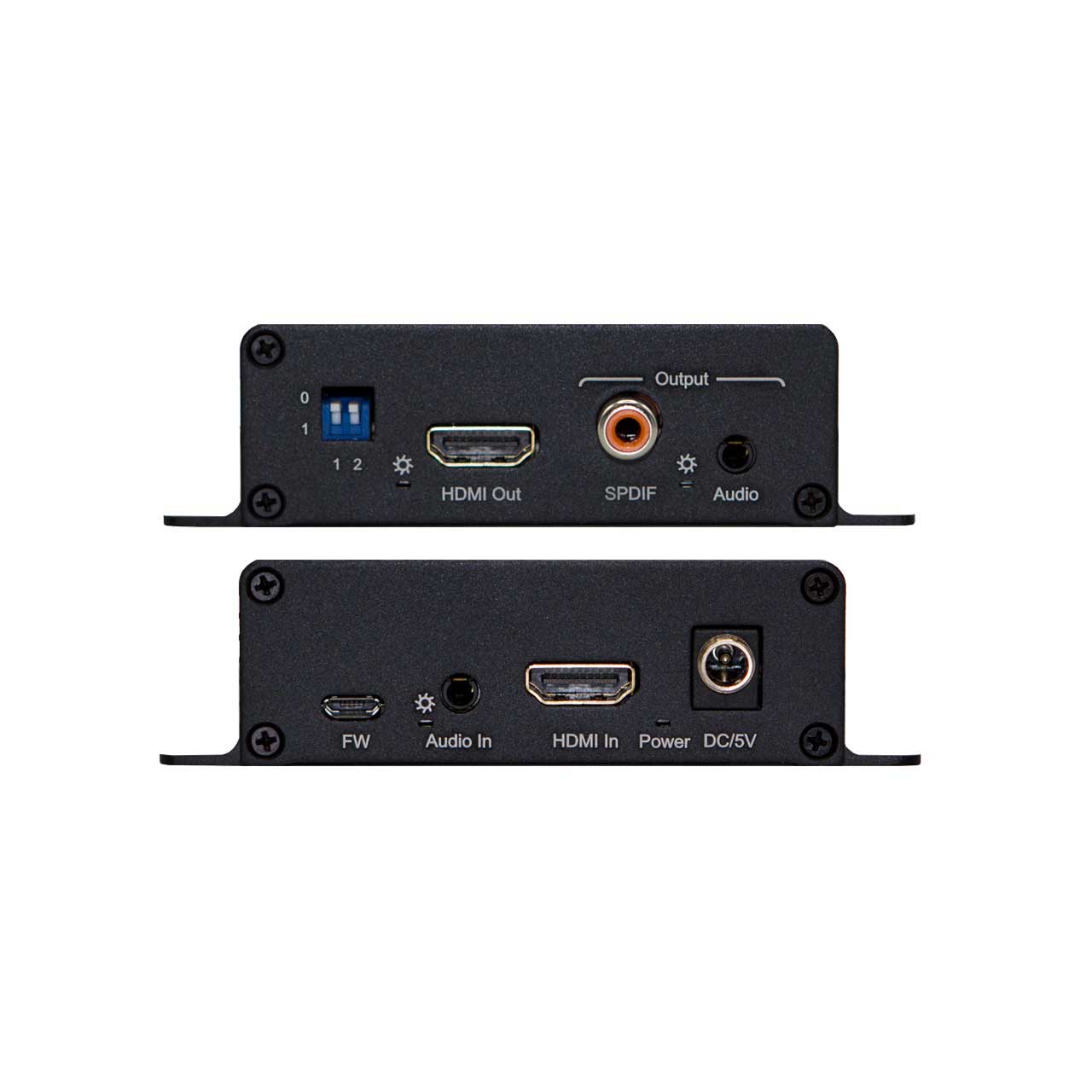

  • Input Signal Types:
    (1) HDMI Type A [19-pin female]
    (1) Analog Stereo Audio [3.5mm]
  • Output Signal Types:
    (1) HDMI Type A [19-pin female]
    (1) Analog Stereo Audio [3.5mm]
    (1) Digital Audio [SPDIF]

    Performance
  • Compliance: HDCP 2.2/1.4
  • Video Input Format: 0.5-1.0 Volts P-P
  • Supported Audio Formats: PCM, DTS-HD Master Audio, Dolby true-HD, etc.
  • Power Consumption: 1.5 watts (Maximum)
  • Input DDC Signal: 5 volts p-p (TTL)
  • Operating Temperature: 23° to 104°F (-5° to 40°C)
  • Operating Humidity: 5 to 90% RH (No Condensation)
  • Support Video Format: 4Kx2K/1080P/1080i/720P/576P/576i/480P/480i 3D video
  • Support Video Color Format: xv-YCC/deep color 36bit
  • Data Rate: 18 Gbps

    Enclosure
  • Product Dimensions: 4.11 x 3.50 x 1.11" (104.4 x 89 x 28.3mm)
  • Product Weight: 0.34Lbs (155g)


• Warranty:

  • 3-Year Limited Warranty
