PureLink UHD-120 HDTools (1) HDMI Input to (2) HDMI Output Distribution Amplifier - Ultra HD

Name: PureLink UHD-120 HDTools (1) HDMI Input to (2) HDMI Output Distribution Amplifier - Ultra HD
Brand: PureLink
SKU: PLK-UHD-120
Price: 289.99 USD
Availability: InStock

ITEM #: PLK-UHD-120 MFG #: UHD-120

PureLink

Our Price:

$289.99

Add to Wish List Leasing Options

Availability: Ships Factory Direct, Typically in 3-10 Business Days

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

UHD-120 - Overview

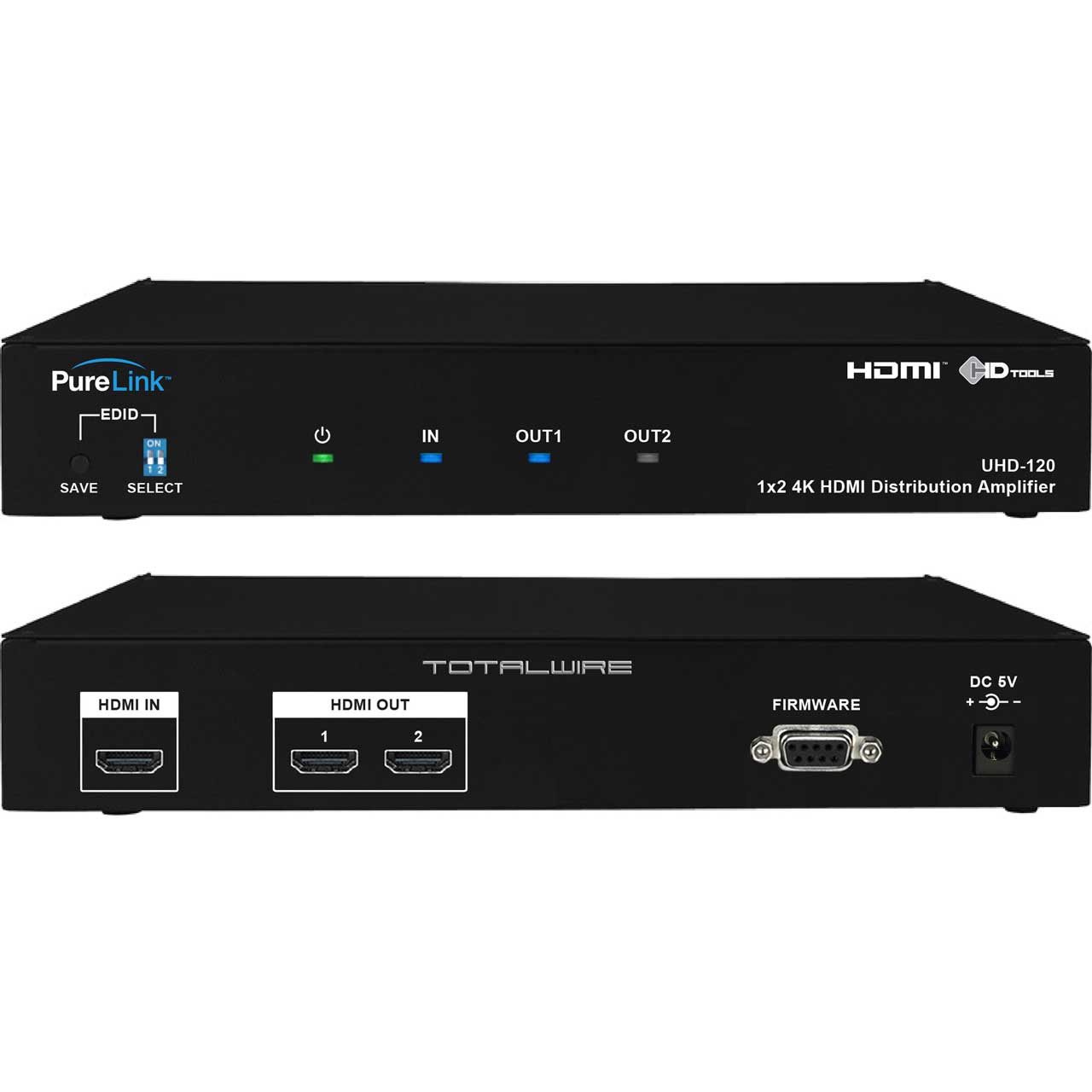

The PureLink HDTools™ UHD-120 is a high-performance distribution amplifier with Ultra HD/4K support designed to split a single HDMI signal to two independent outputs. With built-in equalization and re-clocking technology, the UHD-120 provides uninterrupted A/V signal transmission over longer distances.

The UHD-120 offers simple plug and play functionality for easy operation without programming or a control system. Along with a durable and low power consumption design, the UHD-120 is ideal for use in home theater, presentation, and other multimedia applications.

Features:
- 2 HDMI outputs from a single source
- Supports video resolutions up to Ultra HD/4K
- HDCP compliant
- Equalization and re-clocking for optimal signal quality
- Auto-EDID management - factory default settings and EDID emulation
- Active input & output LED indicators
Specifications:
- Hardware
- Input Signal Type(s): HDMI Single Link
- Output Signal Type(s): HDMI Single Link

  Performance
- Supported Resolutions: 480i/p, 720i/p , 1080i/p@ 60hz, 4K@30hz
- Compliance: HDMI 1.4, HDCP
- Power Supply: DC 5V 2A
- Operating Temperature: 32° to 117°F (0° to 47°C)
- Storage Temperature: -40° to 158°F (-40° to 70°C)
- Relative Humidity: 0 to 90% non-condensing
- MTBF: 50,000 hours
- Rack Mounting Option: Standard 19 inch rack-mountable design

  Connections
- Connector Type(s): (3) HDMI Type A, (1) RS-232 [firmware]

  Enclosure
- Enclosure Type: All metal, black powder coat finish
- Rack Mounting Option: Standard 19 inch rack-mountable design
- Product Dimensions: 6.6 x 3.9 x 1.6"
- Product Weight: 1.0 lbs.
Warranty:
- 3 Year Limited Warranty
