VIP-NET-M3200 - Overview

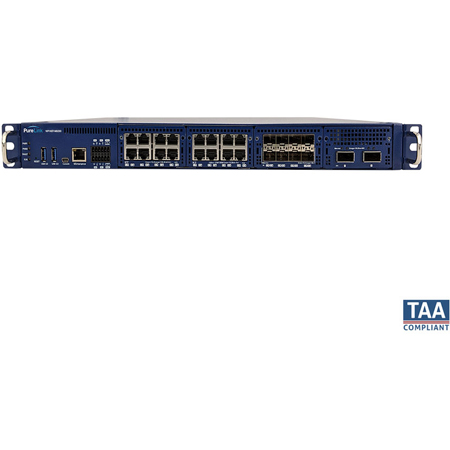

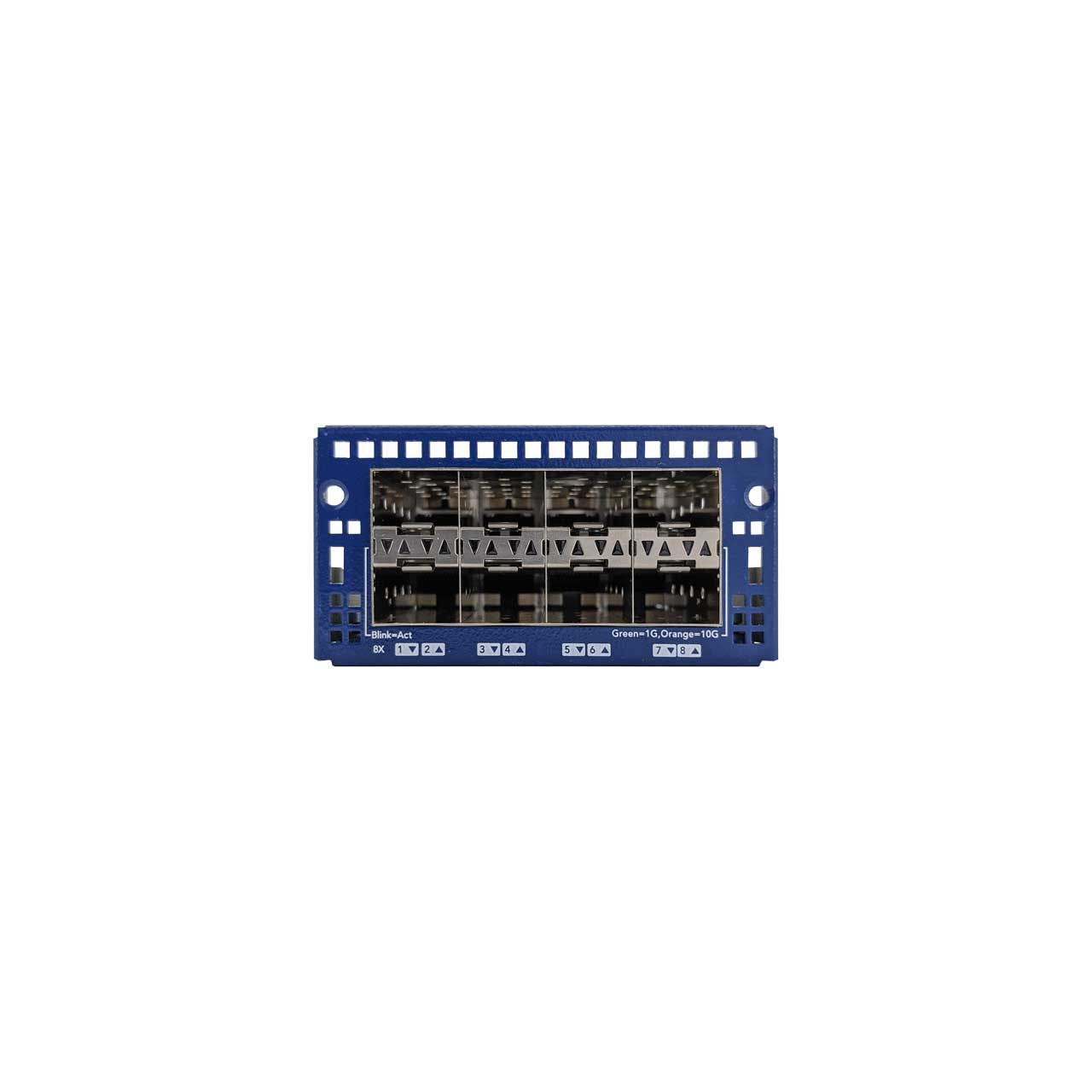

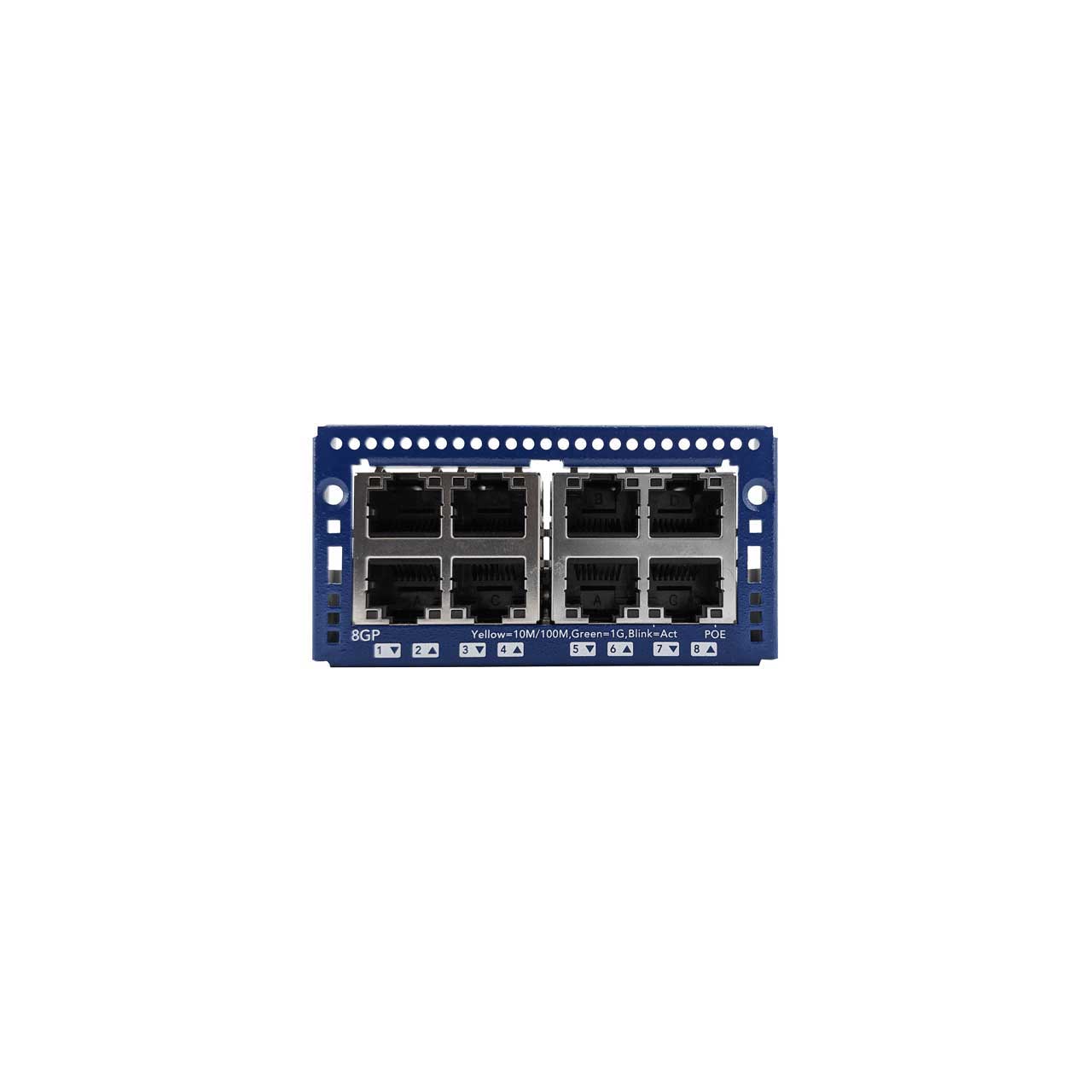

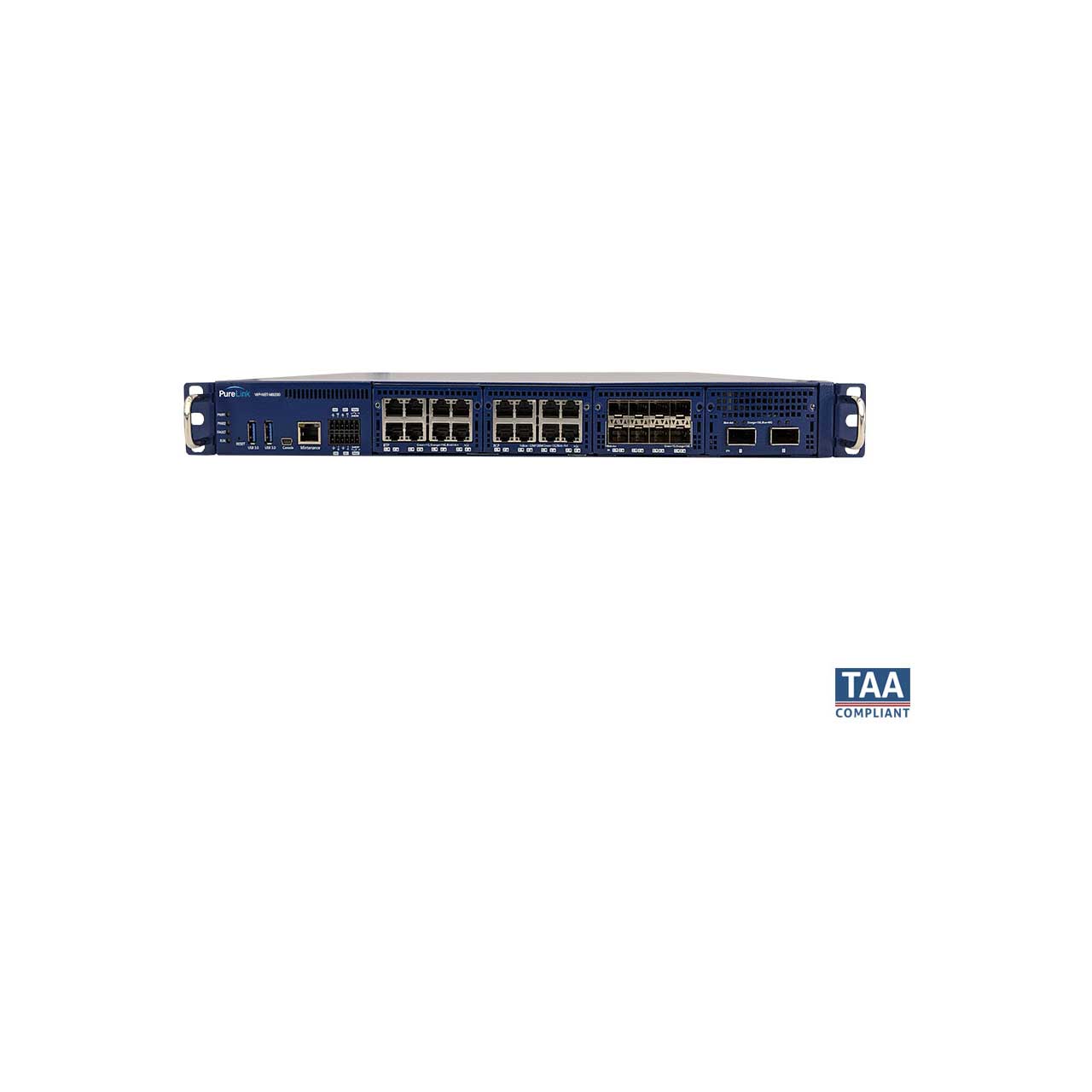

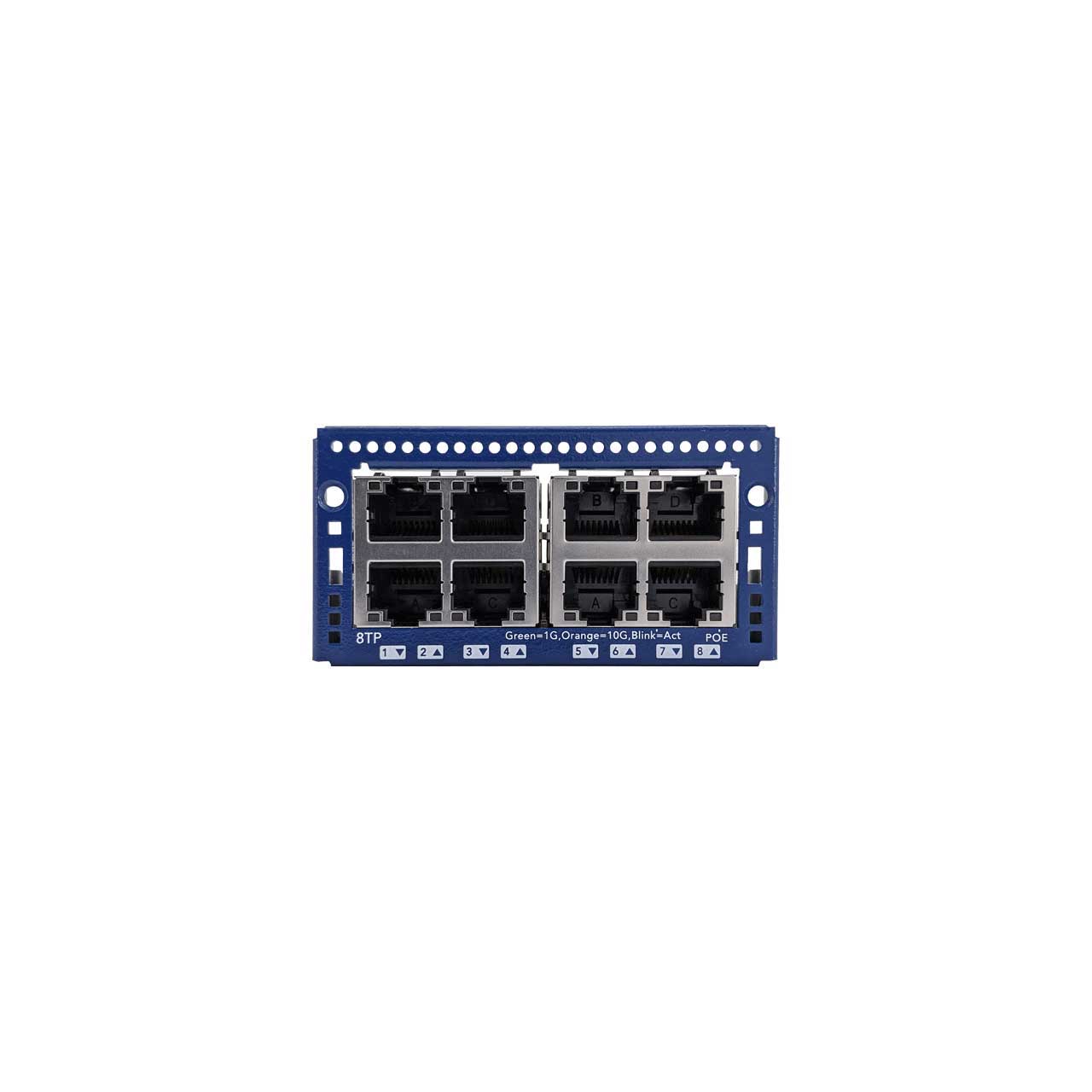

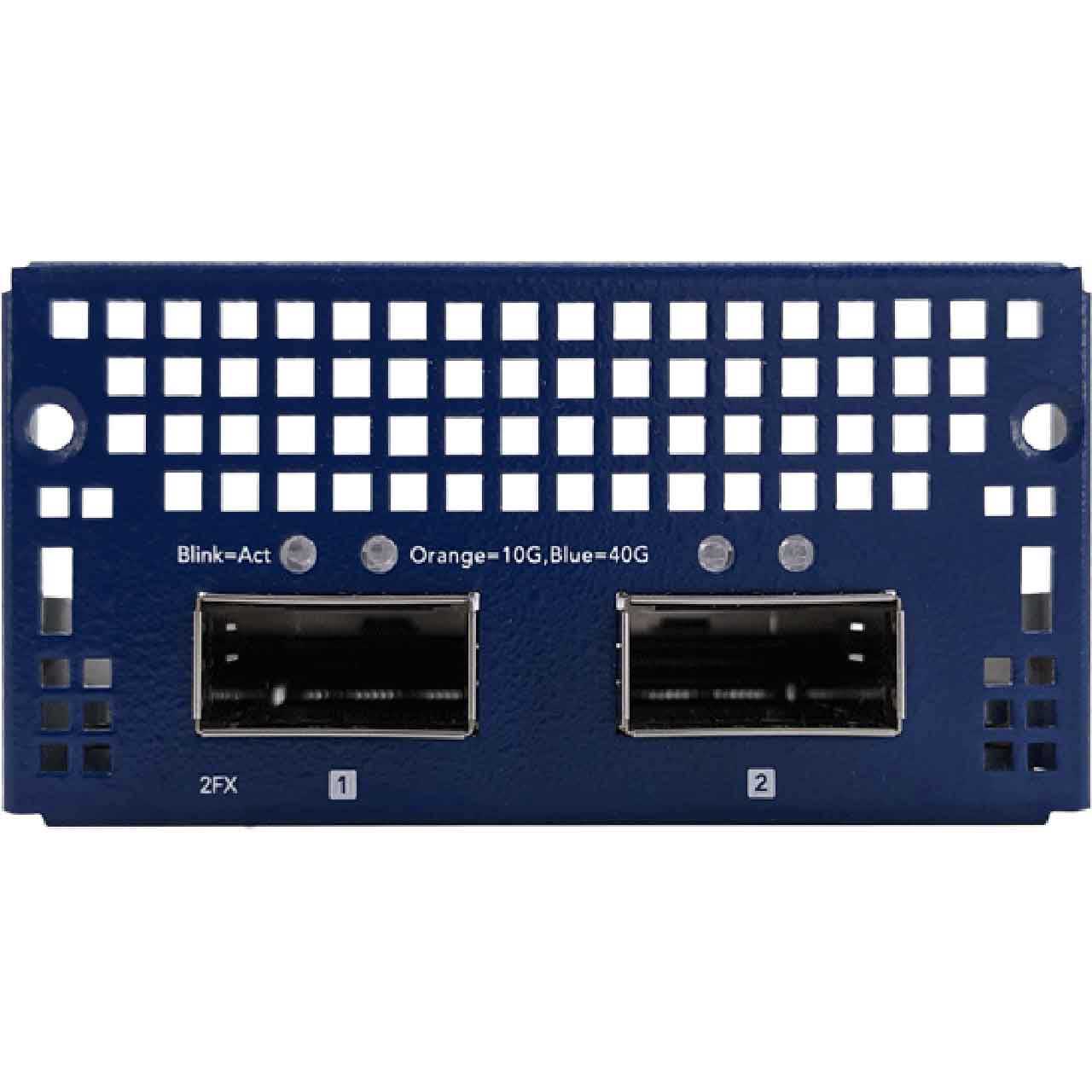

The PureLink VIP-NET-M3200 is a video over IP purpose-built high-performance L2+Ethernet switch w/ PoE+ 802.3af/at per port 30W and provides L2+ wire speed and management functions. With the flexibility of modular slots supporting up to 32 ports, the VIP-NET-M3200 can be populated with 10G RJ45 modules with PoE, SFP+ modules, and 40G QSFP+ modules. The VIIP-NET-M3200 delivers ITU G.8032 ring recovery in less than 20ms. With QoS, IGMP v1/v2/v3, and Jumbo Frame, the VIP-NET-M3200 provides smooth and reliable video over IP transport. Security functions including L2/L3 ingress and egress ACL, port-based DHCP server, and MAC-based DHCP server. Also supported is 802.3ad LACP, LLDP and CDP (Cisco Discovery Protocol) for network scanning.

  • Features:

    • Maximum 32x10G or 24x10G+2x40G
    • Port-based IEEE802.1X authentication
    • SNMPv1/v2c/v3 for different levels of network management
    • Support LLDP and CDP for network discovery protocols
    • Redundant dual AC input power 100V to 240V
    • Supports IEEE-1588 PTP V2 for precise time synchronization to operate in Ordinary-Boundary, Peer to Peer Transparent Clock, End to End Transparent Clock, Master/Slave mode by each port
    • RMON and MIB II for efficient network monitoring
    • Intelligent Auto AV QoS
    • IGMP snooping v1/v2/v3, IGMP query and IPv6 MLD snooping v1/v2 for AV network
    • Support IEEE802.1Q VLAN, port based VLAN and GVRP
    • MSTP up to 16 instances and backward compatible RSTP and STP
    • Advanced PoE management functions, such as PD detection, scheduling, and health tracking
    • Enhanced ITU G.8032 ring protection. Recovery time less than 20 ms at max 250 switches for single ring
    • WEB based management UI via HTTP/HTTPs. Also provide CLI, SSH, and telnet.
    • QoS bandwidth control by 802.1p CoS (Class of service) and Di-Serve for ingress and egress, support addition track storm control
    • Dynamic IEEE 802.3ad LACP link aggregation and static link aggregation


  • Specifications:

    • Hardware
    • Output Signal Types: Configurable via PureMedia™ universal output cards supporting HDMI, HDBaseT, Fiber, and 3G-SDI
    • STANDARDS: EEE 802.3 10Base-T Ethernet
    • IEEE 802.3u 100Base-TX Ethernet
    • IEEE 802.3z Gigabit Fiber
    • IEEE 802.3z Gigabit Fiber
    • IEEE 802.3ae 10G Ethernet over Fiber
    • IEEE 802.3an 10G Copper
    • IEEE 802.3x Flow Control Capability
    • ANSI/IEEE 802.3 Auto-negotiation
    • IEEE 802.1Q VLAN IEEE 802.1p Class of Service
    • IEEE 802.1X Access Control
    • IEEE 802.1D Spanning Tree
    • IEEE 802.1w Rapid Spanning Tree
    • IEEE 802.1s Multiple Spanning Tree
    • IEEE 802.3ad Link Aggregation Control Protocol (LACP)
    • IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
    • IEEE 802.1x User Authentication (Radius)
    • IEEE 802.3 at/af PoE

      Performance
    • Power Supply: 100-240VAC 50/60Hz
    • Operating Temperature: 32° to 117°F (0° to 47°C)
    • Storage Temperature: -40° to 158°F (-40° to 70°C)
    • Relative Humidity: 0 to 90% non-condensing
    • MTBF: 50,000 hours
    • Rack Mounting Option: -

      Enclosure
    • Rack Mounting Option: -
    • Product Dimensions: 12.21 x 7.09 x 2.76" (310 x 180 x 70mm)
    • Product Weight: 7.7Lbs (3.5kg)


  • Warranty:

    • 3-Year Limited Warranty
