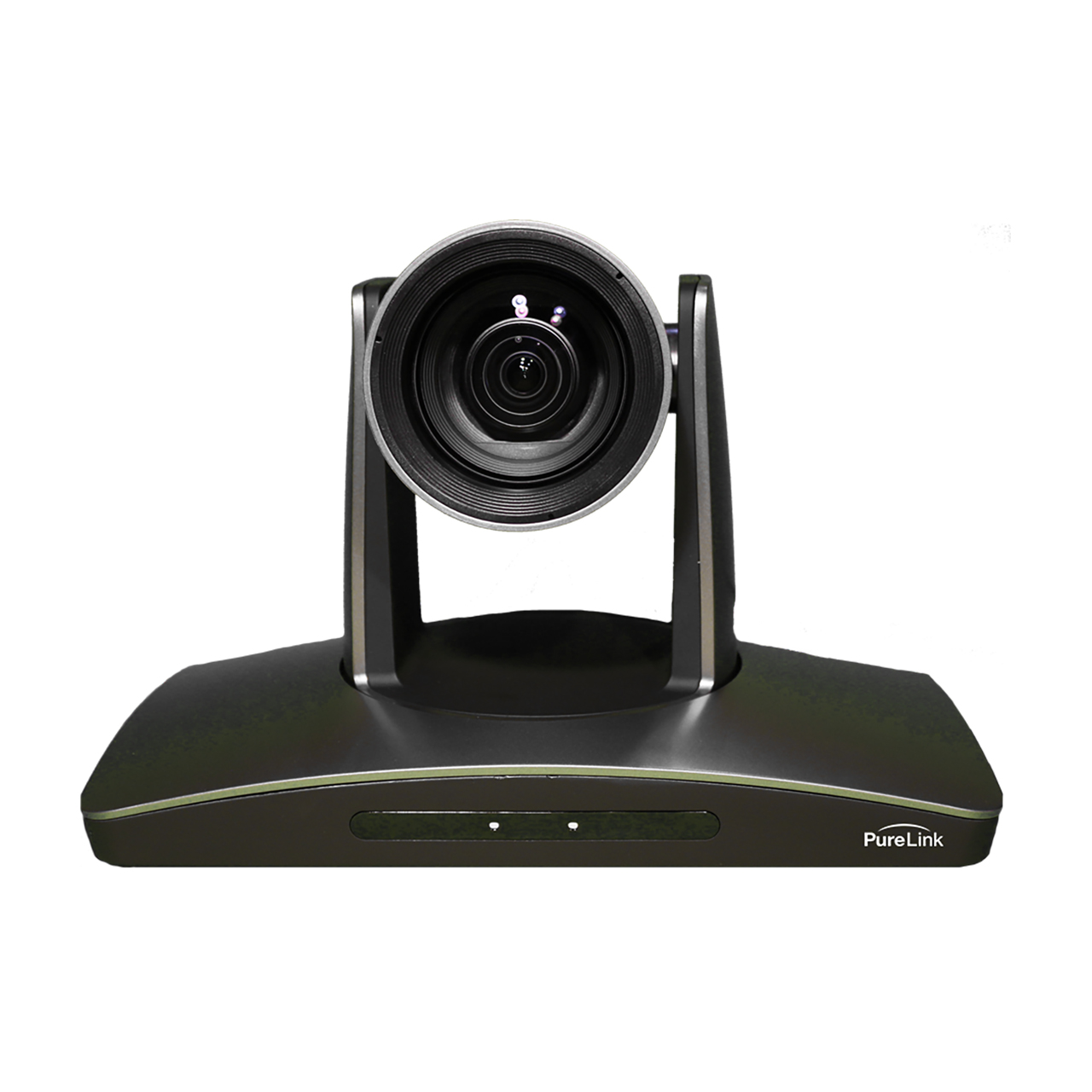

PureLink VIP-CAM-30-20X PureStream 1080p Pro PTZ Camera with HDMI USB 2.0 and LAN Output - TEAMS/ZOOM Compatible

VIP-CAM-30-20X - Overview

• Features:

  • 20x High Performance Optical Zoom with 8x Digital Zoom (160x total zoom)
  • Advanced PTZ (Pan-Tilt-Zoom) function for higher precision and reliability
  • USB 2.0, HDMI, RTSP and RTMP outputs
  • VISCA and PELCO control


• Specifications:

  Camera
  • Image Sensor: 1/2.8" Exmor CMOS, 2.14MP
  • Supported Resolutions: 1080p/60, 1080[/30, 1080i/60, 720p/60, 720p/30,
    1080p/50, 1080p/25, 1080i/50, 720p/50, 720p/25
  • Focal: f = 4.7mm - 94.0mm, F1.6~F3.5
  • Iris: F1.6 - F3.5
  • Optical Zoom: 20x
  • Digital Zoom: 8x
  • Shortest Focus Distance: 10mm - 1.000mm
  • Field Of View: 72.5° ~6.3°, 59.5° - 2.9°
  • Minimum Illumination: 0.5lux
  • Shutter Speed: 1/60s~1/10,000s
  • AGC: Auto/Manual
  • White Balance: Auto/One Push/Manual/Auto Tracking/Static
  • AE Control: Auto/Manual/Shutter Priority/Bright Priority
  • S/N Rate: ≥ 50db
  • Gain: Auto/Manual
  • BLC: Support

    Pan & Tilt
  • Pan Range: -170° - +170°
  • Tilt Range: -30° - +90°
  • Pan Speed: 0.1° ~120° /s
  • Tilt Speed: 0.1° - 90°/s
  • Preset Number: 256
  • OSD: Supported
  • Image Flip: Supported

    Network
  • Maximum Image Size: 1920x1080 @60fps
  • Video Compression: H.265, H.264
  • Auido Compression: AAC
  • Protocol: RTSP, RTMP, ONVIF
  • Network Support: Dual Stream; up to (10) simultaneous users

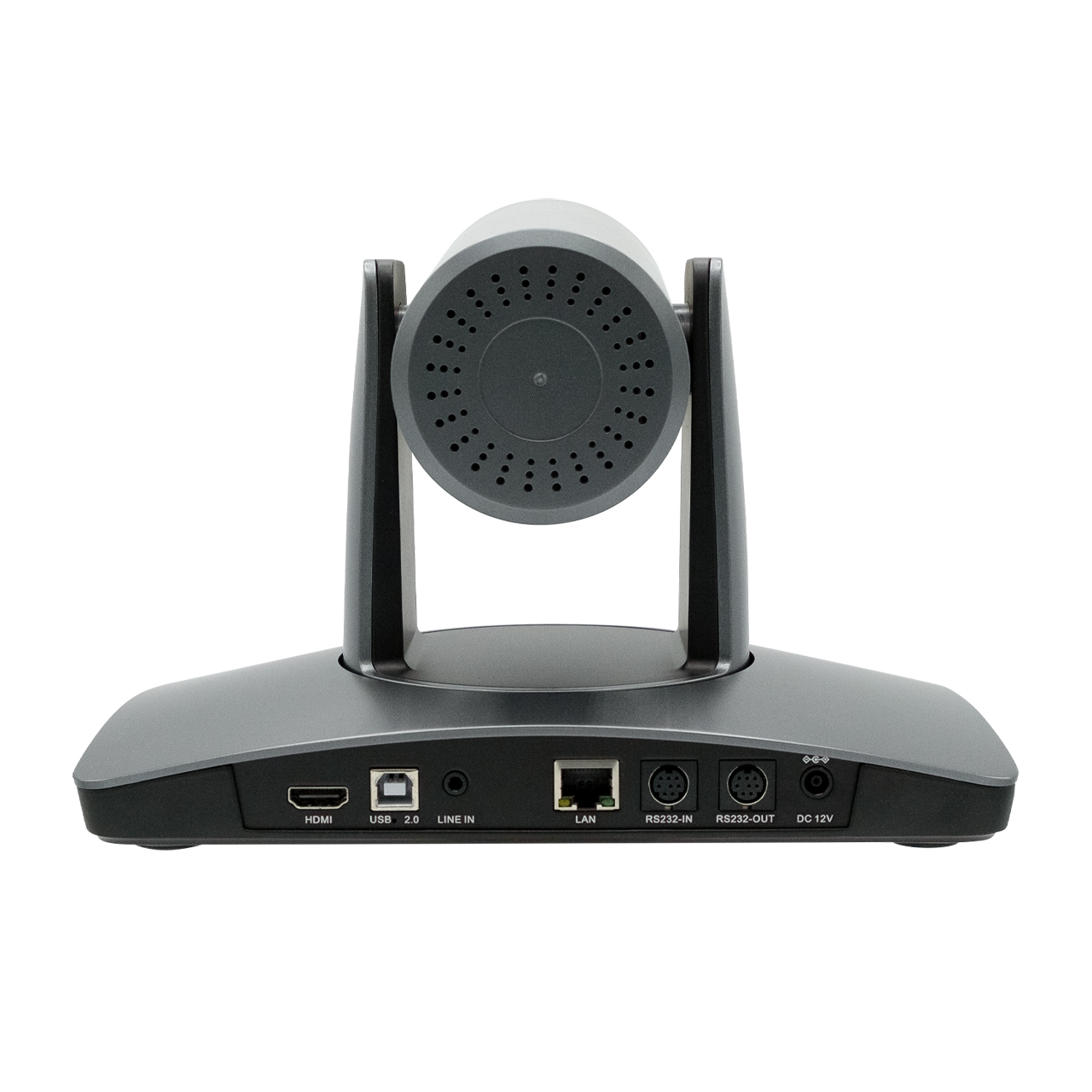

    Interface
  • Ethernet: RJ45(10M/100M), optional PoE
  • Video Output: HTTP, TCP, UDP, RTSP, RTMP, & ONVIF
  • Control Interface: RS-232 IN & RS-232 OUT
  • Audio Port: 1x Channel Line IN
  • USB Interface: 1x Channel USB 2.0
  • Power Jack: DC12V

    General
  • Control Protocol: VISCA and Daisy Chain Support, PELCO-P, PELCO-D
  • Address: 0 - 63
  • Power Consumption: <18W
  • Operating Temperature: 32° ~ 104°F (0° ~ 40°C)
  • Storage Temperature: -4° ~ 140°F (-20° - 60°C)
  • Humidity: Operating: 10 ~ 90% RH, Storage: 10 ~ 95% RH
  • Dimensions: 243mm x 145mm x 163mm
  • Enclosure: Gray
  • Weight: 2.64lb (1.2kg)


• Item Includes:

  • 1x VIP-CAM-30-20x
  • 1x RS-232 Cable
  • 1x Remote Control


• Warranty:

  • 5-Years


• GTIN:

  0817705025272
