PT12X-ZCAM - Overview

3G-SDI Box Camera

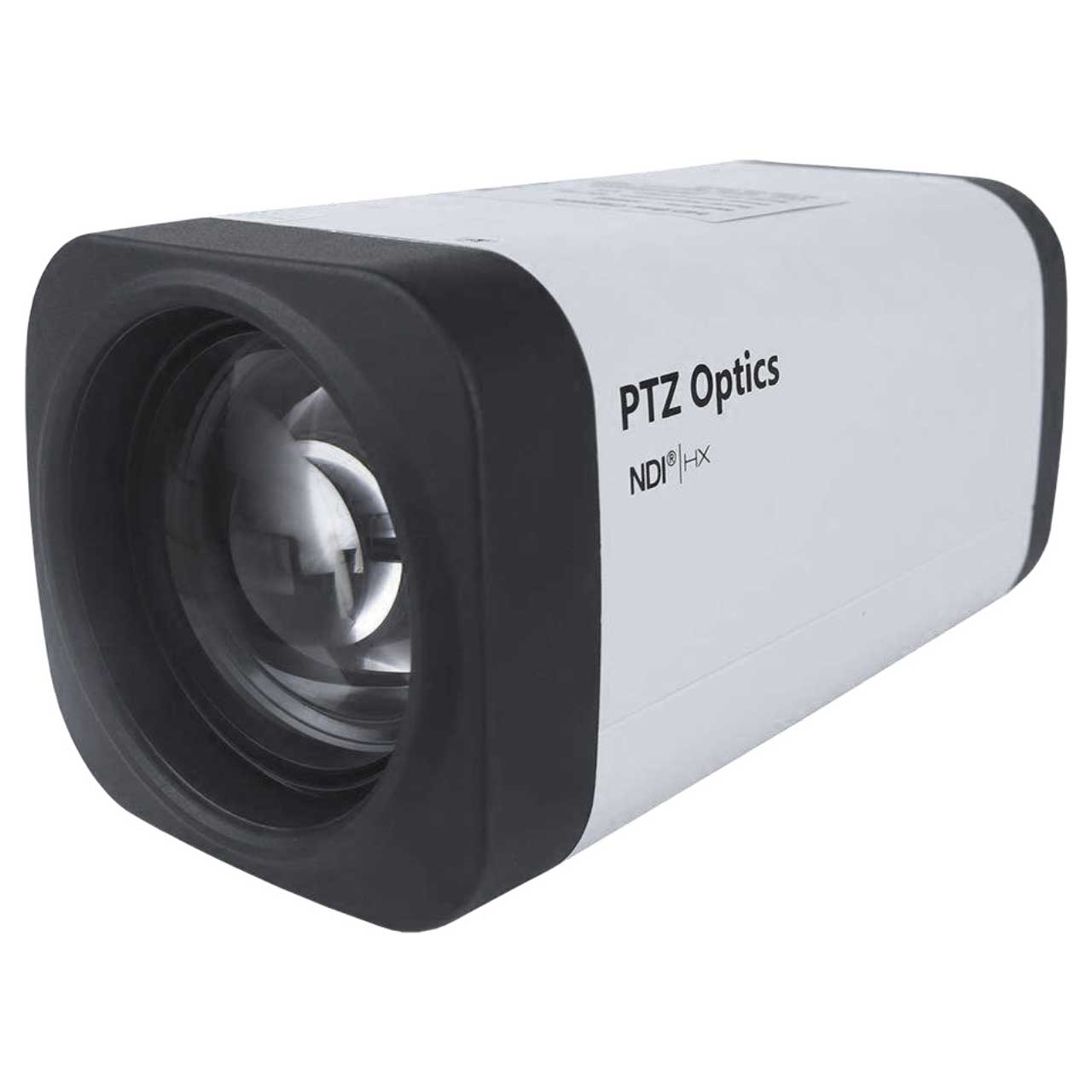

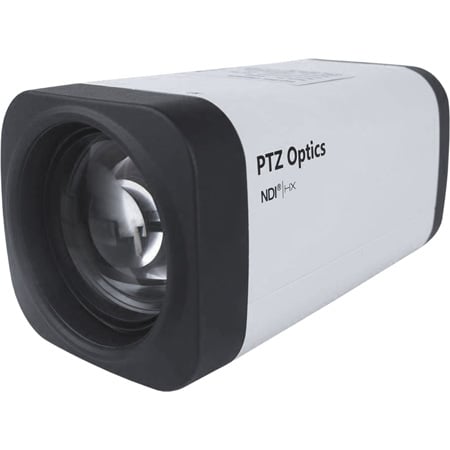

The PTZOptics ZCAM-12X is a 1080p box camera with 12X optical zoom for capturing HD video even at a distance. With support for 3G-SDI & IP streaming, this camera is ideal for broadcasting high definition video signals for broadcast or video conferencing applications up to 1080p/60 resolution.

Network-connected SDI cameras designed for professional video streaming with built-in SDI and PoE (Power Over Ethernet).

Compact SDI POV Cameras
PTZOptics ZCAM models are the the ideal way to affordably add more options for your video production team. The 20X-ZCAM uses the same lens as our 20X PTZ models for seamless color matching. Enjoy easy setup and integration with Power Over Ethernet and advanced remote control options.

Capture unique viewing angles with the ability to deploy cameras up to 300' away with regular Ethernet cabling. Each compact ZCam includes an option for NDI integration which provides seamless integration into video production software such as vMix, Wirecast, xSplit, MimoLive, OBS (Open Broadcaster Software), Livestream Studio and more. With the ability to connect to high-quality 3G SDI equip video switchers PTZOptics ZCams can be used with a wide variety of hard video switchers from Blackmagic Design, Roland, and NewTek as well. ZCam's are an affordable way to add additional video shots to your production for graduation ceremonies, musical performances, school broadcasters, sports, and much more.

Multi-Purpose POV Video Cameras
In just 10 minutes, see how easy it is to setup this advanced live streaming camera system to work with your video production workflow.

PTZOptics ZCam cameras offer IP connectivity similar to most PTZ camera models without the ability to pan or tilt. Note: The latest EPTZ ZCam cameras do feature digital pan and tilt functionalities with the included 4K video sensor. Learn more about our EPTZ cameras here.
These cameras are perfect for long cable runs using ethernet and 3G SDI cabling. SDI cabling includes secure locking connectors to put your team's mind at ease during mission-critical broadcasts. Each camera can be remotely controlled with fine-tuned settings for camera exposure, white balance, noise reduction and more.

With built-in 3G-SDI and IP Streaming (including Power Over Ethernet), the ZCam compact POV camera models are incredibly easy to deploy. The ZCAM-VL uses an included wide-angle lens which covers a massive 122-degree field of view and includes manual 4X optical zoom. This camera is ideal for close up scenes such as church drum cage, a sports goal area, or behind the scenes production spot. The integrated 20X optical zoom ZCams offer a wide 60.7° FOV with a tight 3.36° field of view for capturing video imagery even at long distances. ZCams provide video professionals options for hardware and software-based video production switchers. The ZCam models can be NDI upgraded or come natively with NDIT capabilities.

  • Features:

    • Panasonic 1/2.7" HD CMOS Sensor
    • 3G-SDI High Definition Video Output
    • H.264, H.265 & MJPEG IP streaming output (dual stream)
    • AAC stereo unbalanced Audio Encoding over IP
    • High performance in low light scenarios
    • Full 1920x1080p HD Resolutions up to 60 frames per second via SDI
    • 2D & 3D noise reduction with our latest "low noise CMOS sensor"
    • Wide Dynamic Range
    • Menu controls on back of camera
    • RS485 and IP remote camera control
    • 72.5° Field of View
    • Std 1/4-20 female thread for camera mounting (bottom)
    • PoE (Power over Ethernet)
    • Hold left button on Menu Navigation for 5+ seconds to toggle
    • Dynamic or Static IP addressing
    • 3-year warranty
    • Photobooth capable

  • Specifications:

    • Camera & Lens
    • Video CMOS Sensor: 1/2.7" CMOS, 2.07 Mega Pixels
    • Frame Rate: 1080p-60/50/30/25, 1080i-60/50, 720p-60/50 (IP Stream limited to 30 fps)
    • Focal Length F=3.5mm ~ 42.3mm, F1.8-F2.8
    • Lens Zoom: 12X
    • Mix Lux: 0.5 Lux (F1.8, AGC ON)
    • Shutter Speed: 1/30s - 1/10000s
    • SNR: =55dB
    • Vertical Flip & Mirror: Supported
    • Horizontal Angle of View: 6.9° (tele) - 72.5° (wide)
    • Vertical Angle of View: 3.9° (tele) - 44.8° (wide)

      Electrical Index
    • Power Supply: 12W - 1A Weight 1.4 lbs.
    • Input Voltage: 12V DC (10.8 - 13.0V DC) PoE Class 3 - 802.3af

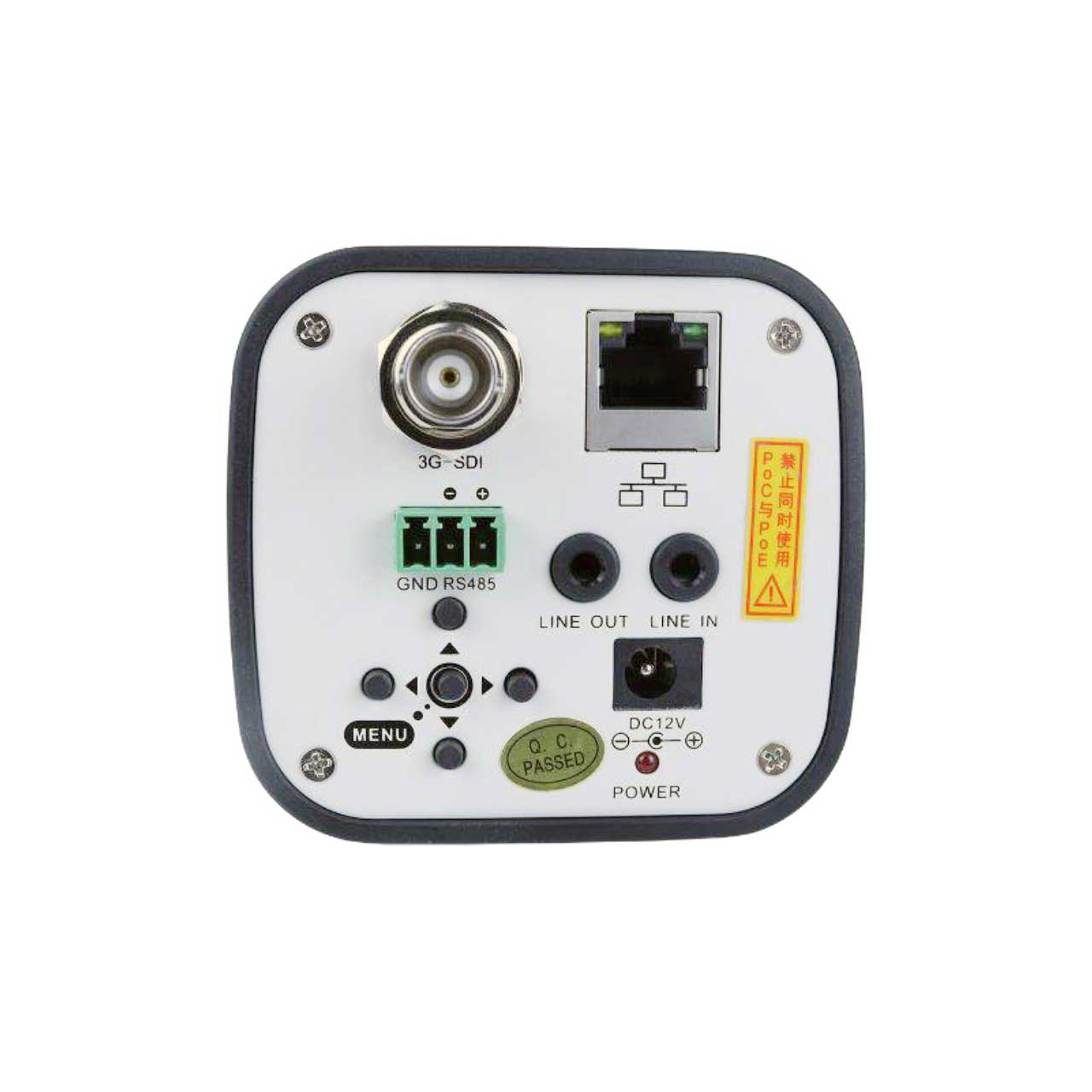

      Rear Board Connectors
    • Video Output Interface: 3G-SDI, RJ45 IP Network
    • Communication Interface: RS485 VISCA, Pelco-D, Pelco-P
    • Baud Rate: 2400/4800/9600 bits
    • Power Supply Interface: JEITA type Power Adapter (DC IN 12V)/ PoE 802.3af

    • Physical Specifications
    • Electrical Index Dimensions: (in.) 3.1W x 5.7D x 2.9H
    • Box Dimensions (in.): 10W x 5D x 5H
    • Box Weight: 1.8 lbs.

  • Item Includes:

    • 1x PT12X-ZCAM 12X ZCAM Camera
    • 1x Power Adapter
    • 1x User Manual

  • Warranty:

    • 5 Years
