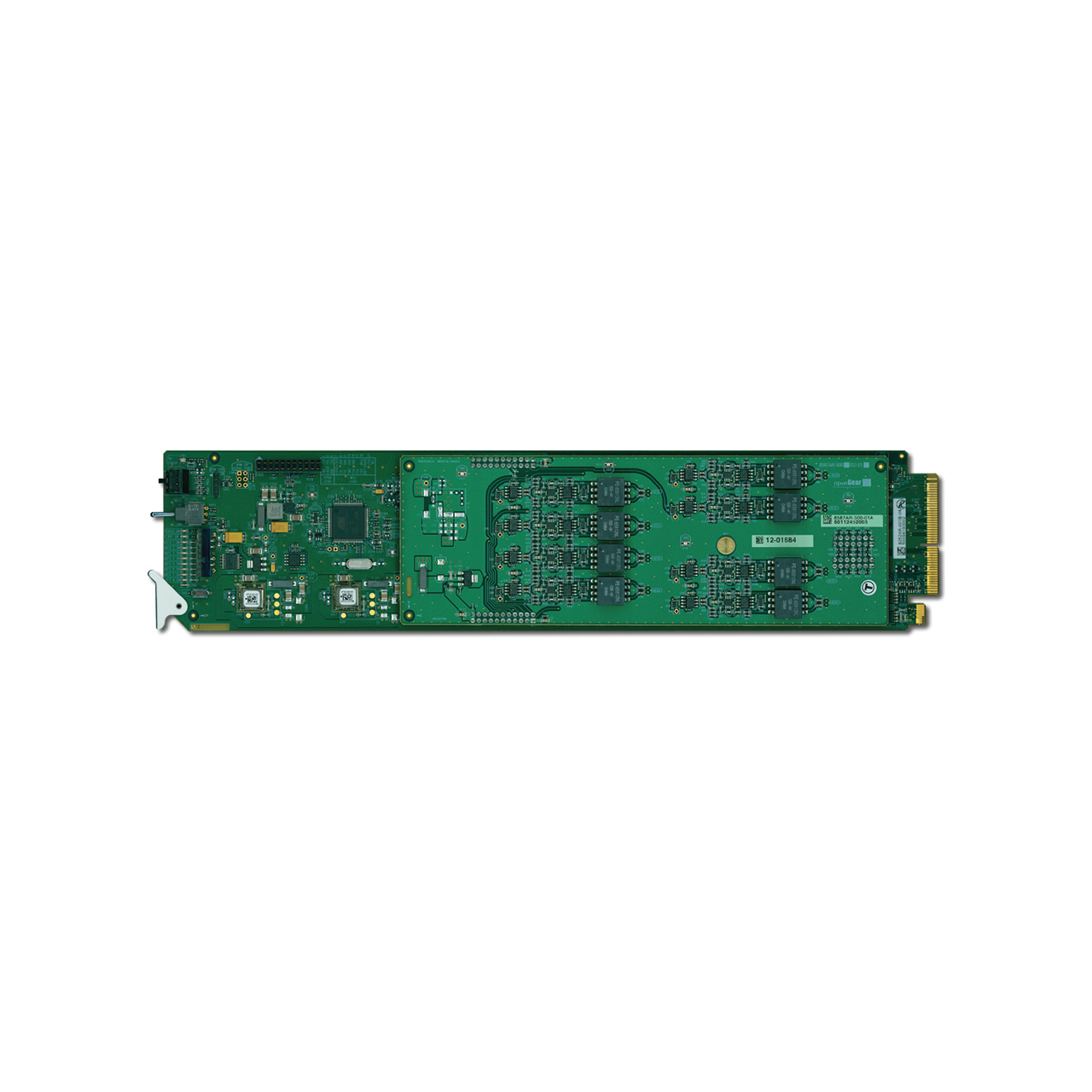

Ross openGear DMX-8259-B 8-Channel AES / EBU Audio De-Embedder Card - 110 Ohm

ITEM #: ROSS-DMX-8259-B MFG #: DMX-8259-B

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Ross Video
Free Shipping with $49 Minimum Order

Our Price:

$1,666.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    DMX-8259-B - Overview

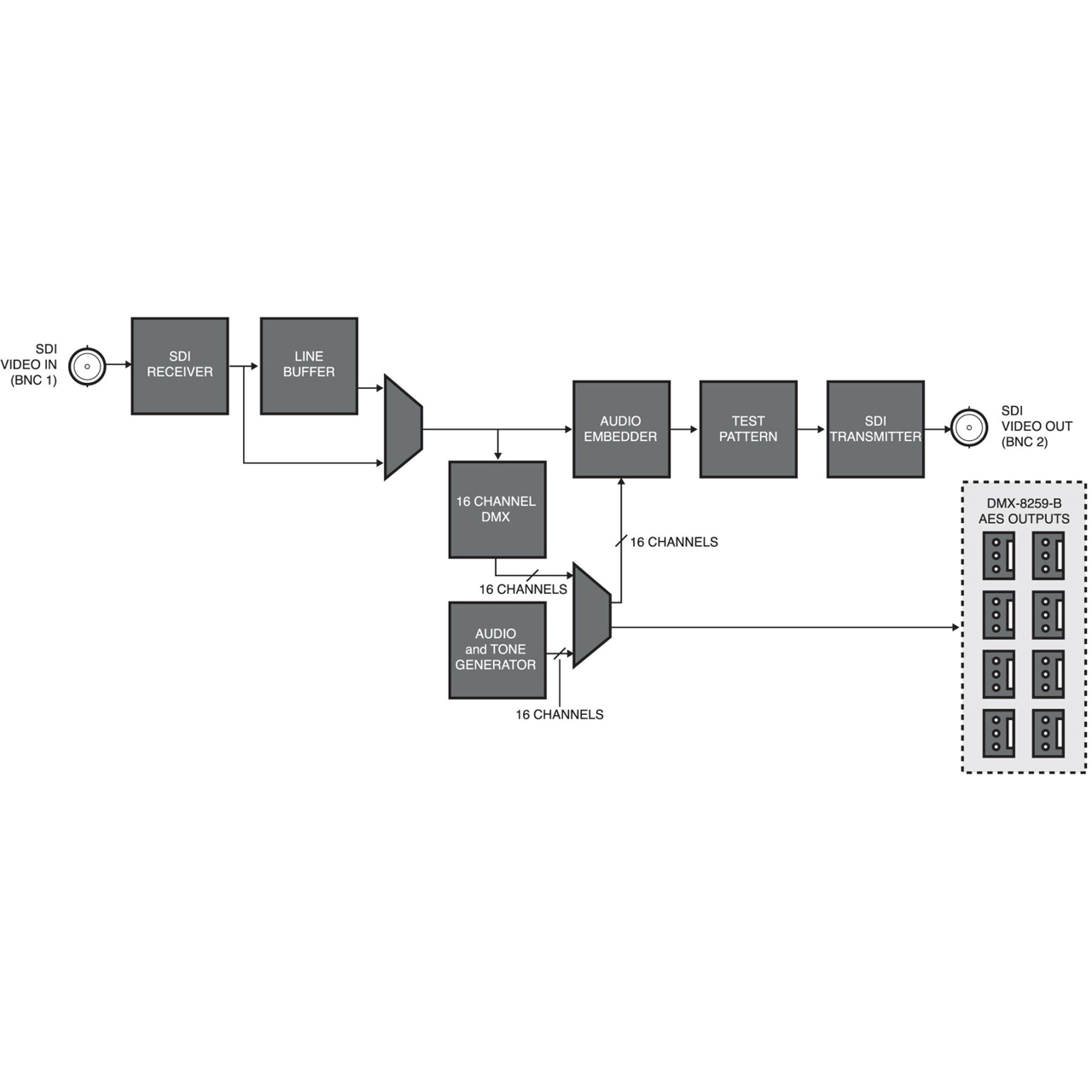

    The Ross DMX-8259-B is a high quality program audio de-embedder capable of de-embedding up to 8 AES / EBU pairs (16 audio channels) from a 3G / HD / SD SDI signal. Audio proc amp control on each channel allows for audio processing with gain of ±20db, audio delay up to 1 second and channel invert.

    The DMX-8259-B supports full channel assignment to the discrete outputs. Various configuration options, including internally generated patterns and tones, are available for audio and video output scenarios should a loss of input occur.

    The DMX-8259-B features 8 AES 110Ω unbalanced outputs.

    • Features:

      • 16 channel audio de-embedding for all popular 3G / HD / SD SDI formats
      • Audio proc amp controls; gain, invert, and delay
      • Assign any embedded channel to any discrete audio output
      • Ability to re-map channels in embedded video stream
      • Programmable video output on SDI input loss
      • Silence output on loss of audio input
      • Programmable silence detection and timeout thresholds
      • Balanced 110Ω AES outputs
      • No audio breakout cables required
      • 5-year transferable warranty


    • Specifications:

      • Power: 8.5 watts


    • Item Includes:

      • 1x Ross DMX-8259-B 8-Channel AES / EBU Audio De-Embedder - 110 Ohm


    • Warranty:

      • 5 years
