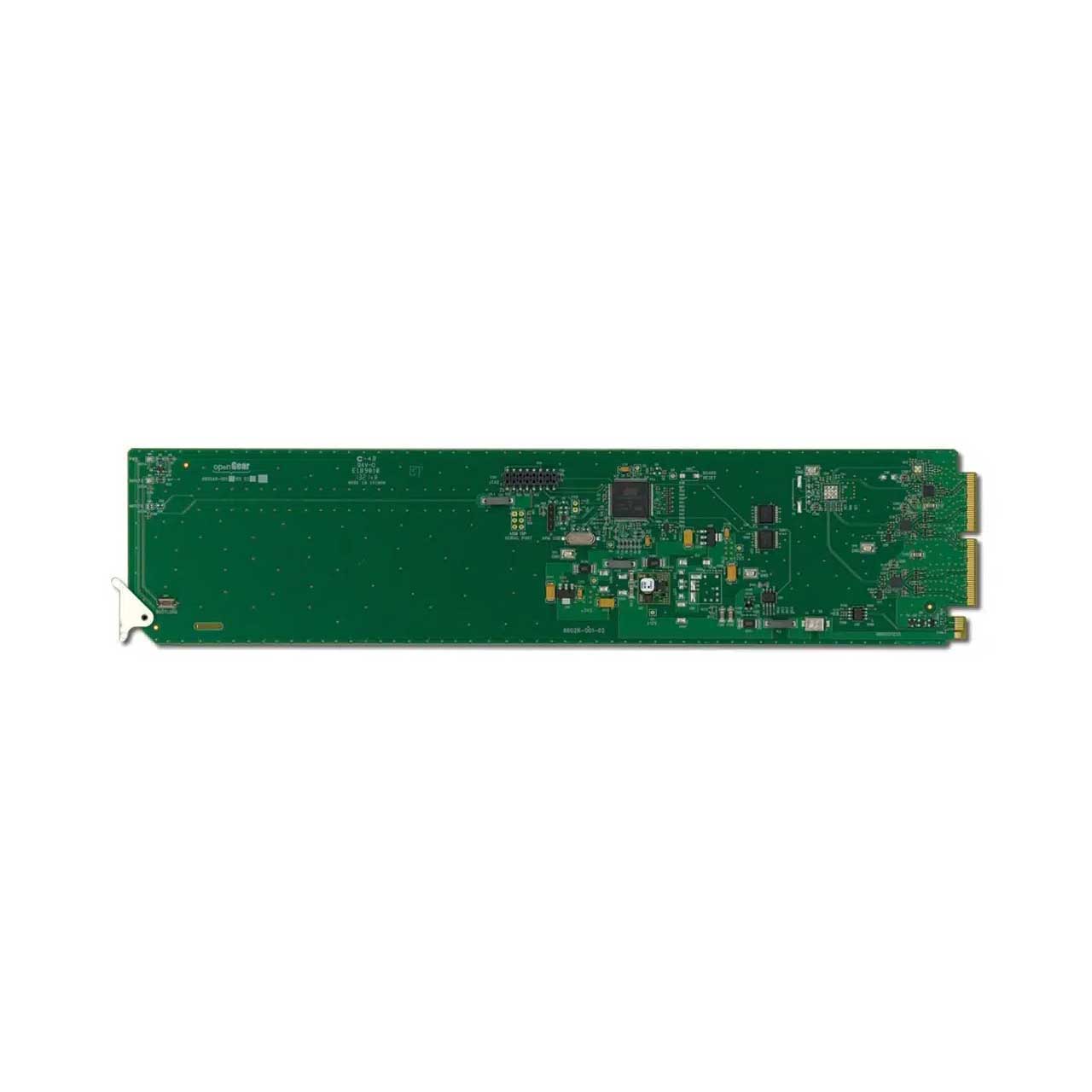

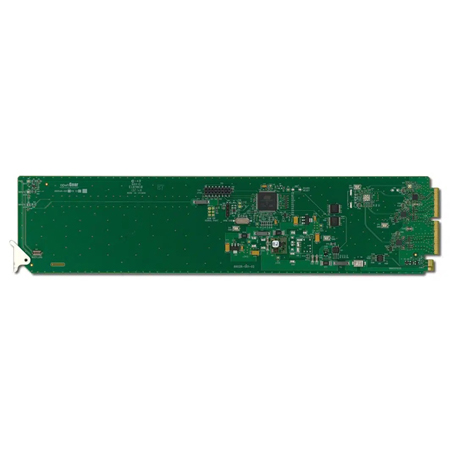

The Ross SEA-8803 is a single channel distribution amplifier, redesigned using the latest technology and optimized to achieve the industry's best EQ performance offering cable lengths up to 200m at HD. Equalization is performed on all common serial digital signals, including HD / SD SDI. Non-inverting output drivers make this ideal for distributing DVB-ASI signals as well.

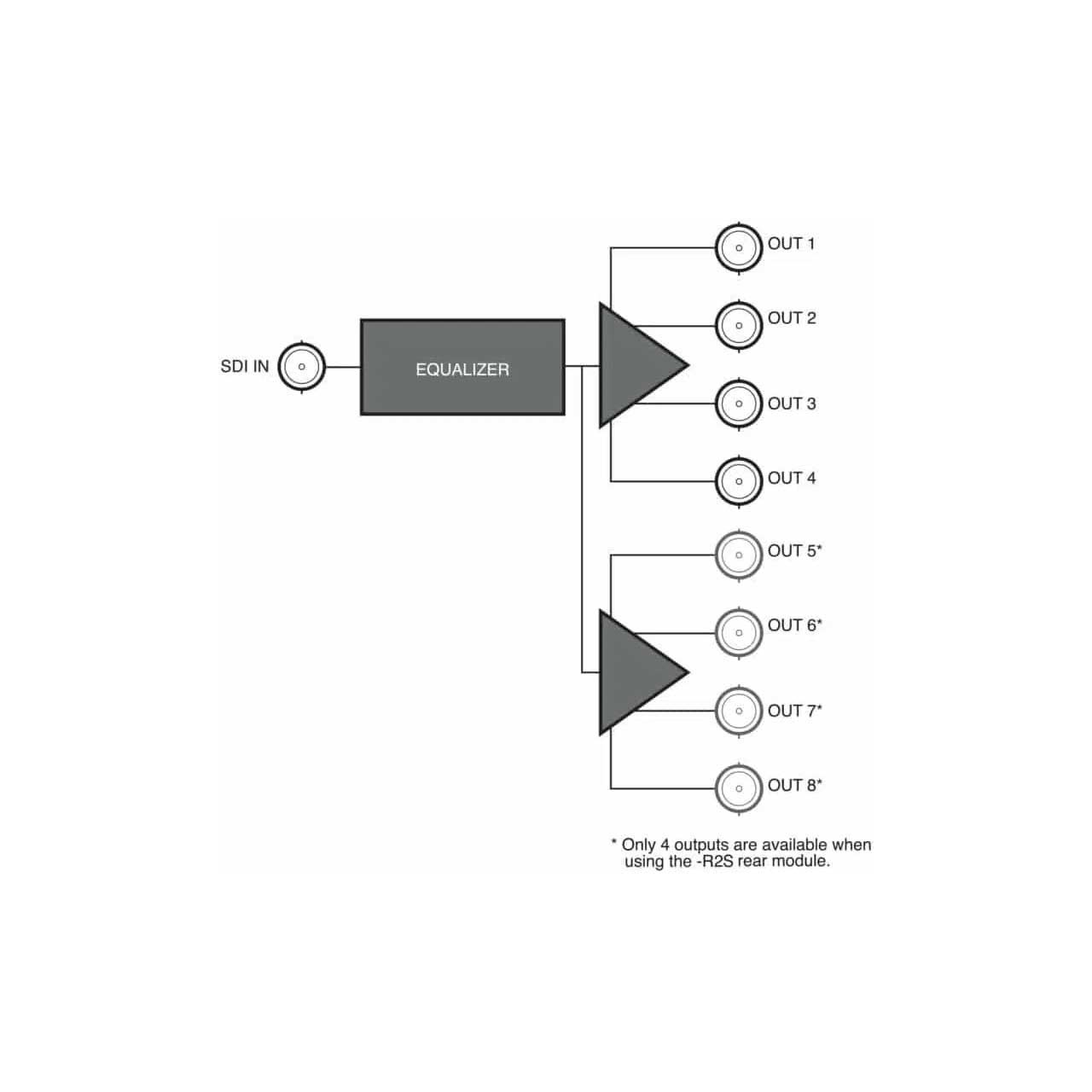

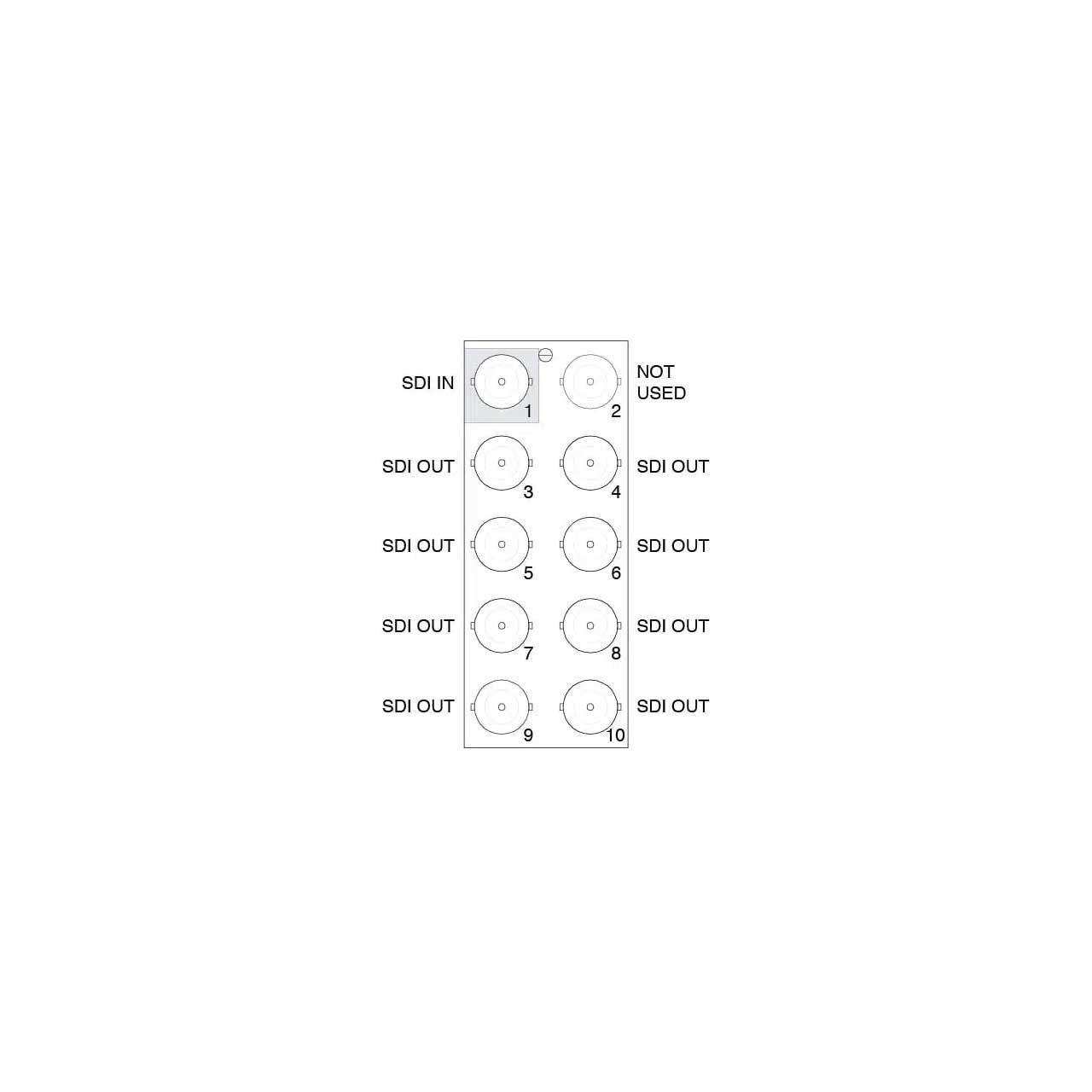

SEA-8803 can be used as a 1x8 DA, using the standard -R2, 10 BNC rear module, or as an 1x4 DA when paired with the -R2S split rear module. This configuration allows for up to 20 1x4 DAs in a single openGear® frame, using 20 cards. LED indicators at the front of the module identify the presence of incoming video, and the data rate for each independent channel.
