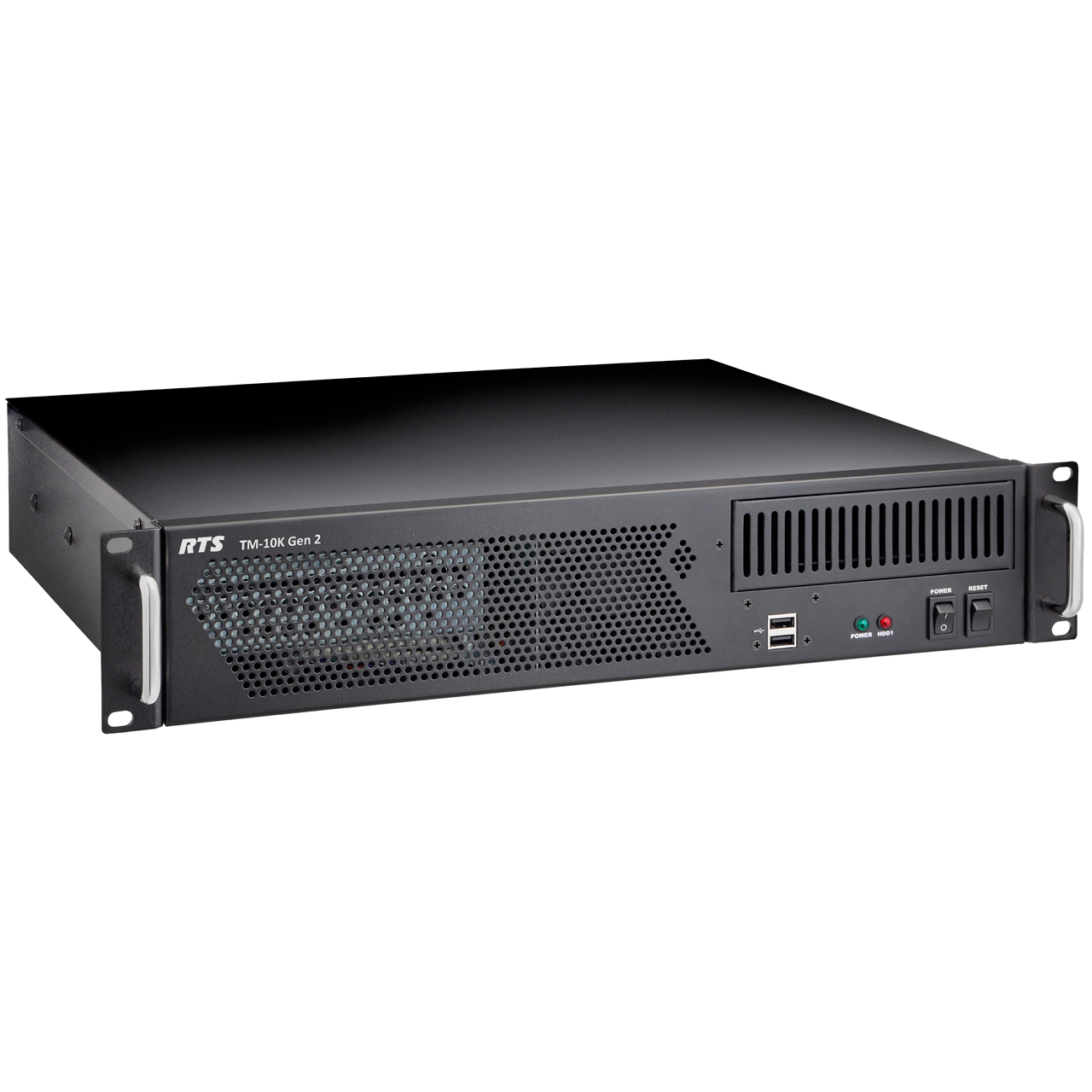

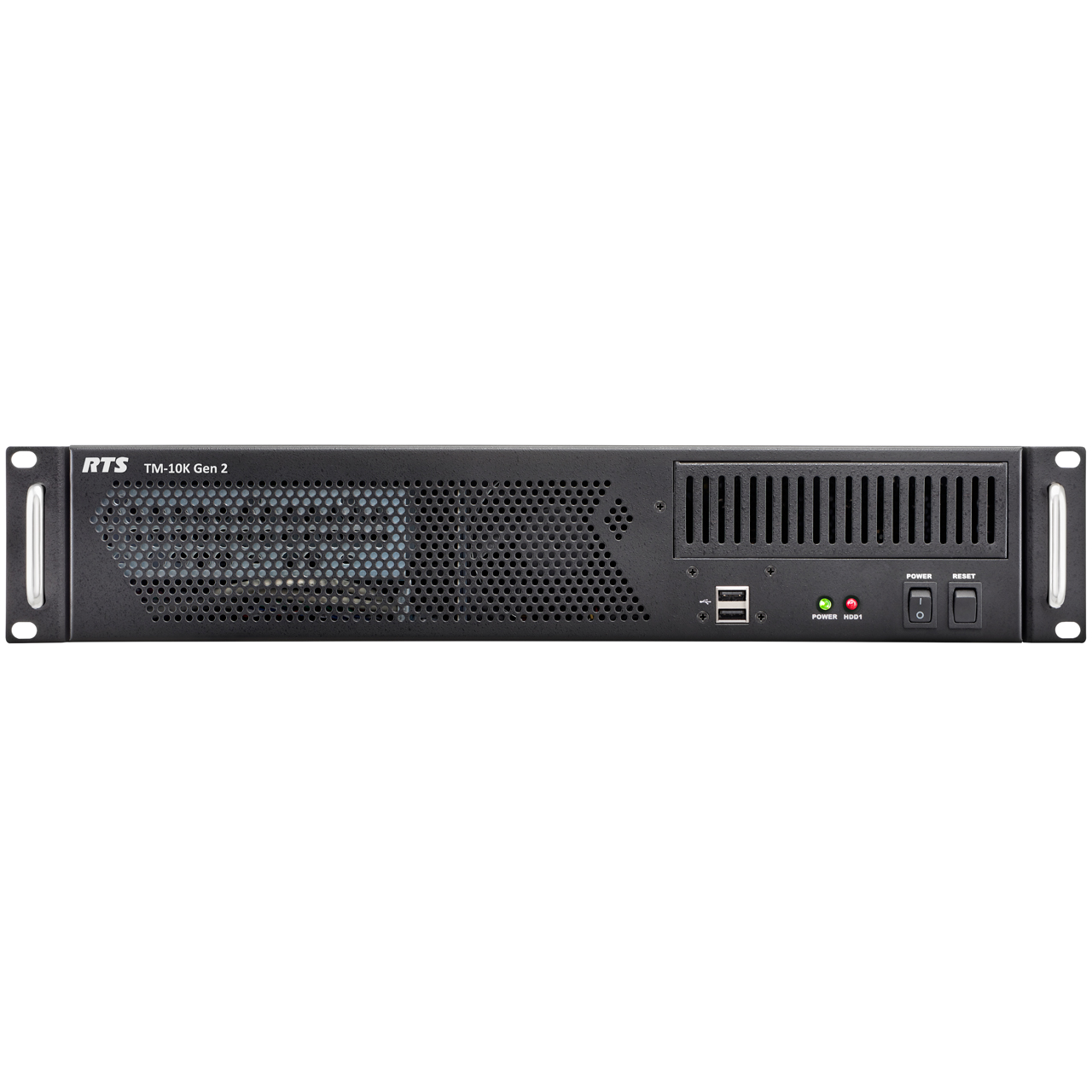

RTS TM-10K Gen 2 High Capacity Trunkmaster - Supports Configurations from 2 to 225 Intercom Systems

ITEM #: RTS-TM-10K-GEN2 MFG #: F.01U.396.543

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
RTS Intercoms
Free Shipping with $49 Minimum Order

Our Price:

$11,732.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

F.01U.396.543 - Overview

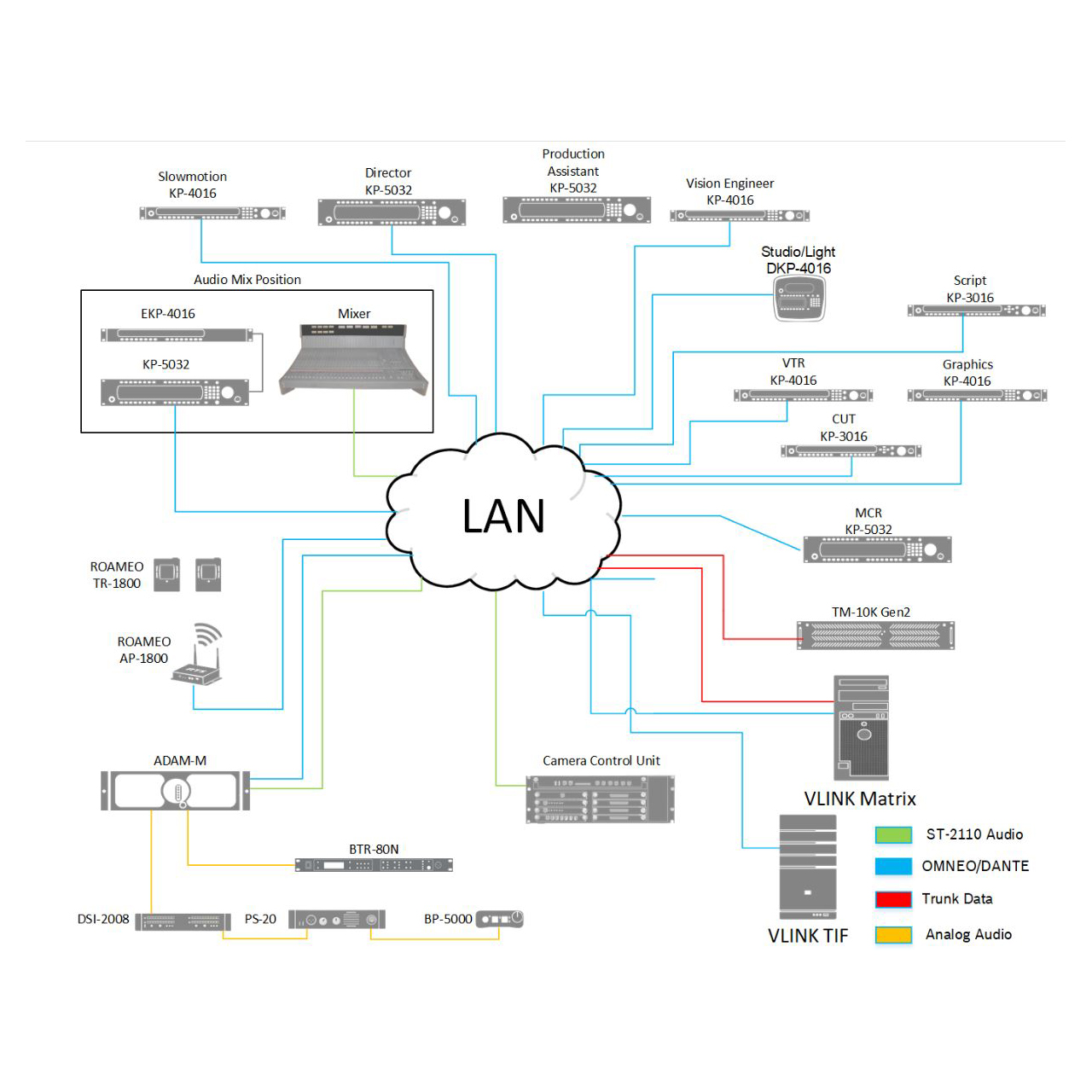

The RTS TM-10K GEN 2 is the next generation in RTS Trunk Masters. The RTS Trunking System manages communications between separate intercom systems using intercom ports reserved and connected between the intercom systems. Keypanels or other data devices can communicate with various destinations in other intercom systems via the reserved intercom ports. (This is different from bus expansion, in which the bus system of two or more frames interconnect to form one system with decentralized hardware.)

The RTS Trunking System consists of a TM-10K GEN 2 that supports trunking data through Ethernet. Add a backup TM-10K GEN 2 to prevent downtime in the event of a failure of the main master control unit.

  • Features:

    • Supports configurations from 2 to 255 intercom systems with 10,000 assignable trunk lines.
    • Includes dual AC power supplies for full redundancy in mission critical applications.
    • Supports dual 100/1000 Mbps Ethernet connections for redundant or segregated network topologies.
    • Supports geographically separated Trunk Masters for disaster recovery planning.


  • Specifications:

    • Input Voltage: 100VAC - 240VAC
    • Input Current: 1.0A/0.5A
    • Power Frequency: 50Hz/60Hz
    • Operating Temperature: 32°F - 122°F (0°C - 50°C)
    • Operating Relative Humidity: 5% - 90%, non-condensing
    • Storage Temperature: -4°F - 176°F (-20°C - 80°C)
    • Storage Relative Humidity: 5% - 90%
    • Dimensions (HxWxD): 3.5" x 19.0" x 15.1" (88.90mm x 482.60mm x 383.54mm) in 2RU Rackspace
    • Weight: 35.60lbs (16.15kg)


  • Item Includes:

    • 1x RTS TM-10K Gen 2 High Capacity Trunkmaster with dual AC power supplies


  • Warranty:

    • 3-years
