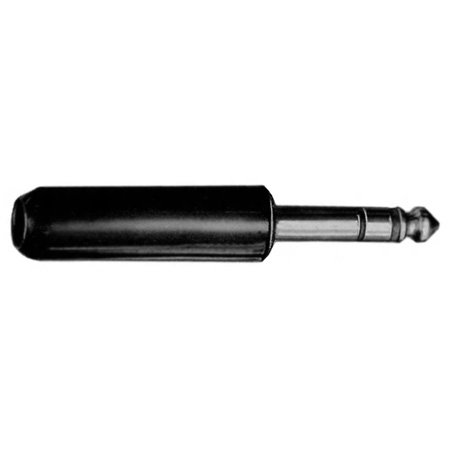

Switchcraft S267 3 Conductor LITTEL PLUG Phone Plug with Black Handle Solder Lug and Cable Clamp Terminals

ITEM #: S267 MFG #: S267

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$15.00

Our Price:

$13.69

Availability: In Stock
iAvailability Description Popup


S267 - Overview

The Switchcraft S267 is a .206 inch commercial plug designed For applications requiring polarization (use of plugs of different sizes) to prevent insertion of incorrect equipment Littel-Plug phone plugs featuring a sleeve and tip diameter of .206 inches are available. Mate with Number S128 Extension Jax and S11 Littel Jax jacks. Number S260 used interchangeable with Military Type M642/51 (Switchcraft Number 480) plugs. Mate with jacks S12B, S13B, M444, MT342B, MT344B and others.

  • Features:

    • Sleeve, Tip and Body: Nickel-plated copper alloy.
    • Terminals: Solder lug - Tinned copper alloy.
    • Screw: Steel, Tin-plated
    • Handles: Molded - black or red plastic. Shielded - machined, nickel-plated, copper alloy with tubular insulator inside handle.

  • Specifications:

    • Series: LITTEL-PLUG®
    • Connector Type: Phone Plug
    • Gender: Male
    • Signal Lines: Stereo (3 Conductor, TRS)
    • Mating Diameter: 0.206 (5.23mm)
    • Actual Diameter: 0.206" (5.23mm)
    • Number of Positions/Contacts: 3 Conductors, 3 Contacts
    • Internal Switch(s): Does Not Contain Switch
    • Mounting Type: Free Hanging (In-Line)
    • Termination: Solder Eyelet(s)
    • Unshielded
    • Mating Length/Depth: 1.156" (29.40mm)
    • Contact Material - Plating: Nickel
    • Body Material: Copper Alloy
    • Body Color: Black
    • Includes: 2 pcs - 1 Connector, 1 Handle
    • Housing Material: Plastic
    • Contact Material: Copper Alloy
    • Cable Opening: 0.141 inch (3.58mm)
