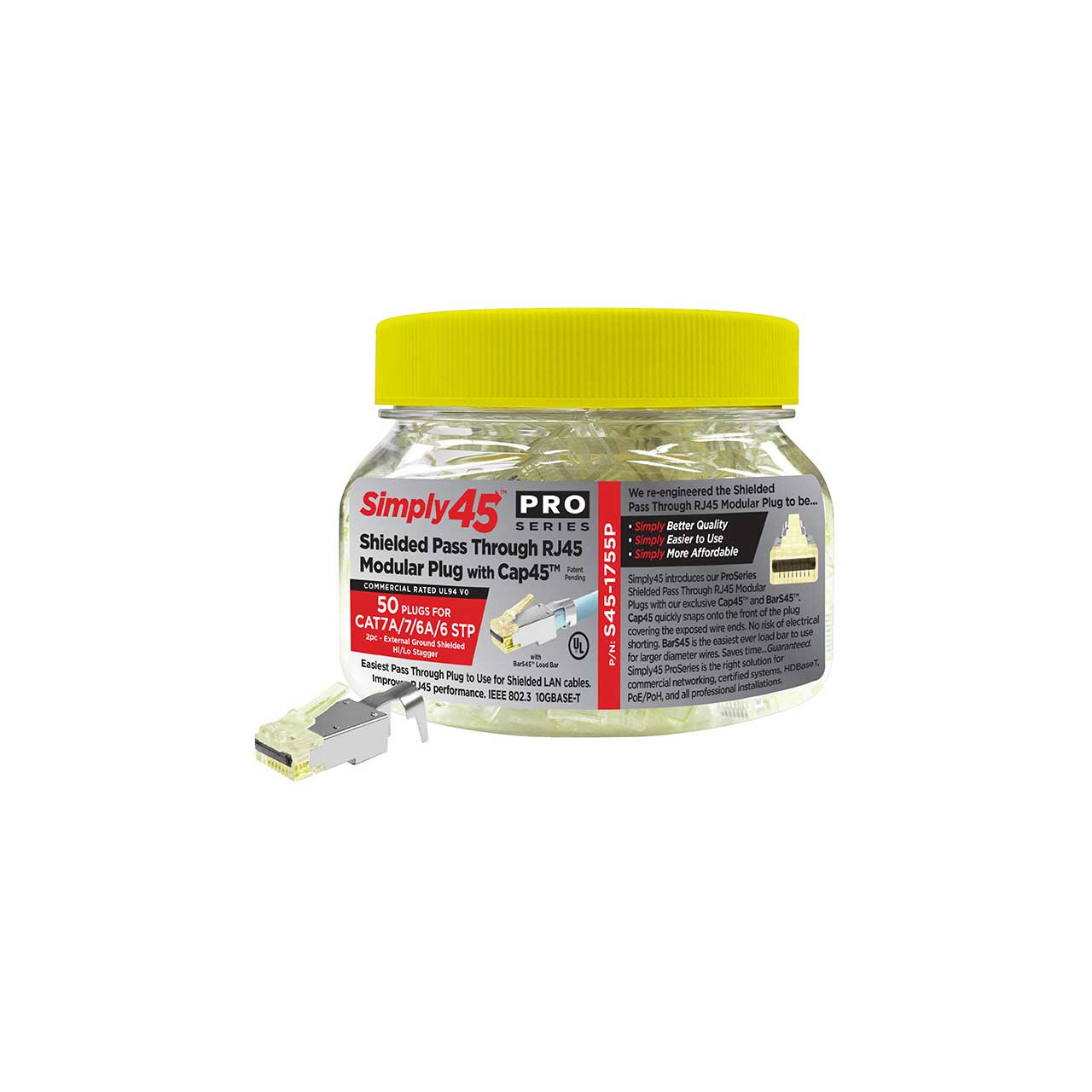

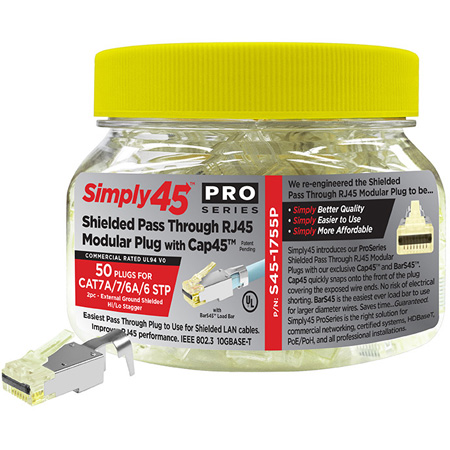

Simply45® the industry leading brand for RJ45 modular plug innovation and performance solutions introduces their ProSeries Shielded with External Ground Pass Through RJ45 Modular Plug, S45-1755P. The uniquely designed and patented Simply45® ProSeries S45-1755P simplifies and improves the terminated plug performance for shielded 10G LAN cables. The Simply45® ProSeries S45-1755P Pass Through RJ45 modular plugs are by far the highest performing, easiest to use, and most cost-effective way to professionally terminate 10G Shielded and other large diameter shielded LAN cables.
The S45-1755P are IEEE 802.3 10GBase-T compliant and are recommended for shielded 10G LAN Cables Cat7a/7/6a with FPE insulated wires, and Large OD Shielded LAN cables with PE insulated wires such as Cat6 STP and Cat6a F/UTP. These plugs include some unique features that simplify the RJ45 10G termination process and improves the terminated plug performance.

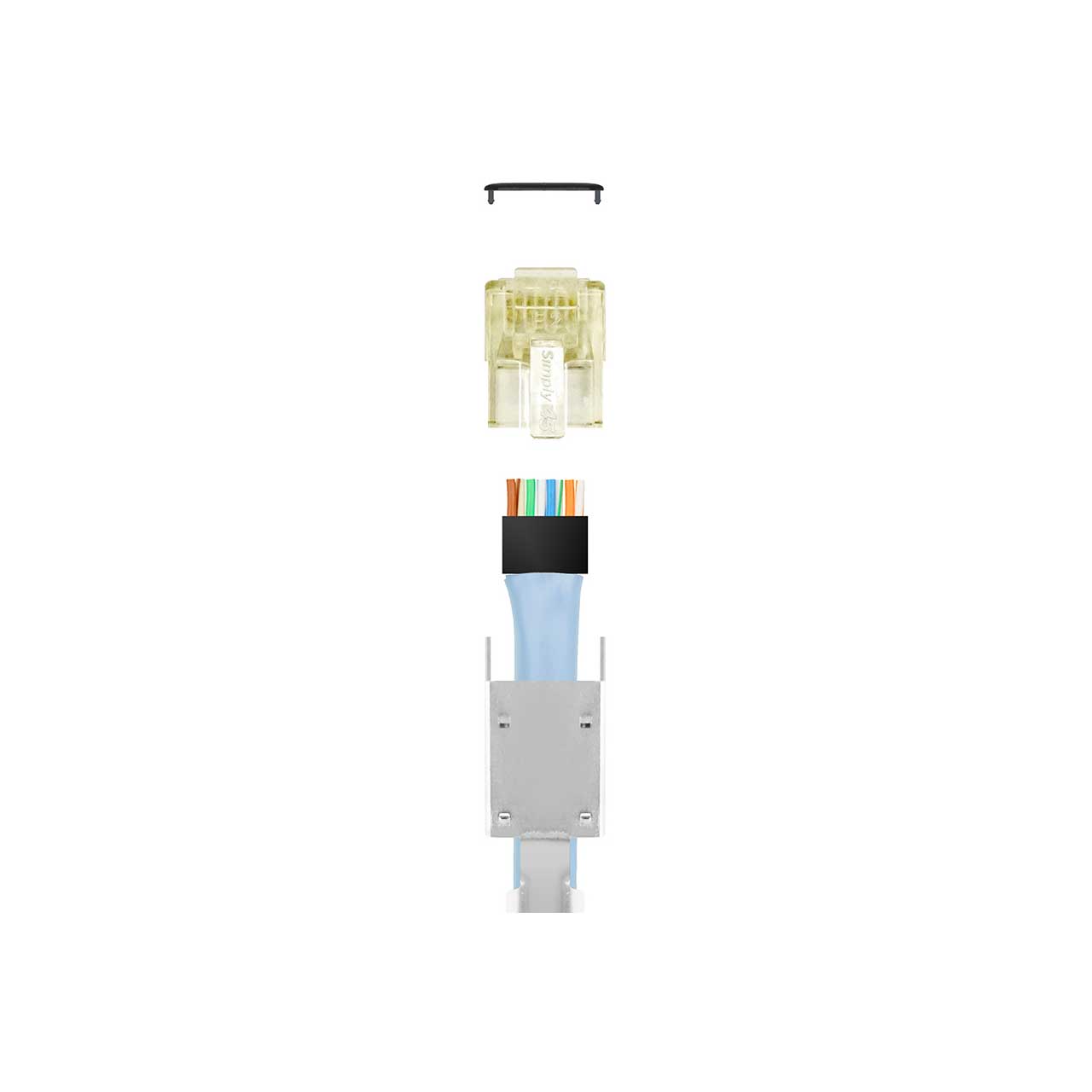

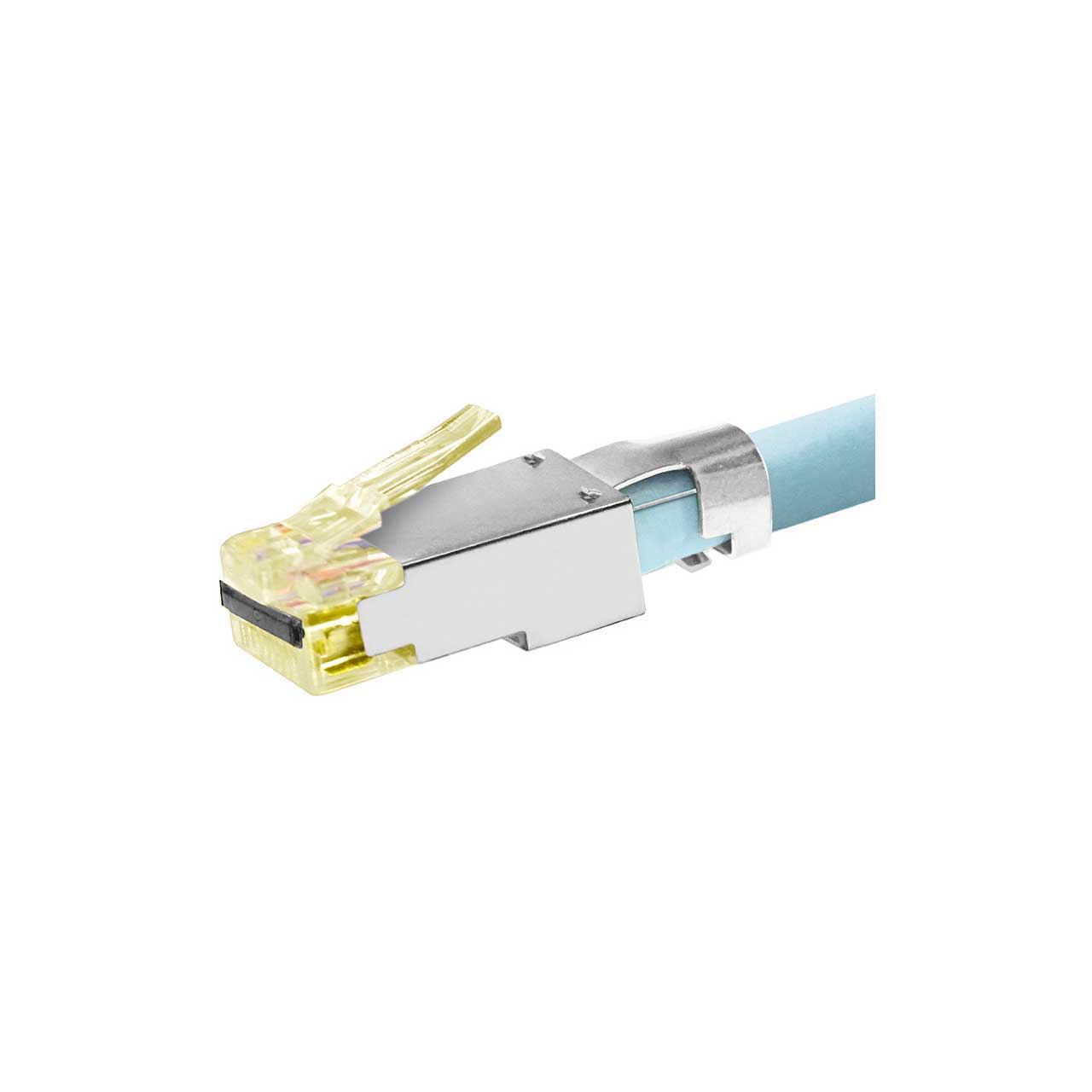

Simply45® ProSeries introduces the exclusive Cap45™ (PATENT: 10,811,831 B1). Cap45™ is an isolation cap/bar that snaps onto the front of the pass through RJ45 plug after termination, covering the exposed wire ends. Cap45™ prevents against electrical shorting in the RJ45 socket due to improperly trimmed wires or in device sockets that may not be 100% compliant. With Cap45™, any electrical risks associated with exposed wire ends are now eliminated completely.
Cap45™ is a MUST HAVE for all pass through RJ45 modular plugs used in commercial and certified system terminations.
