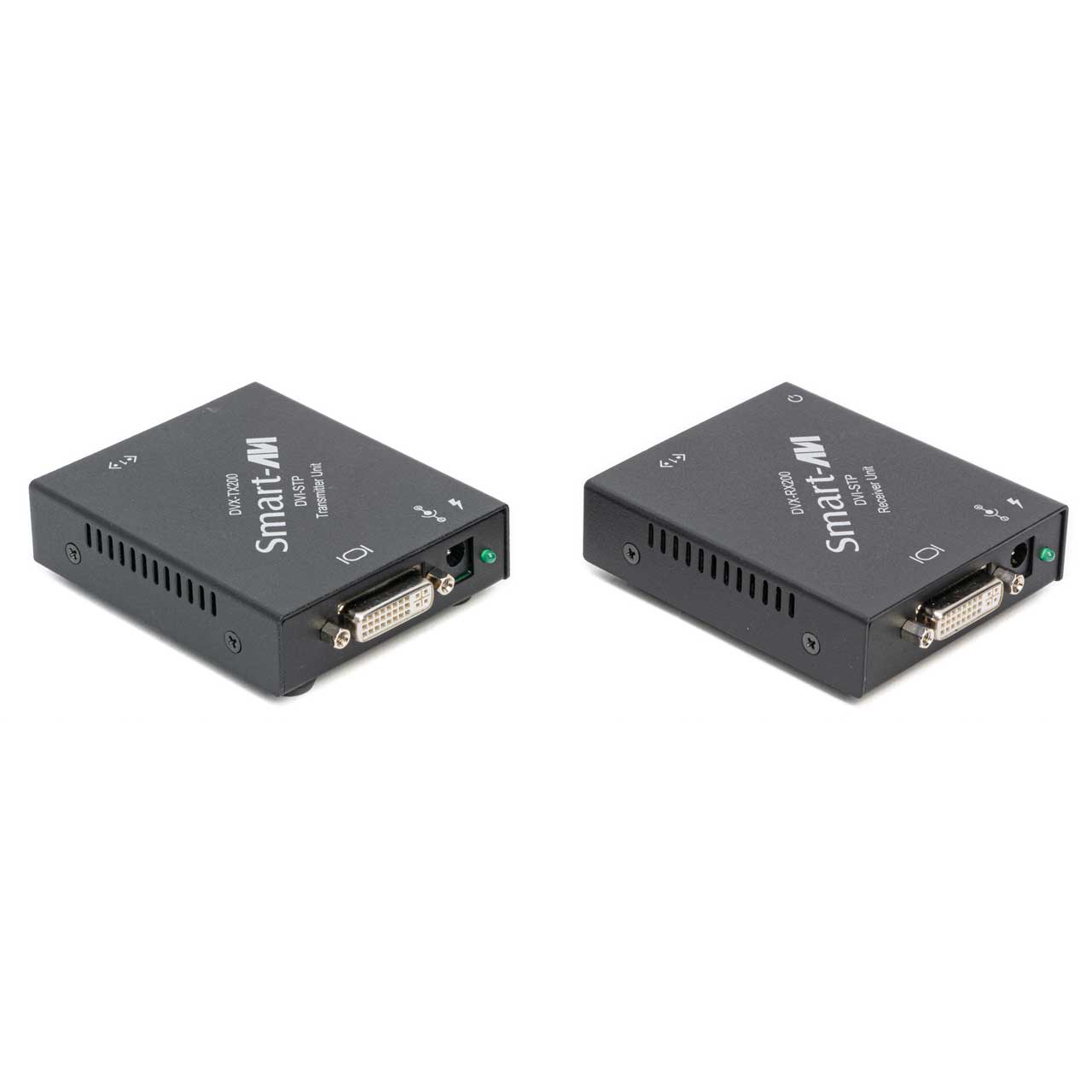

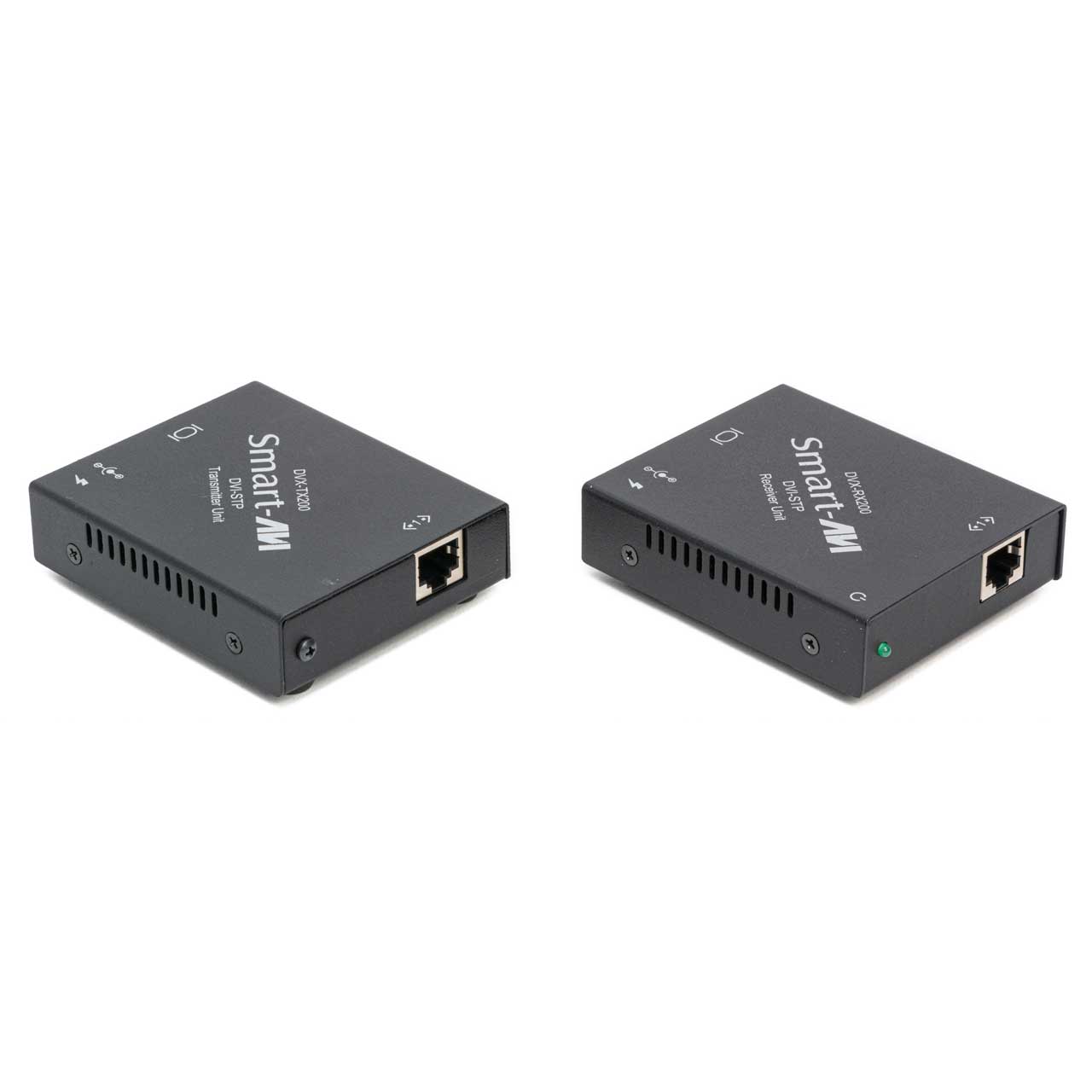

SAVI-DVX200MS-BS - Overview

SmartAVI's DVX-200 extends DVI-D signals up to 225 feet away via inexpensive CAT5 cables. Affordable DVI-D Signal Extension The DVX-200 is capable of sending 1080p (1920x1080) full HD resolution DVI-D video up to 225 feet away from source devices without risk of delay or interference. Better yet, the DVX-200 is compatible with all major operating systems and all SmartAVI KVM solutions, perfect for expanding the range of remote keyboard-video-mouse operation. Best of all, the DVX-200 is a highly affordable extension solution thanks to its reliable and popular CAT5 cabling. Cost-conscious users will find a lot to love about the high speed and performance of CAT5 extension, which lands at a fraction of the cost of other comparable extender types.

Please Note: The unit is an old model but is still in perfect working condition.

  • Features:

    • Top Image Quality at all Resolutions. Video Resolutions up to 1920 x 1200 @ 60Hz (1280 x 1024 @ 75Hz) on all distances up to the maximum distance. User selectable: DCC-Information used from the remotely located Monitor, from the locally located Monitor or from an internal DDCTable. Distances: 220ft with a CAT6 STP cable. Compatible with all operating systems. Compatible with all major KVM Switches.
      Bstock - The unit is an old model but is still in perfect working condition.

  • Specifications:

    • Format: DVI-D Single Link
    • Maximum Pixel Clock: 165 MHz
    • Input Interface (TX): (1) DVI-D 29-pin female
    • Output Interface (RX): (1) DVI-D 29-pin female
    • Resolution: Up to 1920 x 1200 @60Hz
    • DDC: 5 volts p-p (TTL)
    • Input Equalization: Automatic
    • Input/Output Cable Length: Up to 20 ft.
    • Extension over Cat6 STP: Up to 225 ft.

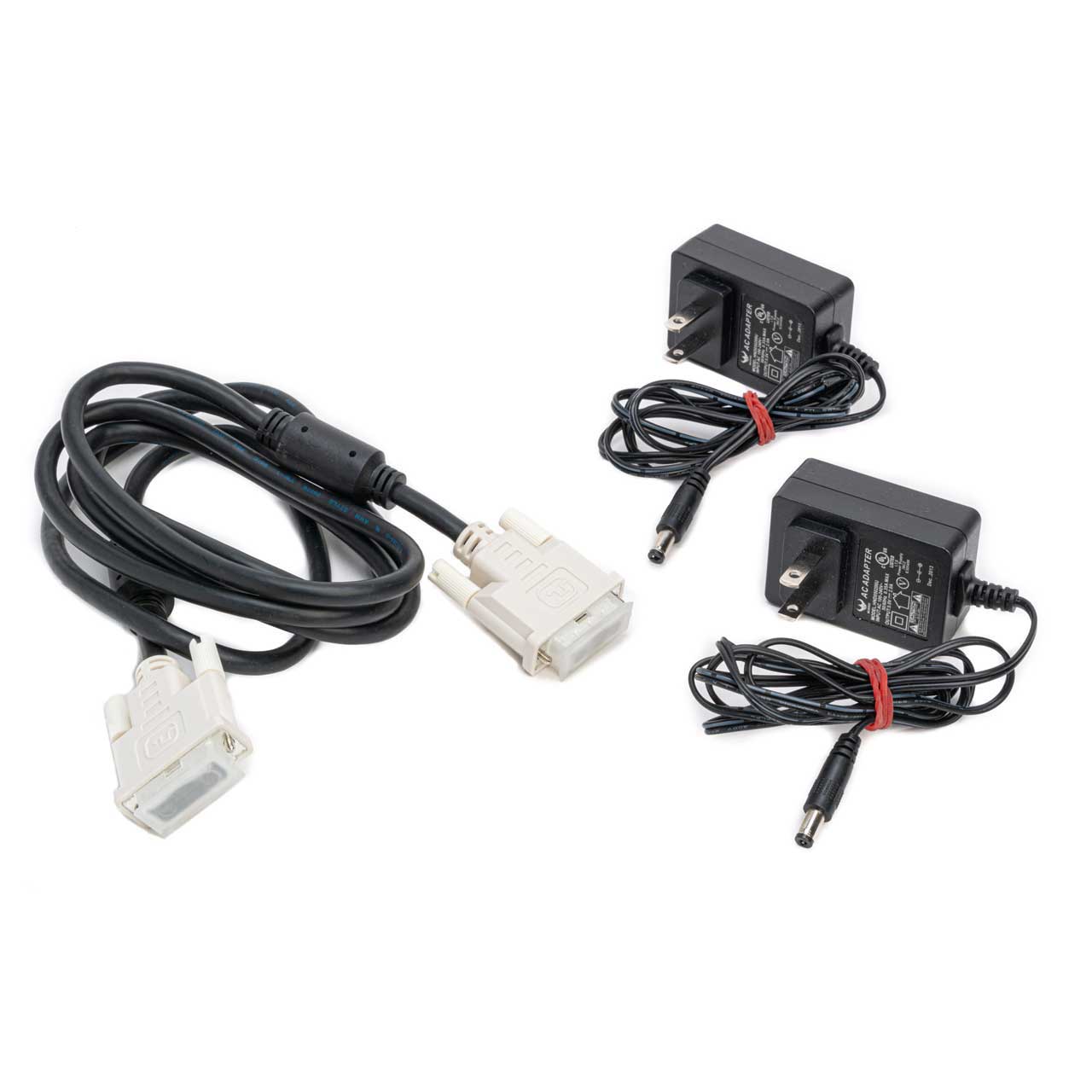

    • Power: External 100-240 VAC/5VDC2A
    • Height: 0.8 in. (20.3 mm.)
    • Width: 2.75 in. (69.85 mm.)
    • Depth: 3.4 in. (86.3 mm.)
    • Weight: 0.20 lb (0.09 kg.)
