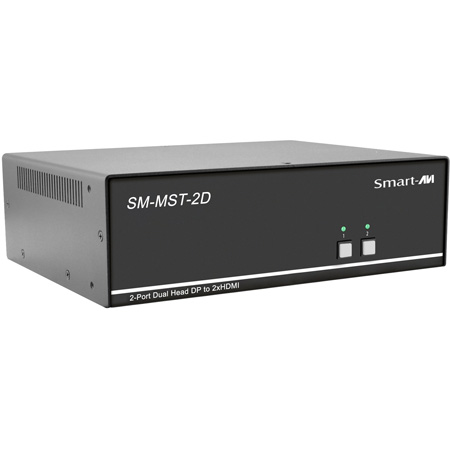

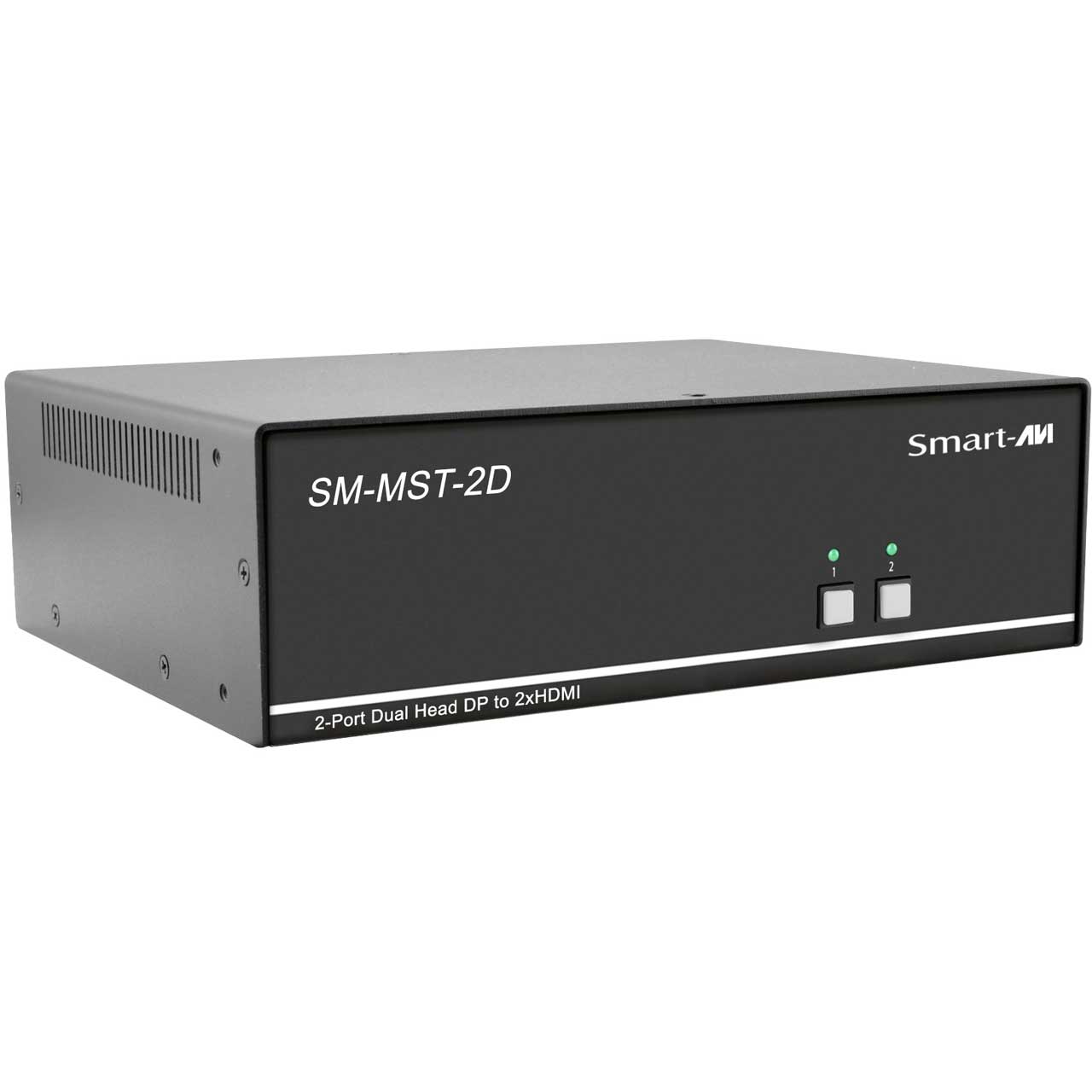

Smart AVI SM-MST-2D MultiStream Transport Technology KVM Switch with Dual 4K HDMI Out - 2 Port

SM-MST-2D - Overview

• Features:

  • Supports Windows 7 and Windows 10
  • Single-head DP to dual-head HDMI video interface for each connected computer
  • Resolutions up to 4K UHD (3840 x 2160 @ 30Hz) per display
  • DisplayPort1.2a dual mode receiver
  • HDMI/DVI operation up to 320MHz
  • Max video input resolution 4K2K@60Hz
  • Multi-Stream Transport supports up to 2 streams
  • Supports RGB or YCbCr
  • Supports balanced speakers output and switching

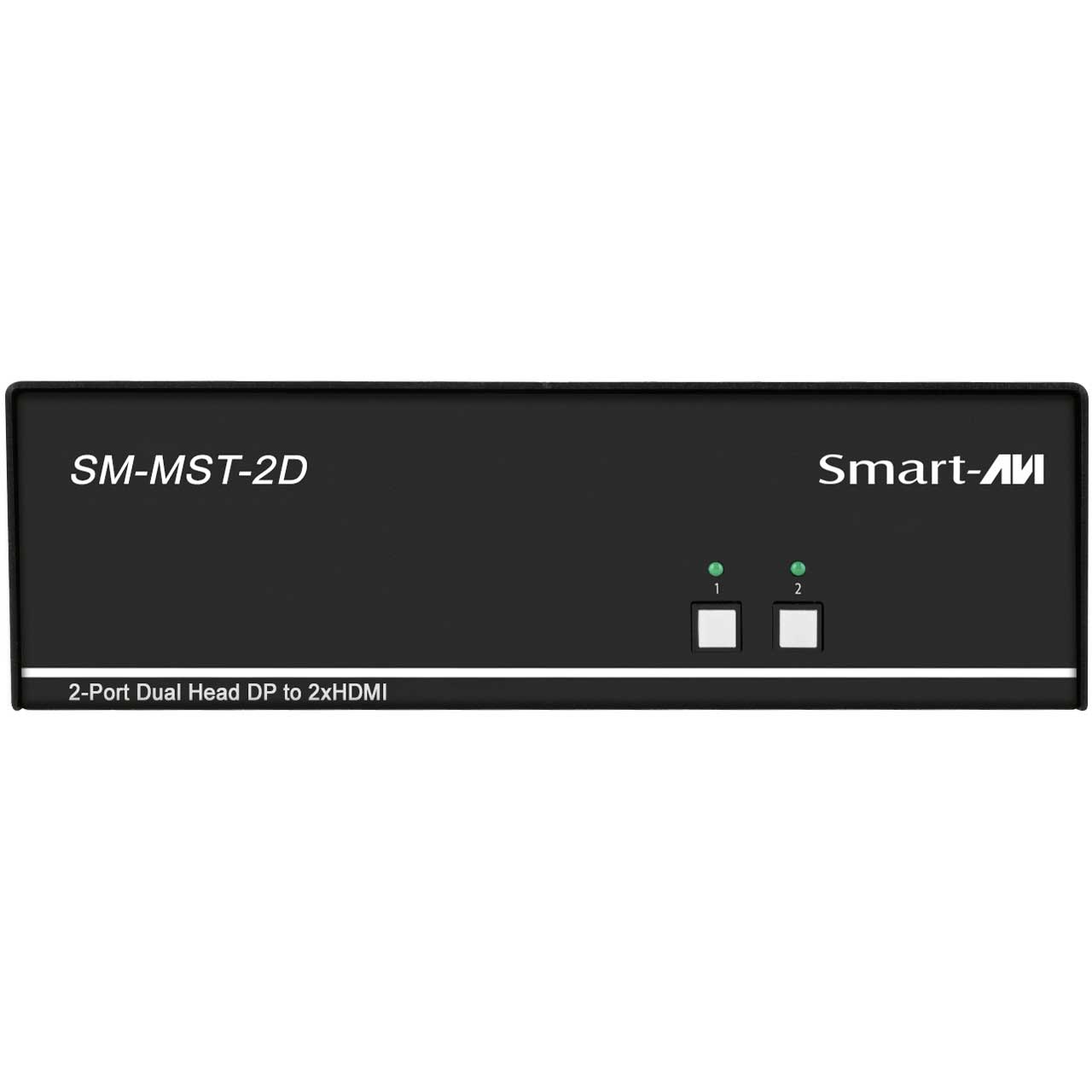

  • Front panel tactile buttons with LED indicator
  • External power supply - Level VI efficiency


• Specifications:

  • Video:
  • Format: DisplayPort 1.2a

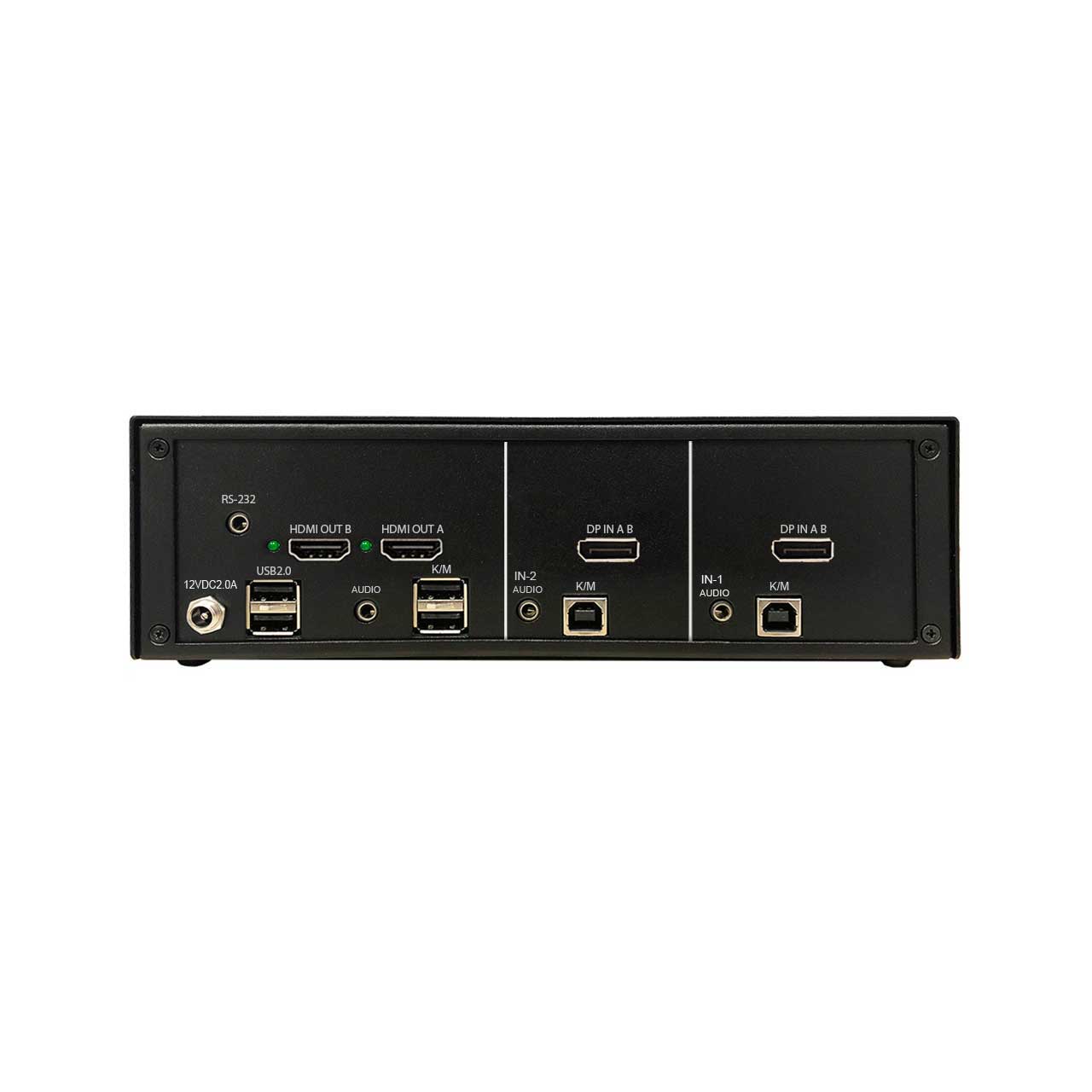

  • Input Interface: (2) DisplayPort
  • Output Interface: (2) HDMI
  • Input Resolution: Up to 4K (3840X2160 @60Hz)
  • Output Resolution: Up to 4K (3840X2160 @30Hz)
  • DDC: 5 volts p-p (TTL)
  • Input Equalization: Automatic
  • Input Cable Length: Up to 20 ft.
  • Output Cable Length: Up to 20 ft.

    USB:
  • Input Interface: (2) USB Type B
  • Output Interface: (2) USB 1.1 Type A for KM Devices
  • Emulation: USB 1.1 and USB 2.0 Compatible

    Audio:
  • Audio Input: (2) 3.5mm stereo audio
  • Audio Output: (1) 3.5mm stereo audio

    Control:
  • Front Panel: Push Buttons with LED Indicators
  • RS-232: Via Control @ 9600 bps
  • Hot Keys: Via Keyboard

    Other:
  • Power: External 100-240 VAC/ 12VDC2A @ 24W
  • Dimensions: 8.8" W x 2.63" H x 6.69" D
  • Weight: 3.85 lbs
  • Approvals: UL, CE, ROHS Compliant
  • Operating Temperature: +32 to +104°F (0 to +40°C)
  • Storage Temperature: -4 to 140°F (-20 to +60°C)
  • Humidity: Up to 80% (No Condensation)


• Item Includes:

  • 1x SM-MST-2D KVM Switch
  • 1x PS12VD2A 12V DC 2A Power Adapter
