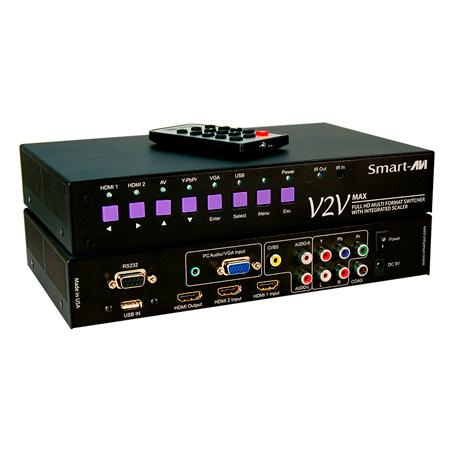

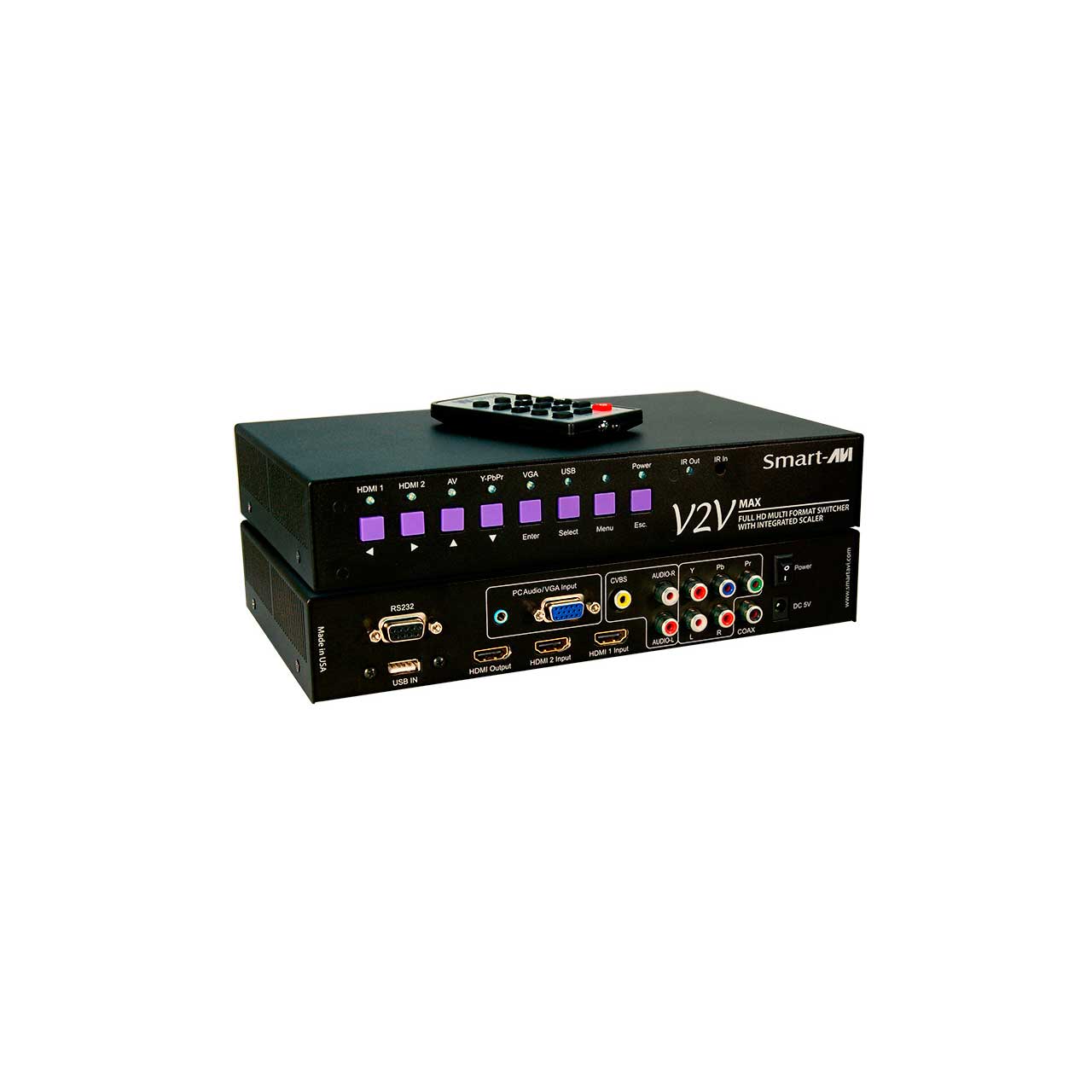

Smart-AVI V2V-MAX-S 6-Port HDMI Switcher Scaler and Converter

V2V-MAX-S - Overview

• Features:

  • 6 input ports
  • (1) CVBS NTSC and PAL with Audio input
  • (1) YPbPr with Audio input
  • (1) VGA with Local audio up to 1920x1080
  • (2) HDMI 1080p with automatic EDID learning
  • (1) USB input supports flash disk drive: MPEG, H.264, RM/RMVB movie decode, JPEG, BMP, PNG
  • Picture decode and MPEG1/2, MP3 audio decode
  • RS232 control support for each port

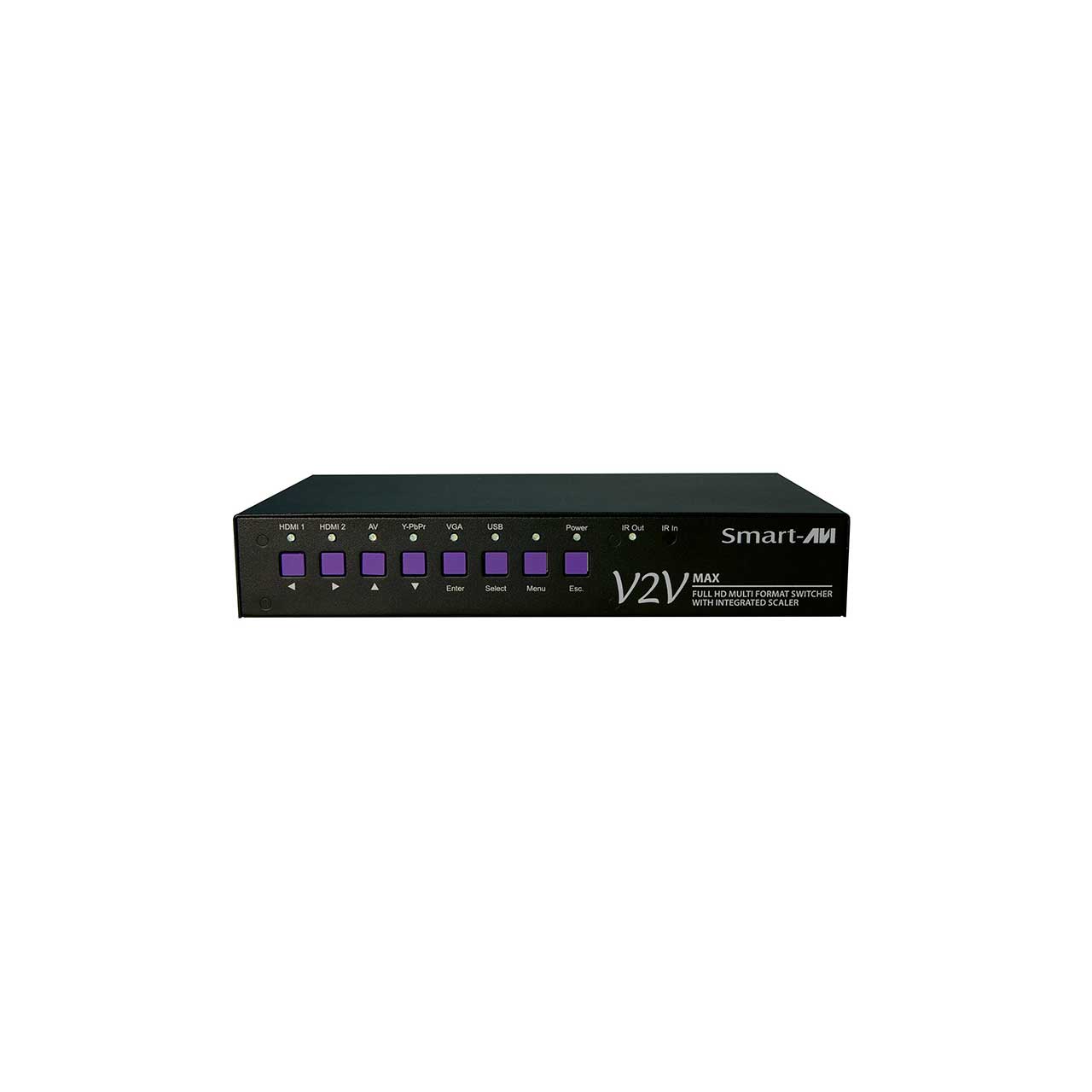

  • Front panel On Screen Display for fast video selection
  • IR remote control
  • HDCP 1.3 Compliant


• Specifications:

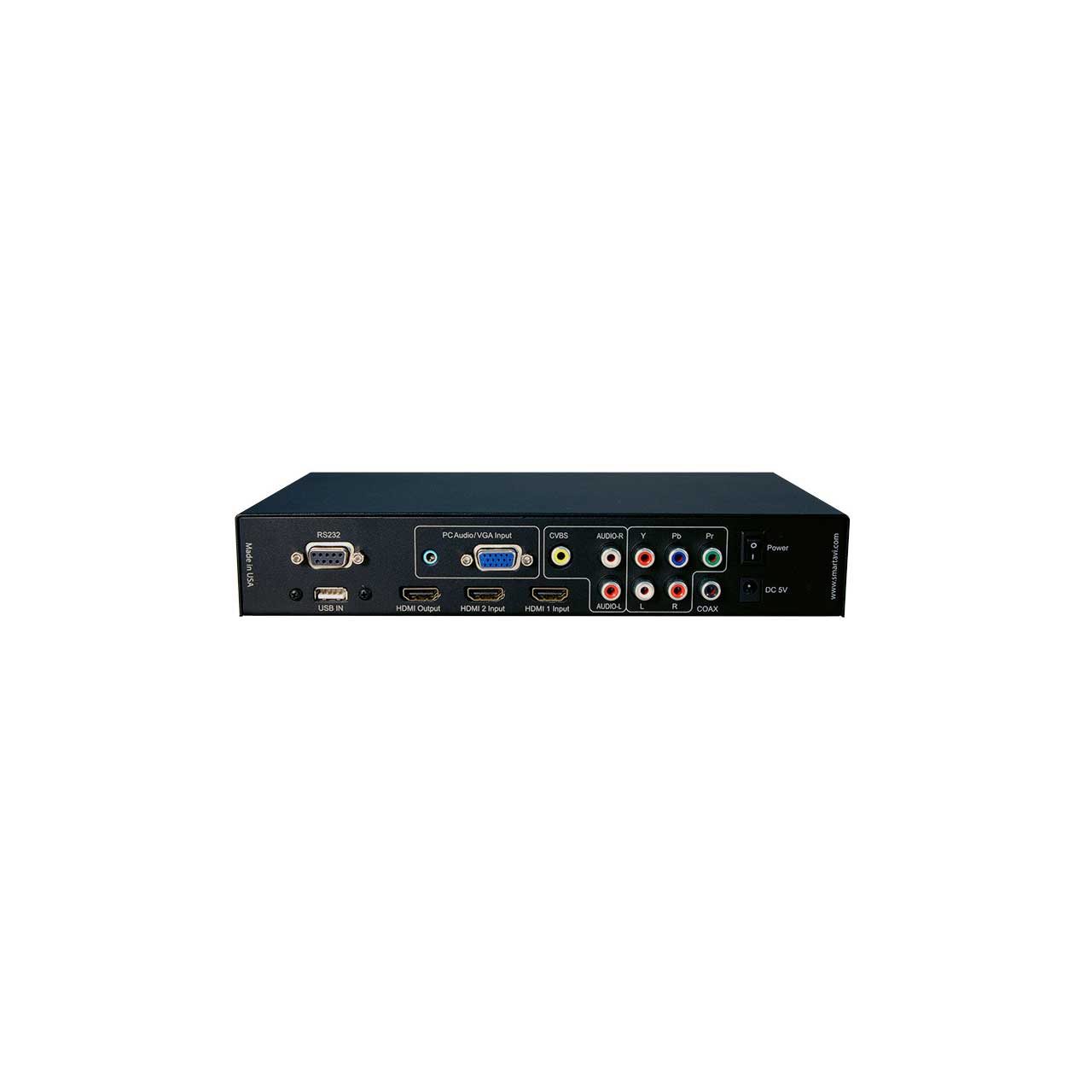

  • INPUTS
  • Composite (3) RCA CVBS: PAL, NTSC, SECAM with stereo audio input
  • Component (5) RCA YPbPr: 1080p@50/60Hz, 1080i@50/60Hz, 720p@50/60Hz, 576i/p, 480i/p with stereo audio input
  • PC DB15 Female with Jack stereo supports
  • VGA 640x480@60Hz, 800x600@60Hz, 1024x768@60Hz, 1280x1024@60Hz, 1280x720@60Hz, 1360x768@60Hz,
  • 1440x900@60Hz, 1680x1050@60Hz, 1920x1080@60Hz with stereo audio input
  • HDMI (2) HDMI Inputs: 1080p@50/60Hz, 1080i@50/60Hz, 720p@50/60Hz, 576i/p, 480i/p, 640x480@60Hz,
  • 800x600@60Hz, 1024x768@60Hz, 1280x1024@60Hz, 1280x720@60Hz, 1360x768@60Hz, 1440x900@60Hz,
  • 1680x1050@60Hz, 1920x1080@60Hz
  • USB type A MPEG, H.264, RM/RMVB movie decode, JPEG, BMP, PNG Picture decode and MPEG1/2, MP3 audio decode
  • OUTPUT
  • Output HDMI Set 720p or 1080p output format with integrated audio
  • CONTROL
  • Control Front panel with pushbuttons and LED indicators, IR infrared with remote control supplied, RS232 DB9Female with
  • simple protocol
  • OTHER
  • Power Switching Power Supply 110/220v 5VDC 4A
  • Operating Temperature Range -5 to +35°C (-41 to +95 °F)
  • Operating Humidity Range 5 to 90 % RH (no condensation)
  • Dimensions 10.0125 in. W x 2 in. H x 6 in. D
  • Weight 2.75 lbs.


• Item Includes:

  • [V2V-MAX, V2V-MXR, (PS5VDC4A)]
