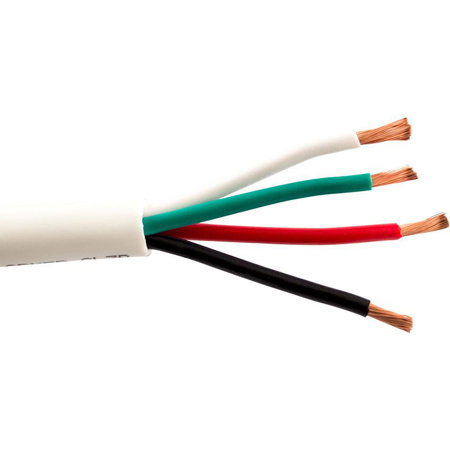

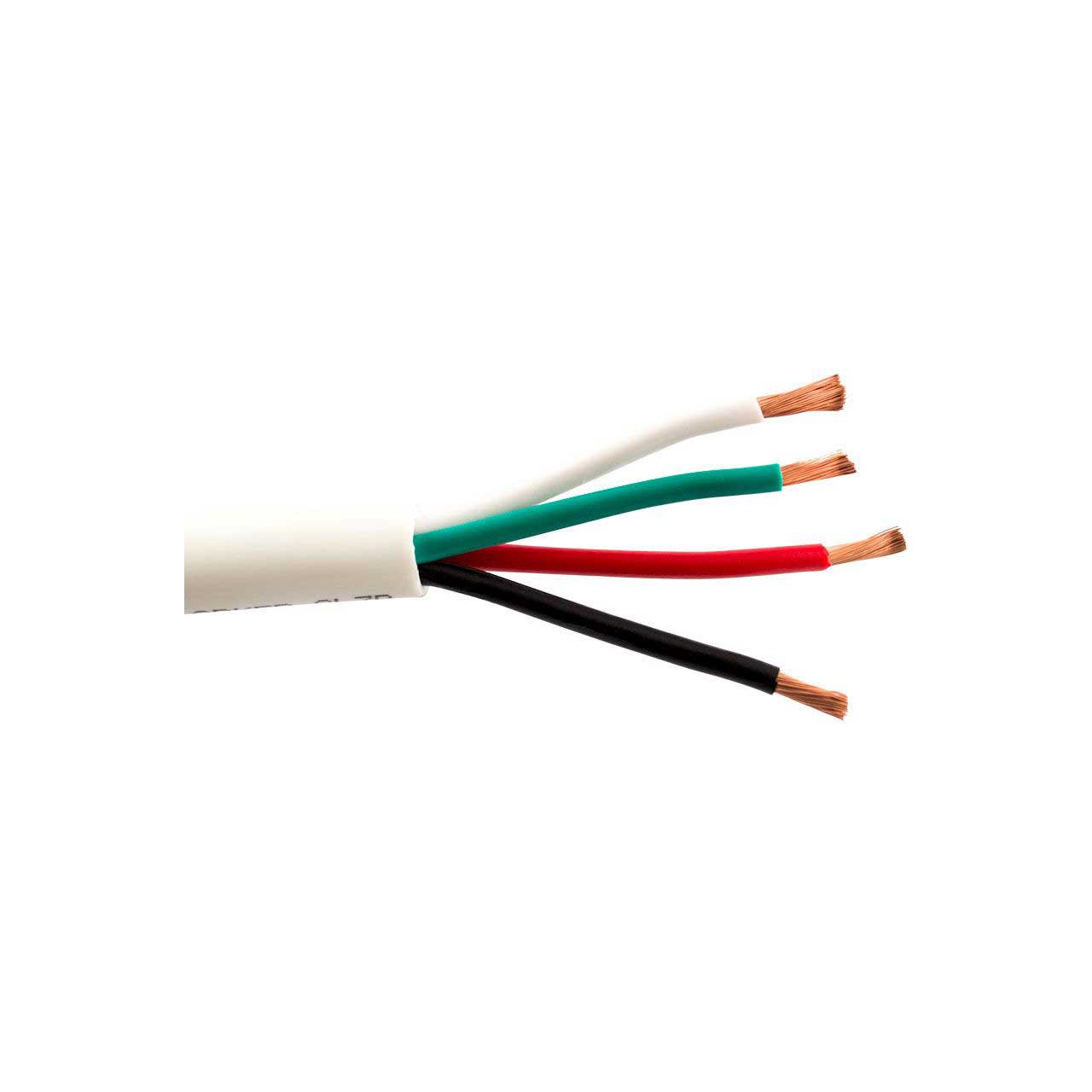

Structured Cable 14/4OFC 4-Conductor 14 AWG Stranded Copper In-Wall Speaker Cable - 500 Feet White

14/4OFC-WT - Overview

• Features:

  • Highly Flexible with Minimum OD
  • High Strand Count Oxygen Free Copper
  • Unshielded
  • Insulated twisted pair
  • Easy Strip PVC Jacket
  • Smaller OD ideal for conduit
  • SCP Tangle Free Reelex II Box
  • Descending Feet and Zone/Outlet Jacket Markings


• Specifications:

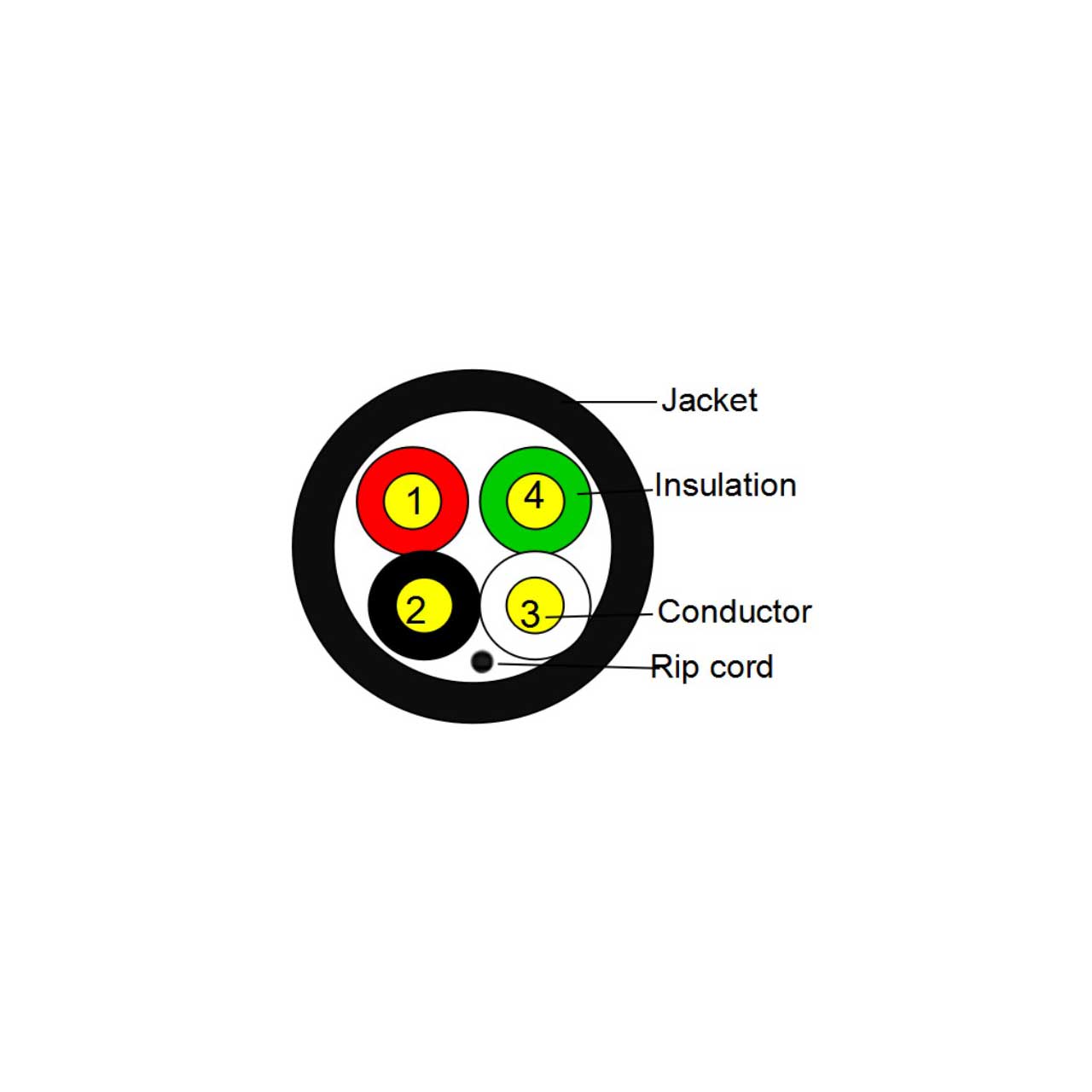

  • Conductor:
  • Material: Stranded Bare Copper
  • Size: 14AWG X 4C
  • Construction: 105/0.16mm±0.004mm
  • Resistance: Max 9.2Ω/km at 20°C

    Insulation:
  • Material: PVC
  • Min. Thickness: 0.33mm
  • Avg. Thickness: 0.36mm
  • Diameter: 2.70mm±0.10mm
  • Colors: Black, Red, White, Green
  • Resistance: Min 50MΩ*km at 20°C
  • Unaged Tensile Strength: 13.8Mpa
  • Unaged Elongation: 100%
  • Aged Elongation: 50%(100°C 168h)
  • Aged Tensile Strength: 11.7Mpa(100°C 168h)

    Jacket:
  • Material: PVC
  • Min. Thickness: 0.60mm
  • Avg. Thickness: 0.80mm
  • Diameter: 8.0mm±0.20mm
  • Rip Cord: Nylon
  • Unaged Tensile Strength: 13.8Mpa
  • Unaged Elongation: 100%
  • Aged Elongation: 50%(100°C 168h)
  • Aged Tensile Strength: 11.7Mpa(100°C 168h)


  • Bend Radius: Min 15D/120mm
  • Operating Temperature Range: -20°C - +75°C
  • Dielectric Strength: Min AC1.5KV
  • Rated Voltage (Insulated/Operating): Max 300V/80V


• GTIN:

  0810070010249
