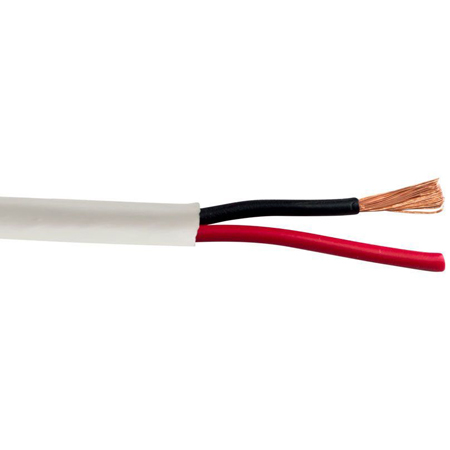

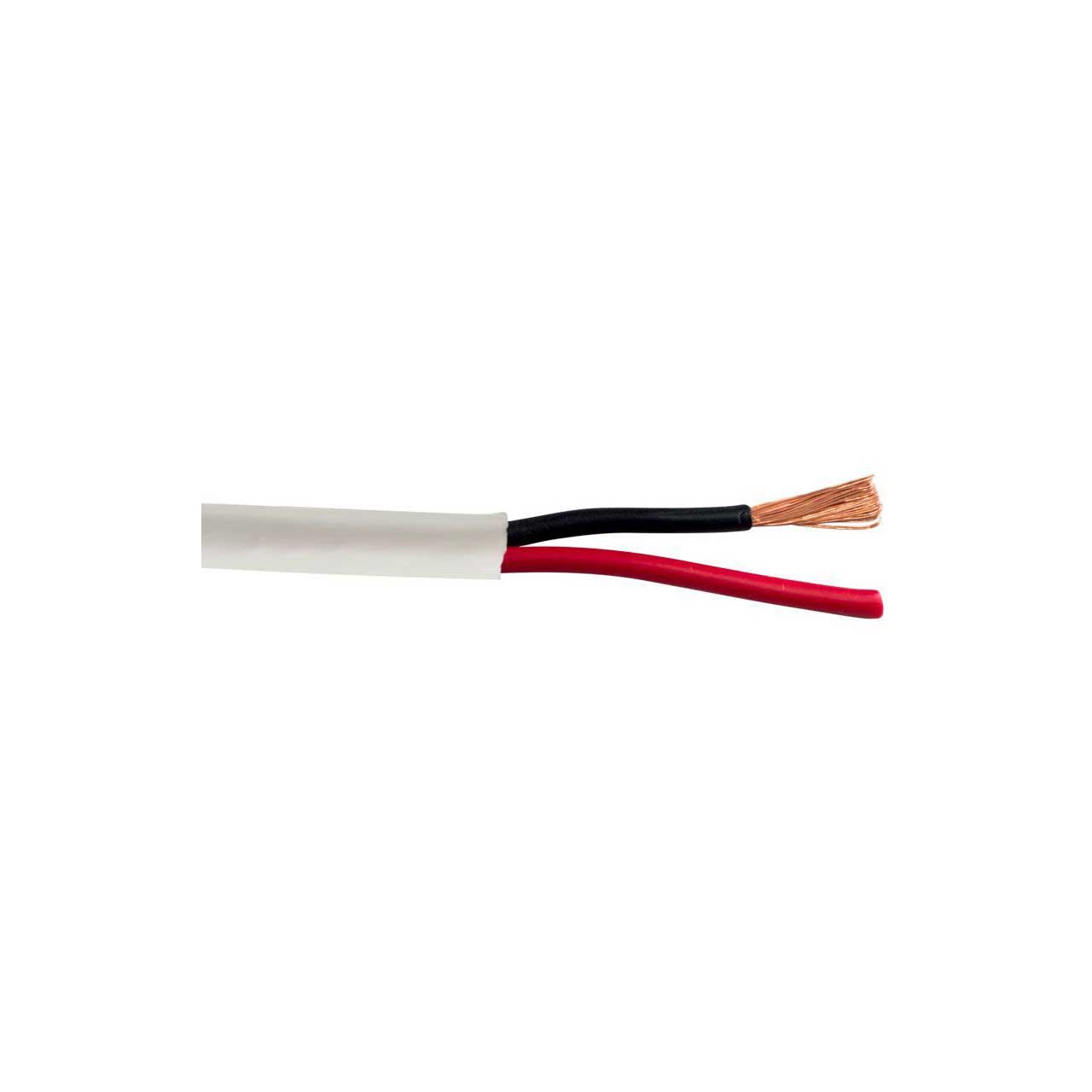

Structured Cable 16/2SP 2-Conductor 16 AWG 26-Strand Copper Contractor Speaker Cable - 500 Feet White

ITEM #: SCP-162SP26WT MFG #: 16/2SP-26-WT

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Structured Cable Products
Free Shipping with $49 Minimum Order

List Price:

$145.20

Our Price:

$96.80

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    16/2SP-26-WT - Overview

    SCP's Contractor Grade Speaker Cables are manufactured for budget-minded installations that require only standard grade speaker cables.

    SCP Contractor Grade Speaker Cables feature twisted-pair construction with medium strand count oxygen-free copper (OFC). Twisted-pair construction reduces sonic degradation and interference while also providing a smaller and rounder diameter that is very flexible and friction-resistant.

    SCP Contractor Grade Speaker Cables are available in our industry-leading Pull Box; allowing for the easiest and fastest installations... with no tangles and no wastage. In addition, all Contractor Grade Speaker Cables come with sequential foot/meter markings printed on the jacket.

    All Contractor Grade Speaker Cables are UL and In-Wall rated. NEC: CMR; CEC: FT4.

    • Features:

      • Stranded Bare Copper
      • Unshielded
      • Insulated twisted wires
      • Easy Strip PVC Jacket
      • SCP Tangle Free Reelex II Box
      • Descending Meter and SCP Zone/Outlet Jacket Markings

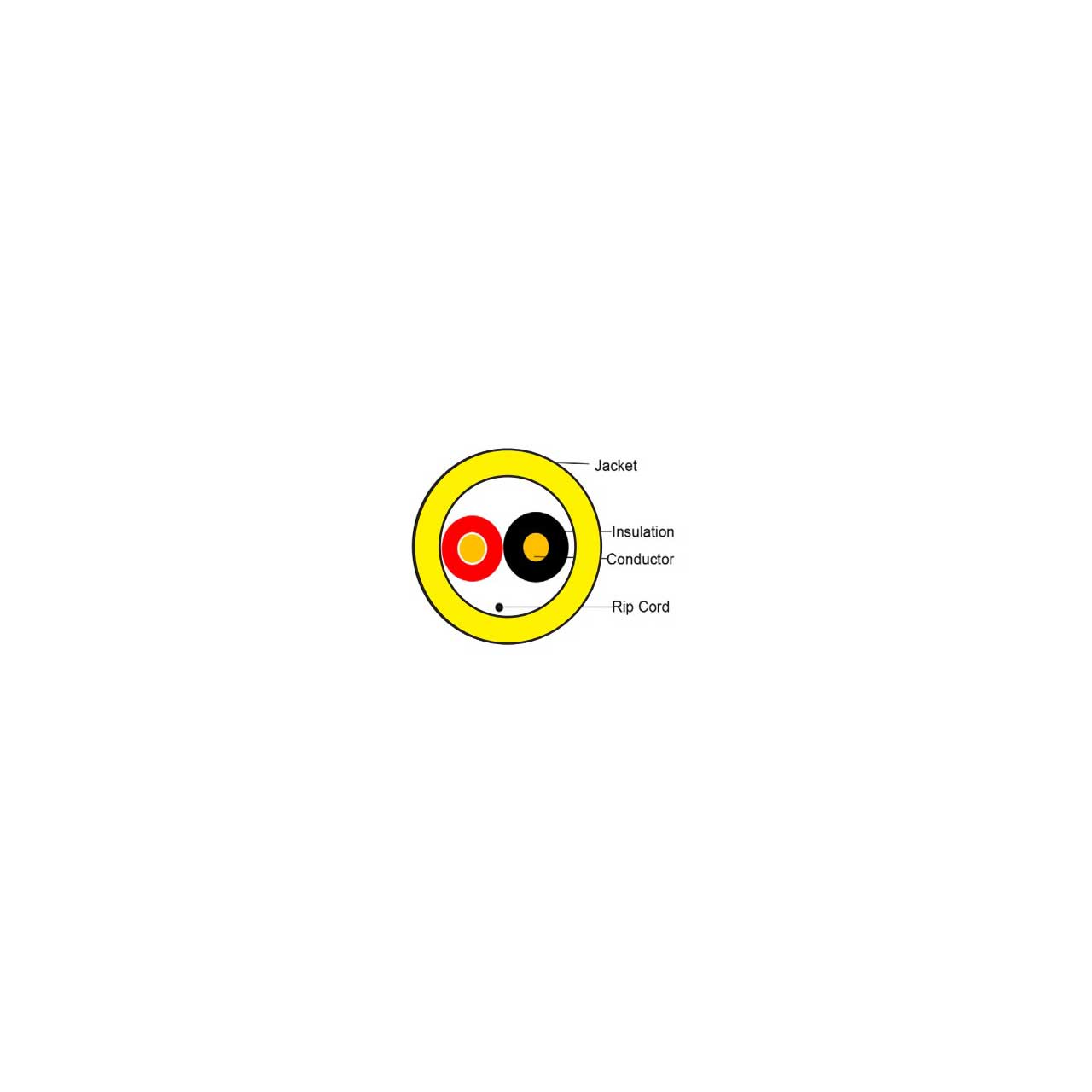

    • Specifications:

      • Conductor:
      • Material: Stranded Bare Copper
      • Size: 16AWG X 2C (2.11mm2)
      • Construction: 26/0.254mm±0.004mm
      • Resistance: Max 15.5Ω/km at 20°C

        Insulation:
      • Material: PVC
      • Min. Thickness: 0.30mm
      • Avg. Thickness: 0.33mm
      • Diameter: 2.0mm±0.10mm
      • Colors: Black and Red
      • Resistance: Min 50MΩ*km at 20°C
      • Unaged Tensile Strength: 13.8Mpa
      • Unaged Elongation: 100%
      • Aged Elongation: 50%(100°C 168h)
      • Aged Tensile Strength: 11.7Mpa(100°C 168h)

        Jacket:
      • Material: PVC
      • Min. Thickness: 0.54mm
      • Avg. Thickness: 0.60mm
      • Diameter: 5.0mm±0.20mm
      • Rip Cord: Nylon
      • Unaged Tensile Strength: 13.8Mpa
      • Unaged Elongation: 100%
      • Aged Elongation: 50%(100°C 168h)
      • Aged Tensile Strength: 11.7Mpa(100°C 168h)

      • Operating Temperature Range: -20°C - +75°C
      • Dielectric Strength: Min AC1.5KV
      • Rated Voltage: Max 300V


    • GTIN:

      0810070018566
