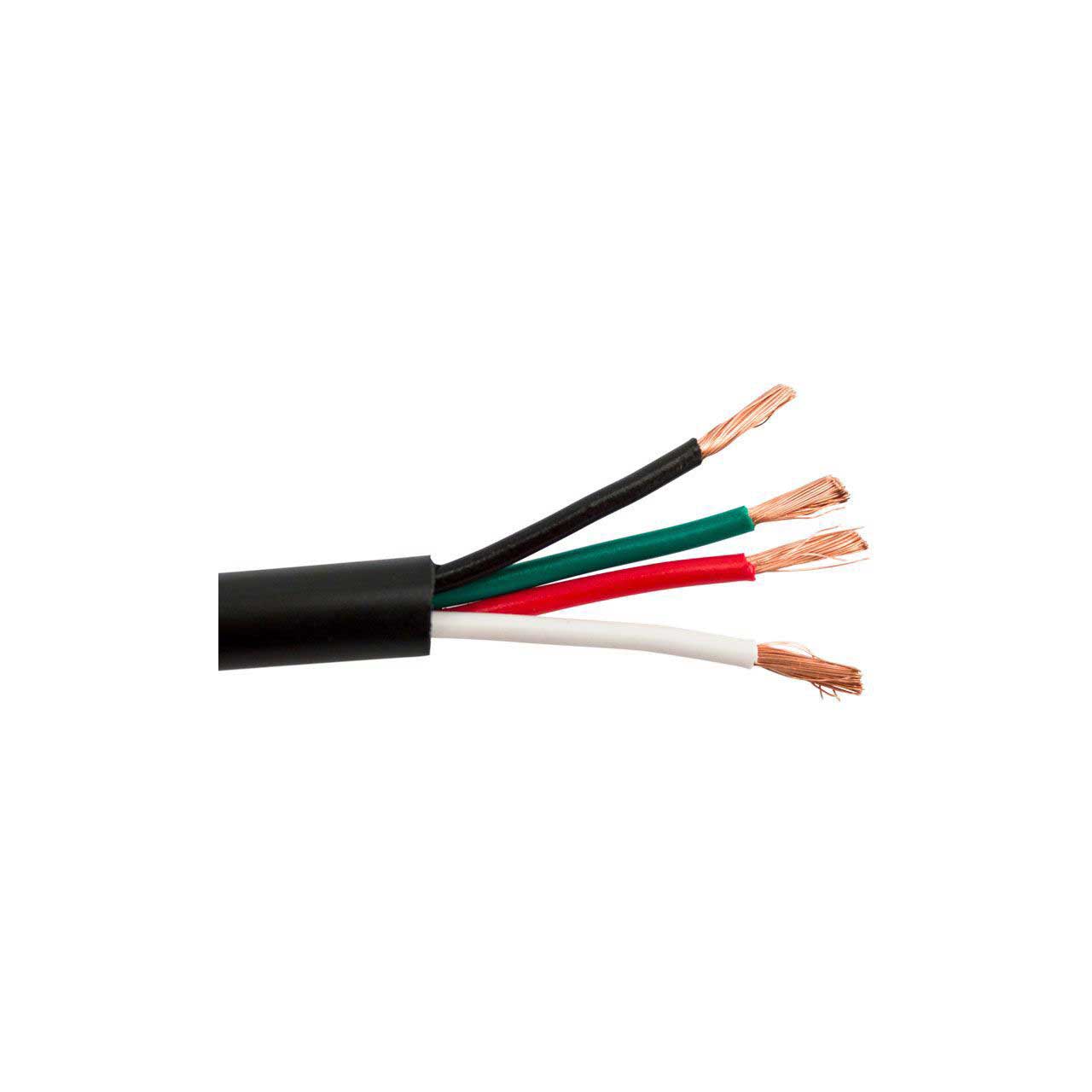

Structured Cable 16/4OFC Direct Burial 4-Conductor 16 AWG Stranded Copper Indoor/Outdoor Speaker Cable - 500 Feet Black

16/4OFC-HD-BK - Overview

• Features:

  • Highly Flexible
  • Indoor/Outdoor Rated
  • High Strand Count Oxygen Free Copper (OFC)
  • Unshielded
  • Insulated twisted pair
  • HD UV Sun Resistant PVC Jacket
  • Easy Strip Round Rope Lay Construction
  • SCP Tangle Free Reelex II Box
  • Descending Feet and Zone/Outlet Jacket Markings


• Specifications:

  • Conductor:
  • Material: Stranded Bare Copper
  • Size: 16AWG X 4C (1.31mm²)
  • Construction: 65/0.16mm±0.004mm
  • Resistance: Max 15Ω/km at 20°C

    Insulation:
  • Material: PVC
  • Min. Thickness: 0.30mm
  • Avg. Thickness: 0.33mm
  • Diameter: 2.0mm±0.10mm
  • Colors: Black, Red, White, Green
  • Resistance: Min 50MΩ*km at 20°C
  • Unaged Tensile Strength: 13.8Mpa
  • Unaged Elongation: 100%
  • Aged Elongation: 50%(100°C 168h)
  • Aged Tensile Strength: 11.7Mpa(100°C 168h)

    Jacket:
  • Material: PVC
  • Min. Thickness: 0.80mm
  • Avg. Thickness: 0.95mm
  • Diameter: 7.0mm±0.20mm
  • Rip Cord: Nylon
  • Unaged Tensile Strength: 13.8Mpa
  • Unaged Elongation: 100%
  • Aged Elongation: 50%(100°C 168h)
  • Aged Tensile Strength: 11.7Mpa(100°C 168h)


  • Bend Radius: Min 15D/105mm
  • Operating Temperature Range: -20°C - +75°C
  • Minimum Installation Temperature: 0°C - 40°C
  • Dielectric Strength: Min AC1.5KV
  • Rated Voltage: 300V
  • Test Voltage: 800V/min
  • Impedance: 105±8Ω opposite, 85±8Ω nearby
  • Capacitance: 18±3pf/ft opposite, 23±3pf/ft nearby


• GTIN:

  0817777011180
