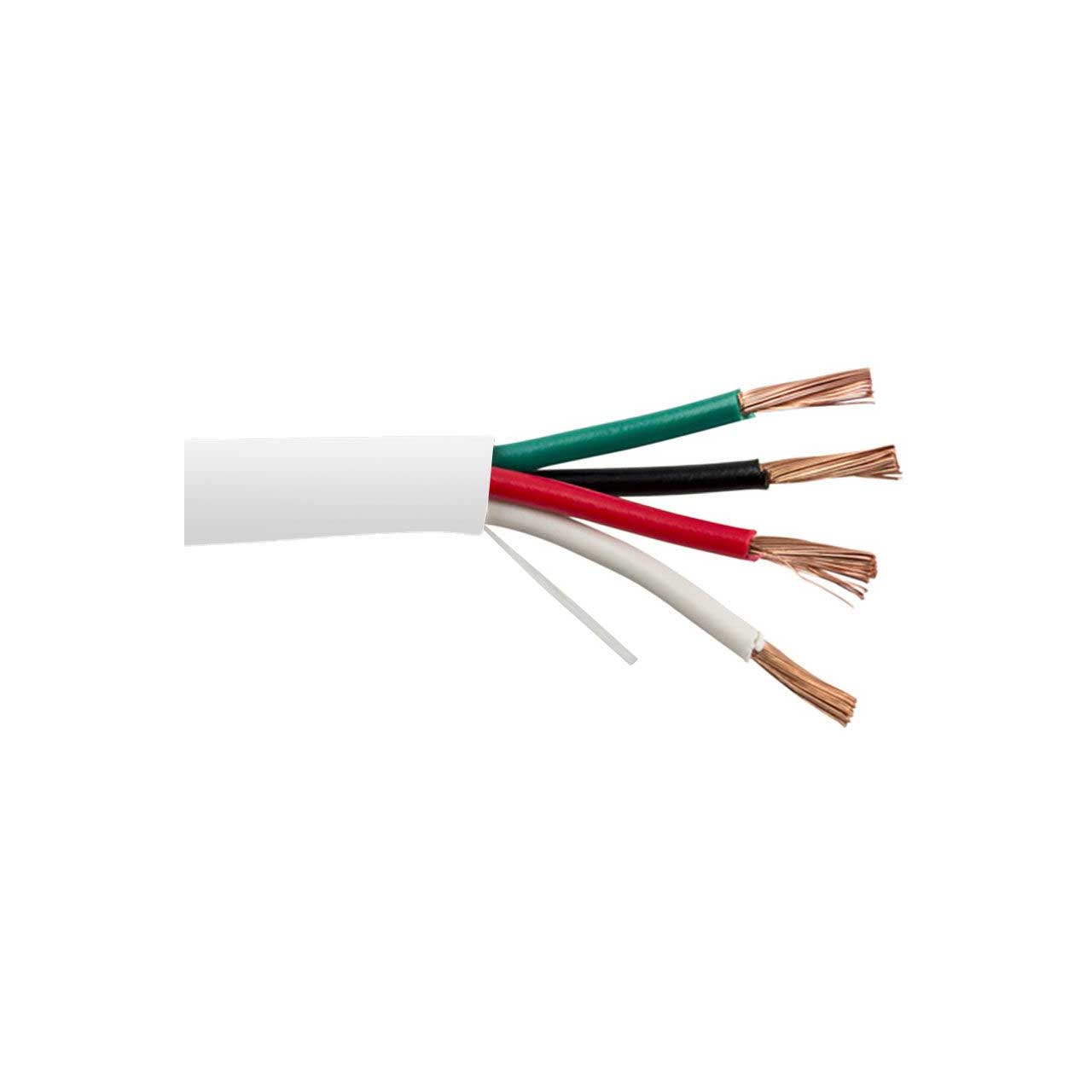

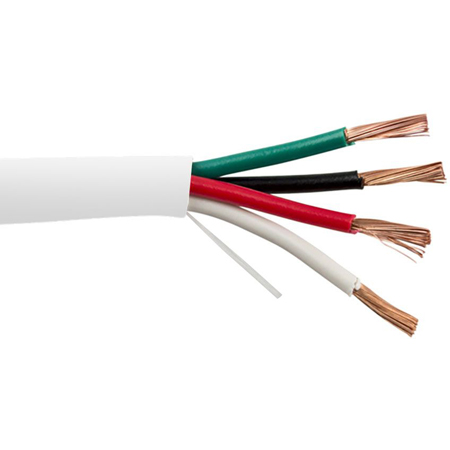

Structured Cable 16/4SP 4-Conductor 16 AWG 26-Strand Copper Contractor Speaker Cable - 500 Feet White

ITEM #: SCP-164SP26WT MFG #: 16/4SP-26-WT

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$290.72

Our Price:

$181.70

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


16/4SP-26-WT - Overview

SCP's Contractor Grade Speaker Cables are manufactured for budget-minded installations that require only standard grade speaker cables.

SCP Contractor Grade Speaker Cables feature twisted-pair construction with medium strand count oxygen-free copper (OFC). Twisted-pair construction reduces sonic degradation and interference while also providing a smaller and rounder diameter that is very flexible and friction-resistant.

SCP Contractor Grade Speaker Cables are available in our industry-leading Pull Box; allowing for the easiest and fastest installations... with no tangles and no wastage. In addition, all Contractor Grade Speaker Cables come with sequential foot/meter markings printed on the jacket.

All Contractor Grade Speaker Cables are UL and In-Wall rated. NEC: CMR; CEC: FT4.

  • Features:

    • Stranded Bare Copper
    • Unshielded
    • Insulated twisted wires
    • Easy Strip PVC Jacket
    • SCP Tangle Free Reelex II Box
    • Descending Meter and SCP Zone/Outlet Jacket Markings

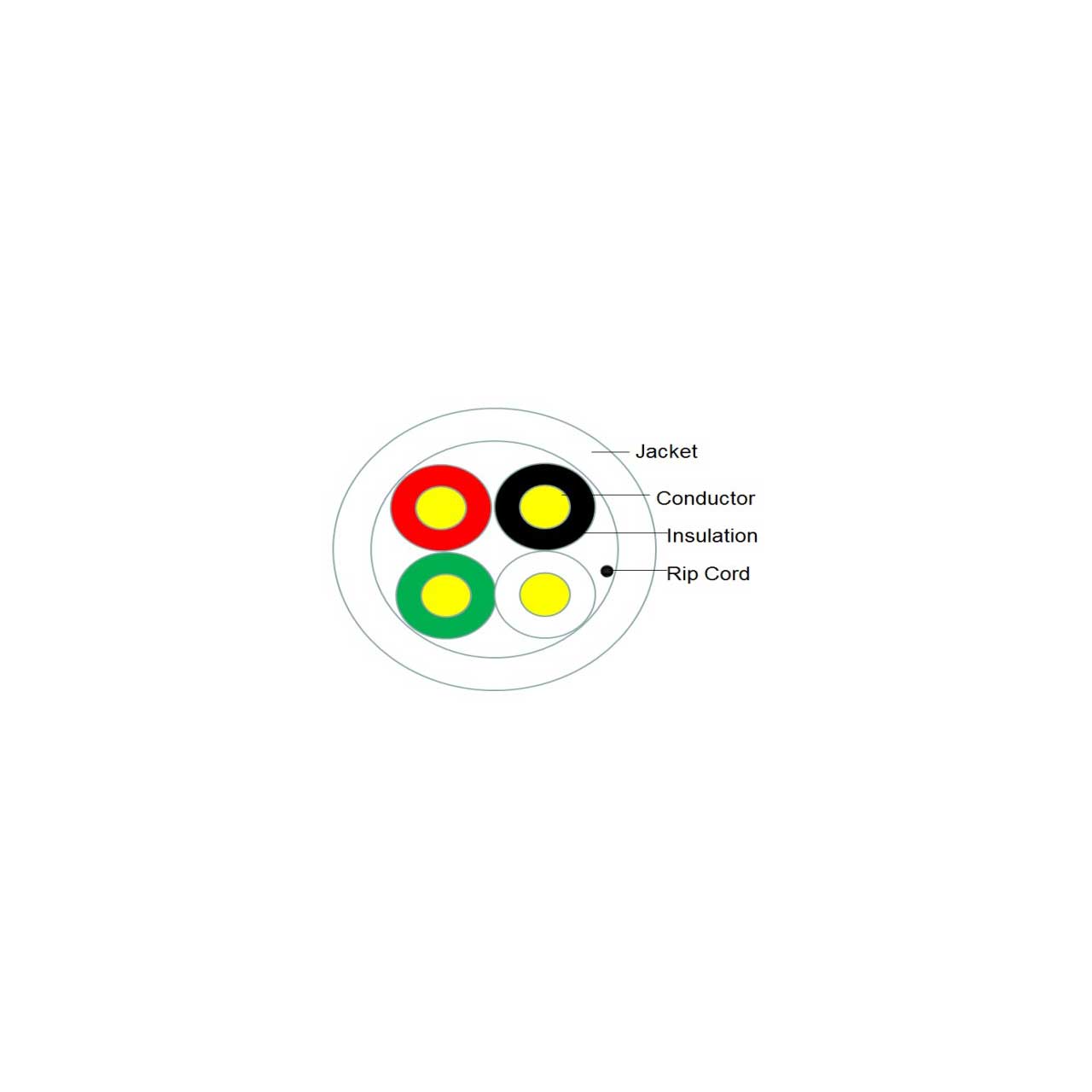

  • Specifications:

    • Conductor:
    • Material: Stranded Bare Copper
    • Size: 16AWG X 4C (1.31mm2)
    • Construction: 26/0.254mm±0.004mm
    • Resistance: Max 15.5Ω/km at 20°C

      Insulation:
    • Material: PVC
    • Min. Thickness: 0.30mm
    • Avg. Thickness: 0.33mm
    • Diameter: 2.0mm±0.10mm
    • Colors: Black, Red, Green, White
    • Resistance: Min 50MΩ*km at 20°C

      Jacket:
    • Material: PVC
    • Min. Thickness: 0.54mm
    • Avg. Thickness: 0.60mm
    • Diameter: 6.1mm±0.20mm
    • Rip Cord: Nylon

    • Operating Temperature Range: -20°C - +75°C
    • Minimum Installation Temperature: 0°C - 40°C
    • Dielectric Strength: Min AC1.5KV
    • Rated Voltage: 300V
    • Test Voltage: 800V/min

  • GTIN:

    0810070010577
