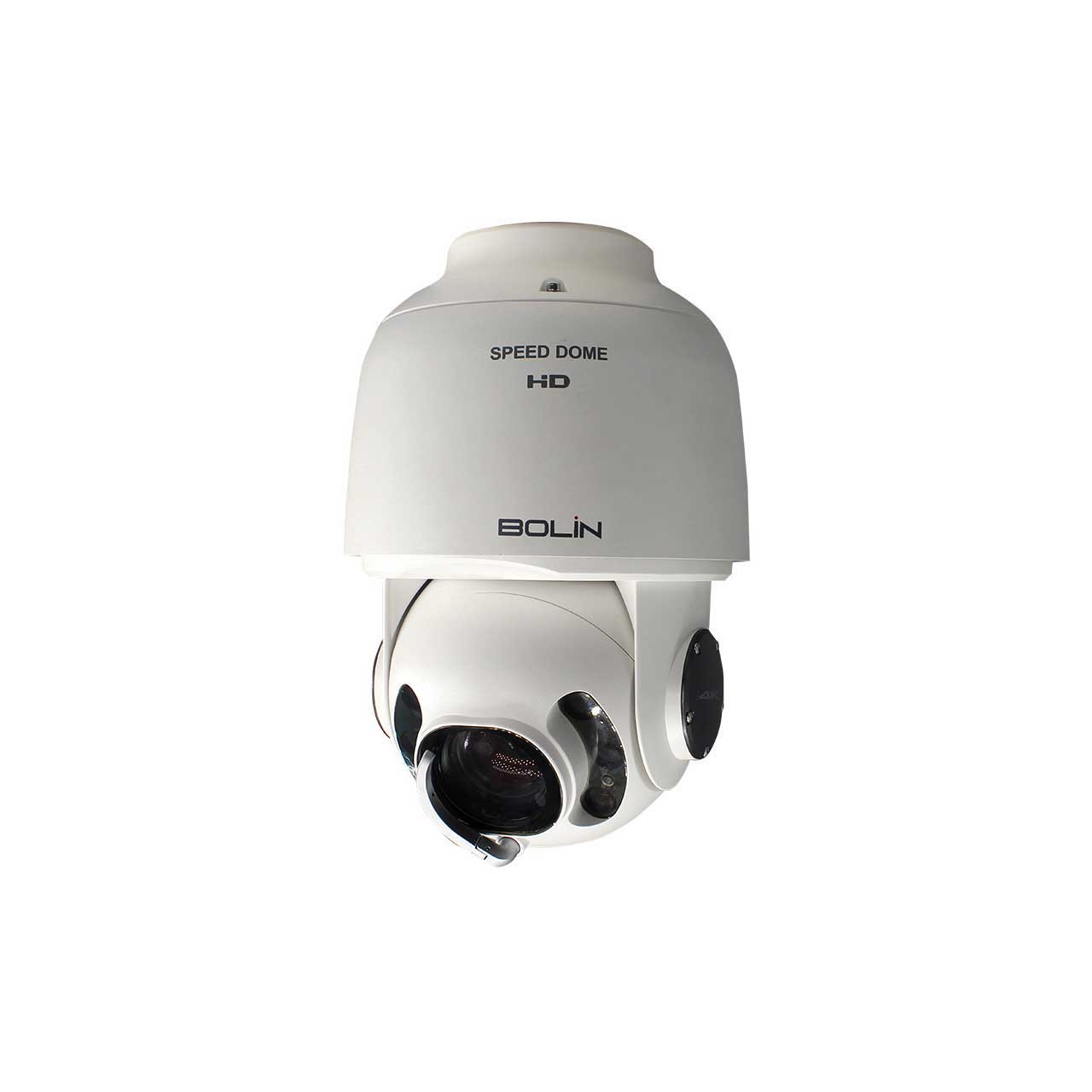

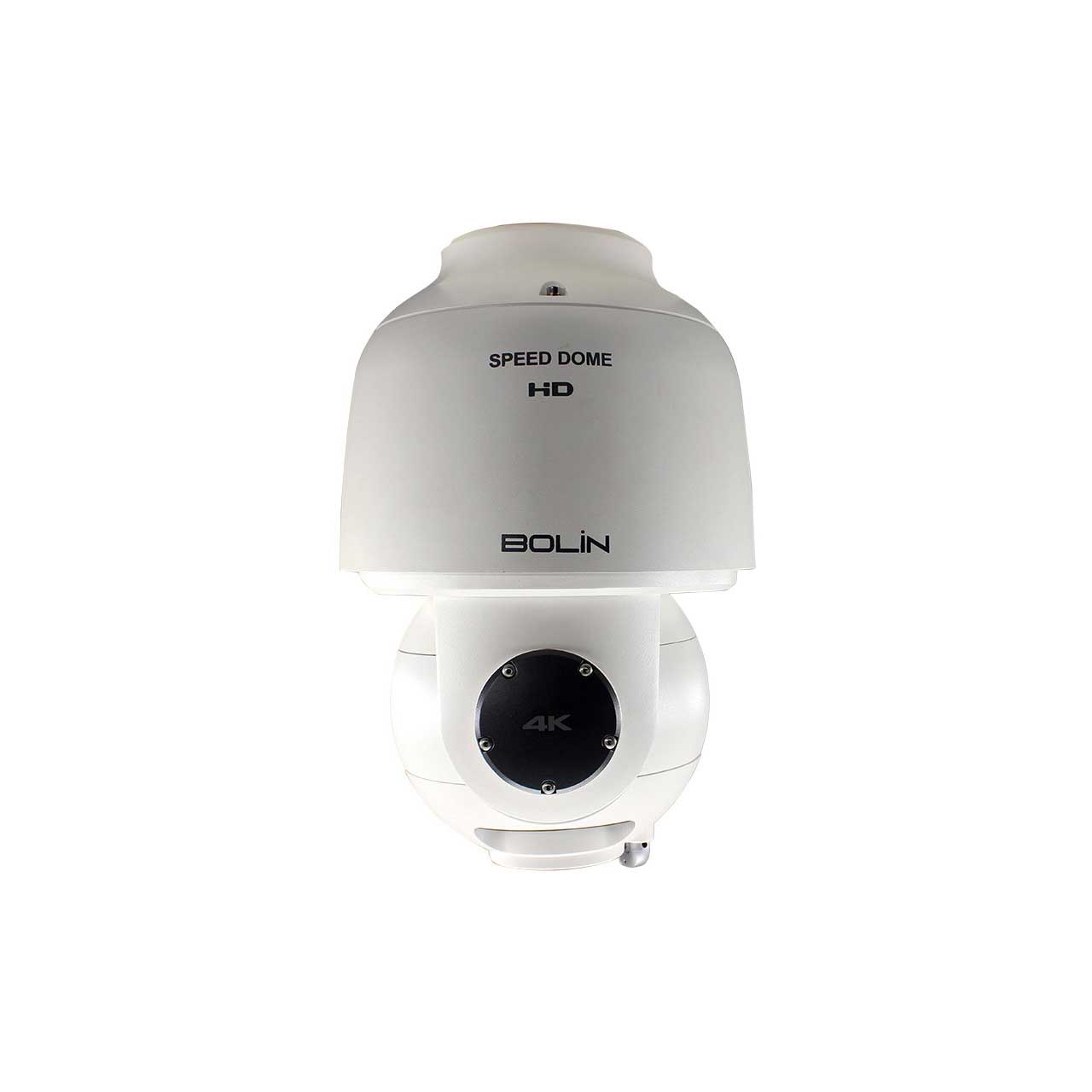

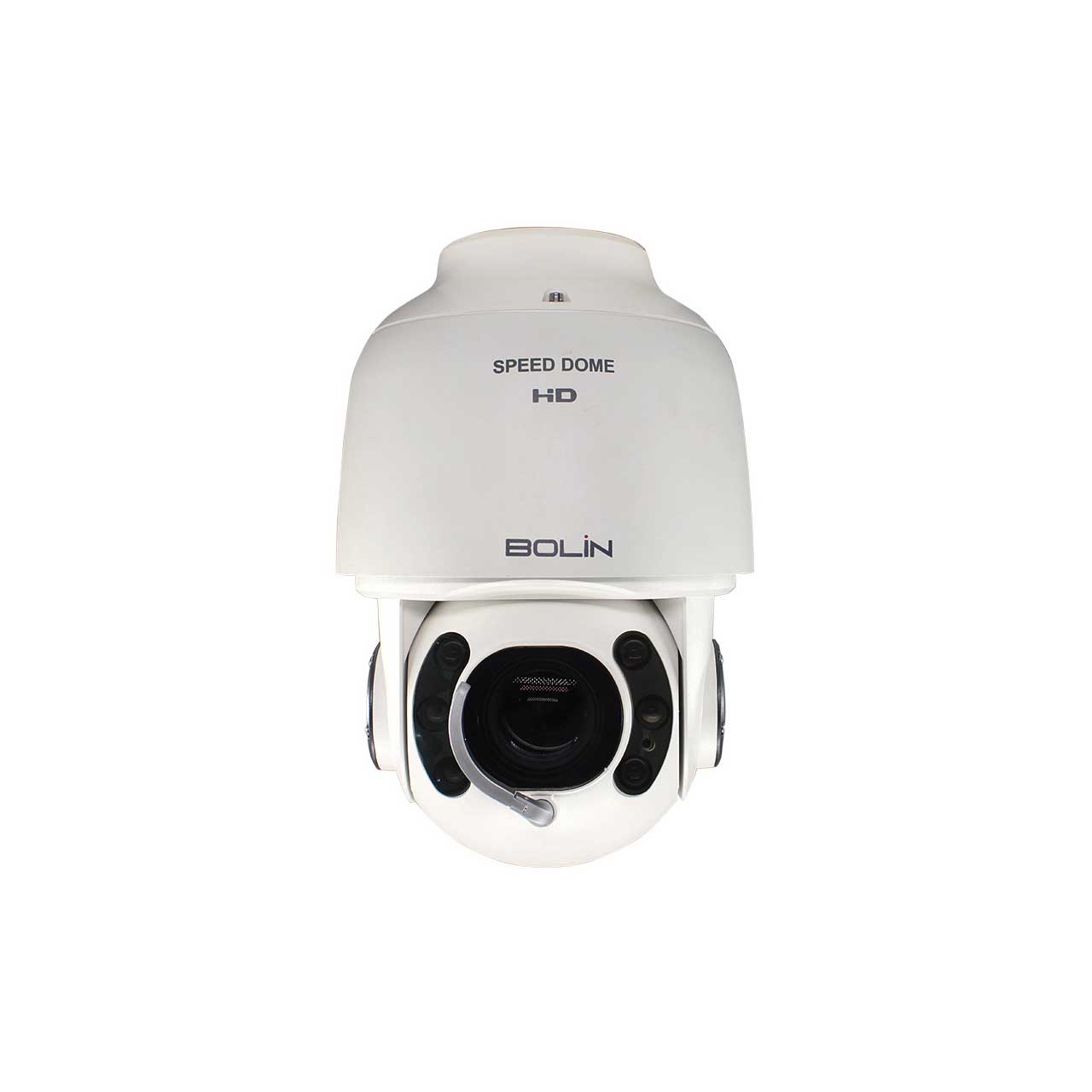

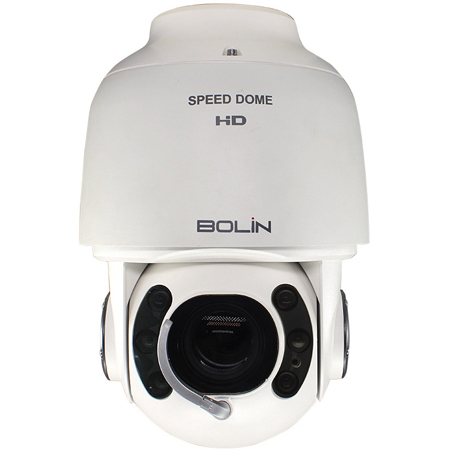

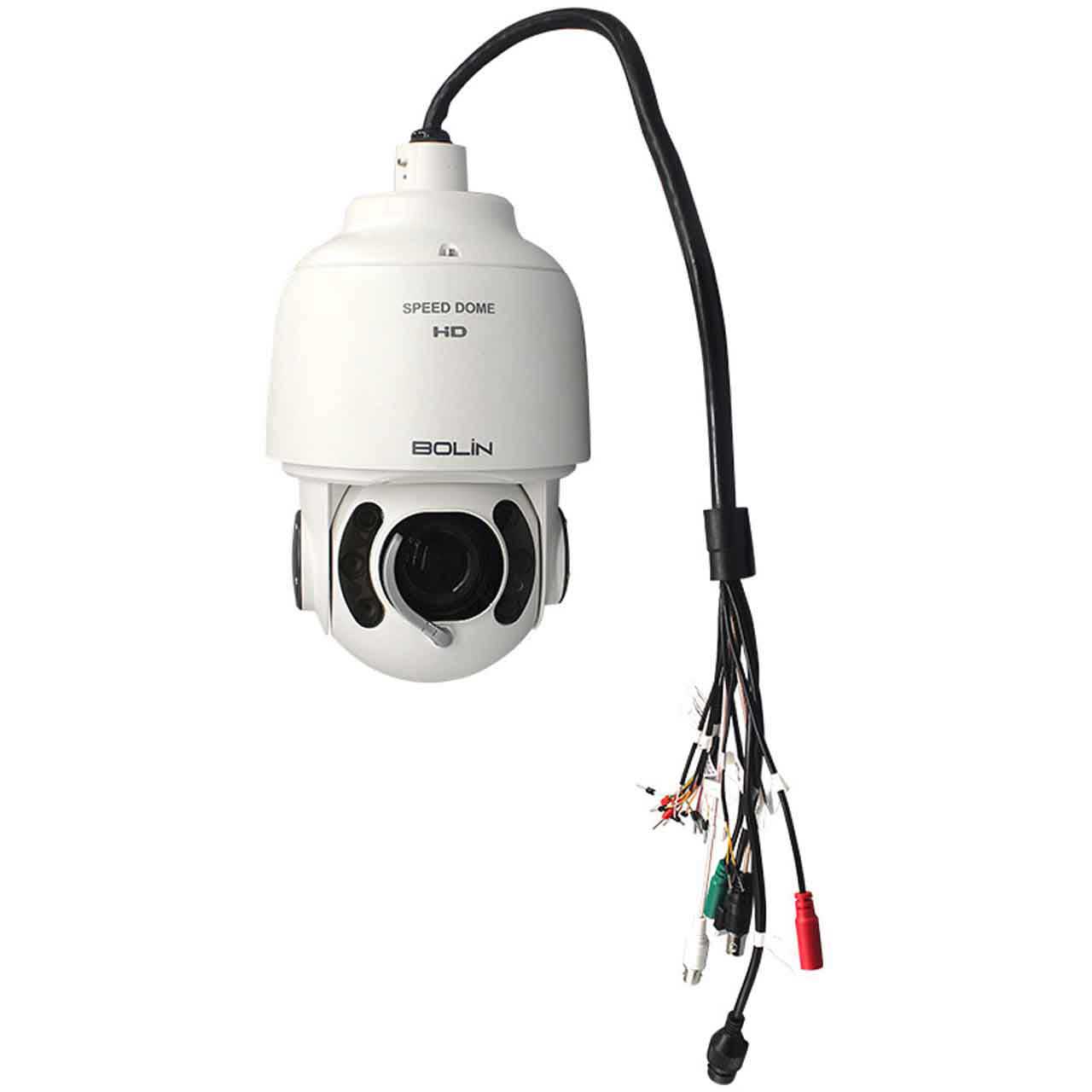

Bolin Technology SD522B4K-RNAPW 4K 22X Indoor/Outdoor Speed Dome IP PTZ Camera

SD522B4K-RNAPW - Overview

• Features:

  • Ultra High Definition - UHD 4K IP Image
  • Rugged Design - Survive From Extreme Weather Condition
  • Movement – Just Responds, Moves and Accurate
  • IP Streaming
  • Powerful 22x Optical Zoom Ideal for Outdoor and Indoor Use
  • IR Illumination
  • Quiet and Precise Movement
  • Picture profile Preset
  • ZDP - Zero Deviation Positioning
  • 360 Degree with Greater Upper View
  • Always up to date


• Specifications:

  • Camera 22x 4K
  • Image Sensor: 1/1.7 inch CMOS 8MP
  • Lens: 22X, 6.5~143mm, 16X Digital Zoom
  • Horizontal Angle of View: 59.6°(W)~3.9°(T)
  • Aperture: F1.5(W)~F3.4(T)
  • Min. Illumination: 0.025 lux(F1.5, AGC ON, Color), 0.0025 lux(F1.5, AGC ON, B/W)
  • Shutter Speed: 1/6~1/8000s
  • Focus: Auto, Push
  • White Balance: Auto, Manual
  • Exposure: Auto, Manual, Shutter/Iris Priority
  • Day/Night: YES
  • Backlight Compensation: YES
  • WDR: Yes(120dB)
  • Privacy Zone Masking: YES
  • Defog: YES
  • Motion Detection: YES
  • Noise Reduction: 2D/3D
  • S/N Ratio: ≥50db

    Mechanical
  • Pan Movement: Horizontal: ±360° continuous pan (Zoom Adaptive Speed Range: 0.1°~ 80°/s )
  • Tilt Movement: Vertical:+90° to -15° (Zoom Adaptive Speed Range: 0.1° ~ 90°/s)
  • Preset Position: 255( Preset Speed: 150°/S)
  • Home Position: YES
  • Cruise: Support up to 4 different path movements
  • Accuracy: ZDP - Zero Deviation Positioning technology for high accuracy.
  • Environmental: Outdoor, IP67, Corrosion Resistant Treated Housing,
  • Illumination: IR. The adaptive IR can be synchronized with different zoom angle. Illumination distance is up to 80 Meters.

    Network
  • Video Compression: MJPEG,H.264/H.265
  • IP Resolution/Frame Rate: 12MP(4000X3000)20; 8MP(3840X2160)30/25; 6MP(3072X2048)30/25; 5MP(3072X1728)30/25; 2560*2048p:30/25; 2560*1920P30/25; 3MP(2048X1536)30/25; 2MP(1920X1080)30/25
  • Protocols: L2TP,IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP,PPPoE,RTP,RTSP,QoS,DNS,DDNS,NTP,FTP,UPnP,HTTP,SNMP,SIP, IP Auto Adaptations, Effective monitoring even under data loss environment
  • Multi-stream: 3 data stream function will satisfy various bandwidth, frame rates and storage requirements in real time
  • Audio Compression: AAC-LC Broadband Audio Encoding(Duplex Communicate Supported, Audio/Video synchronization)
  • OSD: Customized OSD
  • Compatible Integration: ONVIF2.4 (Profile S)

    Interface
  • Network: 10M/100M Base-TX Ethernet, RJ45
  • Control Interface: IP
  • Control Protocol: IP Onvif
  • Audio I/O: Input: Impedance 35kΩ, Amplitude 2V [p-p]; Output: Impedance 600kΩ, Amplitude 2V [p-p]
  • Alarm I/O: Alarm Input X1, Alarm Output 1X1
  • FW Upgrade: Via IP

    General
  • Operating Temperature: -40° to 140°F (-40° to 60°C)
  • Power Input: AC 24V, DC±24V, PoE++(IEEE802.3bt), (Bolin PoE 97W High Power POE Injector recommended, Optional)
  • Operating Humidity: 100% Suitable for Use
  • Power Consumption: Min: 20W(Static state with no movement); Max: 45W(Fully loaded operation with heater and IR LED on)
  • Dimension: Φ8.26 x 13.11" (Φ210 x 333mm)
  • Weight: 12.78Lbs (5.8kg)
  • Rain Wiper: Included


• GTIN:

  6973775120102
