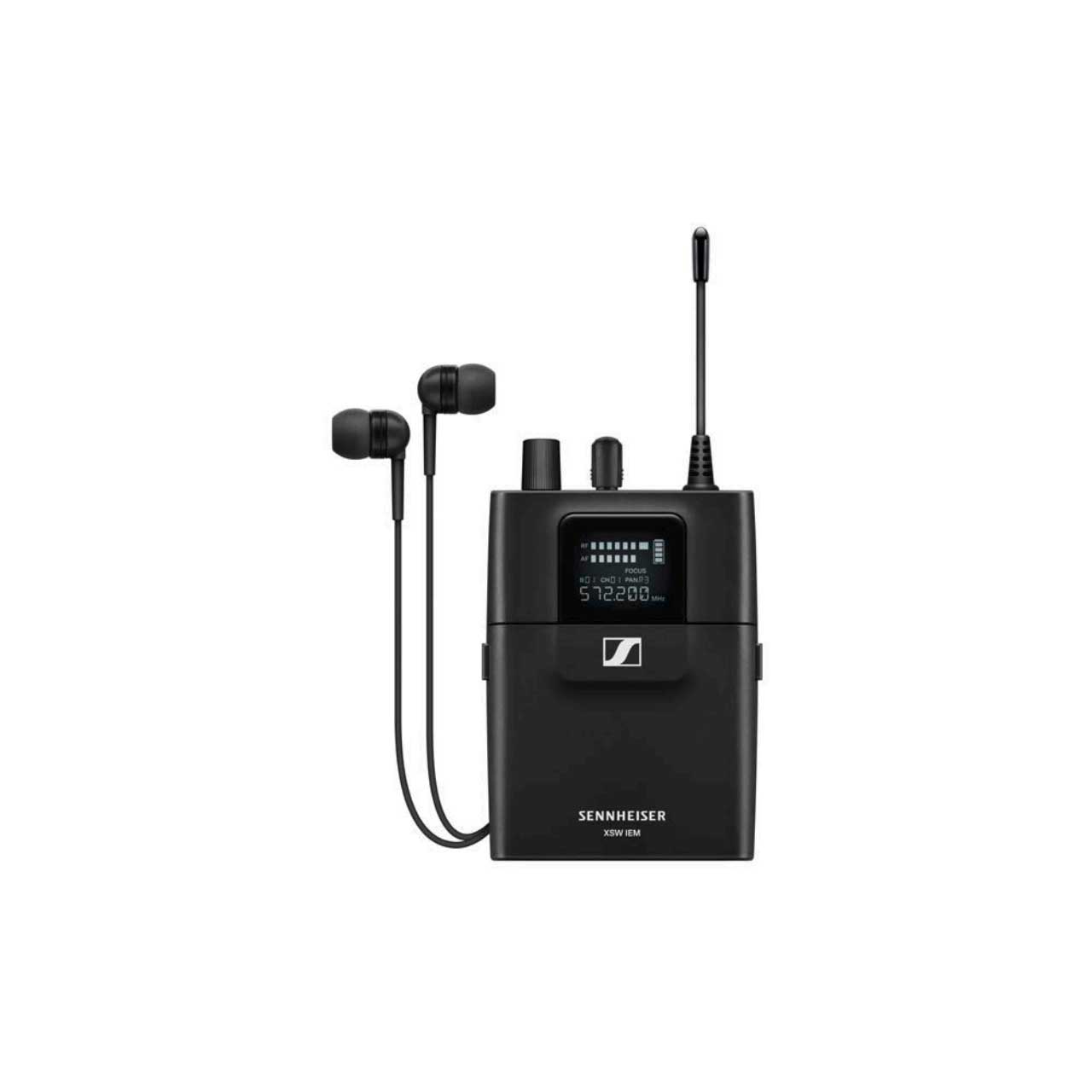

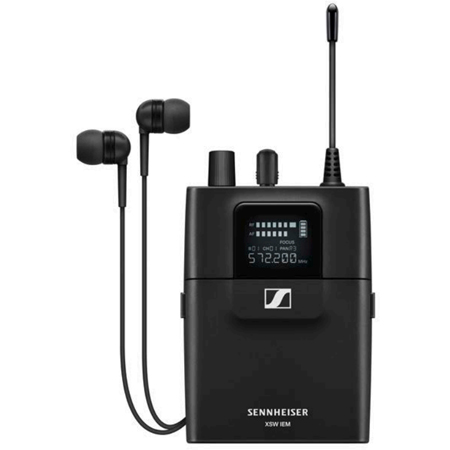

Sennheiser Lightweight In-Ear Monitoring Bodypack Receiver XS Wireless IEM Setups Freq Range A 476 - 500MHz

XSW IEM EK (A) - Overview

• Features:

  • UHF bodypack receiver to expand existing XS Wireless IEM setups
  • Lightweight bodypack with rear clamp and stage-proof control panel
  • Standard 3.5 mm jack plug for supplied IE 4 headphones or optional in-ear sets
  • Backlit front panel and status LED for battery and link status
  • Menu access to receiver sound settings like focus modes, volume control, limiter, and EQ
  • Pan control for individual balance of the input channels

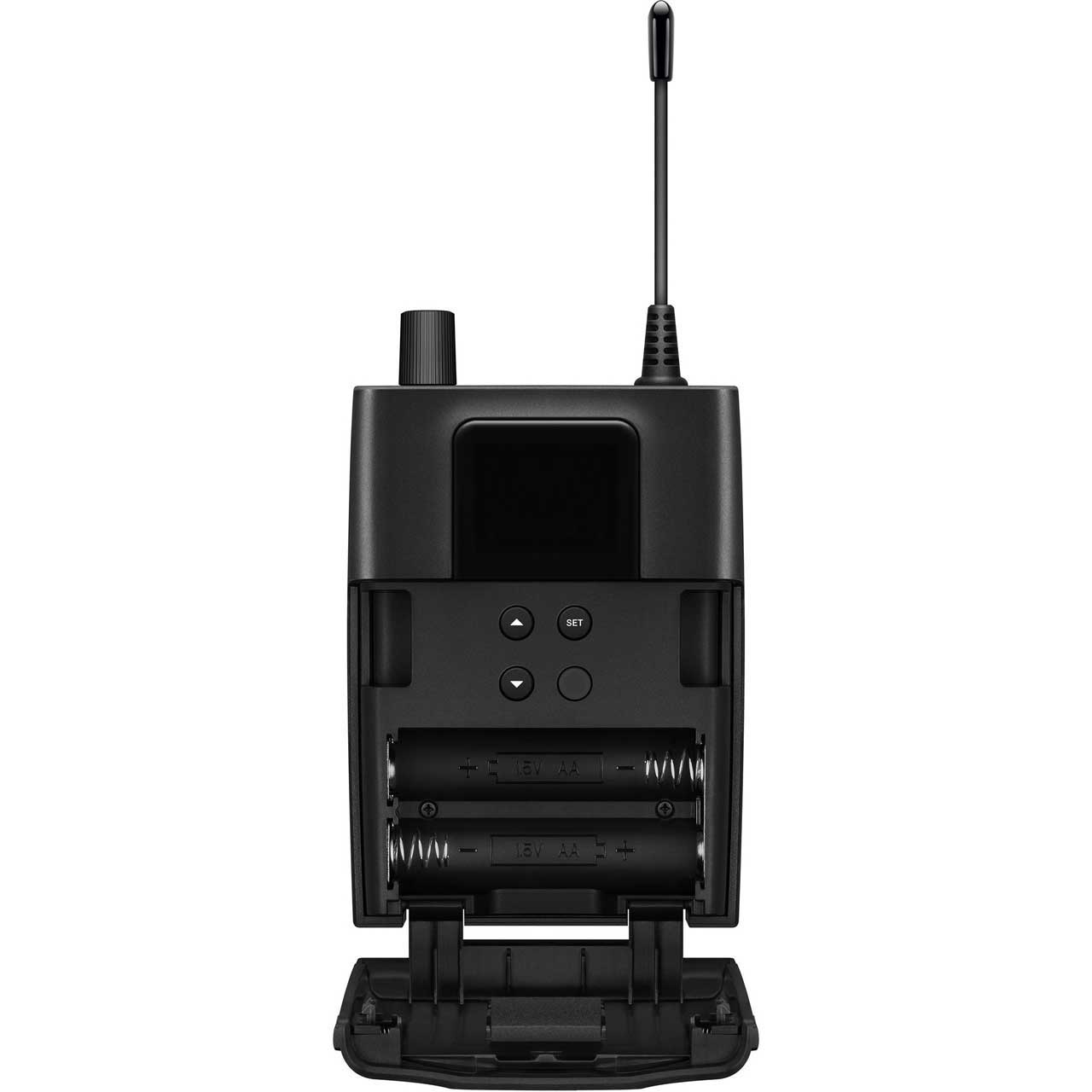

  • Operates with 2x AA primary cells or rechargeable batteries


• Specifications:

  • RF characteristics
  • Modulation Wideband: FM
  • Frequency Ranges A: 476 - 500 MHz
  • Switching Bandwidth: up to 24 MHz
  • Nominal/Peak Deviation: ±15 kHz / ±24 kHz
  • Squelch: 10 µV, fixed

    AF characteristics
  • Signal-to-Noise Ratio (1 mV, peak deviation): ≥88dB
  • Total Harmonic Distortion (THD): ≤1%
  • AF Output Level at 3.5mm: 2 x 1.25V at 16Ω
  • High Boost (EQ): +10dB at 13 kHz
  • Limiter: -10dB
  • AF Frequency response: 45 Hz to 15 kHz
  • Cross talk (50 Hz - 10 kHz): typically 45dB

    Overall device
  • Temperature Range: 32° to 104°F (0° to 40°C)
  • Power Supply: 2 AA batteries, 1.5 V
  • Nominal Voltage: 3 V battery
  • Operating Time: Approx. 6 hrs (depending on volume level)
  • Dimensions: Approx. 3.74 x 2.75 x 1.02" (95 x 70 x 26mm)
  • Weight (with Batteries): Approx. 0.24Lbs (110g)

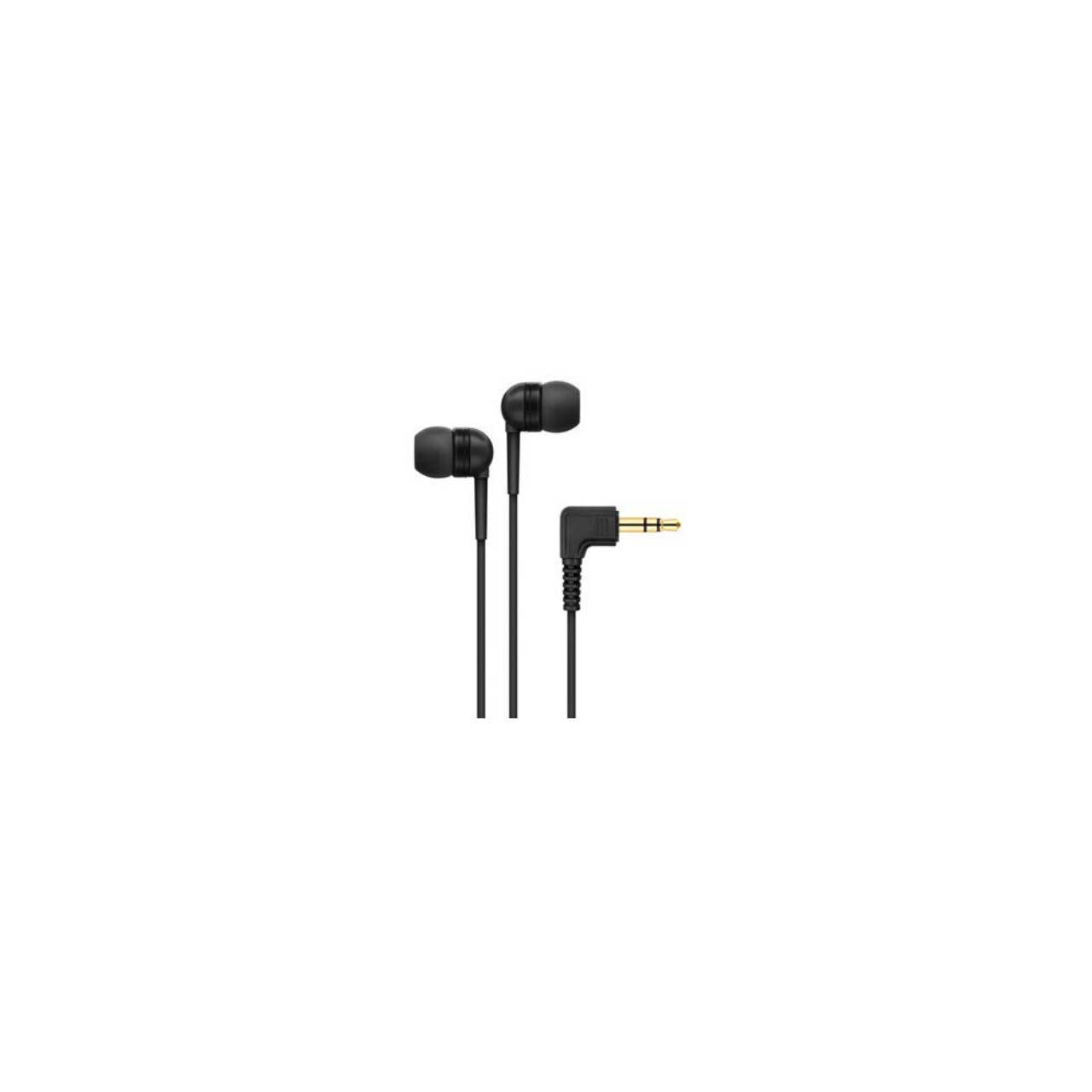

    IE 4 - In-ear headphones
  • Transducer: dynamic
  • Frequency Response: 40-20.000 Hz
  • SPL (1 kHz, 1 mW): 106 dB
  • Nominal Impedance: 6Ω
  • Cable Length: 1.4m
  • Connector: 3.5mm (1/8") stereo plug, gold-plated
  • Temperature Range: 23° to 122°F (-5° to +50°C)


• Item Includes:

  • 1x XSW IEM EK Stereo Receiver
  • 1x IE 4 In-ear headphones
  • 1x 2 AA batteries
  • 1x Quick Guide
  • 1x Safety Guide
  • 1x Compliance Sheet
  • 1x Frequency Table


• GTIN:

  0615104356337
