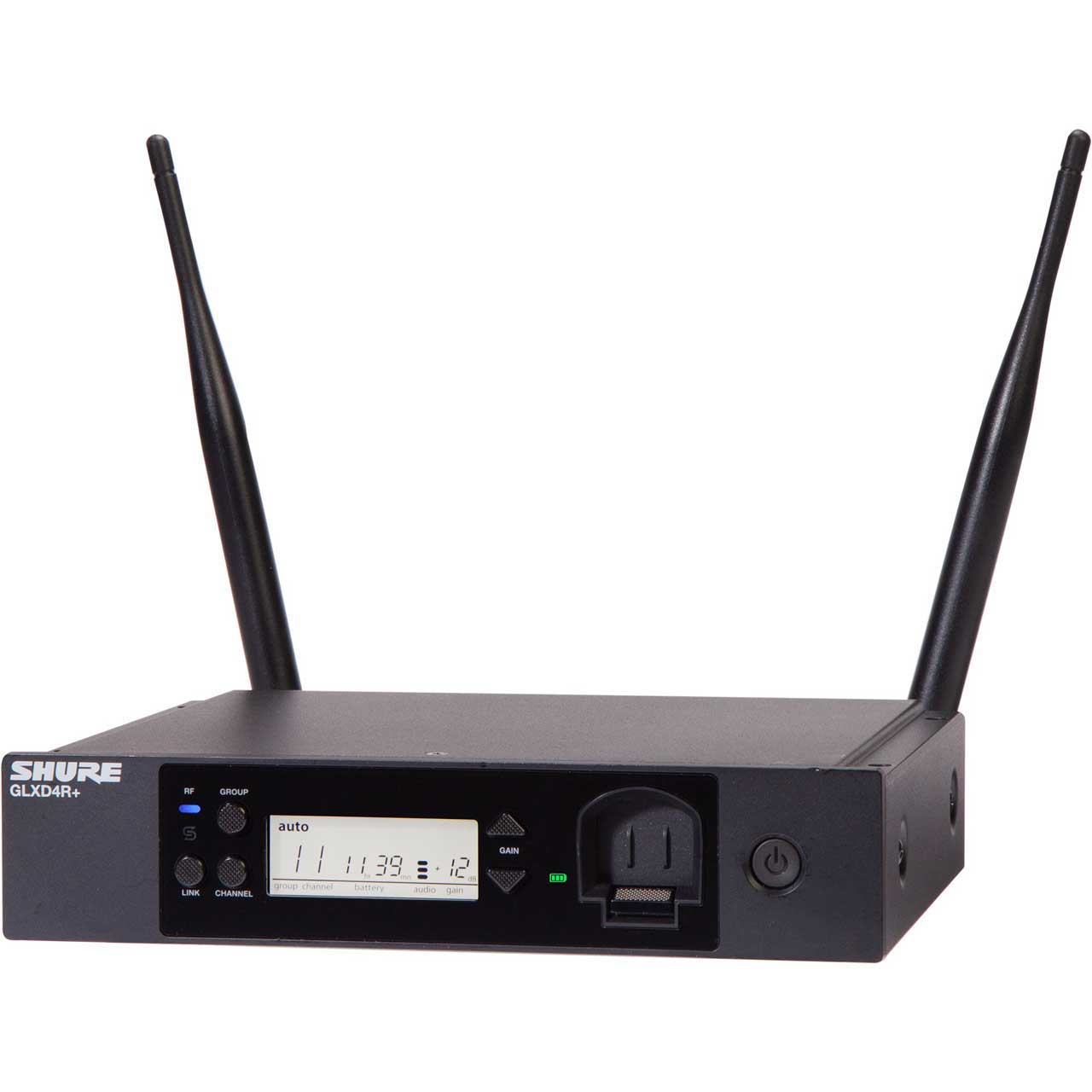

Shure GLXD4R+ Dual-Band Wireless Rack Receiver - Includes LiIon Battery Z3 2.4 & 5.8GHz

ITEM #: SH-GLXD4RPZ3 MFG #: GLXD4R+=-Z3

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$449.00

Our Price:

$359.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


GLXD4R+=-Z3 - Overview

The Shure GLXD4R+ Dual Band Rack Receiver delivers exceptional digital audio clarity. In combination with the GLXD+ Dual Band Frequency Manager provides advanced RF performance.

READY-TO-GO. EVERY TIME. AUTOMATICALLY.
GLX-D+ Dual Band Digital Wireless is the perfect solution for musicians and presenters who want to go wireless with confidence, and without complexity. Every aspect of its operation is managed automatically and with total reliability, allowing you to focus on your performance. with new Dual Band Wireless Technology, GLX-D+ can operate in both 2.4 and 5.8GHz, more than doubling the available bandwidth while also intelligently avoiding interference for reliable, dropout-free audio. Featuring smart rechargeability with up to 12 hours of runtime (improved from prior generation GLX-D), the included lithium-ion battery can be charged multiple ways and offers quick charge capabilities.

Available with multiple legendary microphone options (including the SM58®) in tabletop, half-rack and guitar pedal system configurations. When combined with Frequency Manager and directional antenna accessories (both sold separately), the rack-mount receiver systems are ideal for small and medium installations where a larger number of channels is needed.

Applications
Vocalists
Guitarists
PresentersPlease note: This product contains Lithium Ion Batteries. Due to FAA regulation this item is restricted to ground transportation in the lower 48 contiguous states and cannot ship to Alaska, Hawaii or Puerto Rico.

  • Features:

    • Dual Band Wireless Technology provides reliable operation in 2.4GHz and 5.8GHz.
    • Automatic Frequency Management continuously monitors the spectrum and seamlessly moves to a clean channel in case any interference appears.
    • Smart Rechargeability. with up to 12 hours of runtime, lithium-ion rechargeable battery shows remaining time in hours and minutes.
    • Multiple Receiver Options including Guitar Pedal, Tabletop and Half-rack.

  • Specifications:

    • GLXD4R+ Dual Band Rack Receiver
    • Dimensions (Without Antenna): 7.7 x 6.4 x 1.6" (196.8 x 162.97 x 41.8mm)
    • Weight: 30.5 oz (866 g) without batteries
    • Housing: Steel
    • Power Requirements: 14.5 V - 17 V, 600mA
    • Spurious Rejection: >35 dB, typical
    • Gain Adjustment Range: ?18 to 42 dB in 1 dB steps
    • Phantom Power Protection: Yes

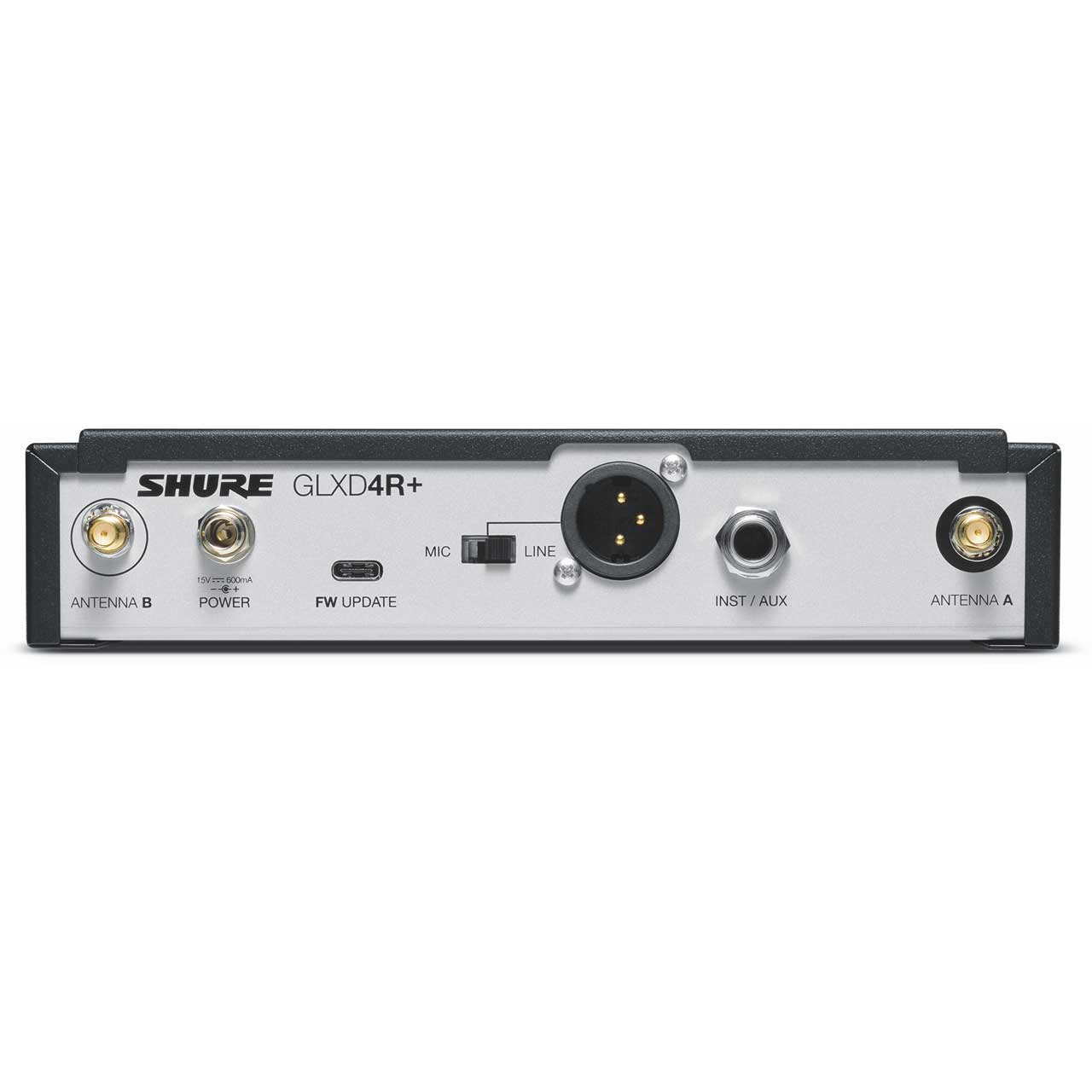

    • Audio Output
      Configuration: XLR Output Balanced | 6.35mm (1/4") output Impedance balanced
      Impedance: XLR Output 100Ω | 6.35mm (1/4") output 100Ω (50Ω, Unbalanced)
      Full-Scale Output: XLR LINE setting= +18 dBV, MIC setting= ?12 dBV | 6.35mm (1/4") +12 dBV
      Pin Assignments: XLR Output 1=ground, 2=hot, 3=cold | 6.35mm (1/4") connector Tip=audio, Ring=no audio, Sleeve=ground
      Mic/Line Switch: 30 dB Pad
    • Receiver Antenna Input
      Impedance: 50Ω
      Antenna Type: Dual Band 1/2 WaveSleeve Dipole
      Maximum Input Level: ?20 dBm

  • Item Includes:

    • 1x GLXD4R+ Rack Receiver
    • 1x Power Supply
    • 2x 22-In RSMA Cable
    • 2x Antennas
    • 1x Hardware Kit
    • 2x Bulkhead Adapter

  • Warranty:

    • 2 Year

  • GTIN:

    0042406696289
