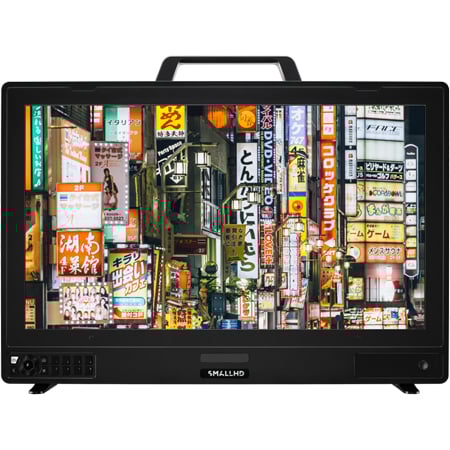

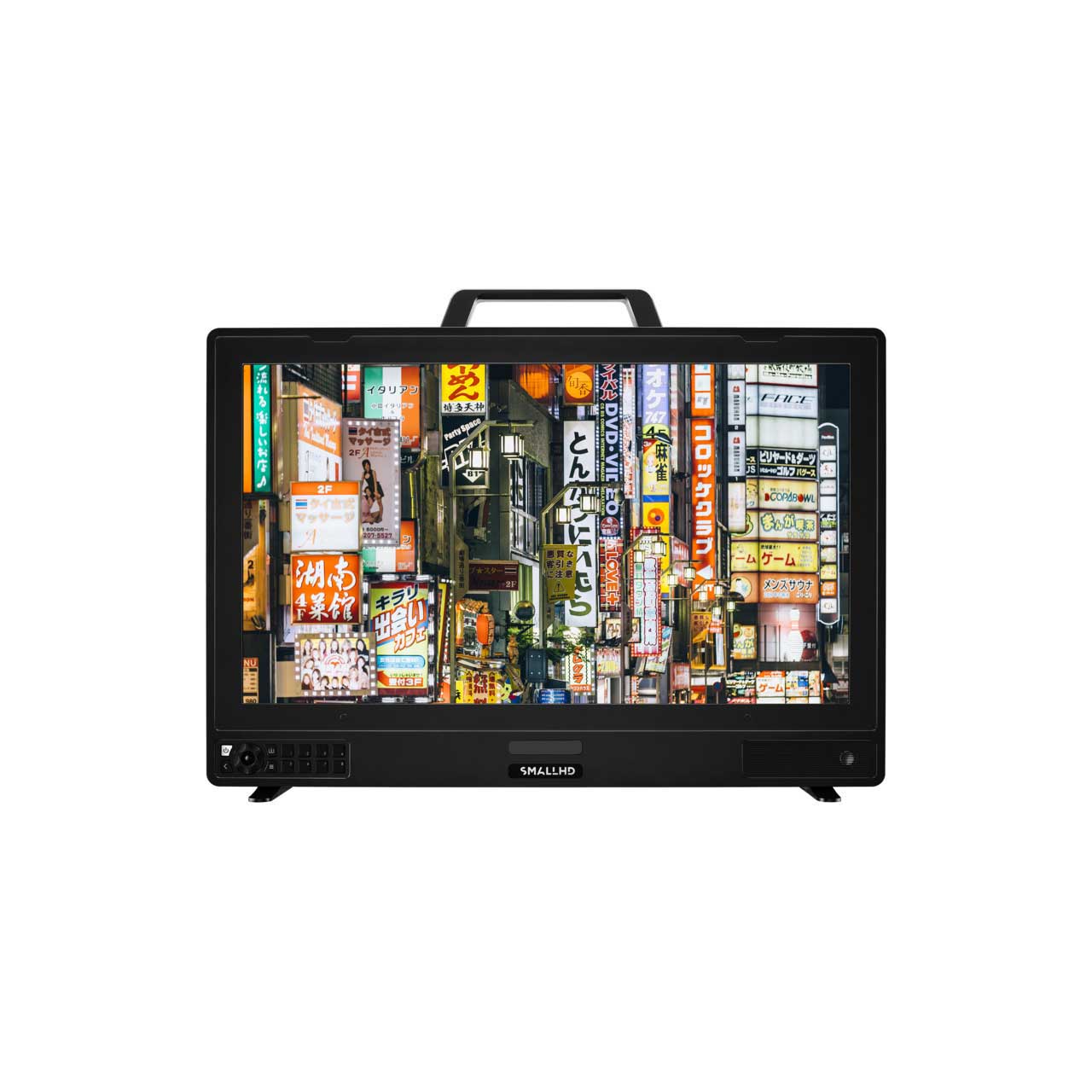

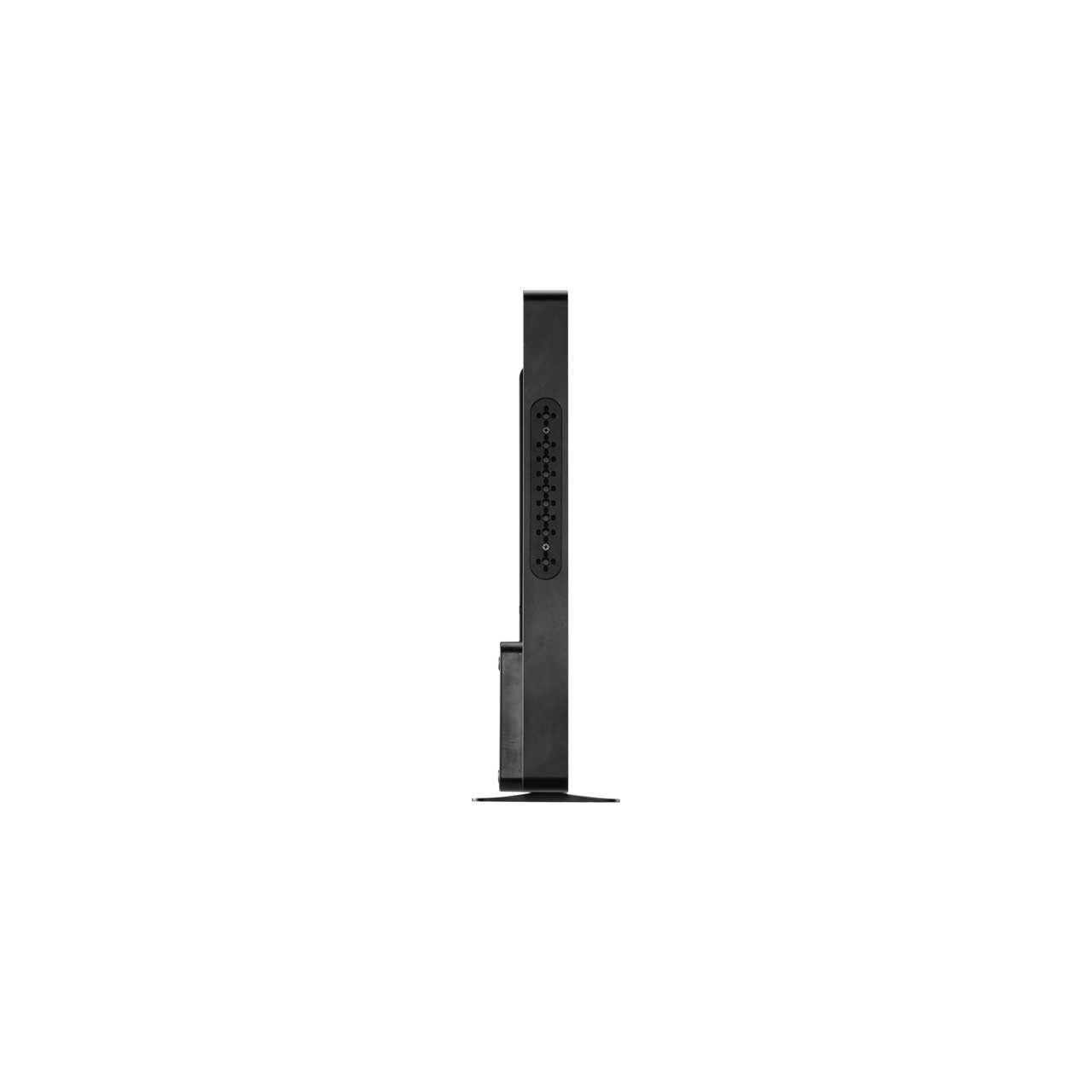

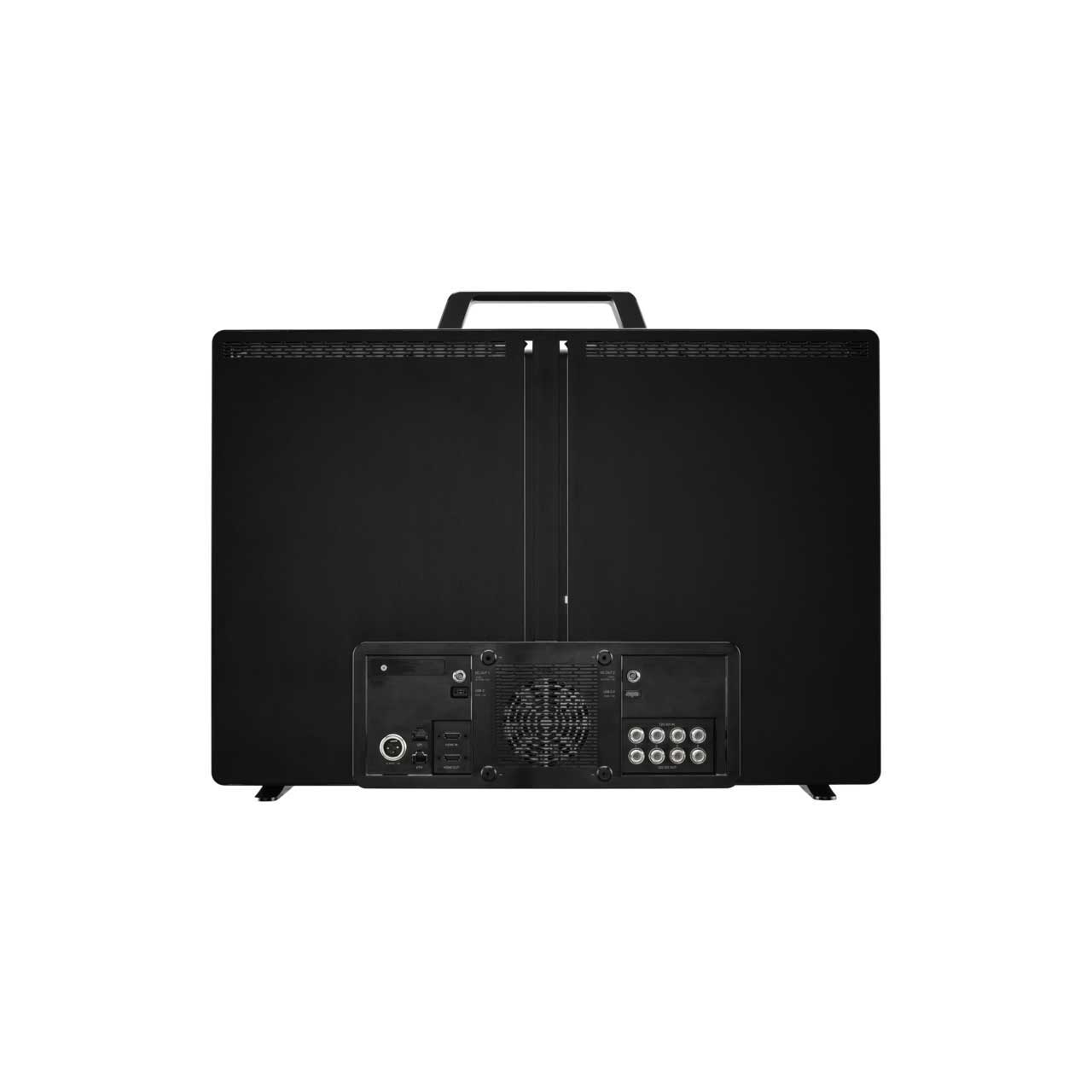

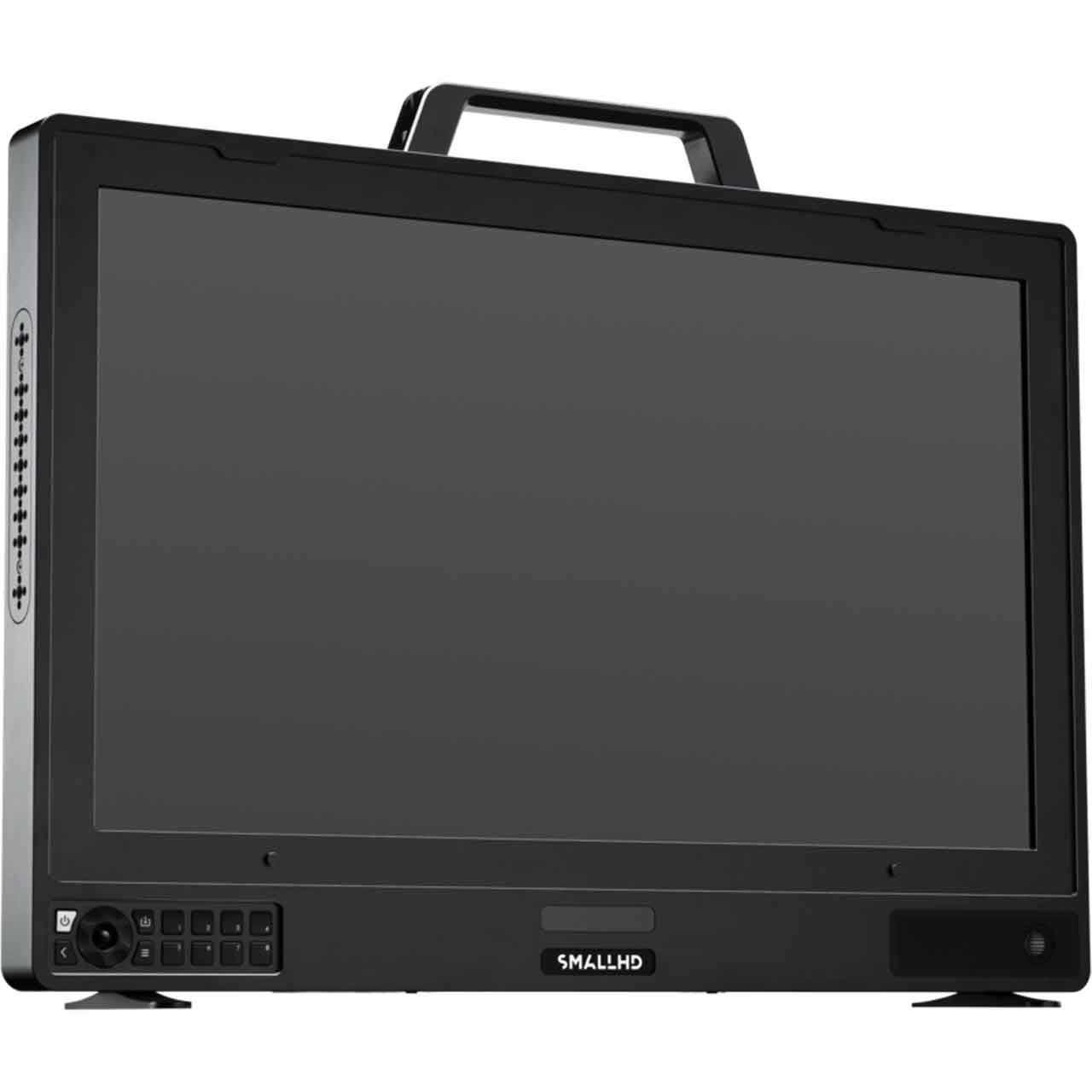

SmallHD MON-CINE 24 Inch 12G-SDI/HDMI 4K High-Bright Monitor

ITEM #: SMHD-MON-CINE-24 MFG #: MON-CINE-24

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
SmallHD
Free Shipping with $49 Minimum Order

Our Price:

$6,999.00

After Savings:

$5,999.00

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
SmallHD Black Friday Instant Savings!Enjoy big savings on SmallHD items this holiday season! Get yours while supplies last!
Report Lower PriceLarge Quantity Quote

MON-CINE-24 - Overview

The SmallHD Cine 24 brings 4K monitoring everywhere. 1350nits of sustained brightness enables clear viewing in bright daylight environments, which eliminates the need for a sun hood or viewing tent. Small4K Video Processing Architecture offers a total 4K Input / Output workflow with 4x 12G-SDI hardware and PageOS 4 Quad-View for multiple 4K-input viewing. Lightweight for faster setup & teardown, this monitor is the all-around solution as a director's monitor or for production & broadcast video villages. Cine 24 is SmallHD's ultimate production workhorse.

  • Features:

    • 23.8in/60cm IPS LCD
    • 1350nits
    • 3840x2160 Resolution
    • 100% DCI-P3 Color
    • Weight: 16.5lbs / 7.5kg (with handle & feet)


  • Specifications:

    • Display:
    • Panel Type: IPS LCD
    • Diagonal Size: 24.1
    • Resolution: 3840x2160
    • Brightness: 1350nits
    • Contrast: 1000:1
    • Gamut: 100% DCI-P3
    • Color Depth: 10-bit (8+2)
    • Viewing Angle: 178 Degrees
    • Backlight Type: Edgelit
    • Display Size: 24"
    • Panel Resolution: 3840 x 2160
    • Brightness: 1350nits
    • Color Bit Depth: 10-bit (8+2)
    • Backlight Type: Edge-lit
    • DCI-P3 Color: 100% DCI-P3

      Input Signal:
    • 12G-SDI Input Types: 4x 12G-SDI
    • HDMI Input Types: 1x HDMI 2.0 (4K60)

      Output Signal:
    • 12G-SDI Output Types: 4x 12G-SDI
    • HDMI Output Types: Coming Soon
    • Audio Output Types: 1x 3.5mm 3-pin Stereo Headphone Jack

      Data I/O:
    • Connector Type: 1x SD Card Slot, 1x RJ45 Ethernet, 1x RJ45 GPI

      Power:
    • Input: 1x 3-pin XLR (210W max, 12V-34V, 18A max)
    • Output: 2x 2pin (12V / 2A combined) 1x USB (2.4A) (Front) 1x USB (1.5A) (Front) 1x USB-C (5V / 1.5A)
    • Consumption: 128w (monitor only) 209w (w/max access. power draw)
    • Battery Plate Included: No
    • Battery Types: 1x Dual-GM/VM Batt.Plate (14/26V) (sold as accessory)


  • Item Includes:

    • 1x Basic Acrylic Screen Protector
    • 1x 3ft 4K HDMI Cable
    • 1x 2x 1/4-20 Cheese Stick Mounting Accessory
    • 1x 2x Combo Cheese Stick (1/4-20 + 3/8")
    • 1x Monitor Feet
    • 1x Monitor Handle
    • 1x 3-pin XLR Power Supply
    • 1x 8GB SD Card
    • 1x Microfiber Cleaning Cloth


  • GTIN:

    0811786032174
