Patton SN200/2JS2V/EUI - 2 FXS to SIP Miniature VoIP Gateway

ITEM #: SN200-2JS2V-EUI MFG #: SN200/2JS2V/EUI

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$291.65

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


SN200/2JS2V/EUI - Overview

Connect with confidence using the SmartNode SN200/2JS2V/EUI Series, legacy telephony equipment to nowadays common SIP trunk and hosted services. The SN200 Series support a variety of telephony interfaces, from 1 to 4 simultaneous calls. Depending on the model, there are FXS and FXO ports available for survivability or number portability during the All-IP migration phase.

Designed for professional network deployments, the SN200 provides Telco Operators and Enterprise users a cost-effective solution integrating legacy phones, fax and metering machines in to an All-IP Network.

Orchestrated by the Patton Cloud, the Capex associated with deployment, operation and management of the SN200 is the lowest in the market. Secure Zero touch, mass provisioning is standard and included in every SN200 model.

Applications

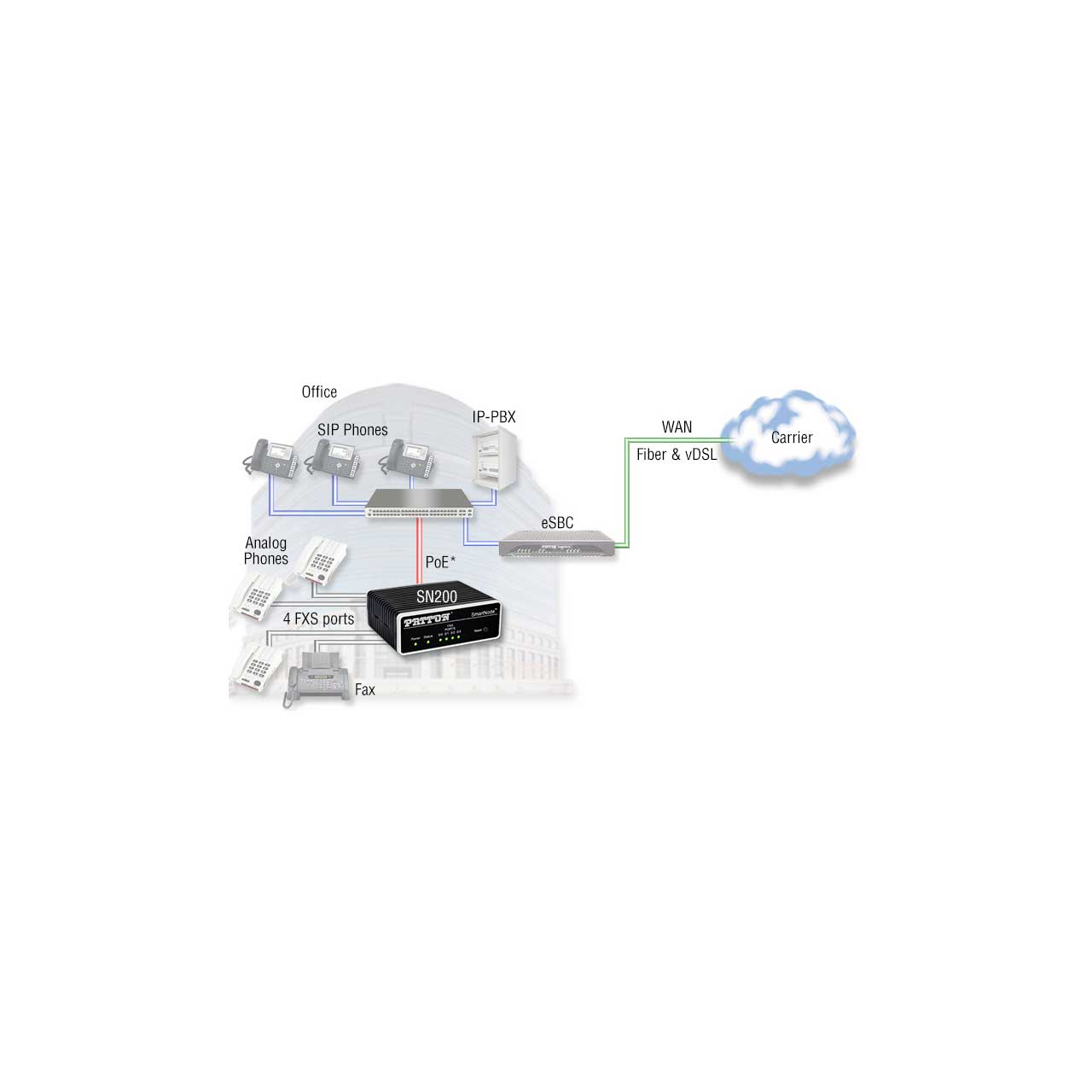

Whether used as an ATA, connecting legacy telephones to an IP PBX or as a VoIP Gateway integrating legacy fax machines into a hosted UC environment, the SN200 adapts to every use-case.

Thanks to the Power over Ethernet option*, there is no need for a power plug at the remote location.

Operated, managed, and administrated through the Patton Cloud proactive notification in case of a customer network problem, helps to reduce service downtimes and increase customer satisfaction.

  • Features:

    • Up to 4 Analog Interfaces (FXS/FXO)
    • Advanced Calling Features
    • Full VoIP protocol support
    • Lowest OPEX
    • Survivability & Local Breakout
    • Easy Management & Provisioning
    • Small Form Factor & PoE Powered
    • Outstanding Interoperability

  • Specifications:

    • Call Capacity: Up to 4 simultaneous G.722 or G.711 or T.38 fax calls
    • Voice Signaling
    • SIPv2 & SIPv2 over TCP
    • SIPv2 TLS**
    • SIPv2 over IPv6
    • SIP call transfer, redirect
    • Overlap or en-bloc dialing
    • DTMF in-band, out-of-band
    • Configurable tones Call Routing & Services
    • Regular expression number matching
    • Regular expression number manipulation
    • Least Cost Routing
    • Number blocking
    • Short-Dialing
    • Digit collection
    • Distribution-Groups and Hunt-Groups

      FXS Connectivity
    • FXS ports, RJ-11/12
    • 2-wire Loopstar
    • Programmable AC impedance, feeding, ring and onhook voltage
    • Caller-ID FSK and ITU V.23/Bell 202 generation
    • 5 REN load on FXS port

      FXO Connectivity
    • 2-wire Loopstart RJ11/12
    • Programmable impedance
    • Ring detection, tone detection
    • Caller ID detection (FXS, DTMF)
    • Disconnect supervision

      Voice Processing
    • G.722, G.711m/A-law
    • 729ab (8 kbps)
    • G.726 (16, 24, 32 Kbps)
    • G.168-2004 echo cancellation (64 ms)
    • Up to 4 simultaneous low bandwidth, high definition voice or T.38 fax calls
    • Silence suppression and comfort noise
    • Adaptive and configurable dejitter buffer
    • Configurable RTP packet length
    • Quality of Service: IEEE 802.1p, IEEE 802.1Q, 4096 VLANs (tag insertion/deletion), TOS, DiffServ labeling

      Connectivity
    • One 10/100 Base-T Ethernet port (depending on Model - optional PoE powered IEEE 802.3af Class 2)
    • Auto-MDIX
    • DHCP Client (IPv4 & IPv6)
    • PPPoE Client (multi-session)
    • IP Multi-Netting, VLAN, Secondary IP
    • IPv4 & IPv6 Dual Stack
    • ICMP
    • Dynamic and static NAT and NAPT
    • Access Control List (ACL)
    • DNS, DynDNS
    • DHCP Server
    • SNTP Client

      Management
    • Patton Cloud managed
    • Web/HTTPS, CLI with Telnet and SSH access
    • Web Wizard
    • Fully Documented CLI
    • Telnet and HTTPs access
    • TR-069***, TFTP, HTTP, HTTPS configuration/firmware up- and download
    • SNMPv3 agent
    • Separate config domain (LAN side config and WAN side config)
    • MIB II and private MIB
    • Built-in diagnostic tools
    • Secure Auto-Provisioning with built in root CA

      Dimensions & Weight
    • 1 Port:
      Weight: 2.4 oz (68g)
      Dimensions (HxWxD): 3.8 x 1.65 x 0.75" (9.7 x 4.2 x 1.9cm)
    • 2&4 Port:
      Weight: 3.2oz (90g)
      Dimensions (HxWxD): 1.5 x 4.13 x 3.75" (3.81 x 10.5 x 9.53cm)

      Power
    • 1 port: 110–230 VAC (50/60 Hz) - 3 Watts
    • 2&4 port: 110–230VAC (50/60 Hz) - 7 Watts or PoE: IEEE 802.3af Class 2

      Environment
    • Operating Temperature: 32° to 104°F (0° to 40°C)
    • Operating Humidity: up to 90% (non-condensing)
    • Industrial SmartNode - see SN4141

  • GTIN:

    0847840013698
