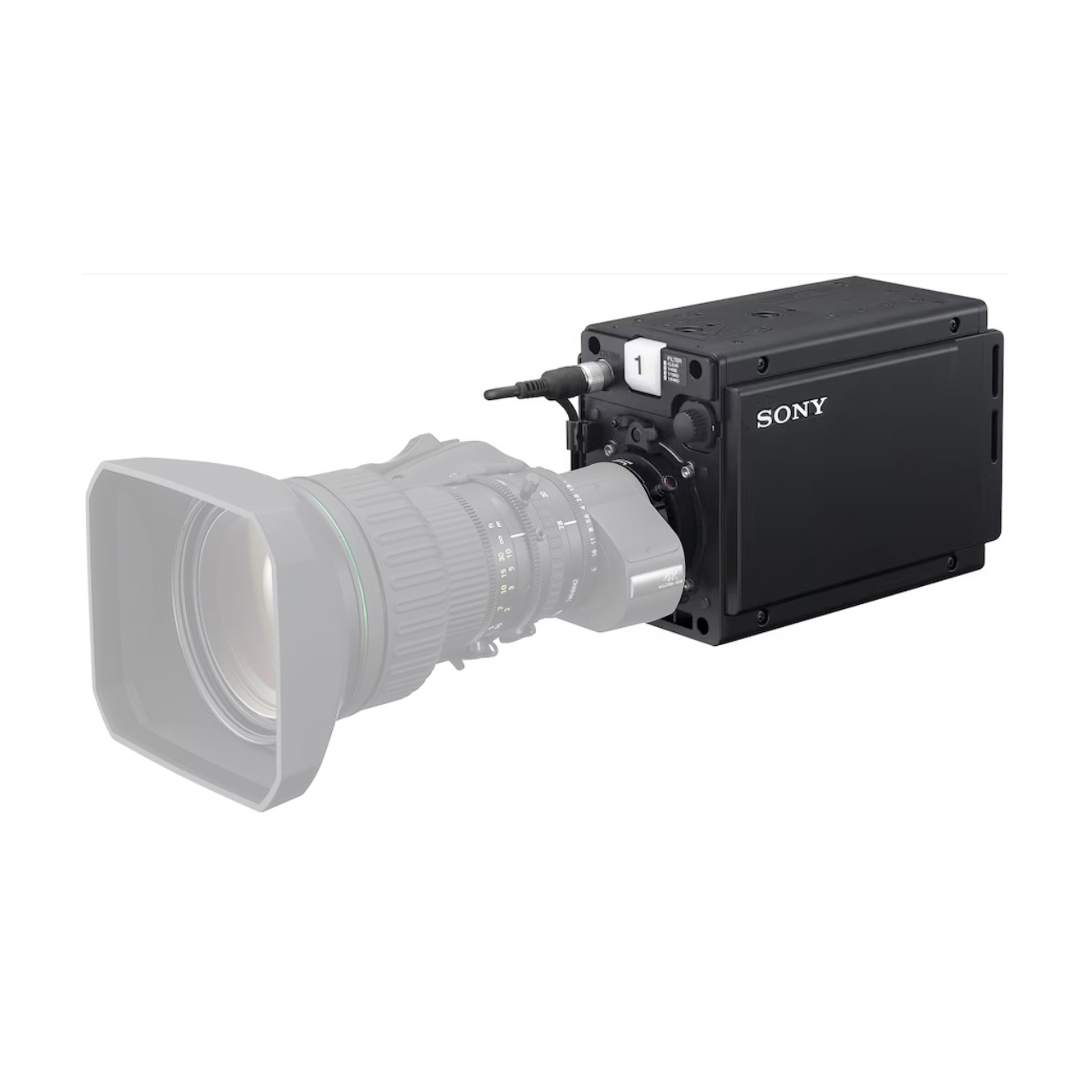

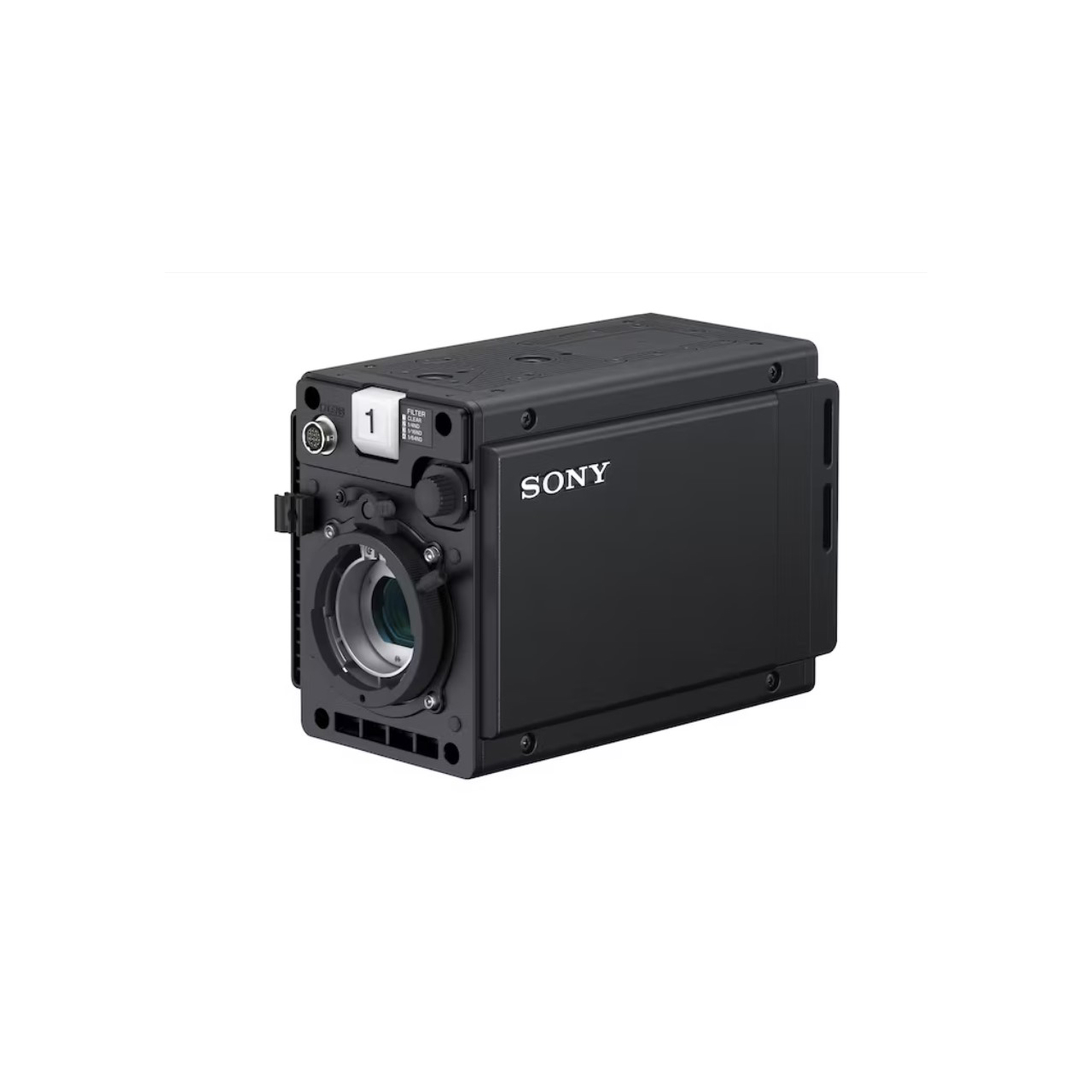

Sony HDC-P31 Compact 2/3 Inch CMOS HDR/SDR POV System Camera - 3G-SDI/HD-SDI

ITEM #: SNY-HDCP31 MFG #: HDCP31

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

This item is custom made. Ordering this product requires written authorization. Please contact a sales engineer at 1-800-522-2025 for details.

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


HDCP31 - Overview

The flexible and lightweight Sony HDC-P31 is ideal for studio, faith, and rental applications, and sports production. The HDC-P31 can be mounted in hard-to-access locations or used on a crane, rail, or robotics system. It incorporates a global shutter three 2/3-inch CMOS sensor system for enhanced optical performance that provides high sensitivity and low noise. In addition, the camera is designed to be used as an integral part of our HDC series ecosystem creating the same stunning images, while ensuring the consistent workflow with employing a POV form factor.

Enhanced Remote Features
Remote access via WEB UI enables menu setting, status monitoring, log files, and firmware updates of the camera, when installed in hard-to-access sites. The back focus of the supported lens can be adjusted remotely from the Sony master setup unit (MSU) or remote control panel (RCP) and IP tally supports flexible and longer connection via network cable. These features help to achieve more efficient workflow.

New Standard for Premium HD
Utilizing our state-of-the-art imaging technology, HDC-P31 delivers superb HD images with exceptional high sensitivity of F12/F13 and impressive low noise of 62 dB. Adopting same CMOS technologies, the camera can ensure consistent picture quality, system, and workflow with our HDC series of system cameras. With its compact and lightweight design, the HDC-P31 further expands the applications such as in studio, events, faith, as well as hard-to-access shootings on crane, rail, or dolly.

Ready for HDR Workflows
HDC-P31 supports HDR by S-Log3/HLG and our SR Live workflow, allowing simultaneous production in HDR and SDR. The camera also supports SR Live metadata, which is embedded in the SDI signal feed to maintain the quality of both HDR and SDR signals. The HDC-P31 is designed to meet the increasing demands of HDR production, across the globe.

  • Features:

    • Highly Sensitive Three 2/3-inch Global Shutter CMOSs
    • ARIA: Automatic Restoration of Illumination Attenuation
    • Quick Setting from Web UI
    • RBF: Remote Back Focus
    • HDR/SDR Simultaneous Production (SR Live)
    • SR Live Metadata
    • Easy Operation via Software Master Control: HZC-CSM10
    • HD 4x Slow Motion

  • Specifications:

    • General
    • Power Requirements: DC 10.5 V to 17 V
    • Operating Temperature: -4°F to 113°F (-20°C to 45°C)
    • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
    • Weight: 5.06lbs (2.3kg)

      Camera Section
    • Imager: Three-chip 2/3-inch type HD CMOS with global shutter
    • Effective Resolution (H x V): HD: 1920 x 1080
    • Signal Format: 1080/50i, 1080/59.94i, 720/50p, 720/59.94p (1080/23.98PsF, 1080/24PsF, 1080/25PsF, 1080/29.97PsF, 50/59.94p: option)
    • Spectrum System: F1.4 Prism
    • Lens Mount: Sony Bayonet Mount
    • Built-in Filters: ND: 1: CLEAR, 2: 1/4ND, 3: 1/16ND, 4: 1/64ND ECC: B:3200K, C:4300K, D:6300K
    • Sensitivity (at 2000 lx, 3200K, 89.9% reflectance): F12 (at 1080/59.94i, 1080/59.94p), F13 (at 1080/50i, 1080/50p)
    • Noise Level: 62 dB
    • Horizontal Resolution: 1,000 TV Lines (at center)
    • Shutter Speed: 1/100, 1/125, 1/250, 1/500, 1/1000, 1/2000 sec (1080/59.94i) 1/60, 1/125, 1/250, 1/500, 1/1000, 1/2000 sec (1080/50i)

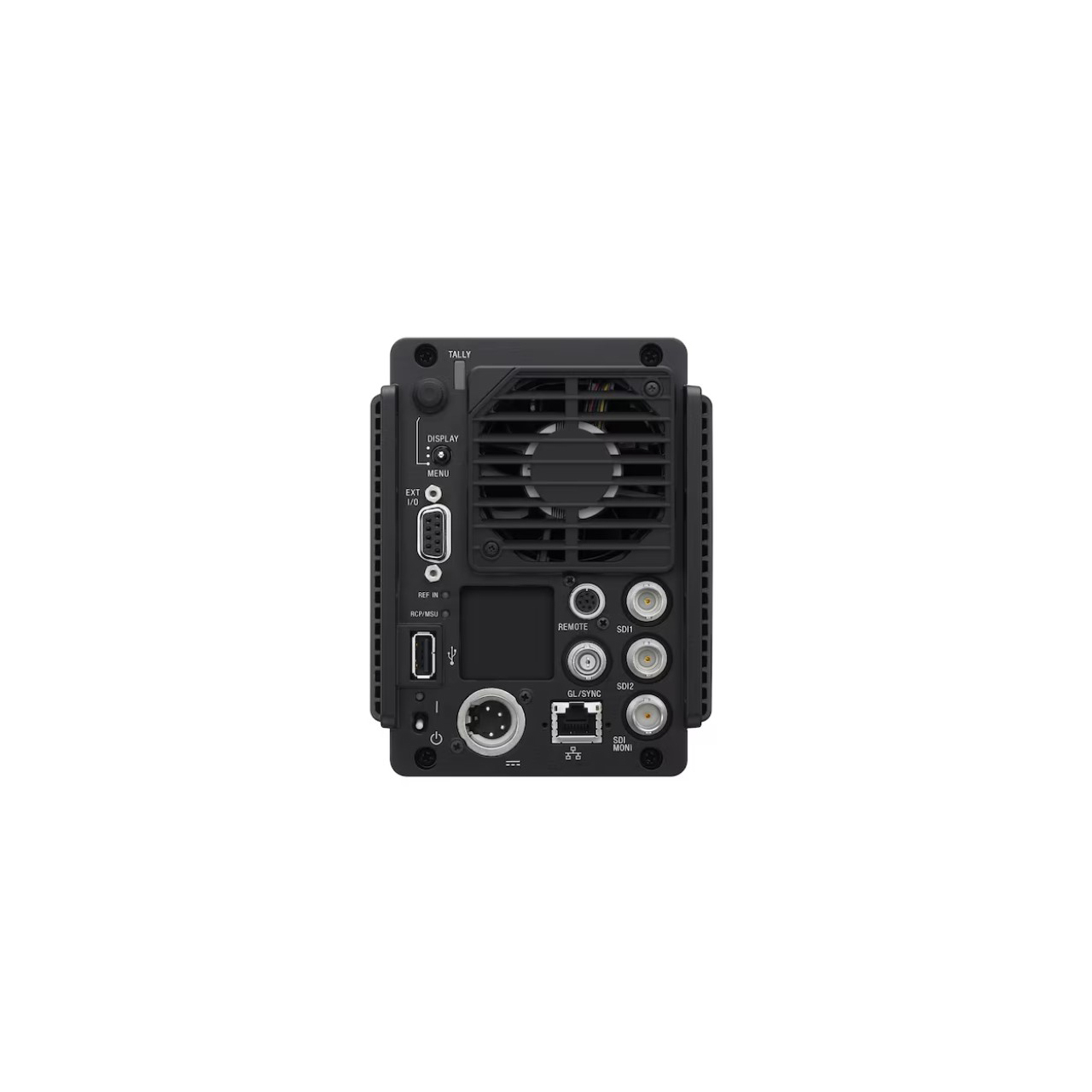

      Inputs/Outputs
    • Genlock Input:
      - 1x BNC
      - HD: SMPTE 274M, tri-level sync, 0.6 Vp-p, 75Ω
      - SD: Black burst (NTSC: 0.286 Vp-p, 75 Ω/PAL: 0.3 Vp-p, 75Ω)
    • SDI 1 Output: 1x BNC, 3G/1.5G-SDI
    • SDI 2 Output: 1x BNC, 3G/1.5G-SDI
    • SDI MONI: 1x BNC, HD-SDI
    • EXT I/O: 1x D-sub 9-pin (female)
    • Remote: 1x 8-Pin
    • Lens: 1x 12-Pin
    • LAN: 1x RJ-45, 10BASE-T, 100BASE-TX

  • Item Includes:

    • 1x Sony HDC-P31 Compact POV Camera
    • 1x Tally Number Plate
    • 1x Operating Manual (CD-ROM)

  • Warranty:

    • 1-Year Warranty
