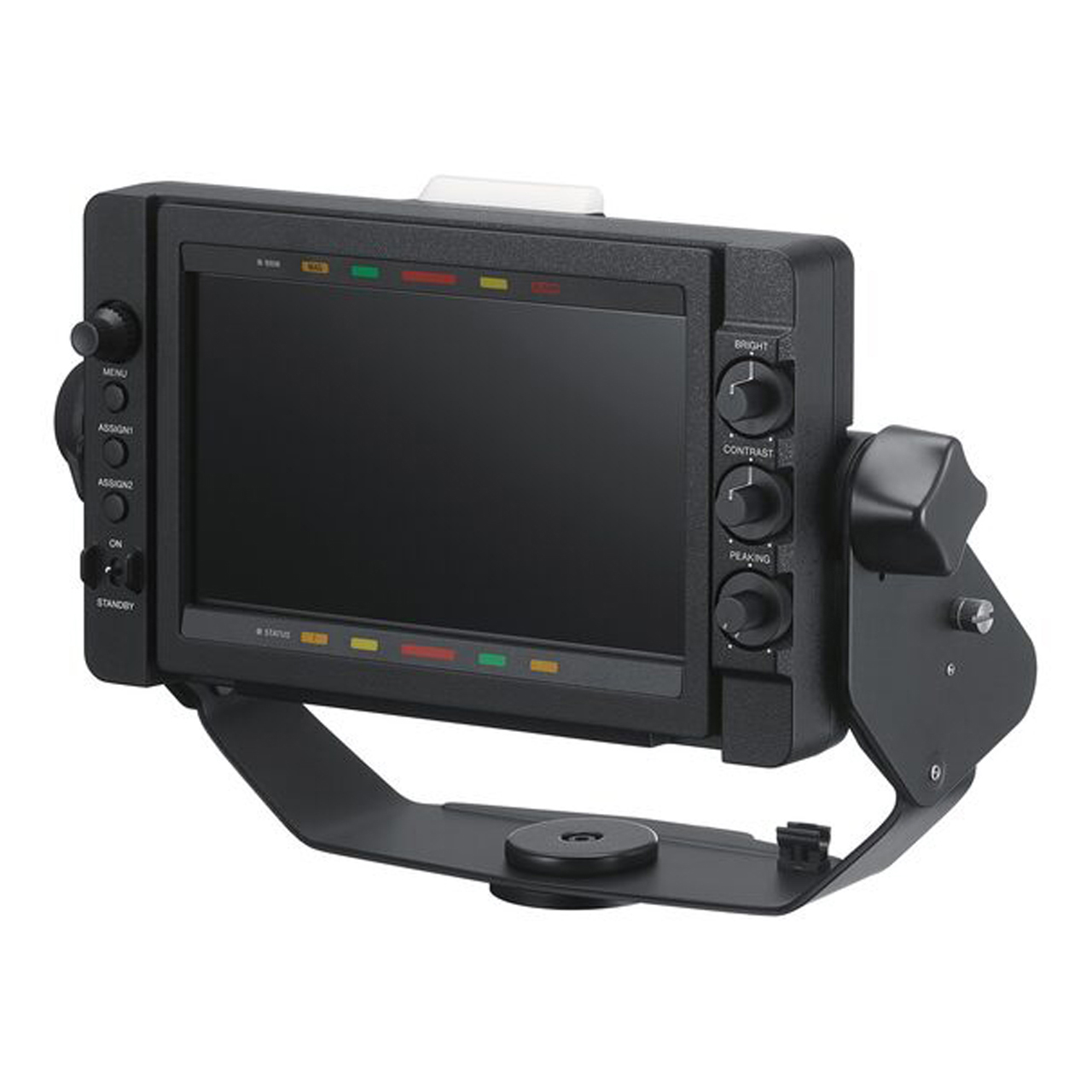

Sony HDVF-EL740 Full HD 1920 x 1080 7.4 Inch OLED Viewfinder for Sony Portable Cameras and XDCAM Camcorders

HDVF-EL740 - Overview

• Features:

  • Full HD 1920 x 1080 7.4-inch OLED panel ideal for 4K/HD live production with Sony studio cameras
  • New digital interface with camera head
  • Combined flexible operation including camera head menus
  • Lifting mechanism
  • Assignable switches on bezel
  • External 3G-SDI input
  • Externally supplied DC power and tally input
  • Boosted Brightness Mode (BBM)
  • Color temperature adjustment
  • Flicker suppression
  • Waveform monitor function (WFM)

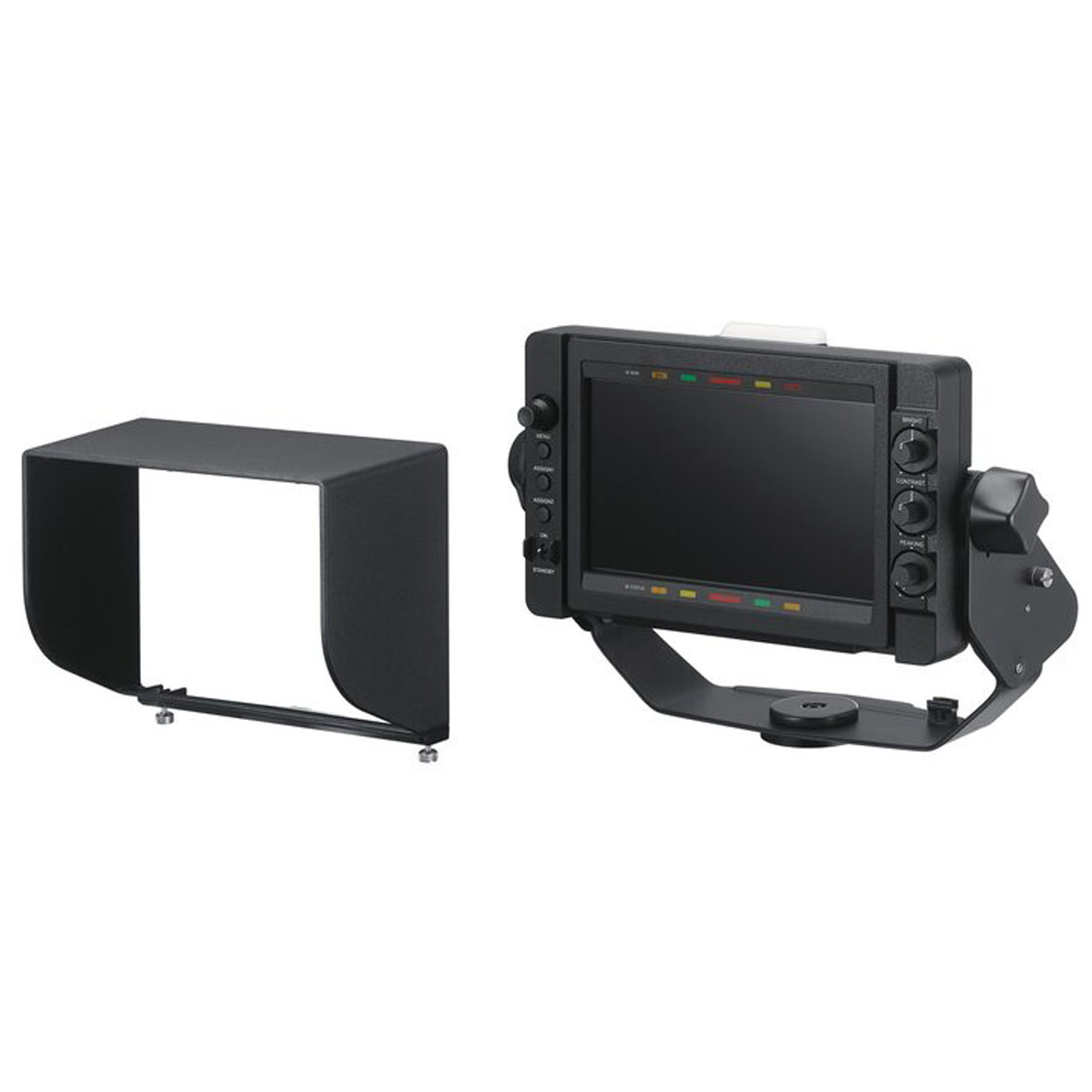

  • Supplied viewfinder hood


• Specifications:

  • General
  • Power Supply: 10.5 V to 17.0 V DC (supplied by the camera or an external supply)
  • Power Consumption: 12.0 W (BBM ON: 13.5 W)
  • Operating Temp: -4°F to +113°F (-20°C to +45°C)
  • Storage Temp: -4°F to +140°F (-20°C to +60°C)
  • Mass: 3lbs 12oz (1.7 kg) (Not including hood)
  • Dimensions (WxHxD): 11.625 x 8.625 x 6 In (295 x 217.9 x 150.7 mm)

    Display Unit
  • Panel: 7.4-inch (188 mm) color OLED panel
  • Effective Picture Size [H/V, 16:9 aspect ratio]: 6.5" x 3.625" (164mm x 92mm)

    Performance
  • Brightness: 315 cd/m2 in normal mode (BBM ON: 700 cd/m2 (typical)
  • Resolution: 1920 x 1080
  • Color Temperature: D65

    Supported Formats (SDI IN)
  • 1080: 23.98PsF, 24PsF, 25PsF, 29.97PsF, 30PsF, 50i, 50p, 59.94i, 59.94p, 60i, 60p
  • 720: 50p, 59.94p

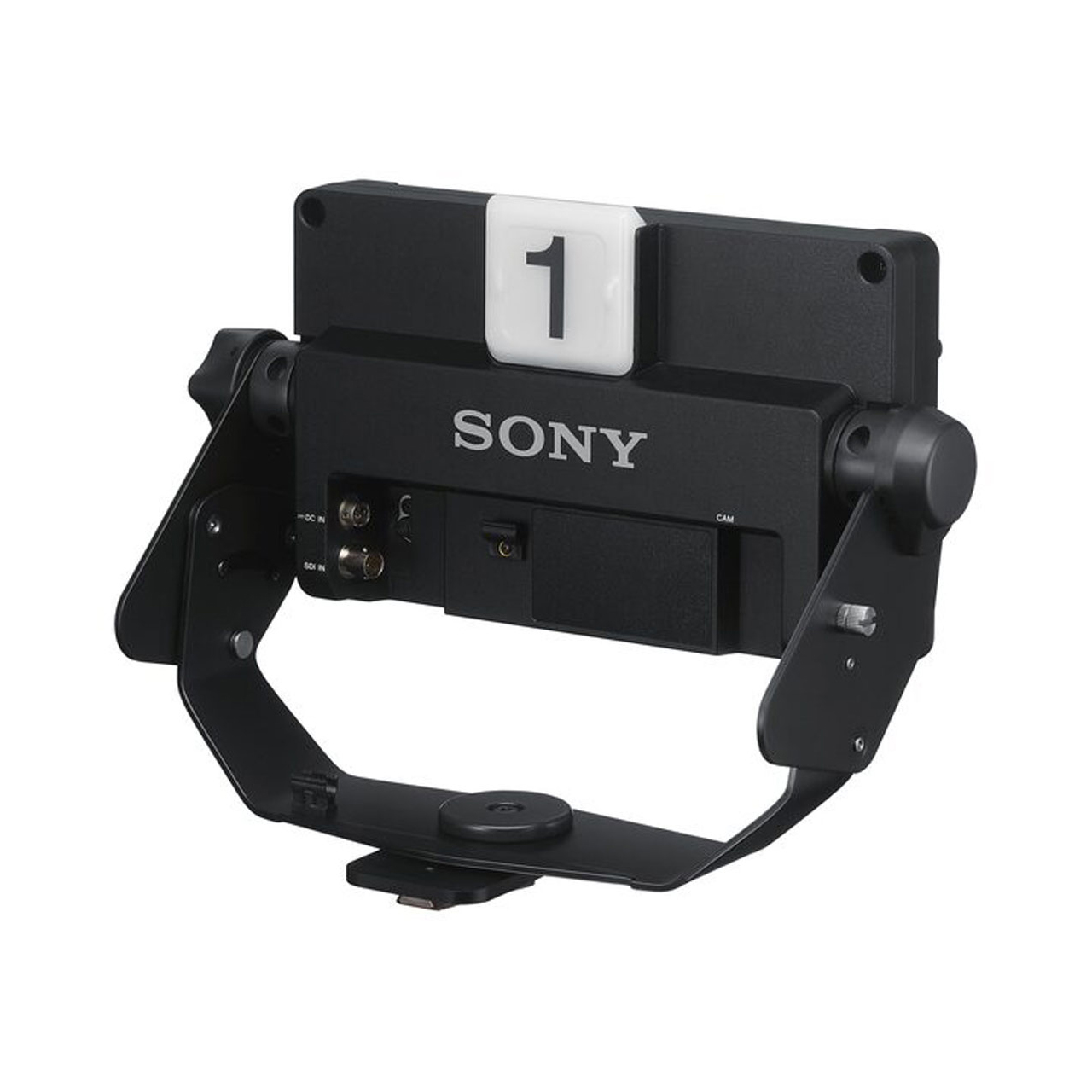

    Connectors
  • Camera Connector: 1x Round type 20-pin
  • SDI Input: 1x BNC Type
  • DC/Tally Input: 1x DIN, 4-pin


• Item Includes:

  • 1x Indoor Hood
  • 1x Number Plate
  • 1x Cleaning Cloth
  • 1x Connection Cable, 20-Pin
  • 1x V Wedge Shoe Attachment
  • 1x Hexagonal Wrench
  • 4x Socket Head Cap Screws
  • 1x Shoe Converter Bracket
  • 4x Mounting Screws
  • 1x Shoe Converter Bracket Spiral Tube
  • 1x Before Using This Unit Booklet
  • 1x Operation Manual CD
